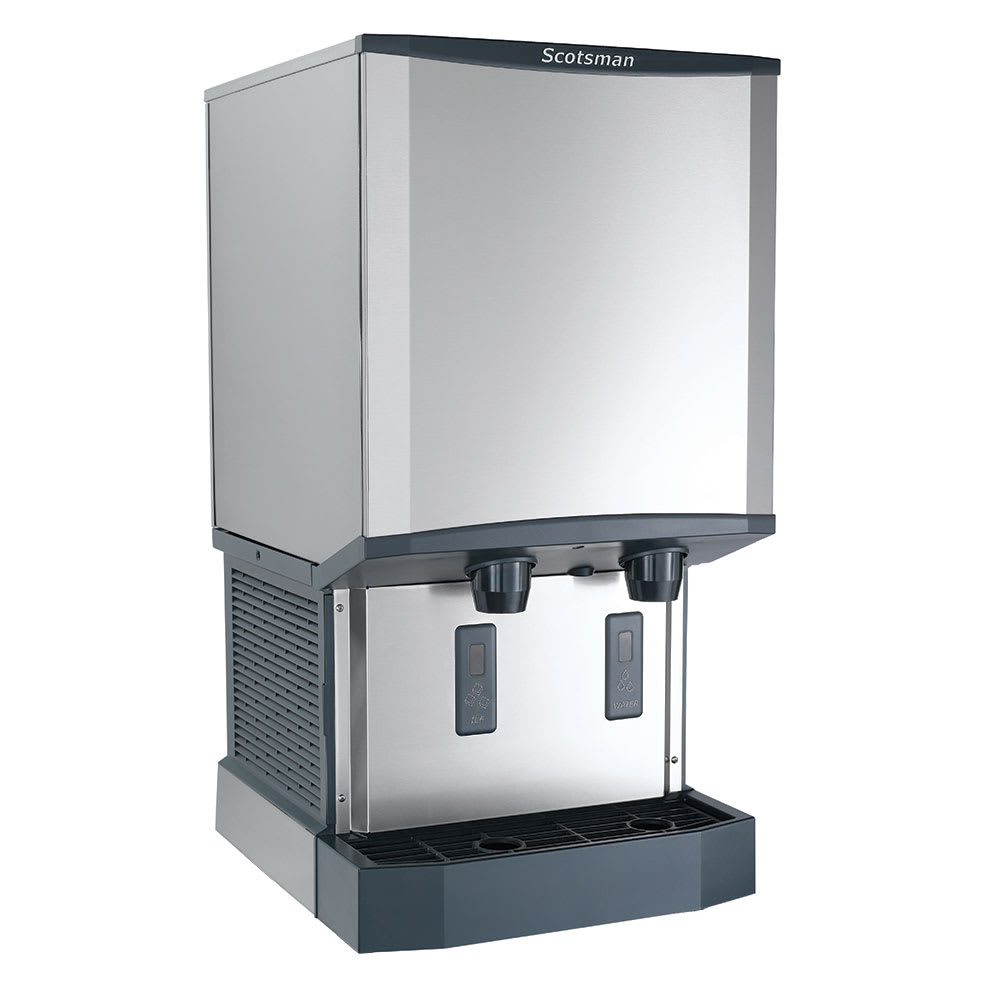

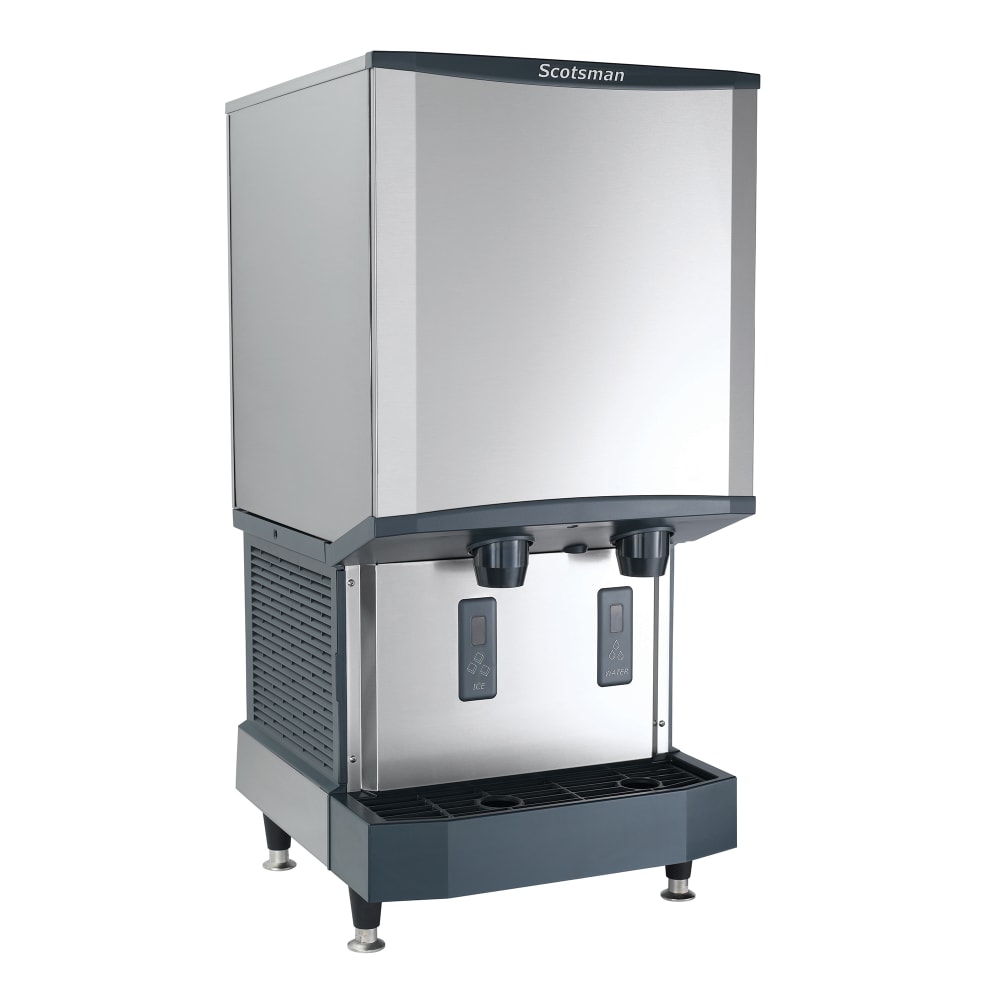

Scotsman HID540AX-1 500 lb Countertop Water & Nugget Ice Dispenser w/ Filter - 40 lb Storage, Touch-Free Dispense, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
Retail Price: $23,611.00
$9,405.00 /Each
Selected Dispenser Type: Sensor
| Sensor |
| Push Button |
Scotsman HID540AX-1 Description
Restaurants, hospitals, and hotels can use the Scotsman HID540AX-1 Meridian™ nugget ice machine for their ice and water needs. This unit has two dispensers—one for water and one for chewable nugget ice, which is less likely to choke patients and children than cube ice. In suitable conditions, this unit can produce 500 pounds of ice in a day, and its bin can store 40 pounds of ice for high-volume periods. Inside the machine, anti-microbial AquaArmor with AgION™ is molded into key components to reduce bacterial growth and keep ice tasting clean and pure.
To save space and enable the motor to breathe, the sides of the machine are specially designed and contoured for the external air filter. The interior components are highly accessible because of the removable front panels, and a removable sink, bin, and grill give convenient cleaning access. Lessening the amount of time needed for service calls, the Scotsman HID540AX-1 nugget ice and water dispenser has LED lights that help diagnose problems. The AP1-P water filter is included with this unit.
- Part of the Meridian series
- 500-lb. daily ice production capacity
- AHRI-certified, 365-lb. daily ice production capacity
- Bin has a 40-lb. storage capacity

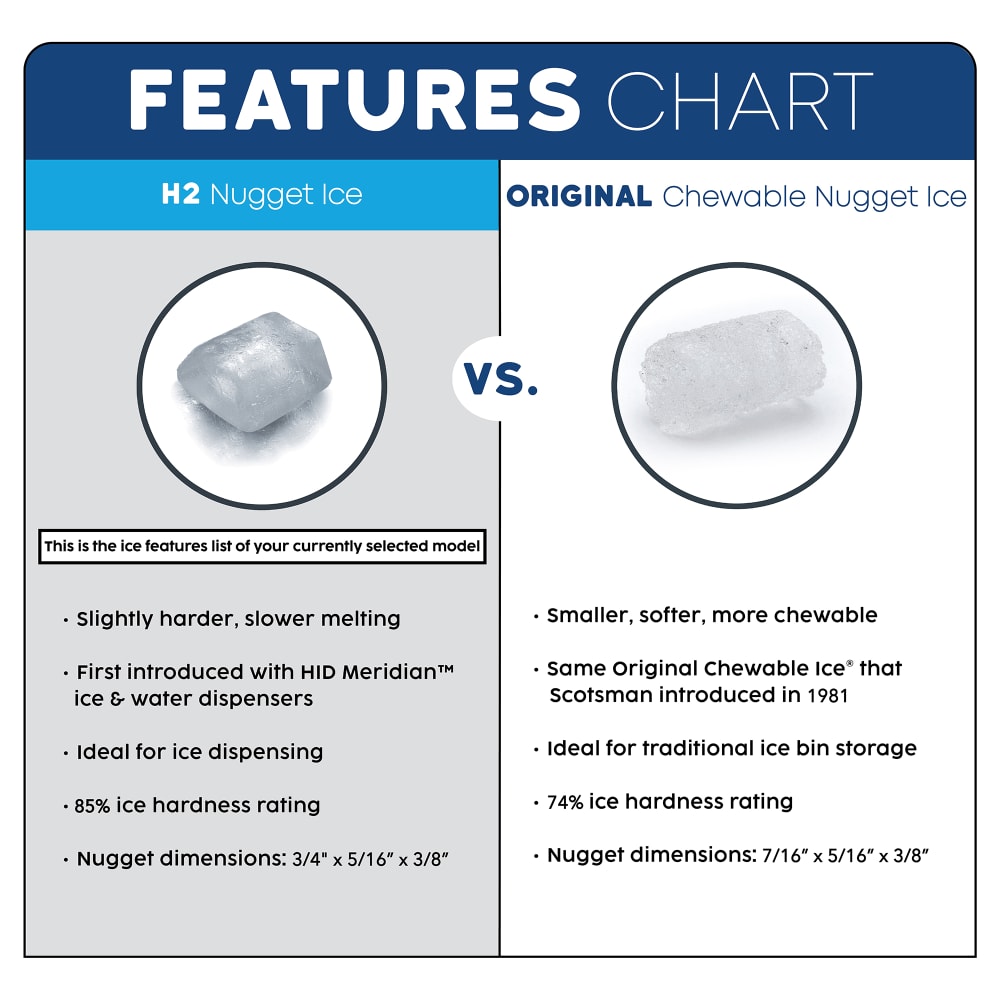

- Nugget ice measures 3⁄4 in. x 5⁄16 in. x 3⁄8 in.
- Anti-microbial AquaArmor with AgION on internal components helps slow bacterial growth
- USB drive enables fast software updates

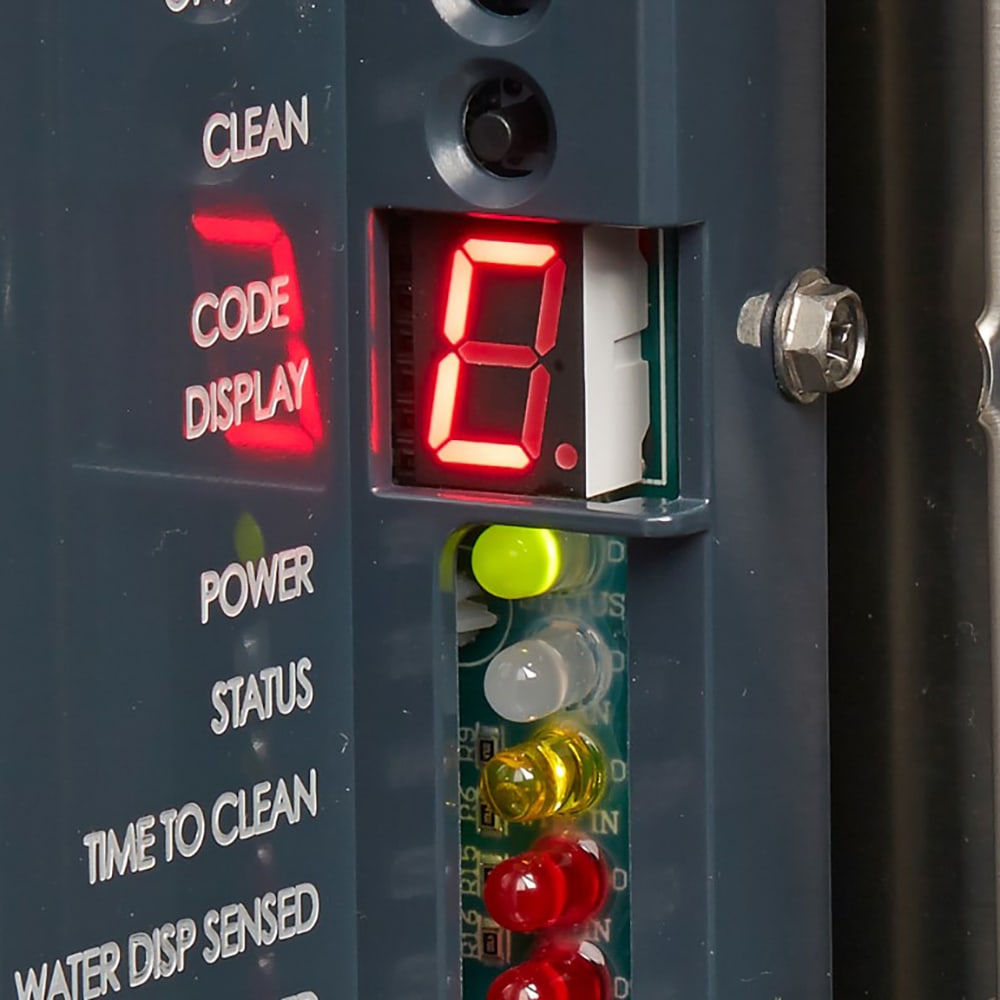

- LED indicator lights reduce service time by helping diagnose performance issues
- QR code is unit-specific for fast access to service manuals and warranty history

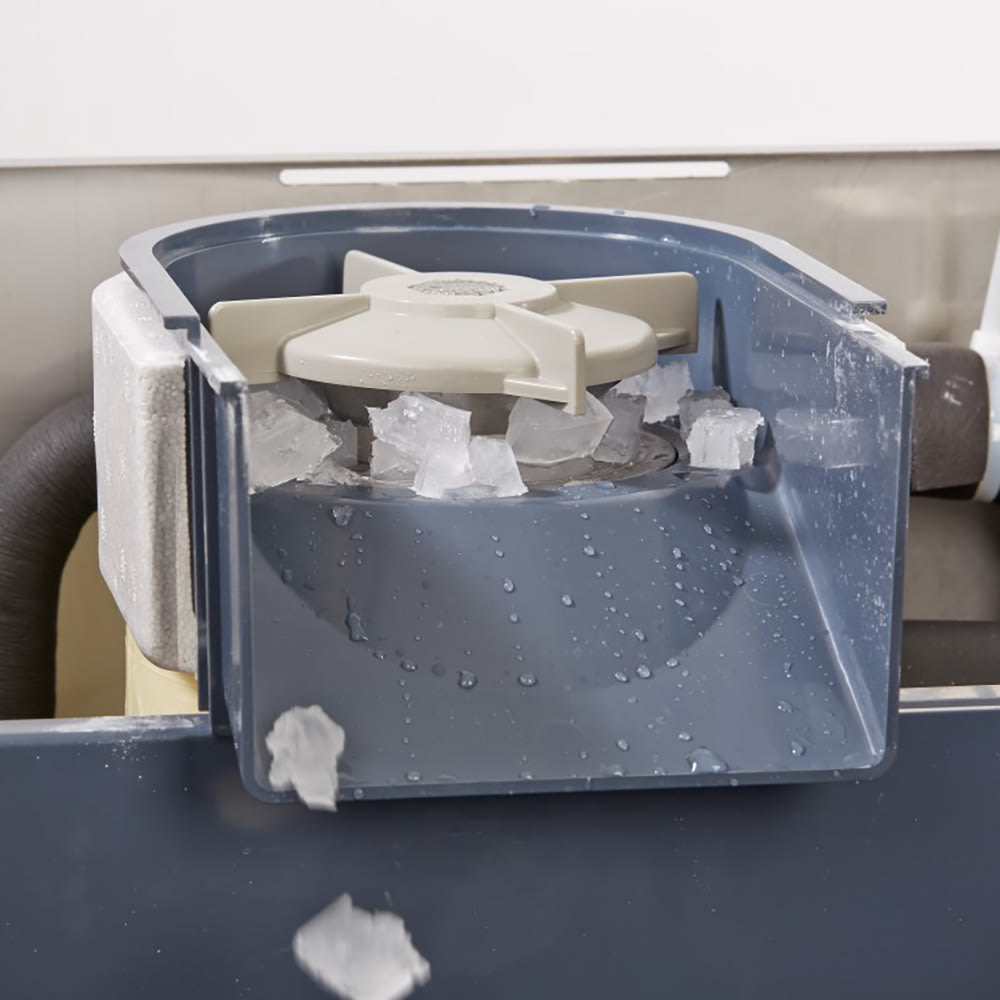

- Removable sink, bin, and grill provide access for cleanup
- Large sink opening and dispensing area
- External air filter facilitates cleaning
- Scotsman AP1-P water filter included
- Durable stainless steel evaporator
- Stainless steel exterior panels supply an attractive appearance and facilitate cleaning
- Greaseless bearings reduce maintenance requirements
- Removable front panels provide access to key internal components
- Space-maximizing design with specially designed contoured sides for better breathability
- Quiet operation with enhanced condenser fan function
- R290 refrigerant
- Surrounding air temperature: 50-100 degrees F
- Incoming water temperature: 40-100 degrees F
- Incoming water pressure: 20-80 PSIG
- Recommended clearance: 6 in. on right, left, and back
- 21 9⁄25 in. W x 24 3⁄8 in. D x 41 in. H
- 9 A, 5.5 kW
- 115 V/60 Hz/1 ph, 7.5-ft. cord with a NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman HID540AX-1 within the 48 contiguous states.
From The Manufacturer
Meridian™ Ice & Water Dispenser, Touchfree® infrared dispensing, H2 Nugget Ice, air-cooled, production capacity up to 500 lb/24 hours at 70°/50° (365 lb AHRI certified at 90°/70°), 40 lb bin storage capacity, sealed maintenance-free bearings, removable bin, removable air filter, SmoothStream™ water dispensing, removable spouts and sink, enlarged 0.8" sink drain, recessed utility chase, stainless steel evaporator and auger, enlarged 11" dispensing area, USB software upgrade port, unit specific QR code, stainless steel exterior, AgION™ antimicrobial protection, R290 refrigerant, includes 7.5’ power cord with NEMA 5-15P plug, 115V/60/1, 9.0 amps, cULus, NSF
AquaPatrol™ Plus Water Filtration System, single system, 2.1 gallons per minute max flow, designed for cubers up to 650 lb, and for flakers, nuggets & nugget dispensers up to 1,200 lb, cULus, NSF
Watch a video about this product
Scotsman HID540AX-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 500 |
| Also Known As | HID540A-1 |
| Amps | 9 |
| Bin Capacity (lb) | 40 |
| Compressor Type | Air Cooled |
| Depth (in) | 24.38 |
| Dispenser Type | Sensor |
| Dispenses | Ice & Water |
| Height (in) | 41 |
| Hertz | 60 |
| Ice Type | Nugget |
| Includes | AP1-P Filtration |
| Installation Type | Countertop |
| NEMA | 5-15P |
| Operation | Self Contained |
| Phase | 1 |
| Product | Ice Dispensers |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Meridian™ |
| Serving Vessel | Cup |
| Special Features | H2 Harder Nugget Ice |
| Special Features | Inline Water Filter Included |
| Special Features | Sealed, Maintenance-Free Bearings |
| Suggested Use | Commercial |
| Suggested Use | Home/Office |
| Voltage | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 21.25 |
| Weight | 215.00 |
Important Prop 65 information for California residents.
- Scotsman MDT6N90A1H
- Scotsman MDT5N40A1H
Compare to Similar Items
| Attributes |
Scotsman HID540AX-1 Scotsman HID540AX-1 500 lb Countertop Water & Nugget Ice Dispenser w/ Filter - 40 lb Storage, Touch-Free Dispense, 115v Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $9,405.00 / Each | $10,060.00 / Each | $10,135.00 / Each | $10,521.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Typically ships in 1 - 3 Business Days | IN STOCK: Ships in 1 Business Day | IN STOCK: Ships in 1 Business Day | Typically ships in 8 - 10 weeks |
| Installation Type | Countertop | Countertop | Countertop | Countertop |
| Dispenses | Ice & Water | Ice & Water | Ice & Water | Ice & Water |
| Dispenser Type | Sensor | Push Button | Sensor | Sensor |
| Bin Capacity (lb) | 40 | 40 | 40 | 50 |
| Ice Type | Nugget | Nugget | Nugget | Nugget |
| Serving Vessel | Cup | Cup | Cup | Cup |
| Series | Meridian™ | Opti-Serve | Symphony Plus™ | |
| Operation | Self Contained | Self Contained | Self Contained | Self Contained |
| Special Features | H2 Harder Nugget Ice | CleanCycle24™ | CleanCycle24™ | AgION™ Antimicrobial Protection |
| Rating | Best | Best | Best | Better |
| Width (in) | 21.25 | 26 | 26 | 21 |
| 24 Hr. Production (lb) | 500 | 597 | 597 | 425 |
| Compressor Type | Air Cooled | Air Cooled | Air Cooled | Air Cooled |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor | 3-year Parts & Labor; 5-year Compressor & Condenser Parts | 3-year Parts & Labor; 5-year Compressor & Condenser Parts | 3-year Parts & Labor; 5-year Compressor Parts |
