Hoshizaki DCM-500BAH 618 lb Countertop Water & Nugget Ice Dispenser - 40 lb Storage, Cup Fill, 115v

Great for self-serve drink stations in restaurants and hospital wings, the Hoshizaki DCM-500BAH countertop dispenser provides ice and water. Unlike ice makers attached to a bin, this dispenser is much more sanitary since users do not have to use scoops to retrieve ice. Ice and water dispense at the touch of a button, and it produces cubelet ice—also called nugget ice— which is great for drinks because it takes on the flavor of the drink and is soft and chewable. In 24 hours, the unit makes as much as 618 pounds of ice, though this depends on ambient air and incoming water temperatures. The ice machine has built-in storage for 40 pounds of ice.

This Hoshizaki DCM-500BAH countertop nugget ice and water dispenser has CleanCycle24™—a feature that purges impurities from the unit to ensure clean and pure ice. There is also an antimicrobial agent built into the components, slowing down bacteria growth, and to further ease cleaning, the bin interior and exterior are made of durable, corrosion-resistant stainless steel.

Product Details

• 618-lb. maximum daily ice production
• 450-lb. AHRI-certified daily ice production
• 40-lb. storage capacity
• Makes cubelet ice

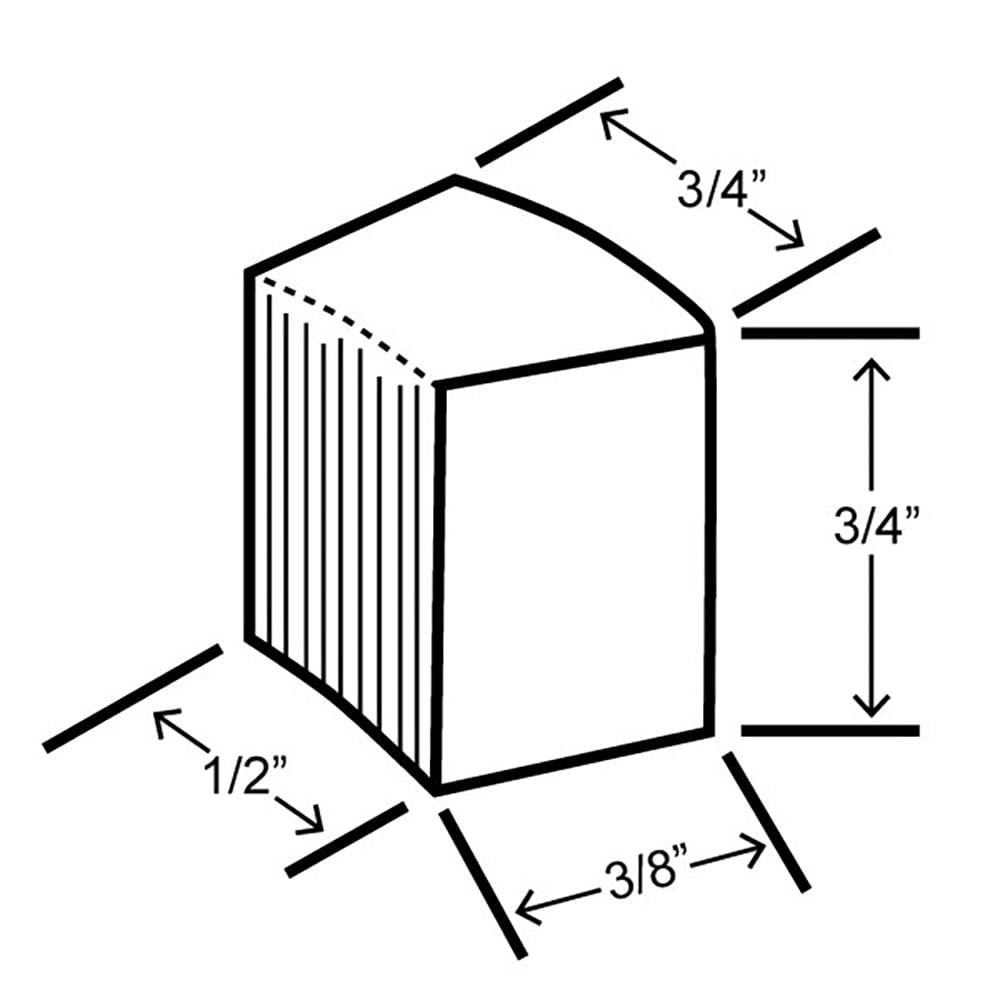

• Cubelet ice size: ¹⁄₂ in. x ³⁄₈ in. x ³⁄₄ in. x ³⁄₄ in.
• Self-contained condenser
• Air-cooled motor
• Push button dispensing operation for water and ice
• Stainless steel exterior and bin interior withstand high-volume use
• Uses R-404A refrigerant
• ¹⁄₂-in. FPT water inlet and ³⁄₄-in. MPT drain
• Ideal ambient air temperature: 45-100 degrees F
• Ideal incoming water temperature: 45-90 degrees F
• Ideal incoming water pressure: 10-113 PSIG

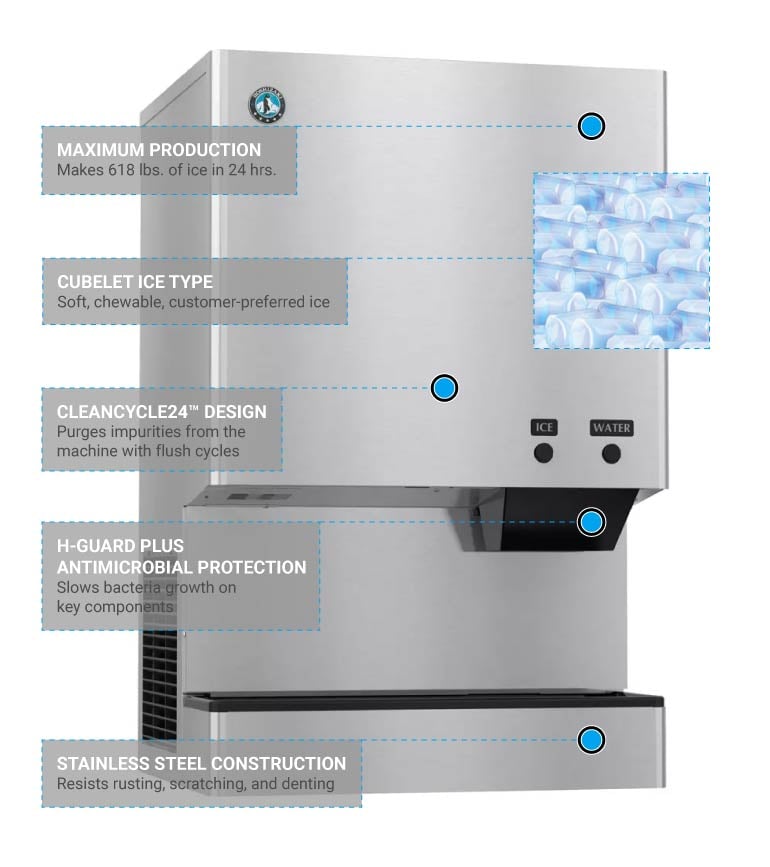

Product Features

Clean and Reliable Dispensing

• CleanCycle24 purges the unit of impurities every hour to ensure pure ice production
• H-Guard Plus antimicrobial agent slows bacteria and mold development in the bin and on internal components
• Internal stainless steel auger has few moving parts, meaning it is less likely to break or malfunction and resists corrosion
• Removable air filter eases cleaning

Dimensions & Utilities

• 26.22 in. W x 22.5 in. D x 47.01 in. H
• 12.9 A, 5.62 kW
• 115 V/60 Hz/1 ph, NEMA 5-15P plug

From The Manufacturer

Ice Maker/Water Dispenser, Cubelet-Style, air-cooled, self-contained condenser, production capacity up to 618 lb/24 hours at 70°/50° (450 lb AHRI certified at 90°/70°), 40 lb built-in storage capacity, counter model, push button operation, stainless steel bin & exterior, protected with H-GUARD Plus Antimicrobial Agent, R-404A refrigerant, 115v/60/1-ph, 12.9 amps, supplied without legs (optional stand sold separately), NSF, UL

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki DCM-500BAH Specifications

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual

Brochure

Optional Accessories

Certifications
