Scotsman HID525AX-1 500 lb Countertop Water & Nugget Ice Dispenser w/ Filter - 25 lb Storage, Cup Fill, Touch-Free Dispe

KaTom #: 044-HID525A1 • MPN: HID525AX-1/AP1-P
  • 044-HID525A1 Primary Thumbnail Image
  • 044-HID525A1 Multiple Thumbnail Image #1
  • 044-HID525A1 Multiple Thumbnail Image #2
  • 044-HID525A1 Multiple Thumbnail Image #3
  • 044-HID525A1 Multiple Thumbnail Image #4
  • 044-HID525A1 Multiple Thumbnail Image #5
  • 044-HID525A1 Multiple Thumbnail Image #6
  • 044-HID525A1 Multiple Thumbnail Image #7
  • 044-HID525A1 Multiple Thumbnail Image #8
  • 044-HID525A1 Multiple Thumbnail Image #9
  • 044-HID525A1 Multiple Thumbnail Image #10
  • 044-HID525A1 Multiple Thumbnail Image #11
  • 044-HID525A1 Multiple Thumbnail Image #12
  • 044-HID525A1 Multiple Thumbnail Image #13

QUICK SHIP: Typically ships in 1 - 3 Business Days

Free Shipping Item

Retail Price: $21,692.00

$8,618.00 /Each

Add-ons & Options

  • Protect Your Product
  • Coverage starting at $155.25
  • Edit Remove

Selected Dispenser Type: Sensor

Tyler Whaley User Image
Ask a Foodservice Equipment Specialist

Scotsman HID525AX-1 Description

The Scotsman HID525AX-1 Meridian™ countertop ice dispenser is capable of producing 500 pounds of ice in a day when ambient air and incoming water conditions are right. This model produces nugget ice, a popular option for soft drink service and as a base for blended drinks like smoothies. A water dispenser provides a convenient place to fill up on tap water, and its storage bin has a 25-pound capacity to help the machine keep up with customer demand. The SmoothStream™ dispensing reduces splashing to maintain a tidy beverage station. Because the unit is sensor based, it provides hands-free dispensing to reduce contact areas and minimize germ spread. AquaArmor with AgION™—a silver-based antimicrobial compound that is applied to key ice dispenser parts—helps prevent bacteria, mold, and mildew growth on integral components.

This Scotsman HID525AX-1 countertop ice dispenser’s greaseless bearings don’t require service often, offering straightforward cleanup and maintenance. Its air filter is located on the outside of the unit and is removable for cleaning, while its front panels detach to provide fast access to internal components that need servicing. Service contractors can use the machine's unique QR code, which will connect them with a user’s manual and warranty information. Operators can provide software updates via a built-in USB port, and diagnostic LED lights alert users when service is necessary. When thorough cleaning is needed, the storage bin is fully removable. The Scotsman AP1-P water filter is included with this unit.

  • Part of the Meridian series
  • Dispenses both nugget ice and water

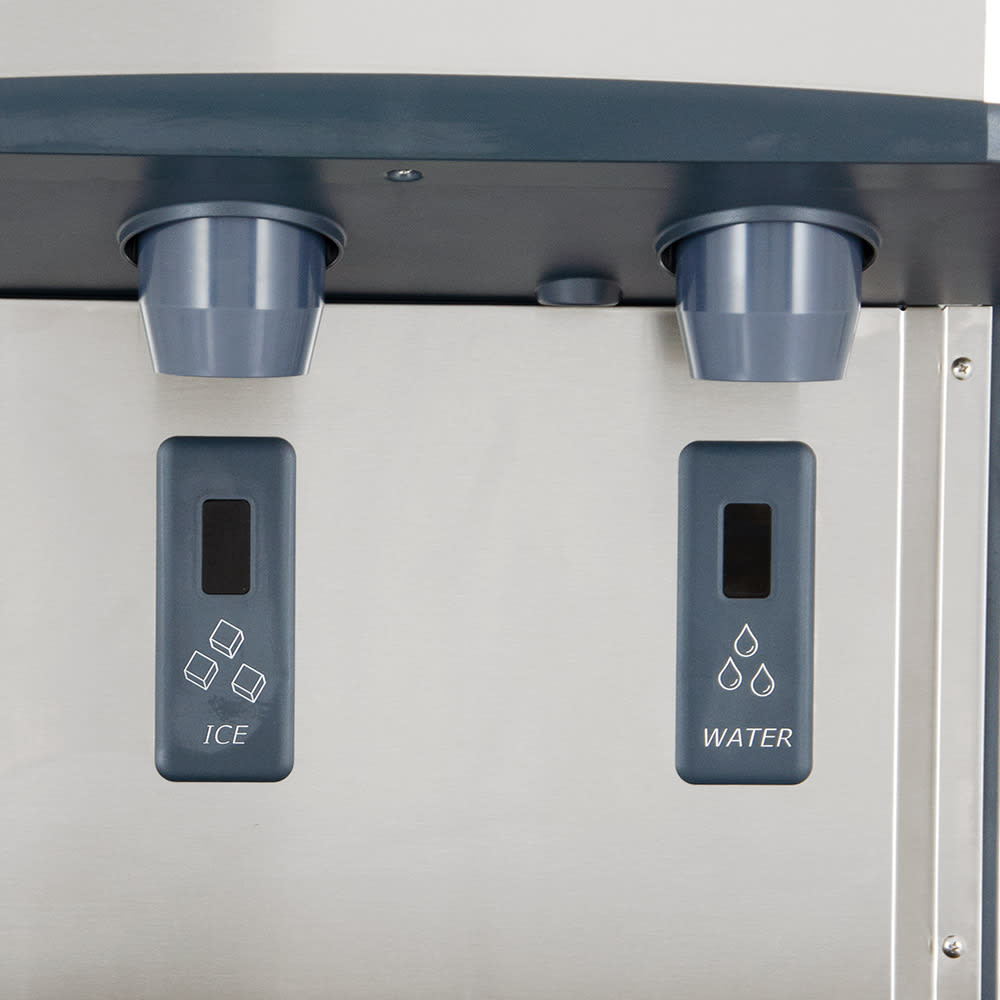

  • Touch-free sensor dispensing
  • 500-lb. daily ice production capacity
  • AHRI-certified, 365-lb. daily ice production capacity

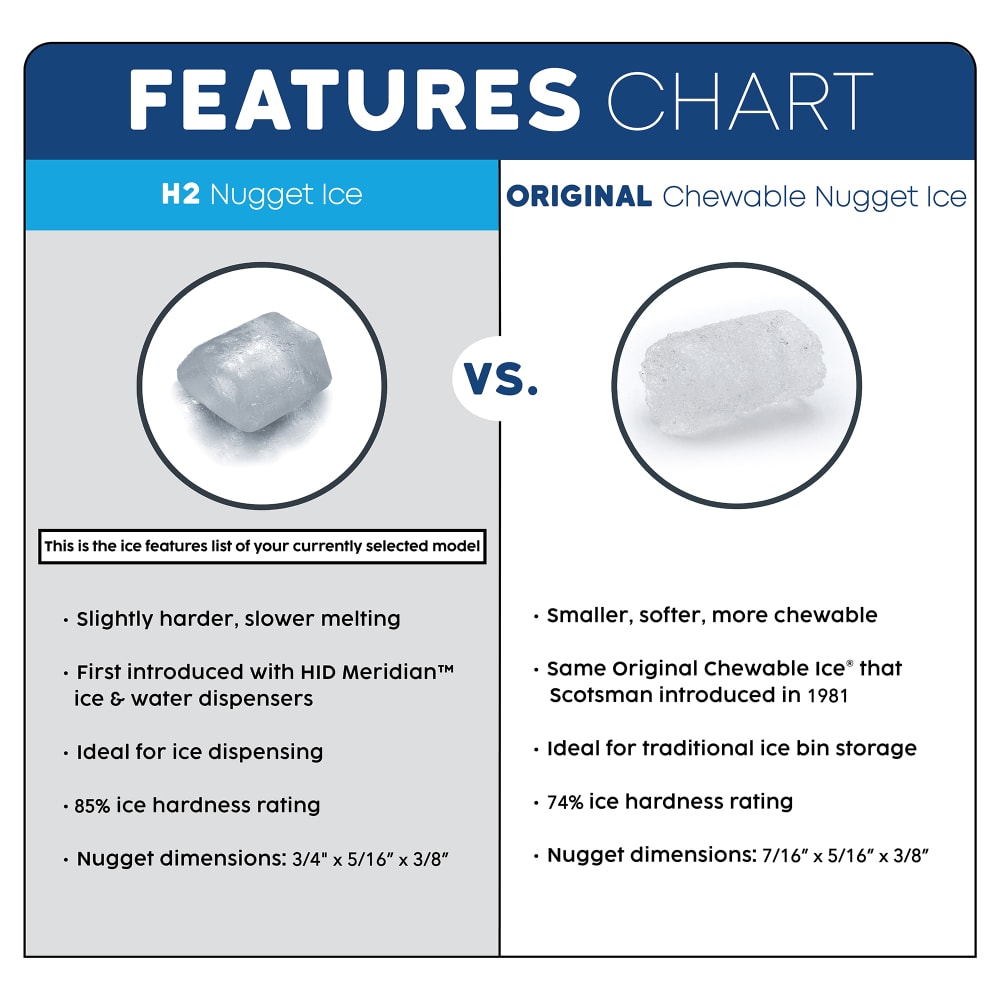

  • Nugget ice size: 3⁄4 in. x 5⁄16 in. x 3⁄8 in.
  • 25-lb. storage bin capacity
  • Countertop unit
  • Air-cooled condenser provides greater water efficiency than a water-cooled unit
  • Uses AquaArmor with AgION on key components to prevent microbe and bacteria growth
  • Stainless steel exterior
  • LED diagnostic lights
  • QR code for access to service manuals and warranty information
  • Software updates through USB drive
  • Uses R290 refrigerant

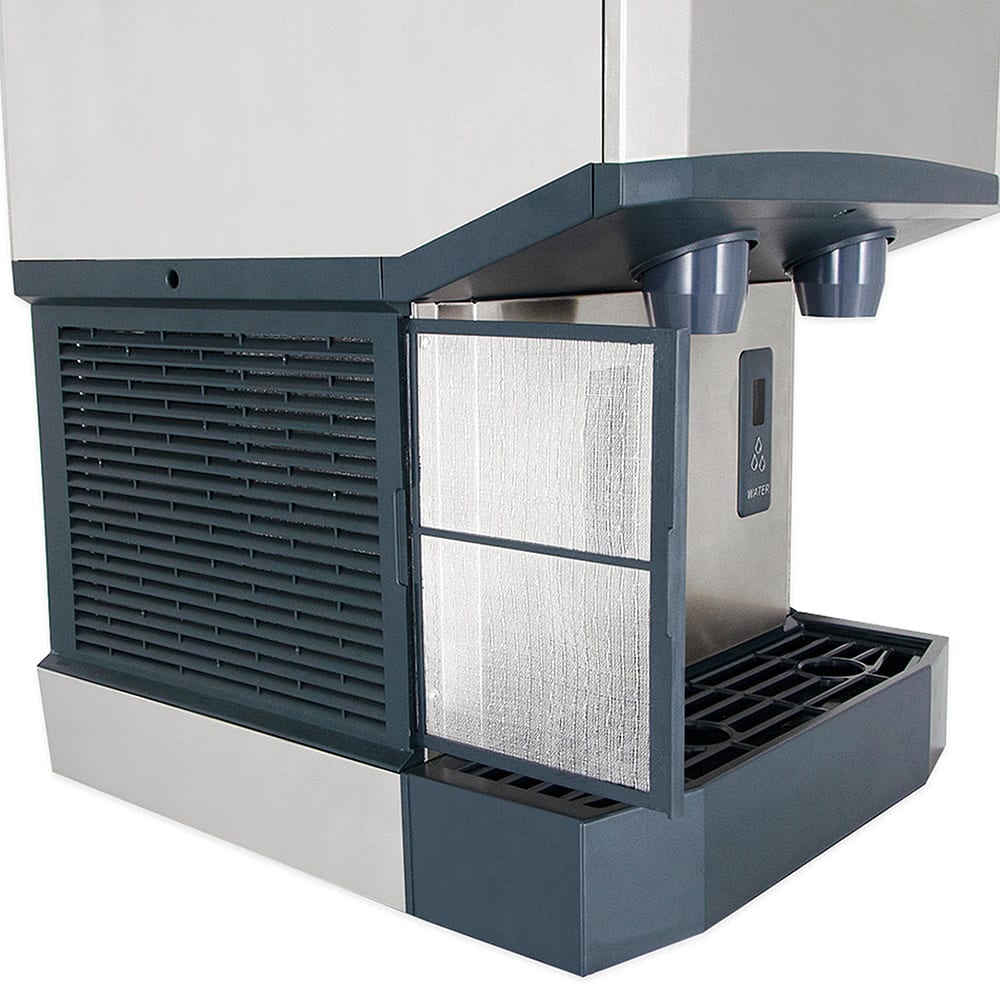

  • Removable air filter for quick cleaning
  • AP1-P water filter included

  • Front panels are removable to support maintenance
  • Storage bin can be removed for thorough cleaning
  • Bearings do not require grease for operation, reducing required maintenance
  • Large dispensing area for customers or servers
  • Condenser fan runs quietly

  • Surrounding air temperature: 50-100 degrees F
  • Incoming water temperature: 40-100 degrees F
  • Incoming water pressure: 20-80 PSIG
  • Recommended clearance: 6 in. on left, right, and back

  • 12 1⁄4 in. W x 24 3⁄8 in. D x 35 in. H
  • 9 A, 5.5 kW
  • 115 V/60 Hz/1 ph, 7.5-ft. cord with NEMA 5-15P plug

*Image may not depict product color, inclusions or accessories.

*Free shipping on Scotsman HID525AX-1 within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

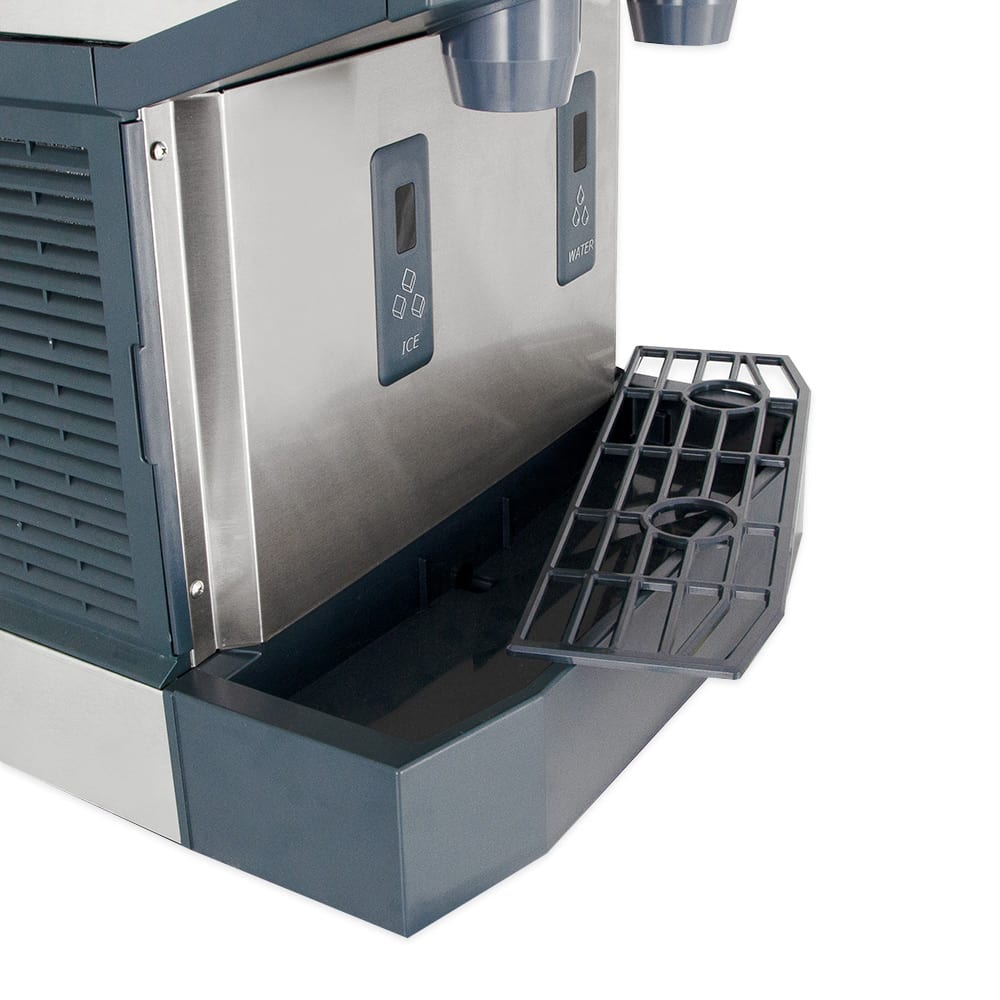

Meridian™ Ice & Water Dispenser, Touchfree® infrared dispensing, H2 Nugget Ice, air-cooled, production capacity up to 500 lb/24 hours at 70°/50° (365 lb AHRI certified at 90°/70°), 25 lb bin storage capacity, sealed maintenance-free bearings, removable bin, removable air filter, SmoothStream™ water dispensing, removable spouts and sink, enlarged 0.8" sink drain, recessed utility chase, stainless steel evaporator and auger, enlarged 11" dispensing area, USB software upgrade port, unit specific QR code, stainless steel exterior, AgION™ antimicrobial protection, R290 refrigerant, includes 7.5’ power cord with NEMA 5-15P plug, 115V/60/1, 9.0 amps, cULus, NSF

AquaPatrol™ Plus Water Filtration System, single system, 2.1 gallons per minute max flow, designed for cubers up to 650 lb, and for flakers, nuggets & nugget dispensers up to 1,200 lb, cULus, NSF

Warranty Icon
Commercial: 3-year Parts & Labor; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor
