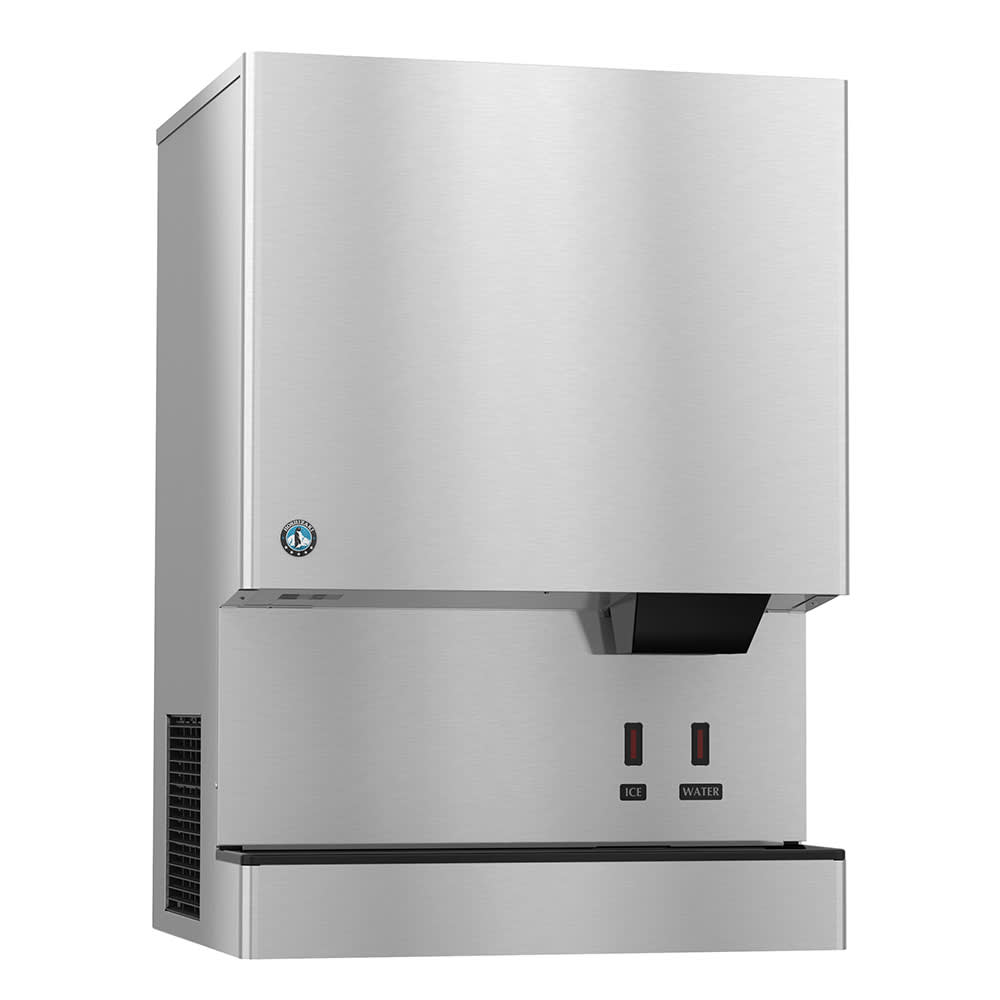

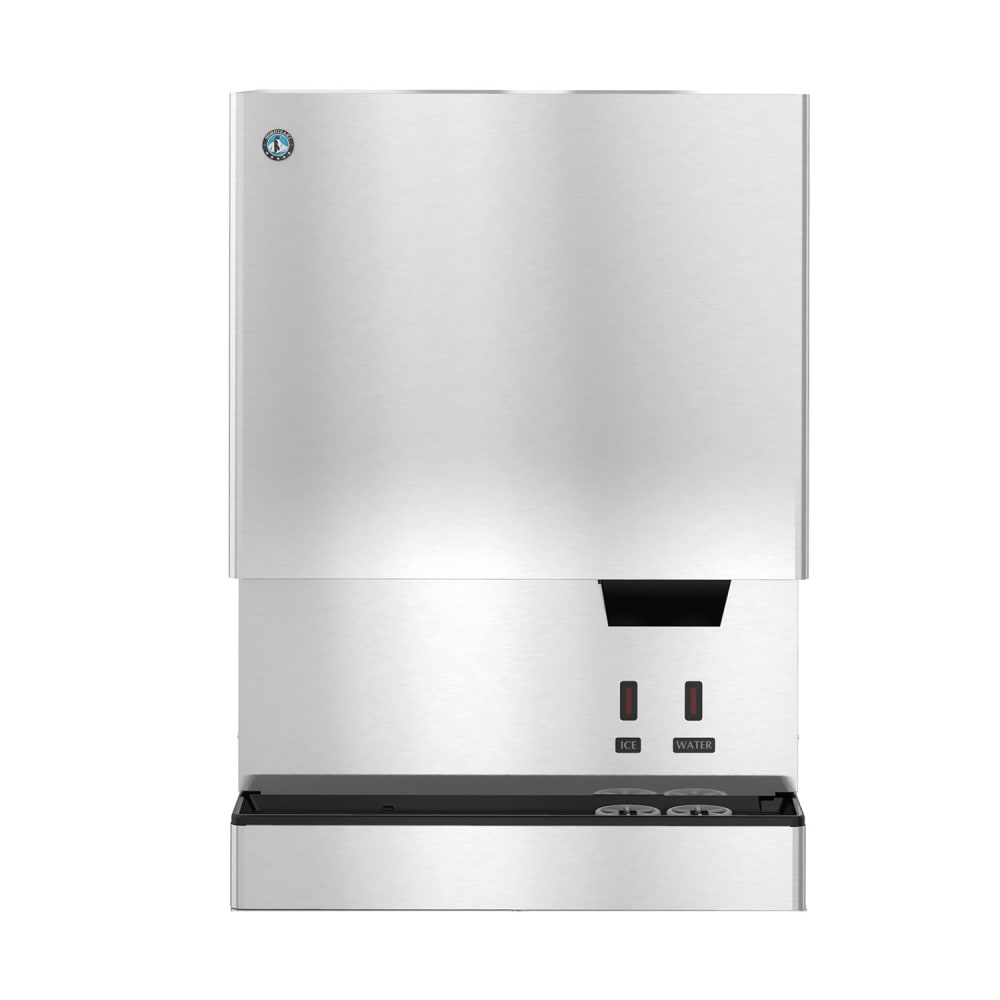

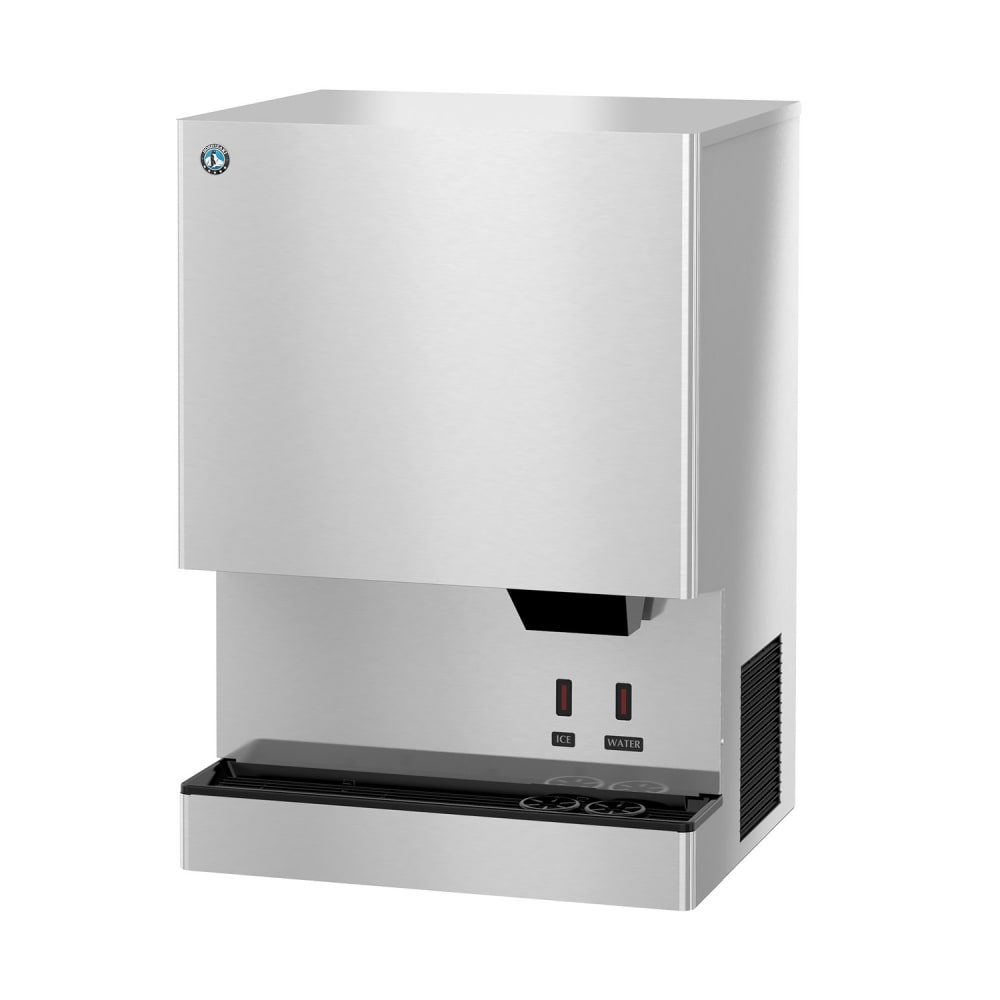

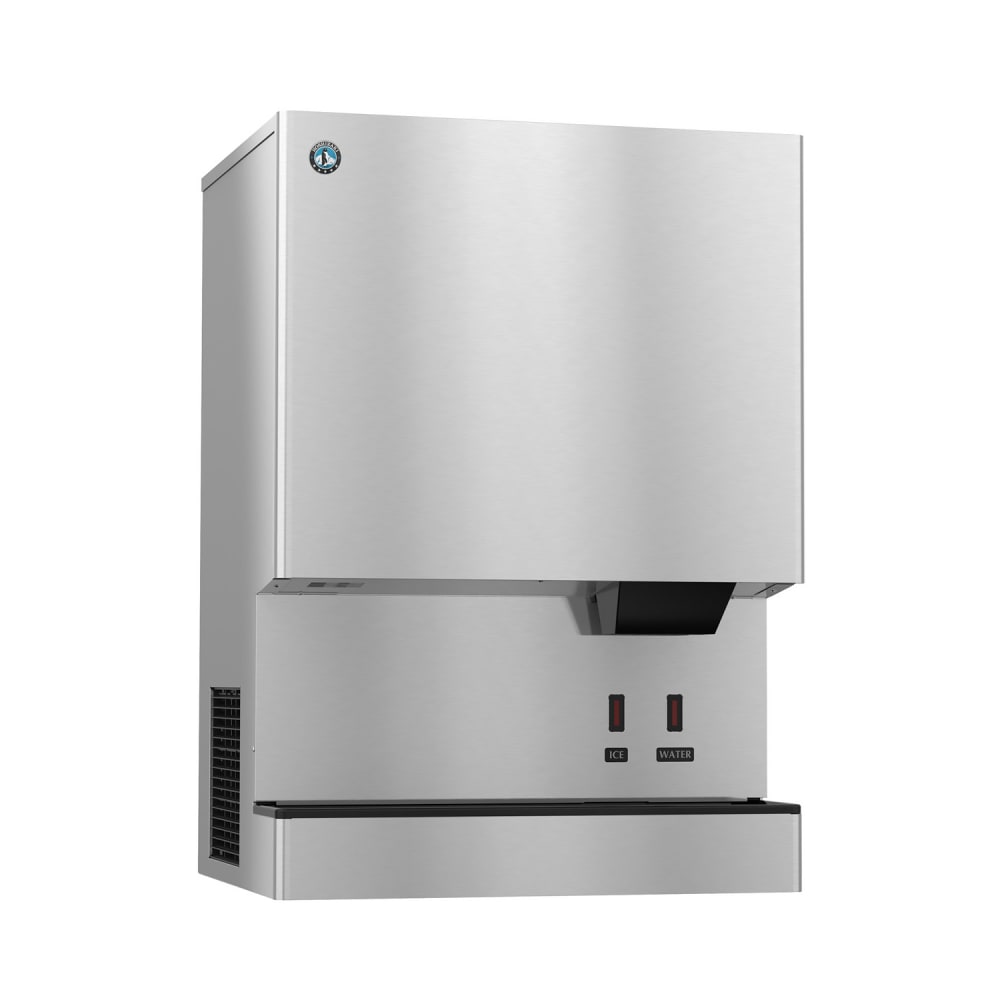

Hoshizaki DCM-752BAH-OS 708 lb Countertop Water & Nugget Ice Dispenser - 95 lb Storage, Cup Fill, 115v

The Hoshizaki DCM-752BAH-OS countertop ice machine and water dispenser is capable of producing as much as 708 pounds of ice per day and features a built-in storage bin constructed of durable stainless steel. Ideal for compact spaces, it’s designed for countertop use and utilizes a self-contained refrigeration system to simplify installation. This unit produces chewable, cubelet-style ice that is perfect for cooling soft drinks.

To ensure corrosion resistance and strength, the exterior of the Hoshizaki DCM-752BAH-OS ice and water dispenser is made of stainless steel. It utilizes a 2-second flush cycle every hour to maintain ice quality and is protected with antimicrobial H-GUARD to inhibit the growth of mold, viruses, and bacteria. This unit uses R404A refrigerant and has an operating ambient temperature range of 45-100 degrees Fahrenheit.

Product Details

• 708-lb. maximum daily ice production
• 576-lb. AHR-certified daily ice production
• Produces cubelet-style ice

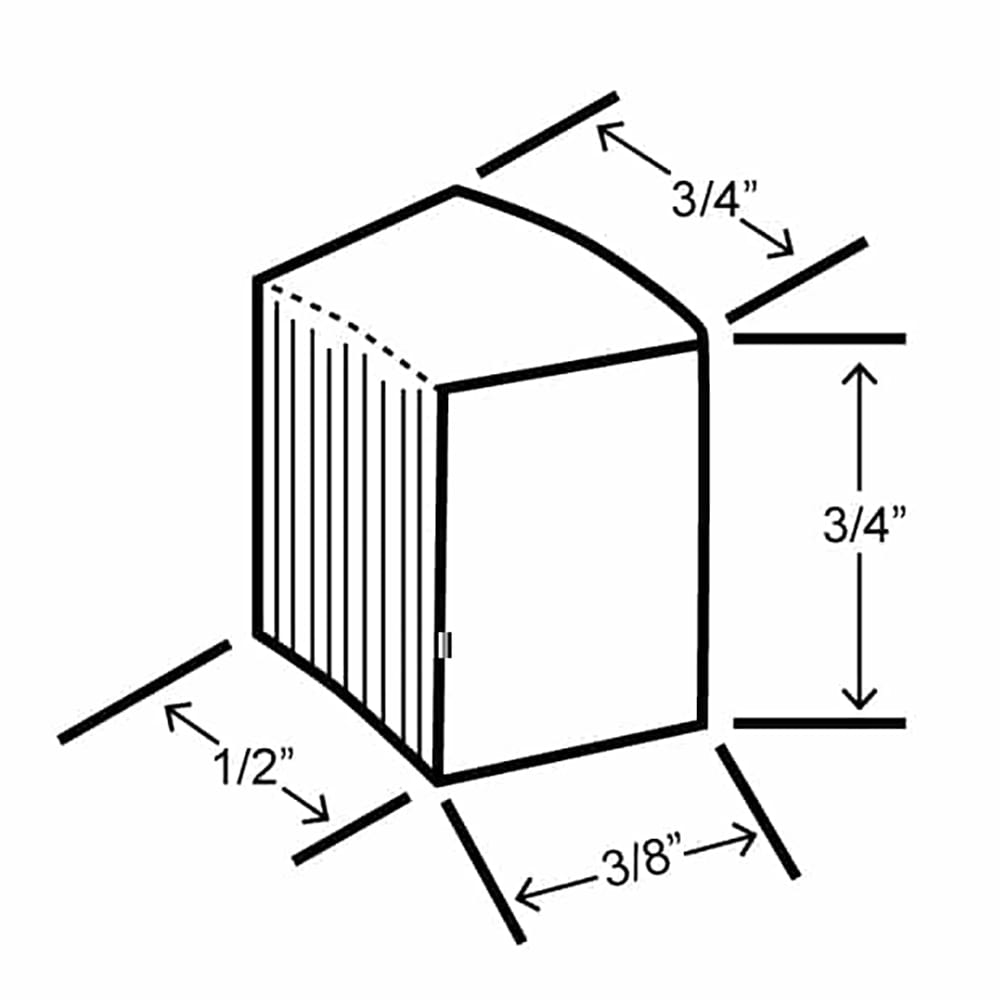

• Individual ice cubelet dimensions: ¹⁄₂ in. x ³⁄₈ in. x ³⁄₄ in. x ³⁄₄ in.
• Countertop model
• 95-lb. built-in storage capacity
• Corrosion-resistant stainless steel bin and exterior
• Dispenses both water and ice
• Air-cooled, self-contained refrigeration system
• H-GUARD inhibits the growth of bacteria and other microbes
• Uses R404A refrigerant
• 2-sec. flush cycle every hour
• Operating ambient temperature range: 45-100 degrees F
• Operating water temperature range: 45-90 degrees F
• Operating incoming water pressure: 10-113 PSIG
• 6,900-BTU transfer capacity

Product Features

Dimensions & Utilities

• 34.06 in. W x 28.50 in. D x 48.06 H
• 18.9 A
• 115 V/60 Hz/1 ph, NEMA 5-15P plug

*Free shipping on Hoshizaki DCM-752BAH-OS within the 48 contiguous states.

From The Manufacturer

Opti-Serve Ice Maker/Water Dispenser, Cubelet-Style, air-cooled, self-contained condenser, production capacity up to 708 lb/24 hours at 70°/50° (576 lb AHRI certified at 90°/70°), 95 lb built-in storage capacity, counter model, LED sensor operation, stainless steel bin & exterior, protected with H-GUARD Plus Antimicrobial Agent, R-404A refrigerant, 115v/60/1-ph, 18.9 amps, supplied without legs (optional stand sold separately), NSF, UL

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Compressor & Condenser Parts
