Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries.

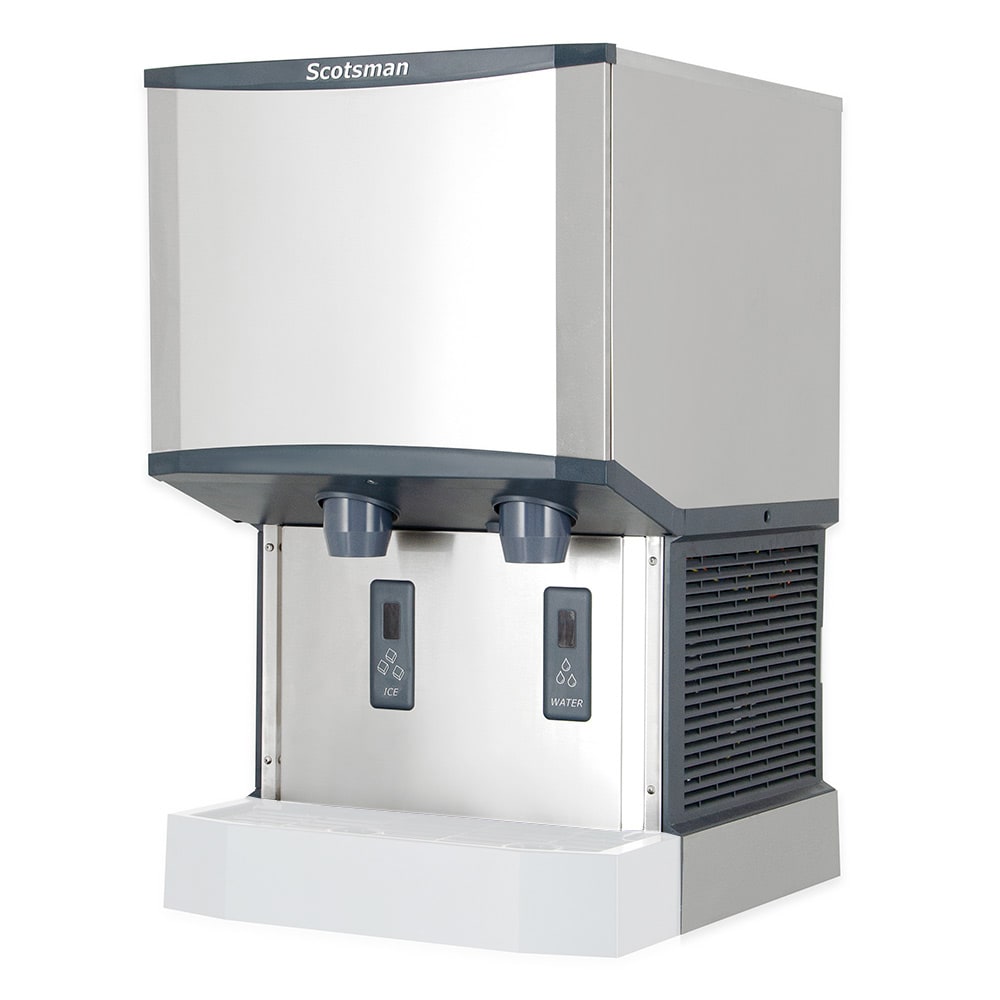

Scotsman HID540AW-1 500 lb Wall-Mount Water & Nugget Ice Dispenser - 40 lb Storage, Cup Fill, Touch-Free Dispense, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
Retail Price: $22,458.00
$9,207.00 /Each
White Glove Delivery
Contact your sales rep for availability
Scotsman HID540AW-1 Description
The Scotsman HID540AW-1 ice and water dispenser can be set up in an office or lobby to provide refreshment to employees, customers, and visitors. It produces nugget ice, popular due to its small size and snackability. The machine is air cooled and won’t require the extensive setup of a remote- or water-cooled system. It’s designed for wall mounting.
The Scotsman HID540AW-1 wall-mount water and ice dispenser produces as much as 500 pounds of ice in ideal conditions. Its front panel can be removed for internal servicing, as can the dispenser’s air filter, spouts, and bin. This bin holds 40 pounds of ice before it is dispensed.
Product Details
- Part of the Meridian™ line
- 500-lb. maximum daily ice production
- 365-lb. AHRI-certified daily ice production
- Air-cooled system
- Makes nugget ice
- Wall mounted
- Removable front panel
- Antimicrobial protection ensures excellent sanitation
- AgION™
- 40-lb. bin
- Removable bin, air filter, and spouts
- Stainless steel auger and evaporator resist corrosion and scratching
- External air filter streamlines maintenance
- Stainless steel exterior
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSI
- R404A refrigerant
- 6,800-BTU heat transfer capacity
Product Features

Dimensions & Utilities
- 231/4 in. W x 243/8 in. D x 41 in. H
- 5.5 kW
- 115 V/60 Hz/1 ph, cord with a NEMA 5-15P plug

*Free shipping on Scotsman HID540AW-1 within the 48 contiguous states.
From The Manufacturer
Meridian™ Ice & Water Dispenser, wall mounted, Touchfree® IR dispensing, H2 Nugget Ice, air cooled, production capacity up to 500 lb/24 hours at 70°/50° (365 lb AHRI certified at 90°/70°), 40 lb bin storage capacity, sealed maintenance-free bearings, removable bin, removable air filter, removable spouts, enlarged 0.8" sink drain, recessed utility chase, stainless evaporator and auger, enlarged 11" dispensing area, USB software upgrade port, unit specific QR code, stainless exterior, AgION™ antimicrobial protection, R-404a refrigerant, includes power cord with NEMA 5-15P plug, 115V/60/1, 9.0 amps, cULus, NSF, CE, engineered and assembled in USA
*Image may not depict product color, inclusions or accessories.

Scotsman HID540AW-1 Specifications
Spec Attribute | Spec Value |
---|---|
Manufacturer | Scotsman |
24 Hr. Production (lb) | 500 |
Amps | 9 |
Bin Capacity (lb) | 40 |
Compressor Type | Air Cooled |
Depth (in) | 24.38 |
Dispenser Type | Sensor |
Dispenses | Ice & Water |
Height (in) | 41 |
Hertz | 60 |
Ice Type | Nugget |
Installation Type | Wall Mount |
NEMA | 5-15P |
Operation | Self Contained |
Phase | 1 |
Product | Ice Dispensers |
Product Type | Ice Makers & Bins |
Rating | Best |
Refrigerant | R404A |
Series | Meridian™ |
Serving Vessel | Cup |
Special Features | H2 Harder Nugget Ice |
Special Features | Sealed, Maintenance-Free Bearings |
Suggested Use | Commercial |
Suggested Use | Home/Office |
Voltage | 115 |
Warranty | Commercial: 3-year Parts & Labor; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
Water Inlet (in) | 0.38 |
Width (in) | 23.25 |
Weight | 220.00 |
