Scotsman HID540AB-1 500 lb Countertop Water & Nugget Ice Dispenser - 40 lb Storage, Cup Fill, Push-Button Dispensing, 11

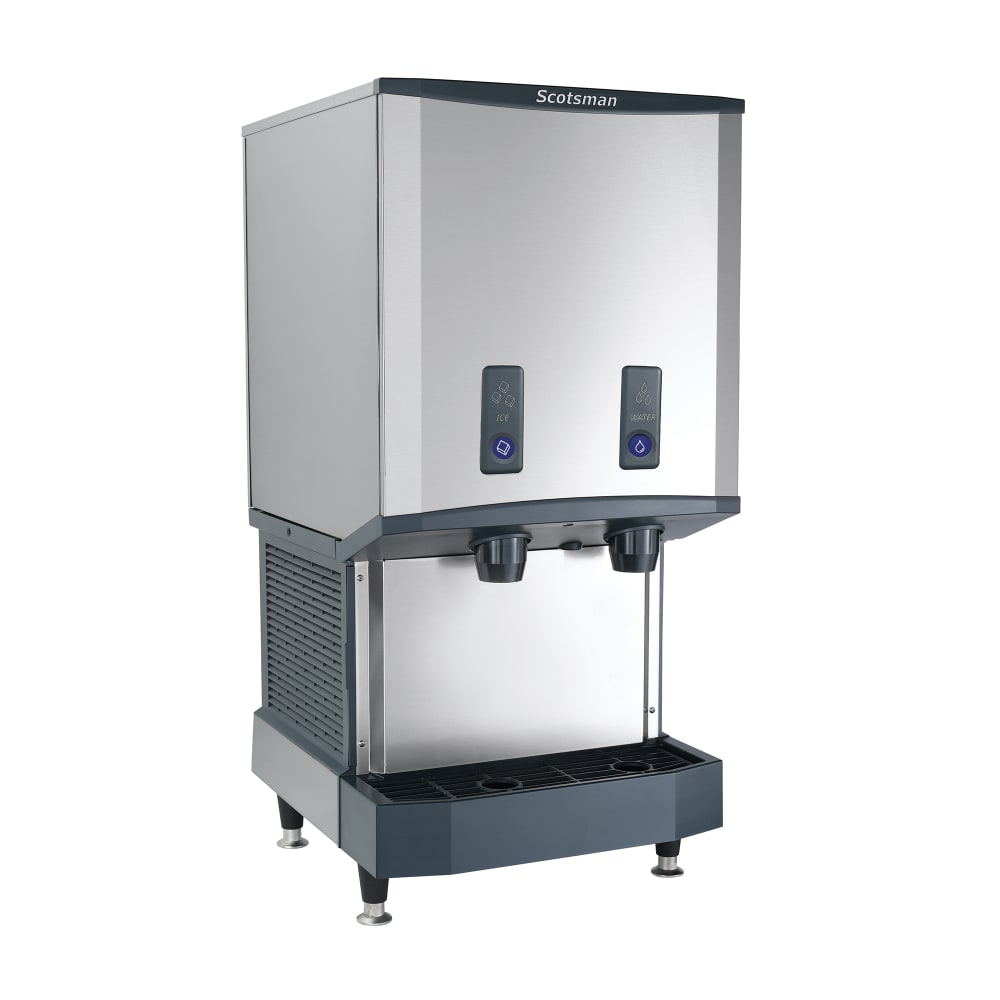

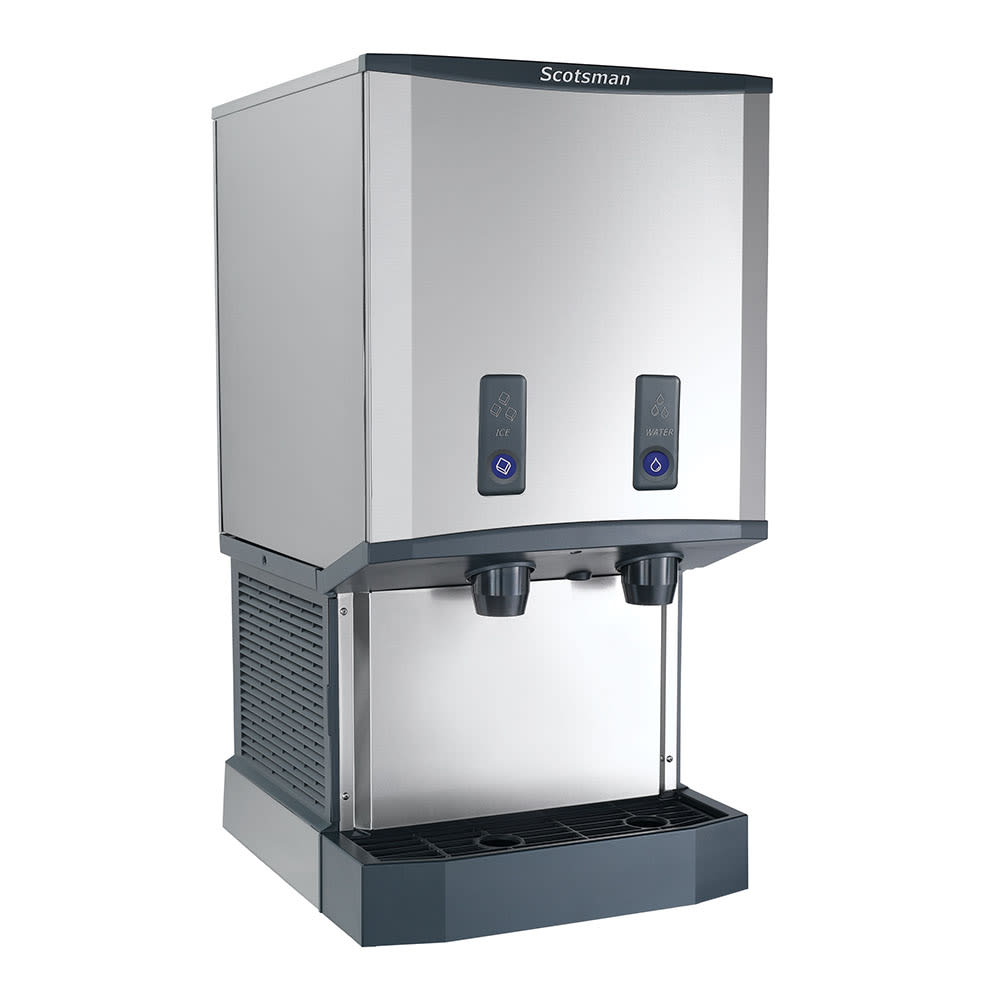

Ideal for medium-volume operations, the Scotsman HID540AB-1 countertop ice dispenser produces as much as 500 pounds of ice per day in optimal environmental conditions. It crafts H² nugget ice—an absorbent type perfect for cooling soft drinks and lemonade. To keep fresh ice on hand, it's equipped with a 40-pound storage bin. This unit measures 21¹/₄ inches wide by 24¹⁹/₅₀ inches deep by 41 inches high with an 11-inch dispensing area that accommodates most drinkware; its compact footprint enables countertop placement. To reduce maintenance needs, it's built with sealed bearings.

Sturdy and corrosion resistant, the Scotsman HID540AB-1 ice and water dispenser's auger, evaporator, and exterior panels are made of stainless steel. This metal also offers excellent resistance to dents and scratches and is easy to clean. To enhance sanitation, the key components and control buttons are protected by an antimicrobial agent that inhibits mold, bacteria, and algae growth. This unit is air cooled and operates with R-404a refrigerant. The unit has push buttons for convenient dispensing of ice or water. Its SmoothStream™ water dispensing minimizes splashing to maintain a pristine working area, while its ⁸/₁₀-inch enlarged sink drain removes excess water.

Product Details

• Part of the Meridian™ line
• 500-lb. maximum daily ice production
• 365-lb. AHRI-certified daily ice production
• For countertop placement
• 40-lb. storage bin

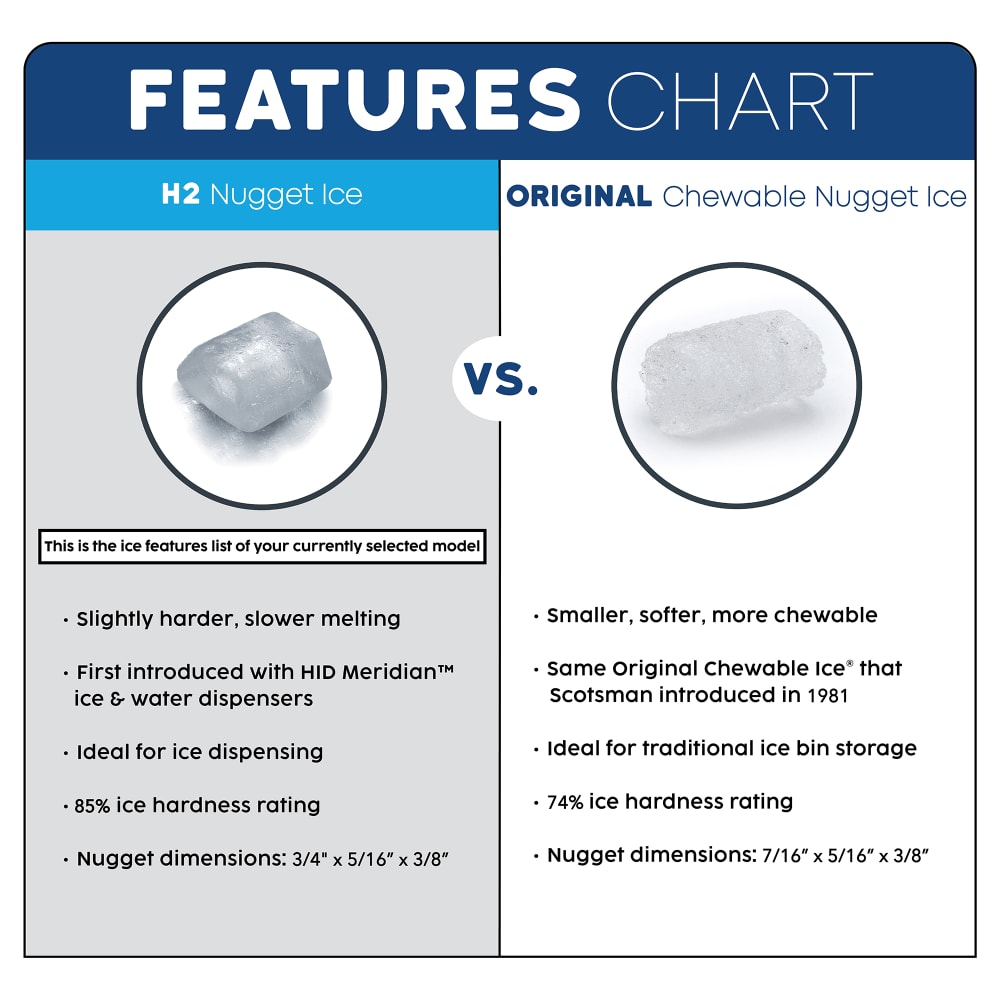

• Produces absorbent H2 nugget ice
• Nugget ice dimensions: ³⁄₄ in. x ⁵⁄₁₆ in. x ³⁄₈ in.
• SmoothStream water dispensing
• Refrigeration system is sealed to minimize risk of contamination
• 11-in. dispensing area
• Recessed utility chase

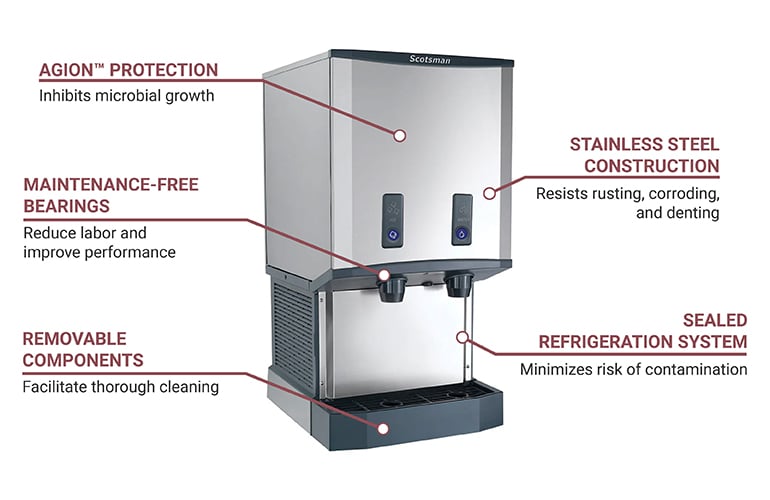

• Key components protected with AgION™ antimicrobial treatment
• Grill, spouts, air filter, bin, and sink can be removed to streamline cleaning
• Unit-specific QR code provides service history and maintenance updates
• Sealed, maintenance-free bearings
• Large, ⁸/₁₀-in. dia. sink drain
• LED diagnostic lights and USB drive
• Air-cooled refrigeration system
• Evaporator, auger, and exterior panels made of durable stainless steel
• R-404a refrigerant
• 6,800-BTU heat transfer capacity
• Operating ambient air temperature: 50-100 degrees F
• Operating incoming water temperature: 40-100 degrees F
• Operating incoming water pressure: 20-80 PSI

Dimensions & Utilities

• 21¹/₄ in. W x 24¹⁹/₅₀ in. D x 41 in. H
• 15 A, 5.5 kW
• 115 V/60 Hz/1 ph, 7¹⁄₂-ft. cord with NEMA 5-15P plug

Product Features

From The Manufacturer

Meridian™ Ice & Water Dispenser, push-button dispensing, H2 Nugget Ice, air-cooled, production capacity up to 500 lb/24 hours at 70°/50° (365 lb AHRI certified at 90°/70°), 40 lb bin storage capacity, sealed maintenance-free bearings, removable bin, removable air filter, SmoothStream™ water dispensing, removable spouts and sink, enlarged 0.8" sink drain, recessed utility chase, stainless steel evaporator and auger, enlarged 11" dispensing area, USB software upgrade port, unit specific QR code, stainless steel exterior, AgION™ antimicrobial protection, R-404a refrigerant, includes 7.5’ power cord with NEMA 5-15P plug, 115V/60/1, 9.0 amps, cULus, NSF, CE, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

BPA Free

Contains no chemical Bisphenol A (BPA)

Commercial: 3-year Parts & Labor; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor
