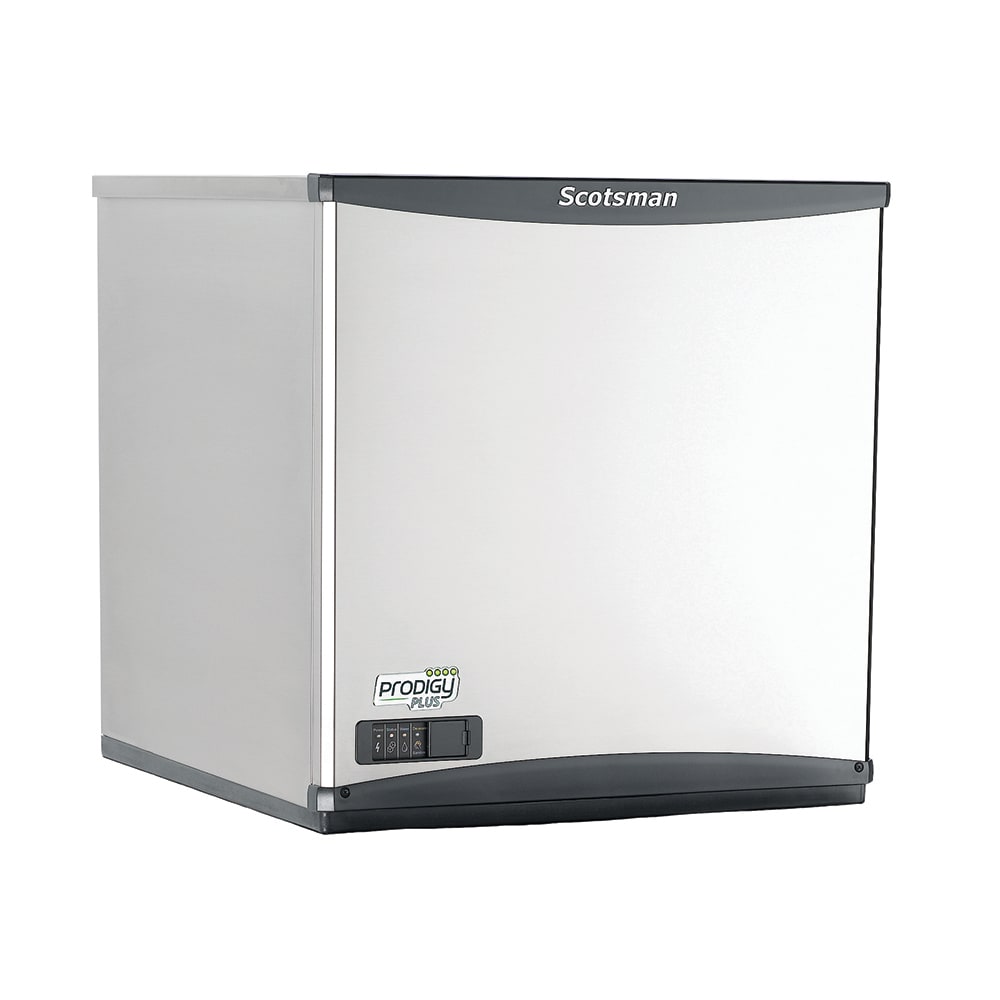

Scotsman FS0522W-1 22" Prodigy Plus® Flake Ice Machine Head - 530 lb/24 hr, Water Cooled, 115v/1ph

With a compact footprint and self-contained condenser, the Scotsman FS0522W-1 Prodigy Plus® flake ice machine head is good for areas with limited space. Flake ice produced by this machine isn't great for chilling beverages, but it's excellent for blending into smoothies and margaritas, and can be packed into chilled buffets and grocery store display cases to keep food cold. Because this unit can produce 530 pounds of ice per day in optimal ambient conditions, this head is well suited for locations with fairly low volumes of traffic or only sell limited numbers of frozen beverages each day.

Inside the Scotsman FS0522W-1 flake ice machine, antimicrobial treatment enhances its resistance to bacteria and mildew, featuring a stainless steel auger and evaporator for increased durability. With sealed bearings and one-touch cleaning activation, it requires minimal employee labor to operate, and the unit-specific QR code streamlines troubleshooting if maintenance is needed. Its air filter can be removed from the front and the refrigeration system is front breathing, enabling this machine to be installed with no side clearance.

Product Details

• Prodigy Plus®
• Water cooled
• Produces flake ice
• Good for chilling produce and seafood
• 530-lb. maximum daily ice production
• 429-lb. AHRI-certified daily ice production
• Self-contained refrigeration system is sealed for optimal performance
• Front-breathing design enables zero side clearance
• Bearings are sealed to reduce maintenance
• AutoAlert™ light indicates maintenance needs
• Resistant to microbes with AgION™ antimicrobial protection
• QR code is unit specific for streamlined troubleshooting
• Front-facing, removable air filter
• Auger and evaporator made of corrosion-resistant stainless steel
• Labor is minimized with 1-touch cleaning
• Stainless steel finish
• Uses R404A refrigerant
• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-80 PSI
• Heat displacement: 5,000 BTU

Product Features

Dimensions & Utilities

• 22 in. W x 24 in. D x 23 in. H
• 12.1 A, 3.73 kW
• 115 V/60 Hz/1 ph

*Free shipping on Scotsman FS0522W-1 within the 48 contiguous states.

From The Manufacturer

Prodigy Plus® Ice Maker, flake style, water-cooled, self-contained condenser, production capacity up to 530 lb/24 hours at 70°/50° (429 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, stainless steel evaporator and auger, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, 12.1 amps, NSF, cULus, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor

Scotsman FS0522W-1 Specifications

Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries.
