Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries.

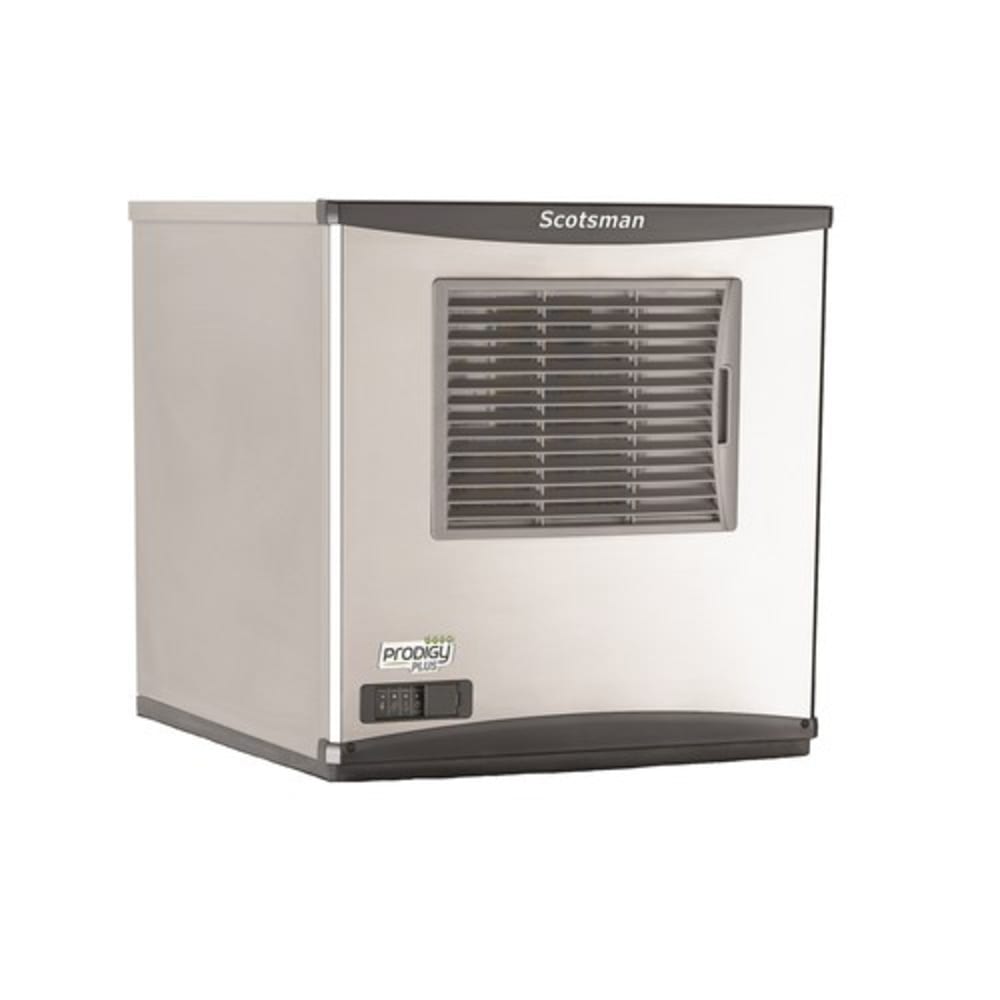

Scotsman FS0522A-1 22" Prodigy Plus® Flake Ice Machine Head - 450 lb/24 hr, Air Cooled, 115v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
Free Shipping Item
Retail Price: $11,514.00
$4,720.00 /Each
Selected Compressor Type: Air Cooled
White Glove Delivery
Contact your sales rep for availability
Scotsman FS0522A-1 Description
The Scotsman FS0522A-1 Prodigy Plus® ice maker can produce 450 pounds of ice per day if ideal conditions are met. It makes flake ice, an ice type that's particularly useful when blending drinks such as smoothies and margaritas. For increased durability against rust, this unit has a stainless steel exterior, auger, and evaporator. It's air cooled, meaning it has a slightly lower production than similar water-cooled units, but uses less water as it operates. With a self-contained refrigeration system and compact size, this ice maker is simple to install and fits into most floor plans.
When cleaning is needed, the Scotsman FS0522A-1 flake ice maker offers users one-touch activation, minimizing labor. To promote sanitary use, the unit's refrigeration system is sealed against airborne contaminants and enhanced with an antimicrobial treatment to resist germ spread. Indicator lights notify users if maintenance is needed and its QR code is unit specific for improved troubleshooting.
Product Details

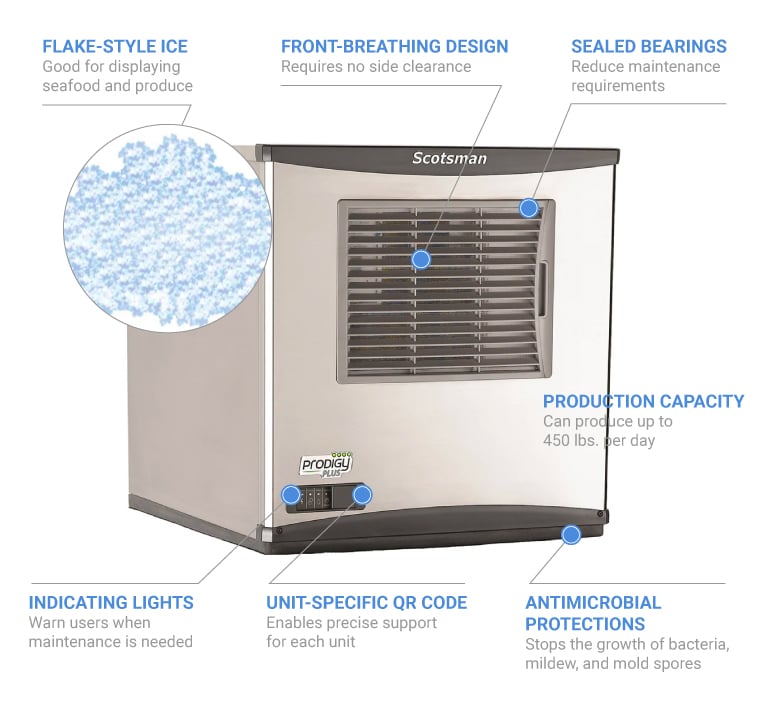

- Prodigy Plus®
- Air cooled
- Produces flake ice
- Excellent for seafood and produce displays
- 450-lb. maximum daily ice production
- 343-lb. AHRI-certified daily ice production
- Self-contained refrigeration system is sealed to resist airborne contaminants
- Front-breathing design has no side clearance requirements
- Sealed bearings for maintenance-free operation
- AutoAlert™ indicating lights facilitate maintenance
- AgION™ antimicrobial protection defends against bacteria, mold, and mildew
- QR code is unit specific for access to service manuals and cleaning guides
- Air filter is removable and front facing for simple access
- Stainless steel evaporator and auger resist corrosion
- 1-touch cleaning for reduced labor
- Stainless steel finish
- Operates with R404A refrigerant
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSI
- Heat displacement: 5,000 BTU
Product Features
Dimensions & Utilities
- 22 in. W x 24 in. D x 23 in. H
- 12.9 A, 4.61 kW
- 115 V/60 Hz/1 ph
*Free shipping on Scotsman FS0522A-1 within the 48 contiguous states.
From The Manufacturer
Prodigy Plus® Ice Maker, flake style, air-cooled, self-contained condenser, production capacity up to 450 lb/24 hours at 70°/50° (343 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, front facing removable air filter, stainless steel evaporator and auger, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, 12.9 amps, NSF, cULus, engineered and assembled in USA
*Image may not depict product color, inclusions or accessories.
Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor
Watch a video about this product
Scotsman FS0522A-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 450 |
| Compressor Type | Air Cooled |
| Depth (in) | 24 |
| Height (in) | 23 |
| Ice Type | Flake |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | Prodigy Plus® |
| Special Features | AgION™ Antimicrobial Protection |
| Special Features | Sealed, Maintenance-Free Bearings |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 173.00 |
Documents
Important Prop 65 information for California residents.
Replacement for the Following Item
- Scotsman F0522A1A
Equivalent Items
Scotsman FS0522A-1 Accessories
Previous
Next
Other Products From This Line
Scotsman NS0422A-1/B530P/KBT27
420 lb Prodigy Plus® Nugget Ice Machine w/ Bin - 536 lb Storage, Air Cooled, Softer Nugget, 115v
Scotsman NS0622A-1/B530P/KBT27
643 lb Prodigy Plus® Nugget Ice Machine w/ Bin - 536 lb Storage, Air Cooled, Softer Nugget, 115v
Scotsman NS0922A-32/B842S/KBT39
956 lb Prodigy Plus® Nugget Ice Machine w/ Bin - 778 lb Storage, Air Cooled, Softer Nugget, 208-230v
Scotsman NS0622A-1/B322S
643 lb Prodigy Plus® Nugget Ice Machine w/ Bin - 370lb Storage, Air Cooled, Softer Nugget, 115v
Scotsman NS0422A-1/B322S
420 lb Prodigy Plus® Nugget Ice Machine w/ Bin - 370 lb Storage, Air Cooled, Softer Nugget, 115v
Scotsman NS0422A-1/B530S/KBT27
420 lb Prodigy Plus® Nugget Ice Machine w/ Bin - 536 lb Storage, Air Cooled, Softer Nugget, 115v
Scotsman FS0522A-1/B530S/KBT27
450 lb Prodigy Plus® Flake Ice Machine w/ Bin - 536 lb Storage, Air Cooled, 115v
Scotsman FS0522A-1/B530P/KBT27
450 lb Prodigy Plus® Flake Ice Machine w/ Bin - 536 lb Storage, Air Cooled, 115v
Scotsman FS0822A-1/B530S/KBT27
800 lb Prodigy Plus® Flake Ice Machine w/ Bin - 536 lb Storage, Air Cooled, 115v
Scotsman NS0622A-1/B530S/KBT27
643 lb Prodigy Plus® Nugget Ice Machine w/ Bin - 536 lb Storage, Air Cooled, Softer Nugget, 115v
Previous
Next
Related Categories
Previous
Next
Compare to Similar Items
| Attributes |
Current Item: Scotsman FS0522A-1 22" Prodigy Plus® Flake Ice Machine Head - 450 lb/24 hr, Air Cooled, 115v/1ph |
Hoshizaki F-450MAJ 22" Flake Ice Machine Head - 492 lb/24 hr, Air Cooled, 115v/1ph |
Manitowoc Ice RFP0320A 22" Flake Ice Machine Head - 370 lb/24 hr, Air Cooled, 115v/1ph |
Ice-O-Matic MFI0500A 21" Flake Ice Machine Head - 540 lb/24 hr, Air Cooled, 115v/1ph |
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $4,720.00 | $5,570.00 | $4,353.00 | $5,040.00 |
| Shipping | Ships Free | Ships Free | Ships Free | Ships Free |
| Lead Time | QUICK SHIP: Typically ships in 1 - 3 Business Days | Typically ships in 4 - 8 Business Days | QUICK SHIP: Ships in 1 Business Day | QUICK SHIP: Typically ships in 1 - 3 Business Days |
| 24 Hr. Production (lb) | 450 | 492 | 370 | 540 |
| Ice Type | Flake | Flake | Flake | Flake |
| Compressor Type | Air Cooled | Air Cooled | Air Cooled | Air Cooled |
| Width (in) | 22 | 22 | 22 | 21 |
| Rating | Best | Best | Best | Better |
| Voltage | 115 | 115 | 115 | 115 |
| Series | Prodigy Plus® | Slim-Line | ||
| Refrigerant | R404A | R404A | R290 (Hydrocarbon) | R404A |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor | 3-year Parts & Labor; 5-year Compressor & Condenser Parts | 3-year Parts & Labor 5-year Compressor Parts; 3-year Compressor Labor | 3-year Parts & Labor; 5-year Compressor Parts |
Customer Reviews
-
Panel fit is terrible, overall quality seems to be dropping
"It appears the panels are being made of lighter gauge material. In addition the fit of the panels is not good. This particular machine left side panel was either stamped incorrectly or the back panel it couples with is not cut right. The tabs on the back and slots on the side panel do not match up. Don't understand how the factory did not notice when assembling. I am hopeful Scotsman will make it right."
