Scotsman F0522W-1 22" Prodigy Plus® Flake Ice Machine Head - 530 lb/24 hr, Water Cooled, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 044-F0522W • MPN: F0522W-1
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $7,856.00
$3,142.00 / Each

Image may not depict product color, inclusions or accessories.

Scotsman F0522W-1 Description


The Scotsman F0522W-1 Prodigy Plus® ice machine head does not include a bin. This unit can produce 429 to 530 pounds of flake ice within 24 hours and is ideal for displaying seafood and produce. Components that make contact with water have AgION®, a silver-based antimicrobial agent, built in to slow bacteria growth between cleanings. The head features a self-aligning panel and a front-facing air filter. The Scotsman F0522W-1 ice machine head has AutoAlert lights that inform the operator of issues.

Product Details

  • Produces flake ice
  • 530-lb. ice production capacity
  • 429-lb. AHRI-certified ice production capacity
  • Issues are conveyed by AutoAlert lights
  • Service information and warranty history are available through the QR code
  • Front air filter
  • Self-aligning front panel
  • AgION antimicrobial compound is built into major components to slow bacteria growth
  • Water-cooled motor
  • Uses R404A refrigerant
  • Ice bin sold separately
  • Ambient air temperature range for operation: 50-100 degrees F
  • Incoming water temperature range for operation: 40-100 degrees F
  • 5,000 BTU
  • 14.4 A, 3.73 kW
  • 208-230 V/60 Hz/1 ph
  • Overall dimensions: 22.9 in. W x 24 in. D x 23 in. H
  • cULus listed; AHRI, ISO 9001:2016, and NSF certified

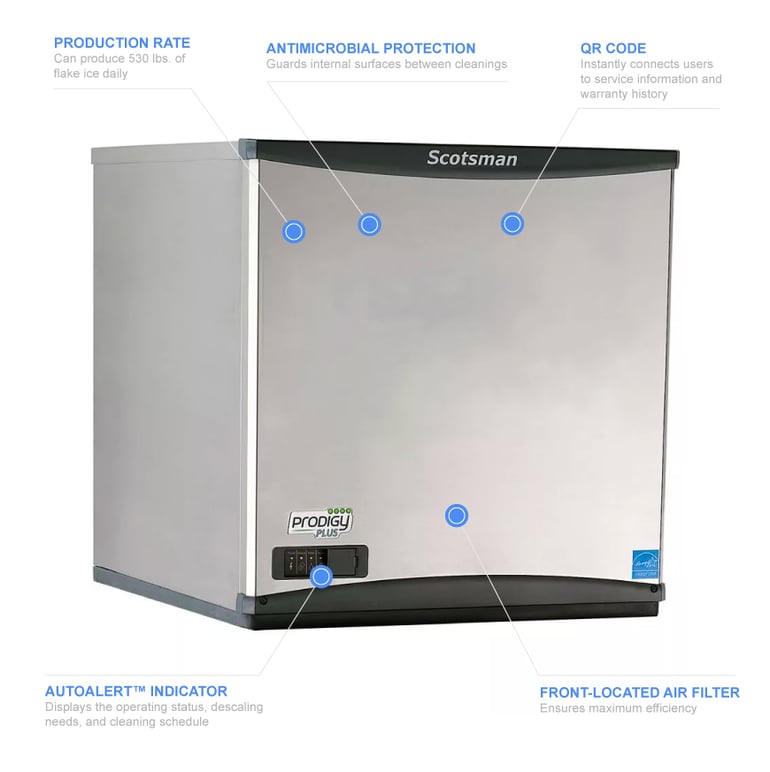

Product Features

Scotsman f0522w Features

Check out the ice machine buyer's guide to find out more.

Prodigy Plus® Ice Maker, flake style, water-cooled, self-contained condenser, production capacity up to 530 lb/24 hours at 70°/50° (429 lb AHRI certified at 90°/70°), Auto-alert™ indicating lights, stainless steel finish, R-404A refrigerant, 115v/60/1-ph, 14.4 amps, NSF, cULus

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Scotsman F0522W-1 Specifications

PDF Spec Sheet
Manufacturer Scotsman
24 Hr. Production (lbs) 530
Compressor Type Water Cooled
Depth (in) 24
Height (in) 23
Ice Type Flake
Width (in) 22
Hertz 60
Voltage 115
Phase 1
Product Ice Machine Head
Product Type Ice Makers & Bins
Series Prodigy Plus®
Made in USA Yes
Warranty 3-yr. Parts & Labor, Add'l 2 yrs. Parts Compressor; Residential 1 year parts & labor
Recommended Bins B322S, B330P, B530P, B530S, B842S, B948S, BH1100BB-A, BH1100SS-A, BH1300BB-A, BH1300SS-A, BH1600BB-A, BH1600SS-A, ICS-1, ICS-2, ICS-3, ICS-3-SL
Cold Water (in) 3/8
Indirect Waste Size (in) 3/4
Amps 14.4
Production Range (lbs/day) 100-999 lb
Width (in) Range 10 - 29
Special Features AutoAlert™
Weight 173.00
Scotsman F0522W-1 Certifications
  • UL
  • NSF
