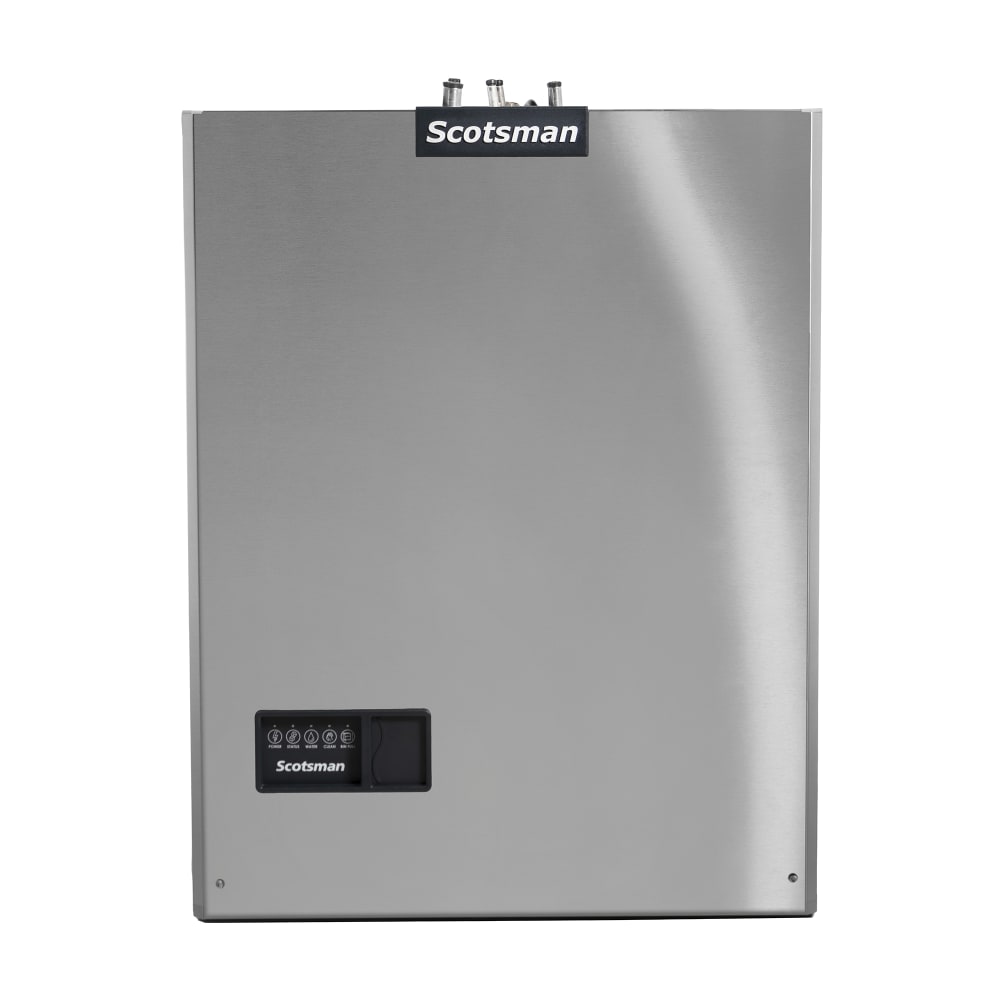

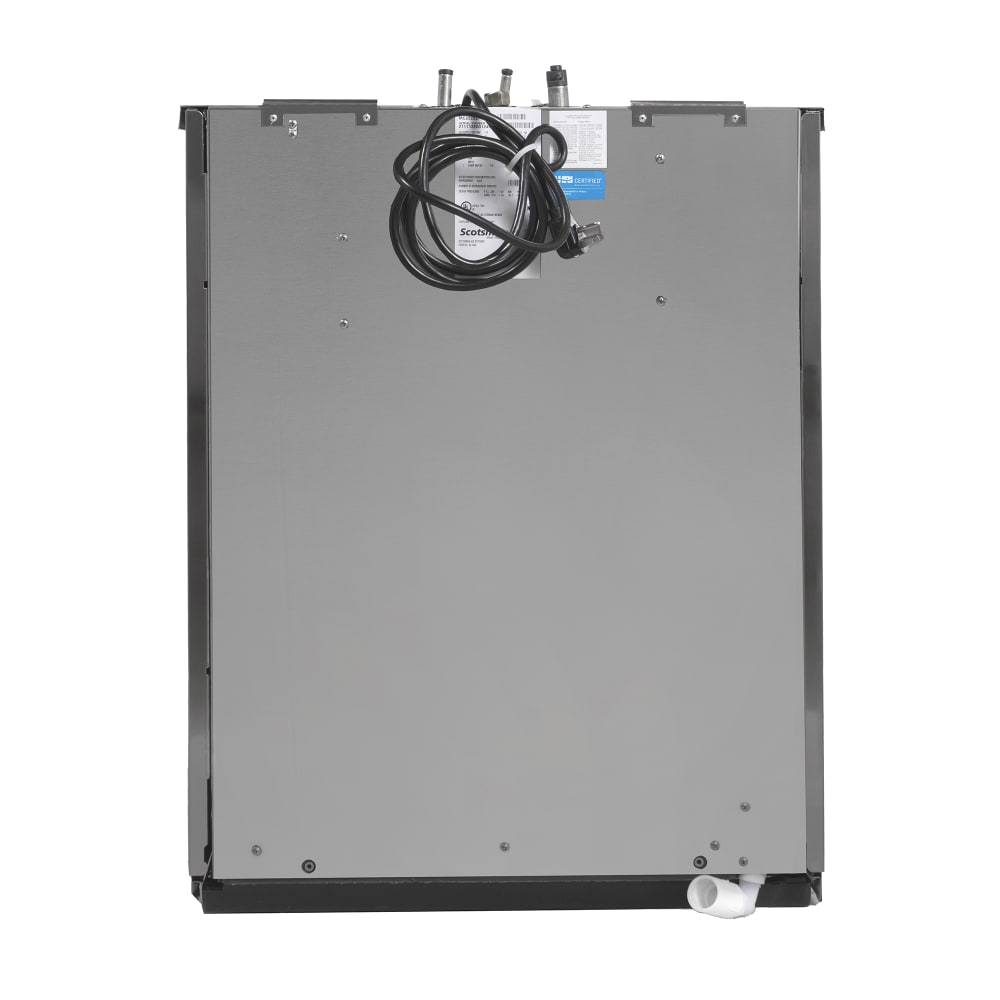

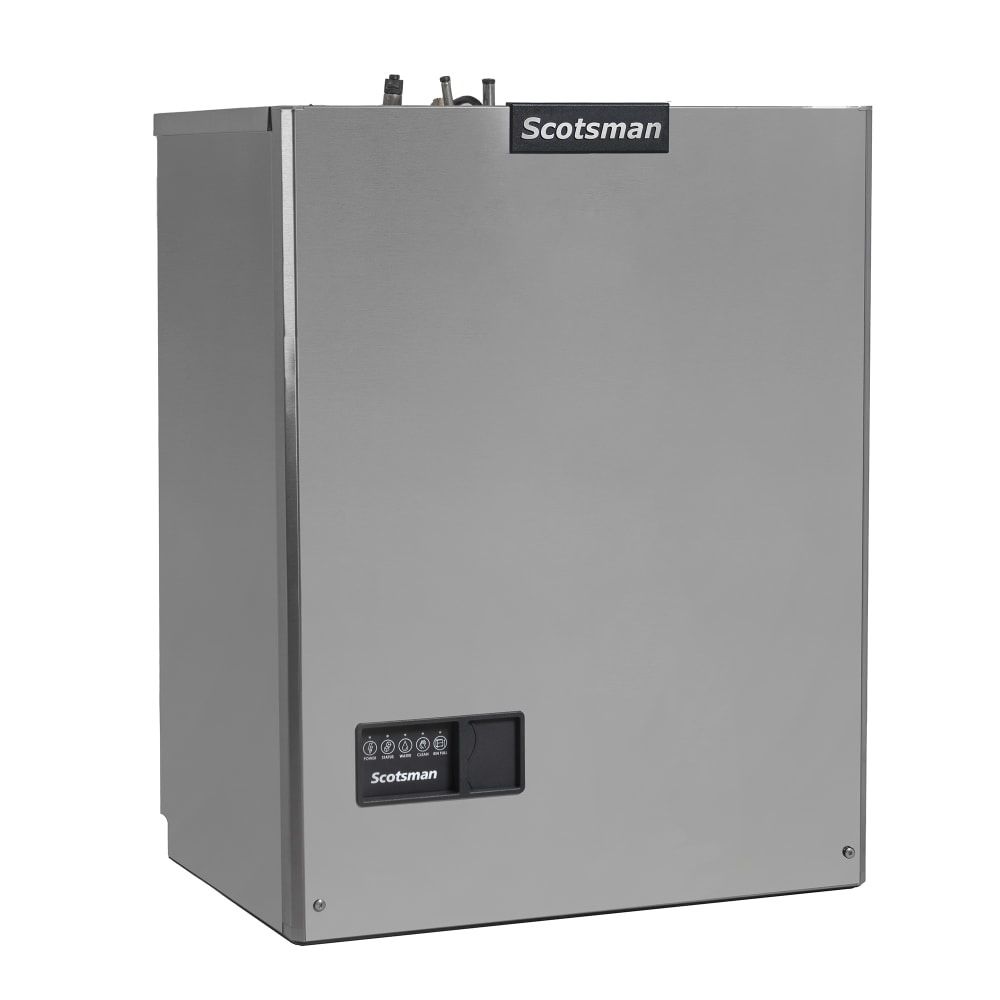

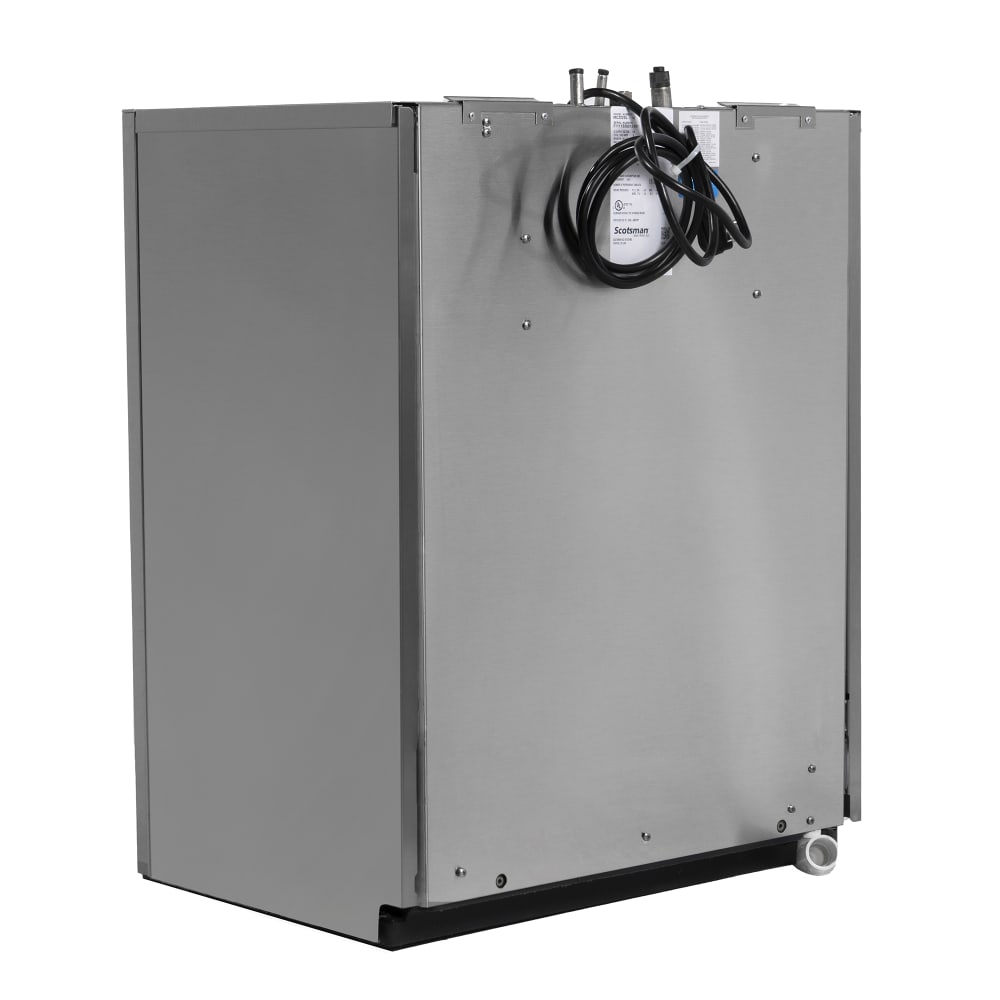

Scotsman EH222SL-1 22" Prodigy® Plus Eclipse® Half Cube Ice Machine Head - 1030 lb/24 hr, Remote Cooled, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 044-EH222SL1 • MPN: EH222SL-1
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $2,837.00

Image may not depict product color, inclusions or accessories.

Scotsman EH222SL-1 Description

Scotsman

The Scotsman EH222SL-1 Prodigy Plus® Eclipse® ice machine head can make 1,030 pounds of ice in 24 hours. Vari-Smart™ level control allows the operator to customize the amount of ice the unit makes, while Harvest Assist efficiently moves ice into a bin. A remote condensing unit is required with this unit to produce ice, and a bin is needed to store ice. Scale buildup is removed automatically with the WaterSense purge system.

One-touch cleaning saves time while reducing labor costs, and between cleanings, the internal components are protected by an antimicrobial agent. Servicing the Scotsman EH222SL-1 ice machine head is simple since the components are accessible behind the self-aligning front panel. Indicator lights illuminate to provide information on the operation status and remind the user when it is time to descale and sanitize the unit. Diagnostic feedback is provided by the Smart-Board™ system.

Product Details

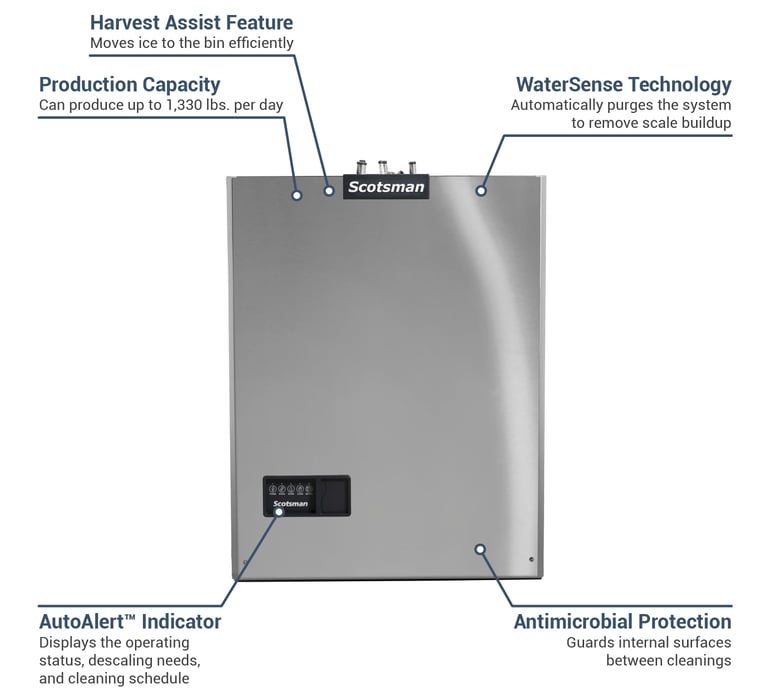

  • 1,030-lb. maximum daily ice production
  • Makes half-cube ice
  • Customizable Vari-Smart control for daily ice production
  • Harvest Assist feature moves ice to the bin
  • WaterSense purge control automatically removes scale buildup
  • 1-touch cleaning saves time and reduces labor costs
  • Internal surfaces are protected from bacteria growth between cleanings by an antimicrobial agent

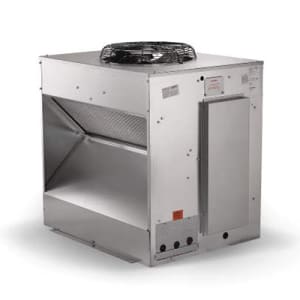

  • ECC remote condensing unit is sold separately
  • Ice storage bin is sold separately
  • 15 A
  • 115 V/60 Hz/1 ph
  • Ice dimensions: 0.875 in. x 0.875 in. x 0.375 in.
  • Overall dimensions: 22 in. W x 16.5 in. D x 29 in. H
  • cULus listed; AHRI, ISO 9001: 2016, and NSF certified
  • Made in the U.S.

Unique Maintenance Features

  • Front panel self-aligns for component accessibility

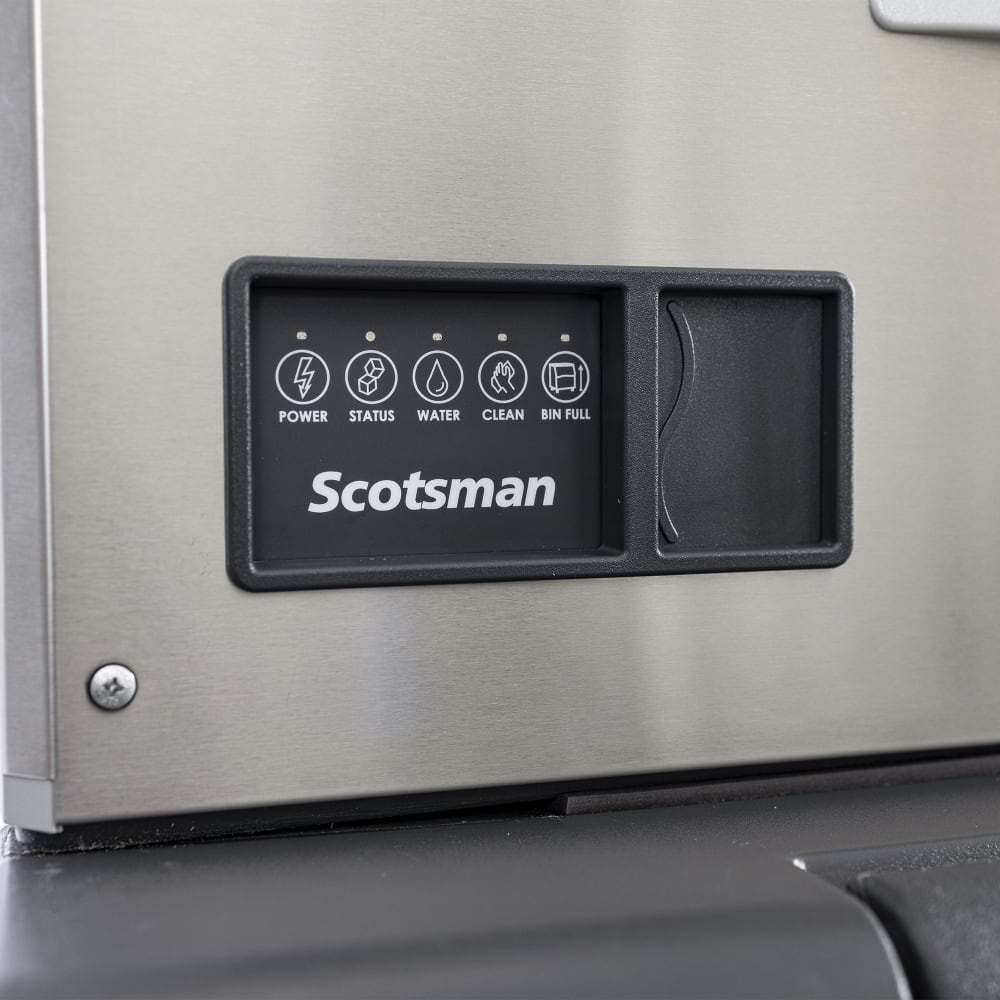

  • AutoAlert indicator lights show the operation status and provide descaling and sanitizing reminders
  • Smart-Board feature gives the operator additional diagnostic feedback

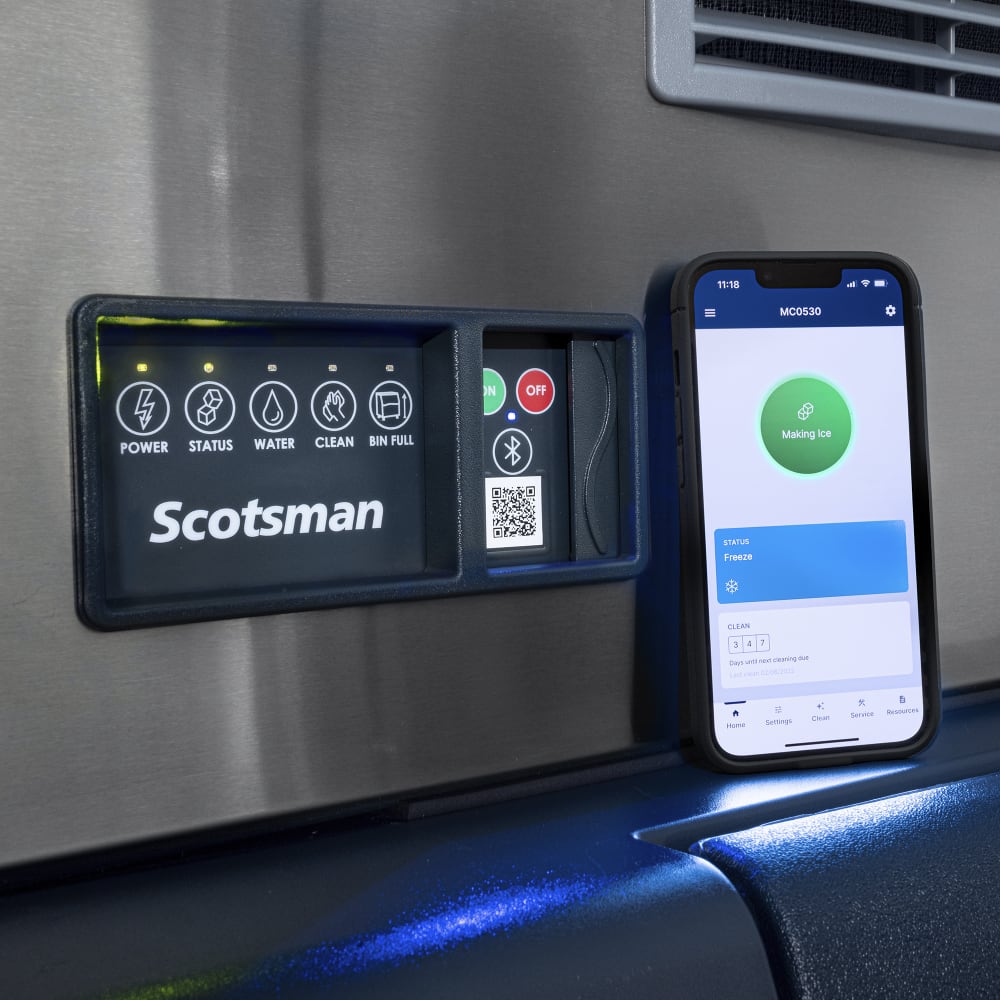

  • QR code provides instant information for maintenance and warranty history

Read more about ice makers in the ice machines buyers' guide.

Prodigy® Plus Eclipse® Ice Maker, cube style, requires ECC series condensing unit, production capacity up to 850 - 1030 lb/24 hours at 70°/50° (700 - 827 lb AHRI certified at 90°/70°), stainless steel finish, small cube style, 115v/60/1-ph, NSF, cULus

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Scotsman EH222SL-1 Specifications

PDF Spec Sheet
Manufacturer Scotsman
24 Hr. Production (lbs) 1030 lbs
Compressor Type Water Cooled
Depth (in) 24
Height (in) 29
Ice Type Half Cube
Specialty Options Alert System
Specialty Options Removable Air Filter
Warranty 3-yr. Parts & Labor, Add'l 2 yrs. Evaporator; Add'l 2 yrs. Parts Compressor & Condenser
Width (in) 22
Production Range (per day) 900-1499 lb
Hertz 60
Voltage 115
Phase 1
Product Type Ice Machines
Product Ice Machine Head
Weight 110.00
Scotsman EH222SL-1 Certifications
  • UL
  • NSF
  • Energy Star
