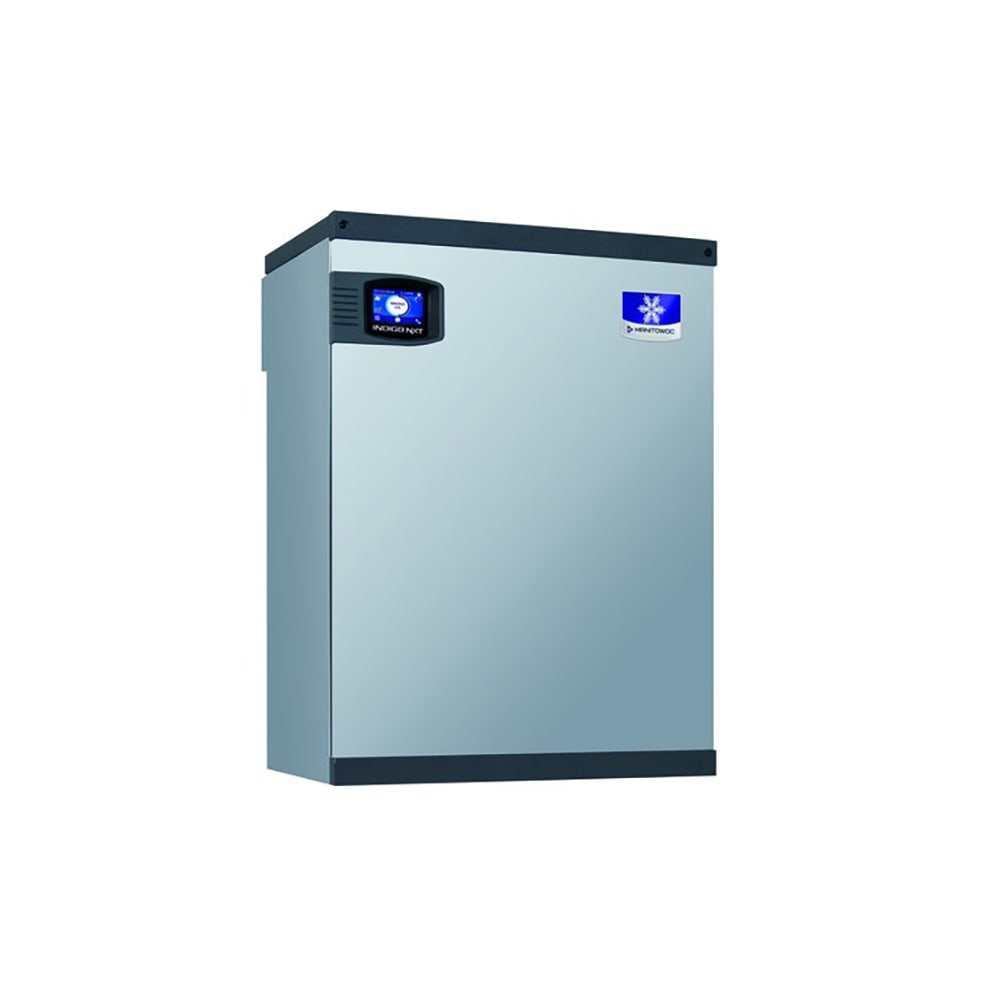

Manitowoc Ice IBT1020C 22" Indigo NXT™ QuietQube Half Cube Ice Machine Head - 1206 lb/24 hr, Air Cooled, 115v/1ph

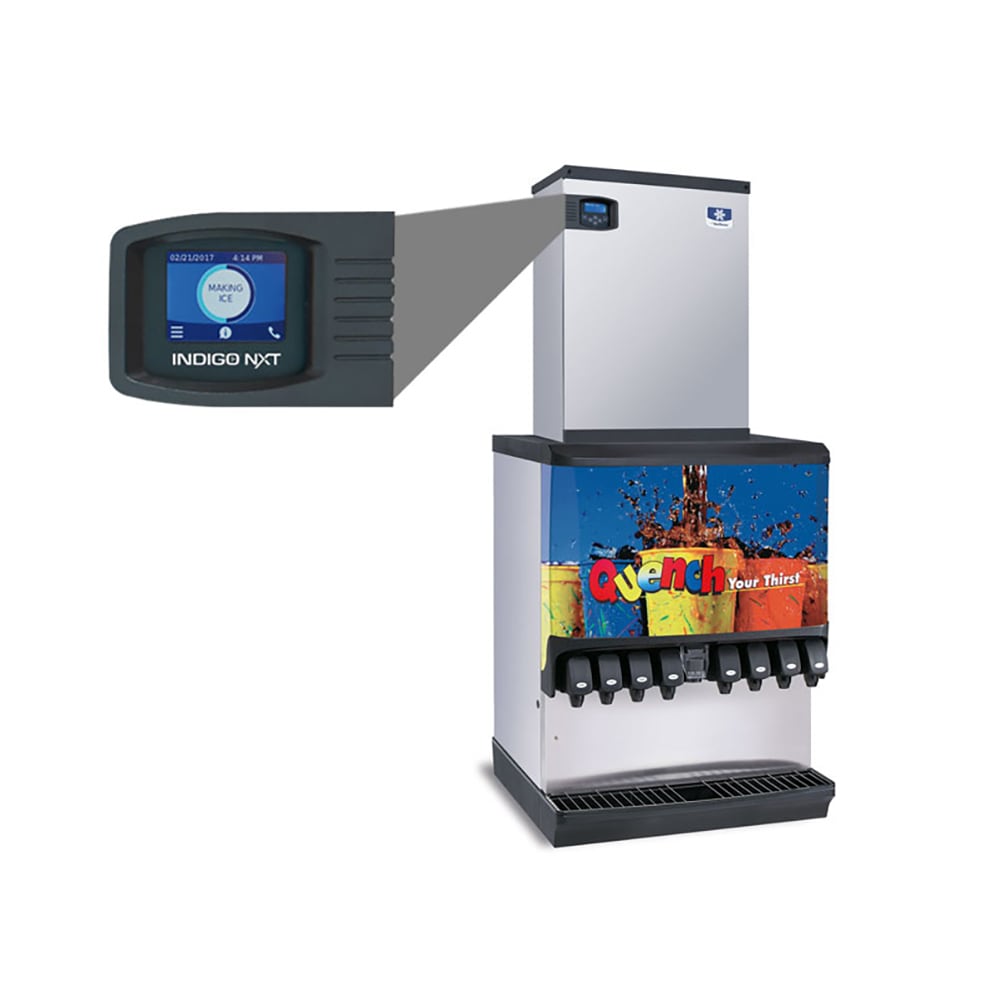

The Manitowoc Ice IBT-1020C Indigo NXT™ ice machine head can make 1,150 pounds of half cube ice in 24 hours. Ice production can be programmed to suit specific applications based on time of day or volume. An ice sensing probe monitors each ice cycle’s ice thickness using acoustics. Preventive maintenance and diagnostic feedback ensure the system is operating properly. The front door of this Manitowoc Ice IBT-1020C ice machine head lifts off to facilitate cleaning, and some of the parts are made with AlphaSan® antimicrobial agent. It operates quietly in a small footprint that works with almost any dispenser.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• Part of the Indigo NXT series
• 1,150-lb. maximum daily ice production
• Makes half dice ice
• Programmable ice production based on volume or time
• Acoustical sensing probe measures ice thickness to ensure consistent cycles
• easyTouch® display
• 24-hr. preventive maintenance and diagnostic feedback
• Foodzone access through the lift-off front door
• AlphaSan antimicrobial is built into some of the components
• Operates quietly for use in customer-facing applications

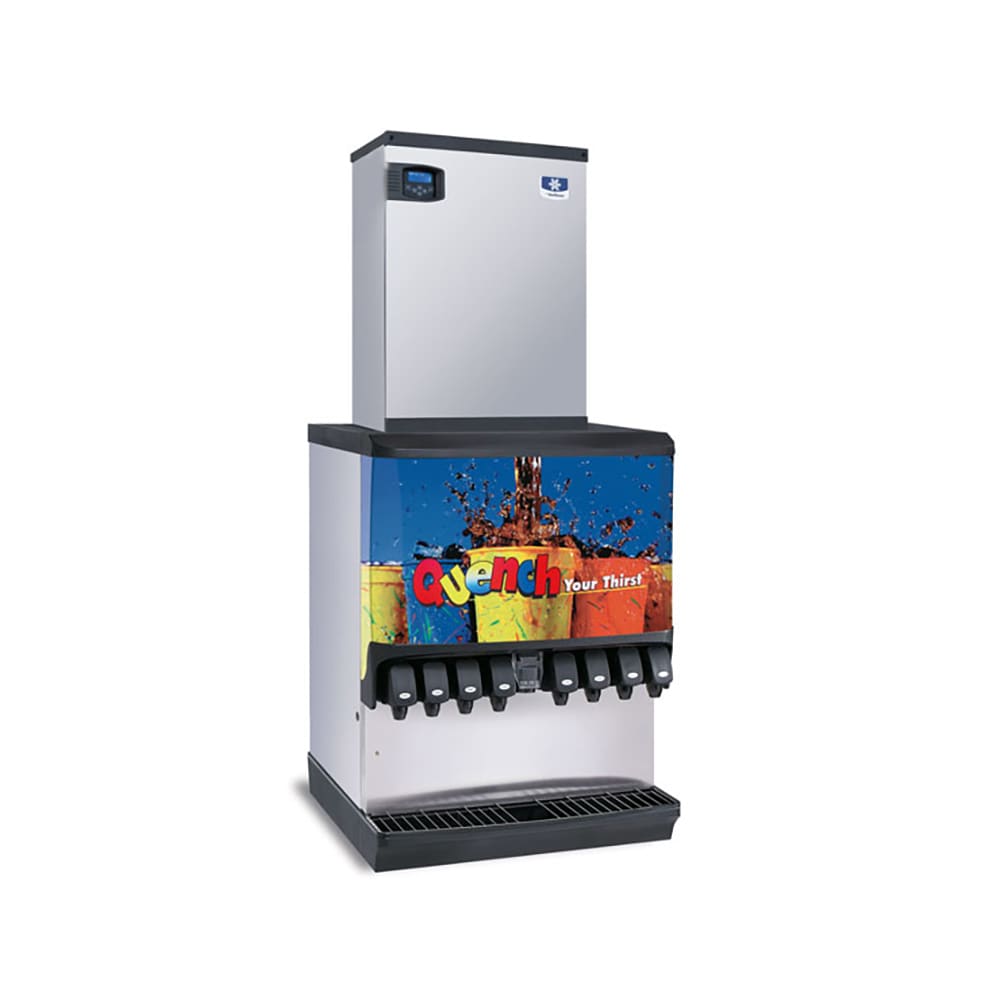

• Small footprint enables the unit to be retrofitted on almost any dispenser
• DuraTech™ exterior resists corrosion and hides fingerprints
• Ambient air temperature range for operation: 40-110 degrees F
• Incoming water temperature range for operation: 40-90 degrees F

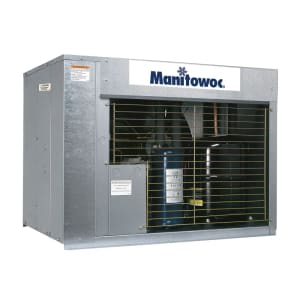

• CVDT1200 remote condensing unit is sold separately
• Ice bin or dispenser is sold separately
• Manitowoc will not honor the warranty on a remote unit paired with an existing condenser (must be purchased with condenser)
• 1.2 A
• 115 V/60 Hz/1 ph

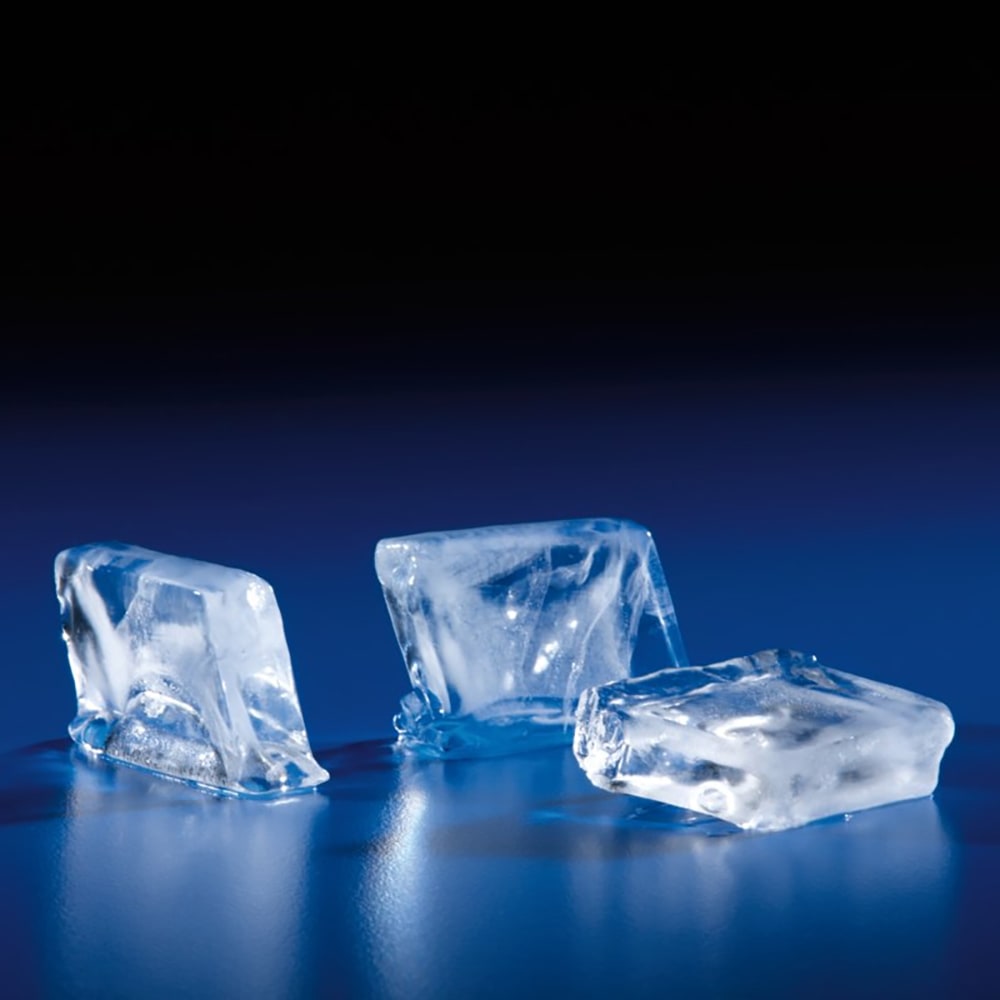

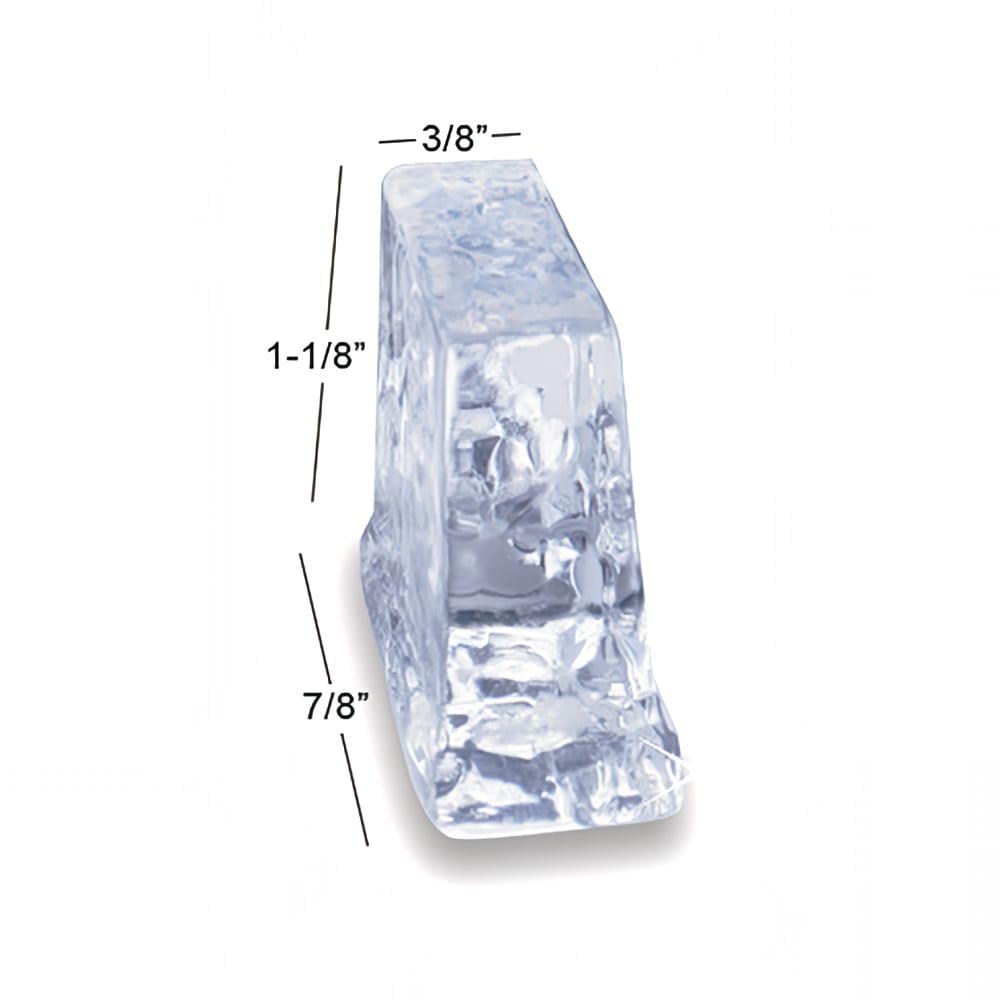

• Ice dimensions: 0.375 in. x 1.125 in. x 0.875 in.
• Overall dimensions: 22 in. W x 14 in. D x 30.5 in. H

Product Features

*Free shipping on Manitowoc Ice IBT1020C within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ QuietQube Ice Maker, for use with Beverage Dispensers, cube-style, air-cooled, designed for remote refrigeration (condensing unit and lines sold separately), 22"W x 14"D x 30-1/2"H, production capacity up to 1206 lb/24 hours at 70°/50° (1030 lb AHRI certified at 90°/70°), DuraTech™ exterior, half-dice size cubes, CVD Technology, NSF, cULus, CE

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor

Manitowoc Ice IBT1020C Specifications

Documents

Spec Sheet

Warranty

Service Manual

Manual

Brochure
