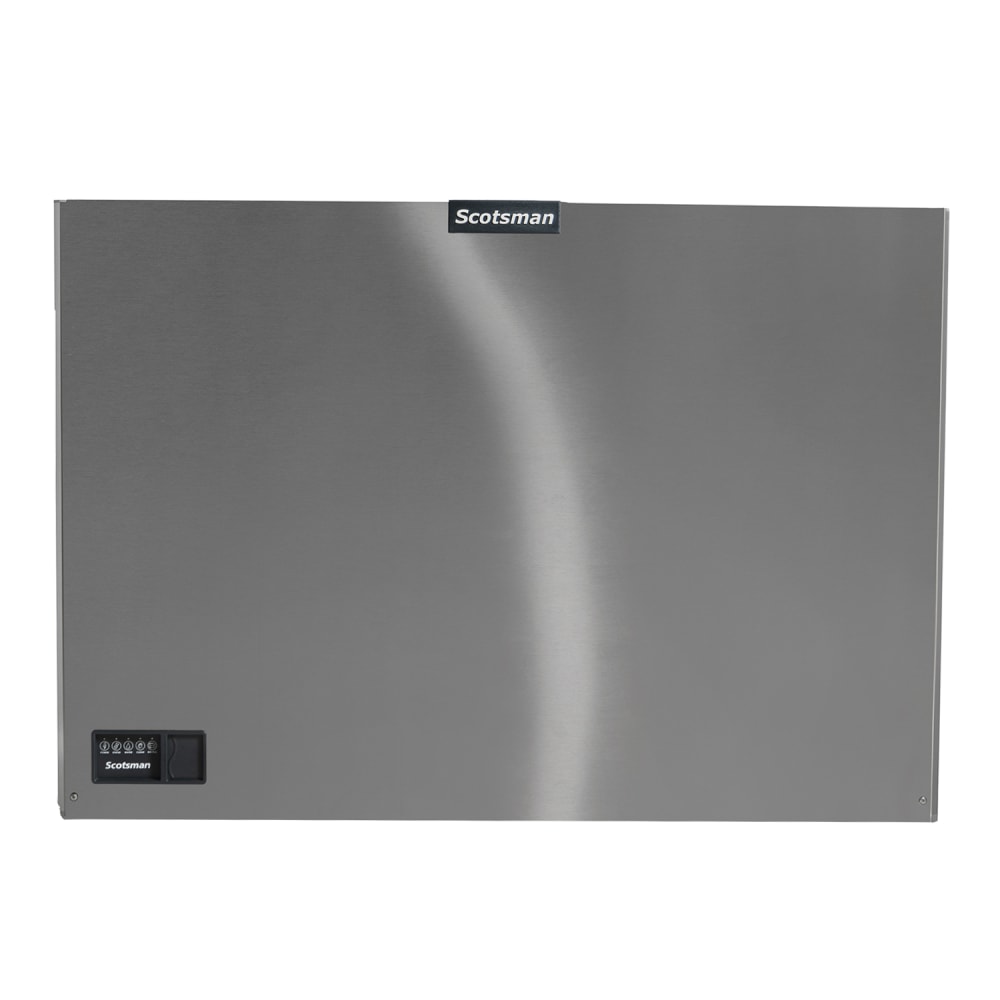

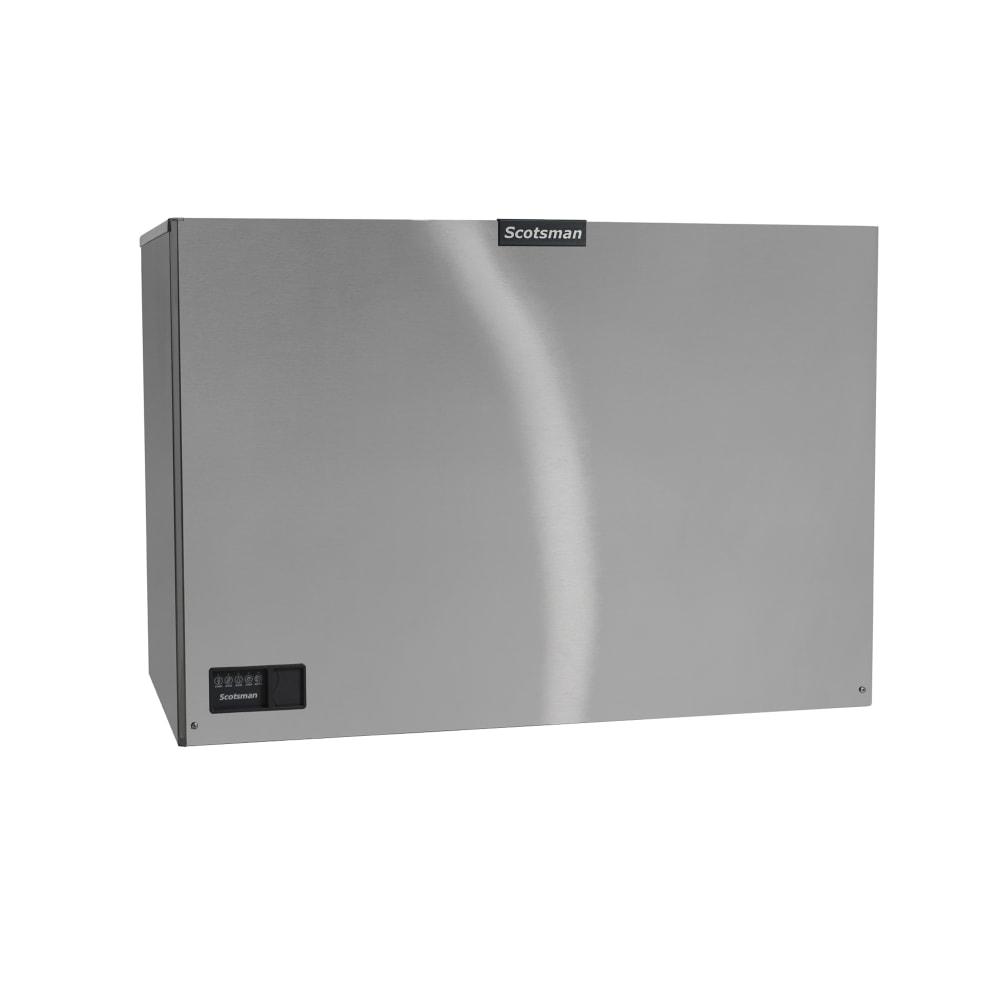

Scotsman MC2648MR-3 48" Prodigy ELITE® Full Cube Ice Machine Head - 2630 lb/24 hr, Remote Cooled, 208-230v/3ph

The Scotsman MC2648MR-3 Prodigy ELITE® full-cube ice machine head is compatible with the ICELINQ® app which provides real-time diagnostics, access to settings, and cleaning and maintenance guidance. Employees also stay in the know with AutoAlert™ indicator lights on the front panel, which displays machine status. To create a maximum of 2,630 pounds of ice daily, this unit has a remote, air-cooled condenser that utilizes R404A refrigerant. The condenser is sold separately and should be installed away from the ice maker, so it can displace heat and noise. In less than ideal operating conditions, the machine produces closer to 2,131 pounds daily.

Keeping ice fresh and clean, impurities are removed from the Scotsman MC2648MR-3 ice machine head with adjustable WaterSense purge controls. To facilitate cleaning, users just push a button to begin the cycle, reducing the amount of maintenance the unit requires. The exterior has a stainless steel finish that resists corrosion, rust, dents, and scratches.

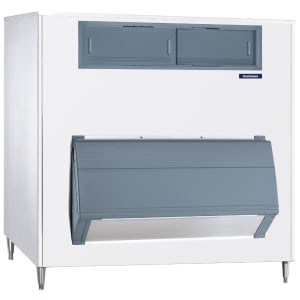

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• Part of the Prodigy ELITE® series
• 2,630-lb. maximum daily ice production
• 2,131-lb. AHRI-certified daily ice production
• Makes full-cube ice
• Cube size: ⁷⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Harvest assist moves ice to the sold-separately bin or dispenser
• Resilient stainless steel finish
• AgION™ antimicrobial reduces the spread of germs

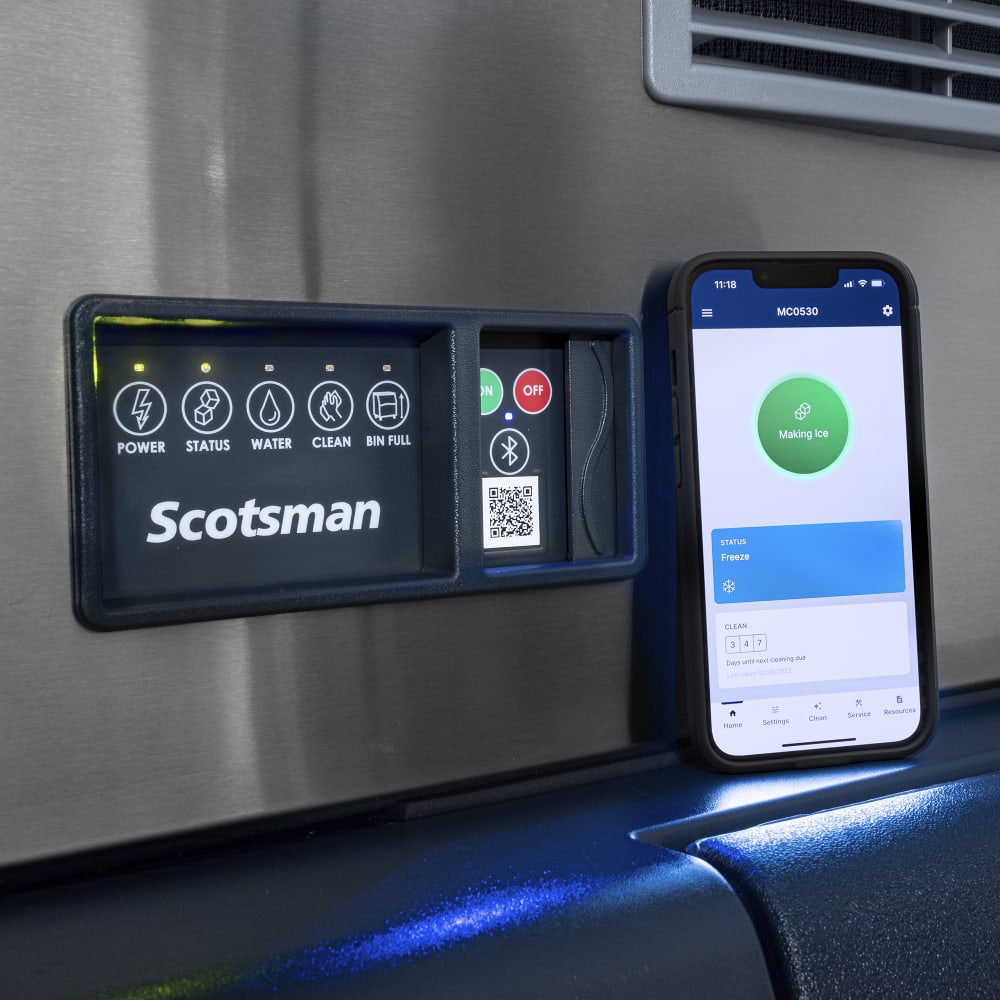

• Compatible with ICELINQ app
• Bluetooth® connectivity
• Preservation mode minimizes downtime and alerts operators to potential issues

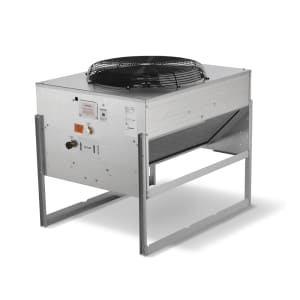

• Air cooled with a remote condenser (sold separately)
• Cools with R404A refrigerant
• AutoAlert indicator lights inform users of settings
• Front panel houses key components
• Adjustable WaterSense controls purge impurities from ice
• 1-touch cleaning reduces user maintenance
• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-80 PSIG
• 31,600-BTU heat transfer capacity

Dimensions & Utilities

• 48 in. W x 28¹/₂ in. D x 34 in. H
• 20.1 A, 4.44 kW
• 208-230 V/60 Hz/3 ph

Product Features

*Free shipping on Scotsman MC2648MR-3 within the 48 contiguous states.

From The Manufacturer

Prodigy ELITE® Ice Maker, cube style, air-cooled, remote condenser, production capacity up to 2630 lb/24 hours at 70°/50° (2131 lb AHRI certified at 90°/70°), medium cube size, ICELINQ® mobile app, Bluetooth® connectivity, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, 208-230v/60/3-ph, 20.1 amps, cULus, NSF, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Commercial: 3-year Limited Parts & Labor; 5-year Limited Parts & Labor Evaporator; 5-year Limited Compressor & Condenser Parts; Residential: 1-year Parts & Labor

Scotsman MC2648MR-3 Specifications

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual

Brochure

Catalog
