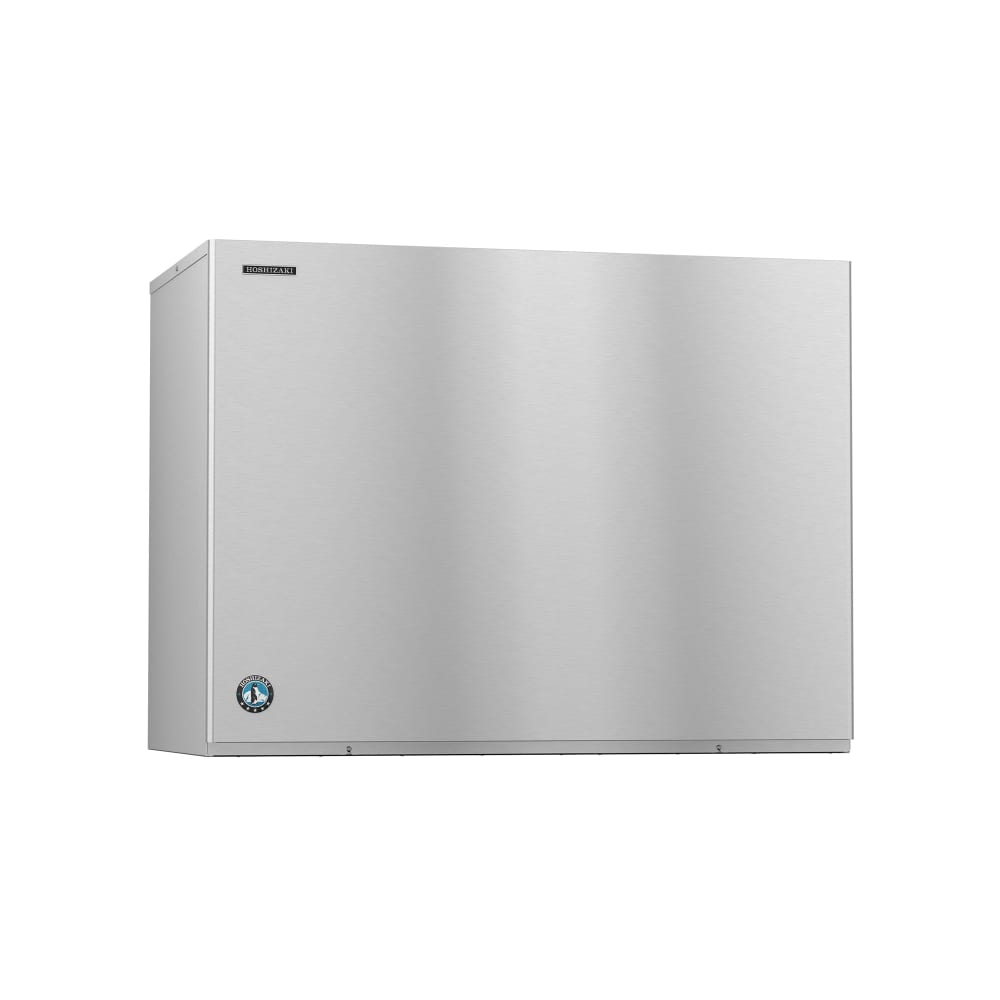

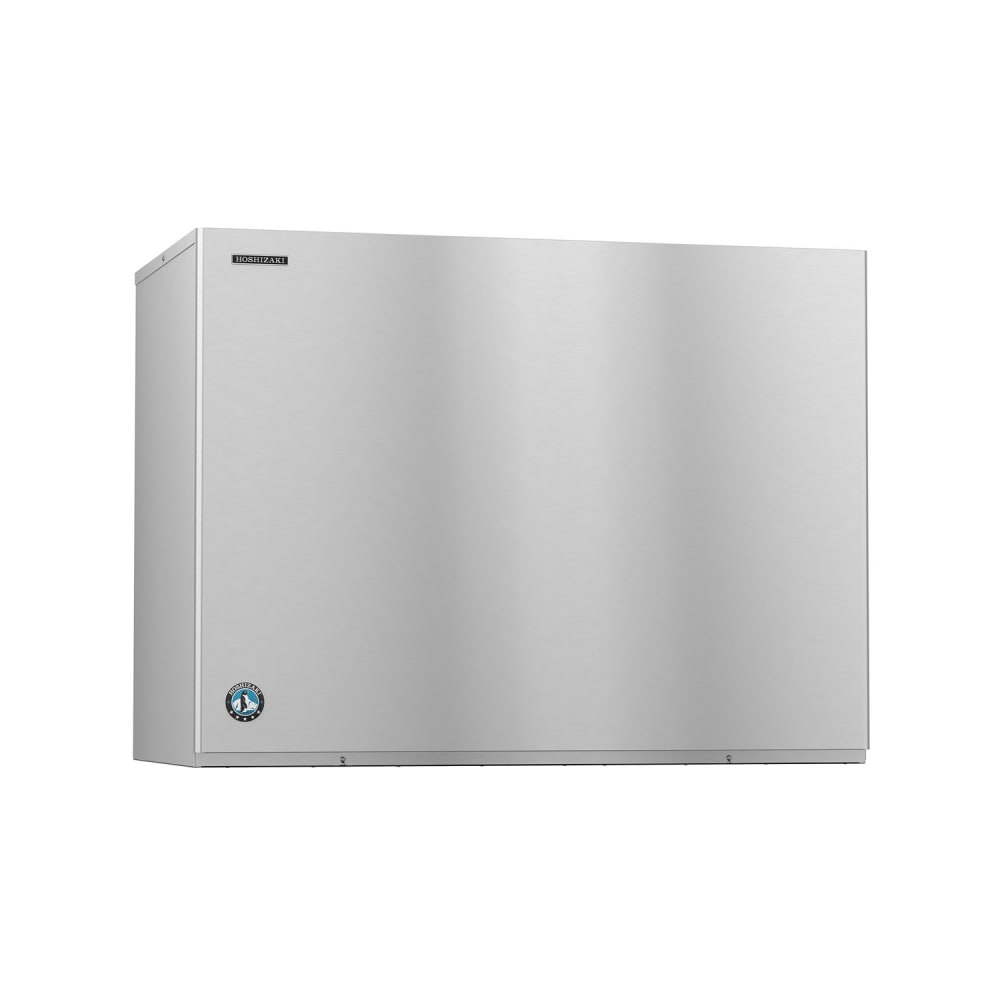

Hoshizaki KM-2600SRJZ3 48" Crescent Cube Ice Machine Head - 2617 lb/24 hr, Remote Cooled, 208-230v/3ph

The Hoshizaki KM2600SRJZ3 ice maker head can produce 2,617 pounds of crescent cube style ice every 24 hours if the ambient temperature is 70 degrees, and the incoming water temperature is 50 degrees Fahrenheit. Designed with durability in mind, this unit has a stainless steel evaporator and exterior to resist dents, corrosion, and rust. This item has an H-GUARD plus antimicrobial agent to prevent the growth of mold and bacteria on internal components.

To alert users of temperature fluctuations, the Hoshizaki KM2600SRJZ3 ice machine head has an EverCheck™ alert system that will sound. To maintain consistent temperatures, this unit relies on R404A refrigerant, an eco-friendly and efficient hydrocarbon. To operate this machine head, operators must order both a remote condenser and an ice bin separately.

Product Details

• KM Series
• Remote, air-cooled system
• 2,617-lb. production per 24-hrs. at 70 degrees F ambient and 50 degrees F incoming water
• 2,580-lb. production per 24-hrs. at 90 degrees F ambient and 70 degrees F incoming water
• Crescent ice cube shape
• Crescent-cube ice size: 1¹/₈ in. W x ¹/₂ in. D x 1¹/₂ in. H
• Stainless steel exterior and evaporator
• H-GUARD Plus antimicrobial agent
• EverCheck™ alert system
• CycleSaver™ design
• Relies on R404A refrigerant
• Requires remote condenser (sold separately)
• Ice bin sold separately
• 36,000 BTU
• "Z" model ice machine must be paired with "Z" model remote condenser

Optimal Operating Conditions

• Ambient temperature holding range: 45-100 degrees F
• Water temperature holding range: 45-90 degrees F
• Water pressure: 10-113 PSIG
• Clearances: 6-in. on both sides, 6-in. in rear, and 6-in. above
• Water supply requires copper water tubing with a minimum ³/₈-in. inner diameter
• Drain requires hard pipe with a minimum ³/₄-in. inner diameter

Dimensions & Utilities

• 48 in. W x 27³/₈ in. D x 36⁷/₁₆ in. H
• 20.6 A, 3.61 kW
• 208-230 V/60 Hz/3 ph

Product Features

*Free shipping on Hoshizaki KM-2600SRJZ3 within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 48"W, air-cooled, remote condenser (priced separately), production capacity up to 2617 lb/24 hours at 70°/50° (2580 lb AHRI certified at 90°/70°), crescent cube style, stainless steel finish, R-404A refrigerant, 208-230v/60/3-ph, 20.6 amps, protected with H-GUARD Plus Antimicrobial Agent, NSF, UL, ENERGY STAR® (always pair “Z” model ice machines with “Z” model remote condenser)

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KM-2600SRJZ3 Specifications

Documents

Spec Sheet

Warranty

Manual
