Hoshizaki KM-2600SWJ3 48" Crescent Cube Ice Machine Head - 2482 lb/24 hr, Water Cooled, 208-230v/3ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$16,590.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled

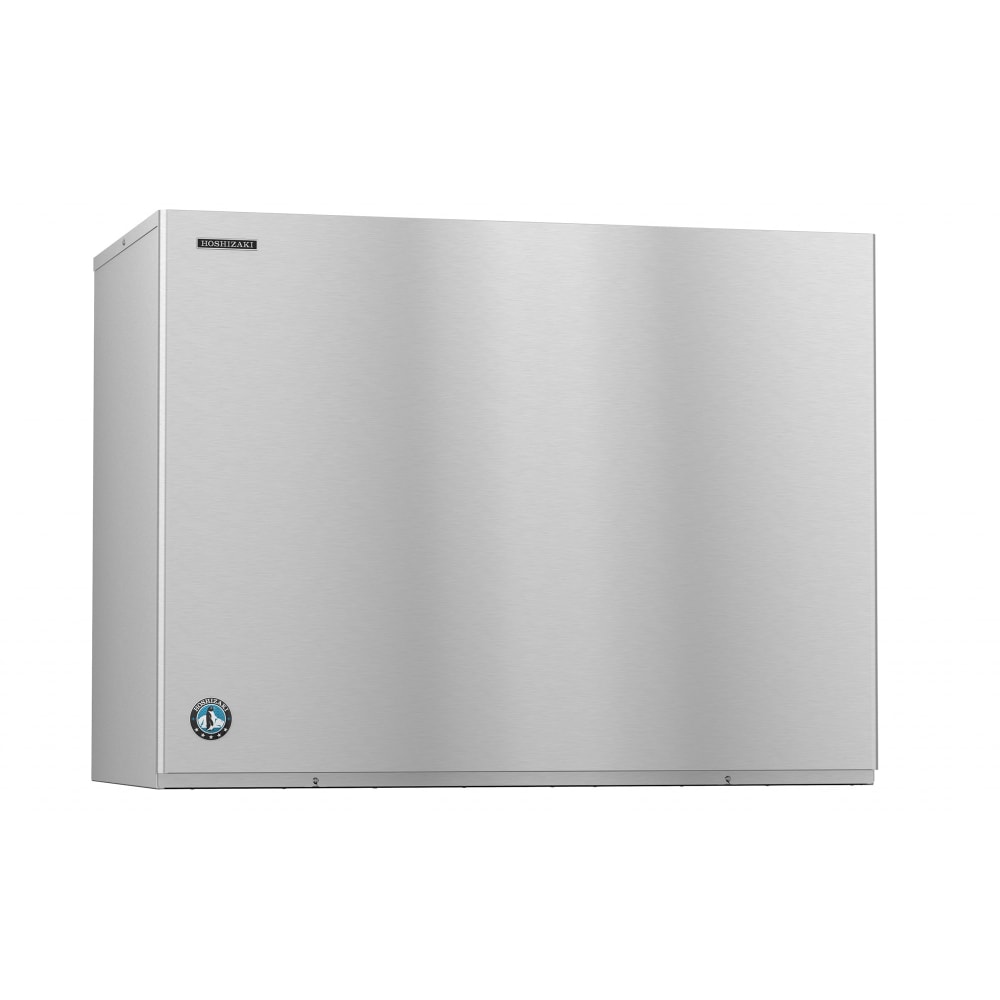

Hoshizaki KM-2600SWJ3 Description
The Hoshizaki KM-2600SWJ3 crescent cube ice machine head can produce 2,482 pounds of ice each day, making it a good choice for high-volume locations such as movie theaters or sporting arenas. Because of the unique crescent cube shape, the ice produced by this machine is exceptionally hard and melts more slowly than other types of ice cubes. The stainless steel construction of this unit can withstand intensive use and is resistant to rusting and denting.
The Hoshizaki KM-2600SWJ3 crescent cube ice machine head alerts users when servicing or repairs are required, using its EverCheck™ alert system. For quick maintenance, the panels of this machine are removable, providing access to all components. Its H-Guard Plus® antimicrobial medium fights the growth of bacteria and decreases cross contamination, promoting clean, fresh-tasting ice.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- 2,482-lb. maximum daily ice production
- 2,480-lb. AHRI-certified daily ice production
- Water-cooled system
- Stackable
- Produces crescent cube ice
- Self-contained condensing system
- EverCheck alert system indicates if servicing is needed
- H-Guard Plus antimicrobial agent promotes sanitary conditions
- Made of durable, rust-resistant stainless steel
- Removable panels provide access to all components

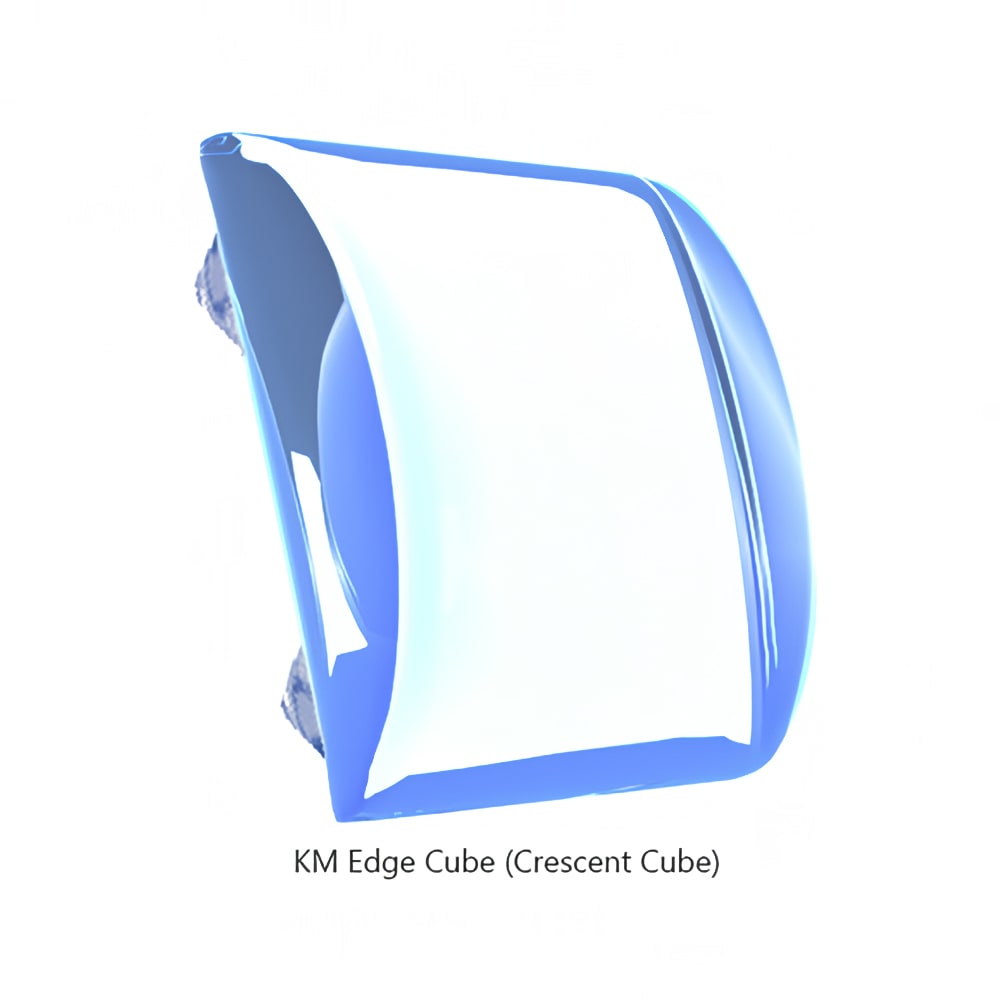

- Crescent cube size: 1 1⁄8 in. W x 1⁄2 in. D x 1 1⁄2 in. H
- Recommended ambient air temperature: 45-100 degrees F
- Recommended incoming water temperature: 45-90 degrees F
- Recommended incoming water pressure: 10-113 PSI
- R404A refrigerant
- 31,600-BTU heat transfer capacity
- Recommended clearance: 6 in. at rear, sides, and top
- 48 in. W x 27 3⁄8 in. D x 36 7⁄16 in. H
- Plumbing inlet minimum requirements: 3⁄8-in. nominal ID copper water tubing
- Drain line minimum requirements: 3⁄4-in. nominal ID hard pipe
- 12.8 A, 3.6 kW
- 208-230 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KM-2600SWJ3 within the 48 contiguous states.
From The Manufacturer
Ice Maker, Cube-Style, 48"W, stackable, water-cooled, self-contained condenser, production capacity up to 2482 lb/24 hours at 70°/50° (2480 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 208-230v/60/3-ph, 12.8 amps, NSF, UL
Watch a video about this product
Hoshizaki KM-2600SWJ3 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 2482 |
| Compressor Type | Water Cooled |
| Depth (in) | 27.38 |
| Height (in) | 36.44 |
| Ice Type | Crescent Cube |
| Kitchen Innovations Awards | 2018 |
| Phase | 3 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | KM EDGE |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 48 |
| Weight | 415.00 |
