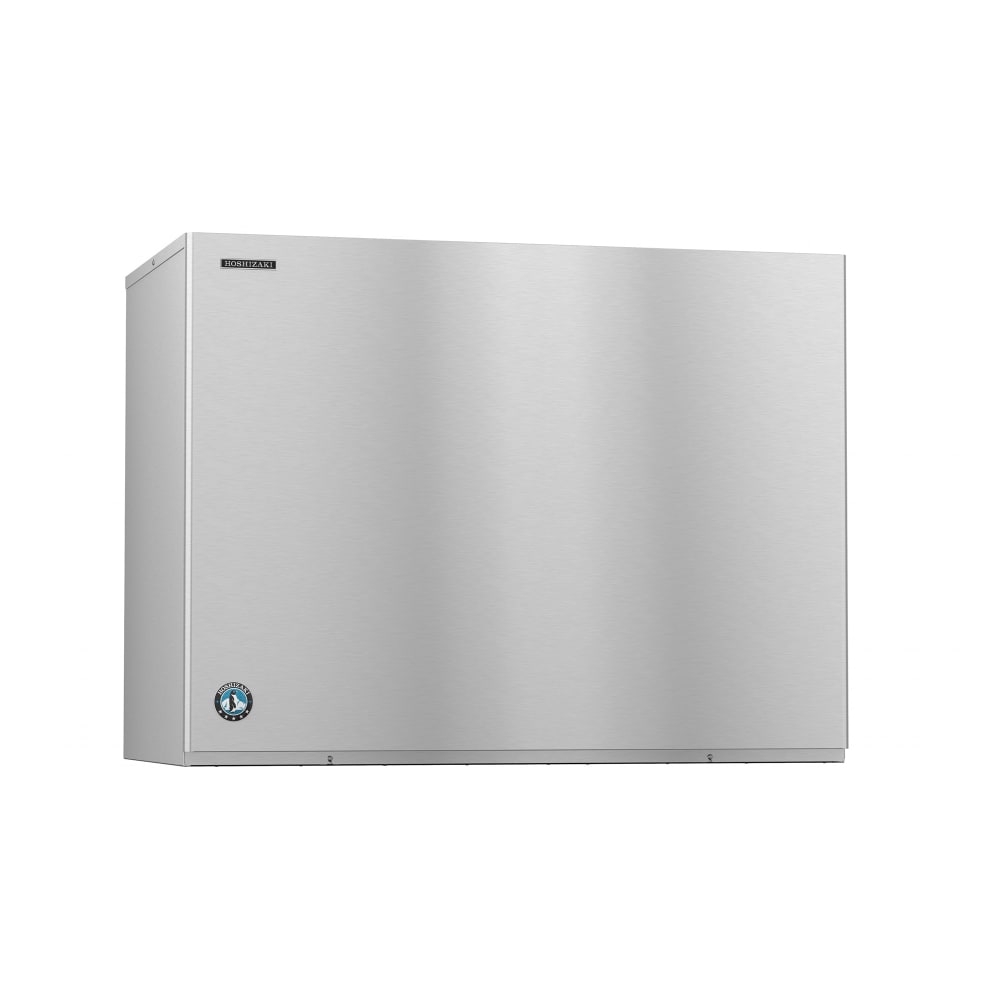

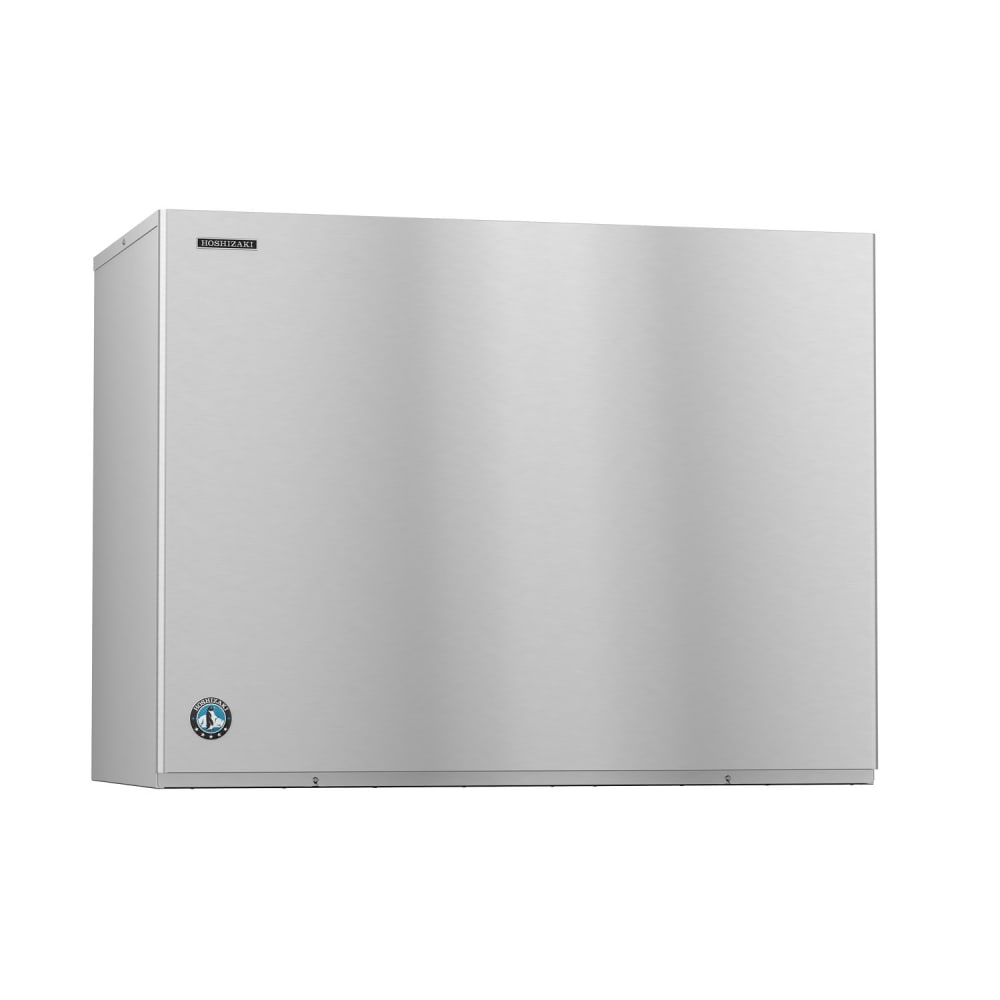

Hoshizaki KM-2200SRJZ3 48" Crescent Cube Ice Machine Head - 2206 lb/24 hr, Remote Cooled, 208-230v/3ph

The Hoshizaki KM2200SRJZ3 ice machine head can produce 2,206 pounds of ice in a 24-hour period if the ambient temperature is 70 degrees Fahrenheit and if the incoming water temperature is 50 degrees Fahrenheit. This unit produces crescent cube style ice, which can be used to keep food items cold or for serving various beverages. This unit relies on R404A refrigerant, an eco-friendly and energy-efficient hydrocarbon.

Constructed of stainless steel, the Hoshizaki KM2200SRJZ3 ice maker head is resistant to dents, corrosion, and rust. Its durable build ensures it can withstand constant use in a busy kitchen or beverage station. This unit requires a remote condenser and an ice bin for operation, both of which must be ordered separately. This unit utilizes H-GUARD Plus antimicrobial agent to prevent bacteria and mold from collecting in the internal components.

Product Details

• KM Series
• Remote, air-cooled system
• 2,206-lb. production per 24-hrs. at 70 degrees F ambient and 50 degrees F incoming water
• 2,075-lb. production per 24-hrs. at 90 degrees F ambient and 70 degrees F incoming water
• Crescent cube ice shape
• Crescent-cube ice size: 1¹/₈ in. W x ¹/₂ in. D x 1¹/₂ in. H
• Stainless steel exterior and evaporator
• H-GUARD Plus antimicrobial agent
• EverCheck™ alert system
• CycleSaver™ design
• Relies on R404A refrigerant
• Requires remote condenser (sold separately)
• Ice bin sold separately
• 26,700 BTU
• "Z" model ice machine must be paired with "Z" model remote condenser

Optimal Operating Conditions

• Ambient temperature holding range: 45-100 degrees F
• Water temperature holding range: 45-90 degrees F
• Water pressure: 10-113 PSIG
• Clearances: 6-in. on both sides, 6-in. in rear, and 6-in. above
• Water supply requires copper water tubing with a minimum ³/₈-in. inner diameter
• Unit requires hard drain pipe with a minimum ³/₄-in. inner diameter

Dimensions & Utilities

• 48 in. W x 27³/₈ in. D x 36⁷/₁₆ in. H
• 15.9 A, 3.75 kW
• 208-230 V/60 Hz/3 ph

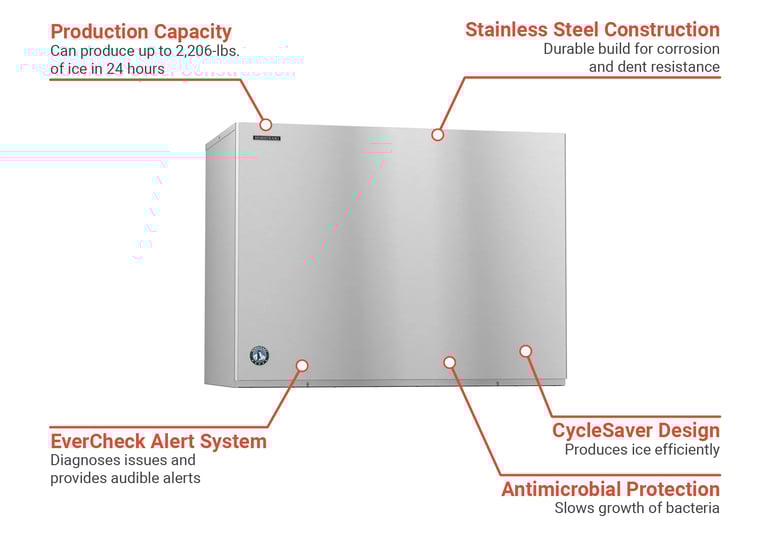

Product Features

*Free shipping on Hoshizaki KM-2200SRJZ3 within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 48"W, air-cooled, remote condenser (priced separately), production capacity up to 2206 lb/24 hours at 70°/50° (2075 lb AHRI certified at 90°/70°), crescent cube style, stainless steel finish, R-404A refrigerant, 208-230v/60/3-ph, 15.9 amps, protected with H-GUARD Plus Antimicrobial Agent, NSF, UL, ENERGY STAR® (always pair “Z” model ice machines with “Z” model remote condenser)

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KM-2200SRJZ3 Specifications

Documents

Spec Sheet

Warranty

Manual
