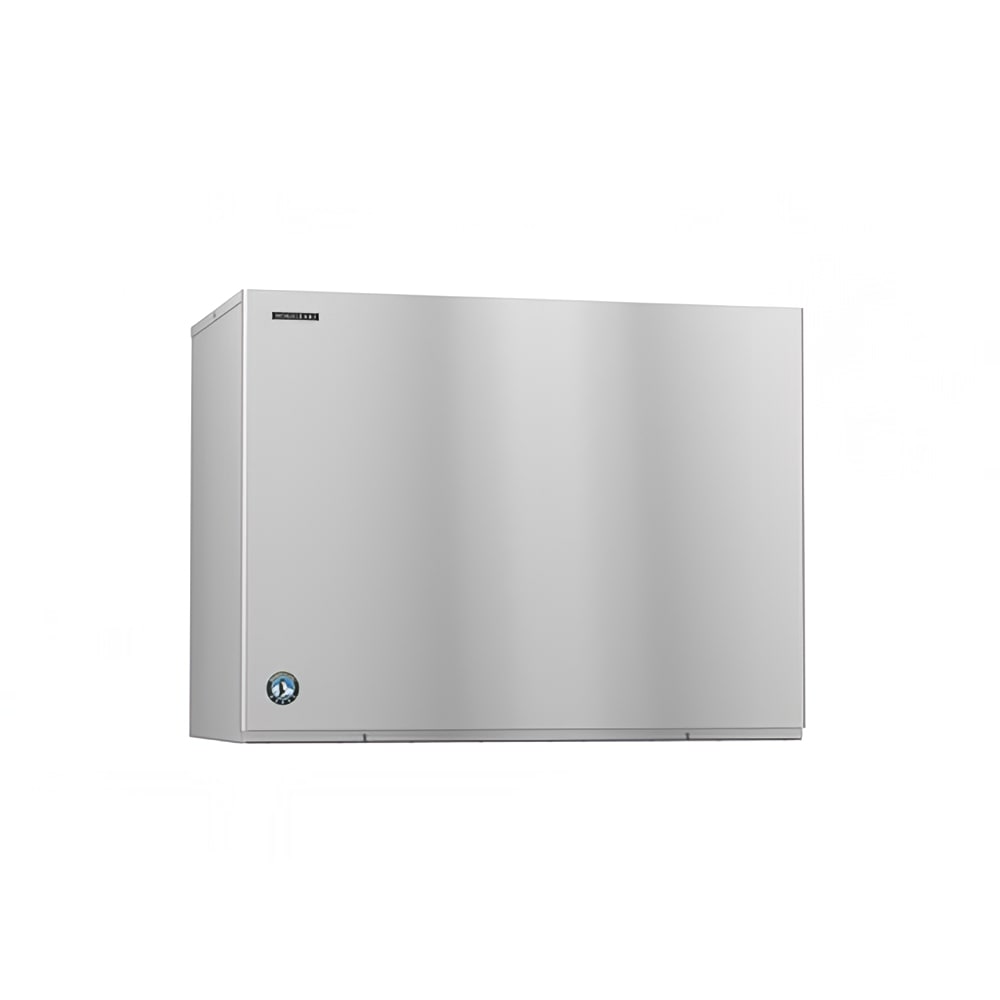

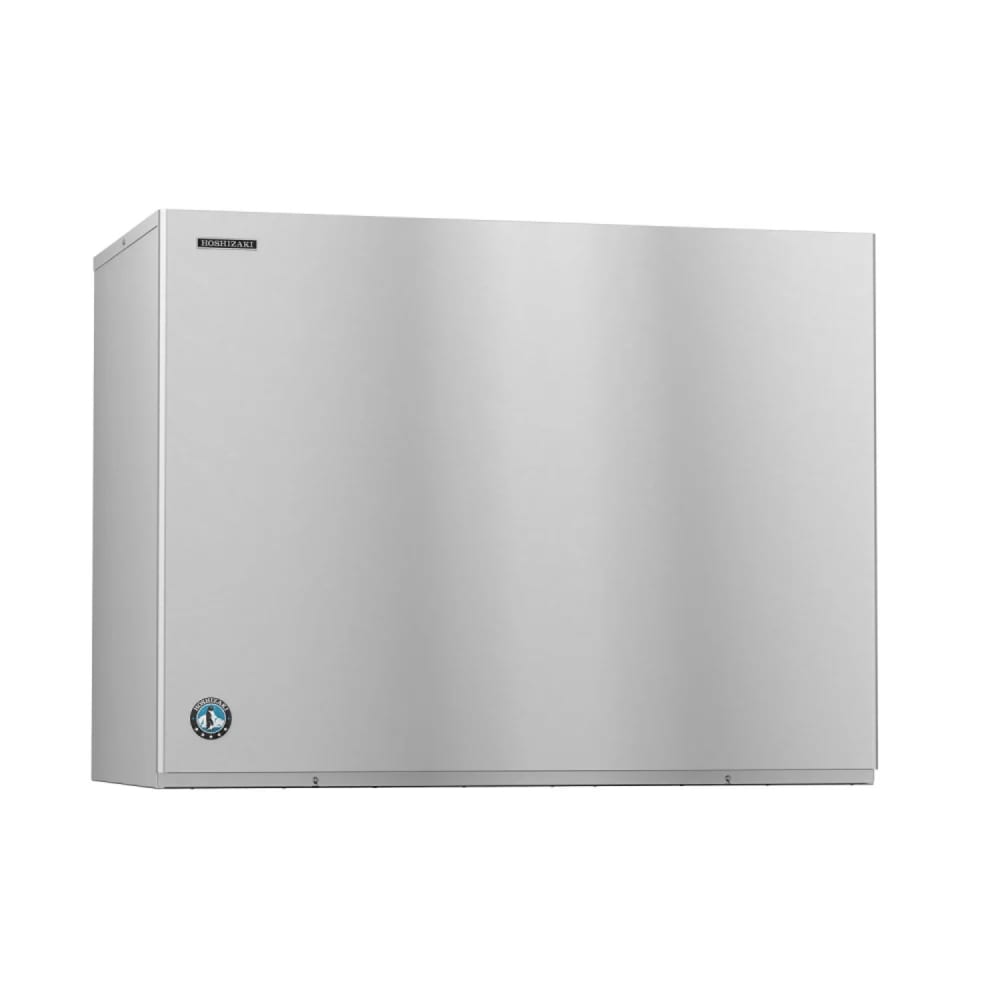

Hoshizaki KM-2200SWJ3 48" Crescent Cube Ice Machine Head - 2221 lb/24 hr, Water Cooled, 208-230v/3ph

The Hoshizaki KM-2200SWJ3 ice machine head creates 2,221 pounds of crescent cube ice per day if operating conditions are ideal. When water and air temperatures rise, this unit only crafts 2,200 pounds daily. It operates using a water-cooled, self-contained condenser with a CycleSaver™ design, which produces ice quickly for busy environments. To ensure optimum productivity, an EverCheck™ alert system tells employees when servicing is needed.

To prevent the rapid growth of bacteria, the Hoshizaki KM-2200SWJ3 crescent cube ice machine head includes an H-GUARD Plus® antimicrobial agent. Its evaporator is made of stainless steel to prevent rusting and its exterior is made of the same metal to provide durability for high-volume use. This unit does not include an ice bin or dispenser.

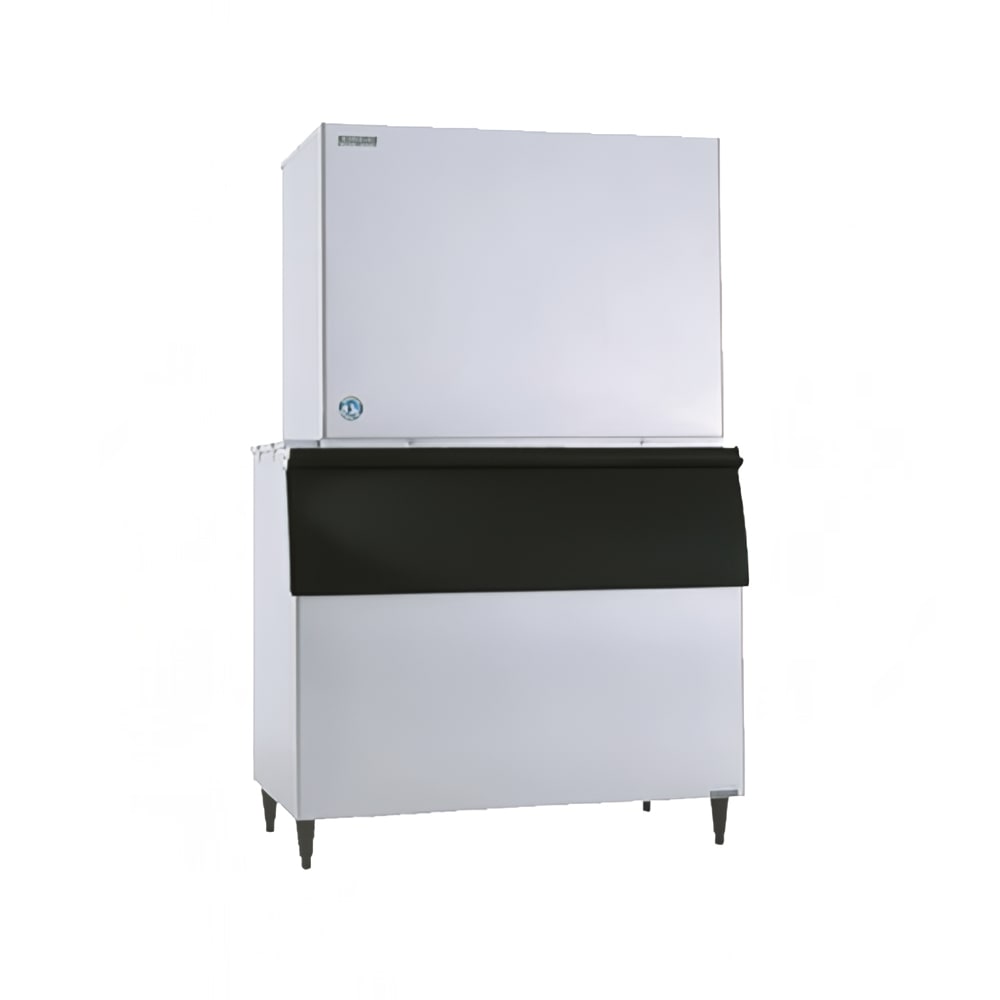

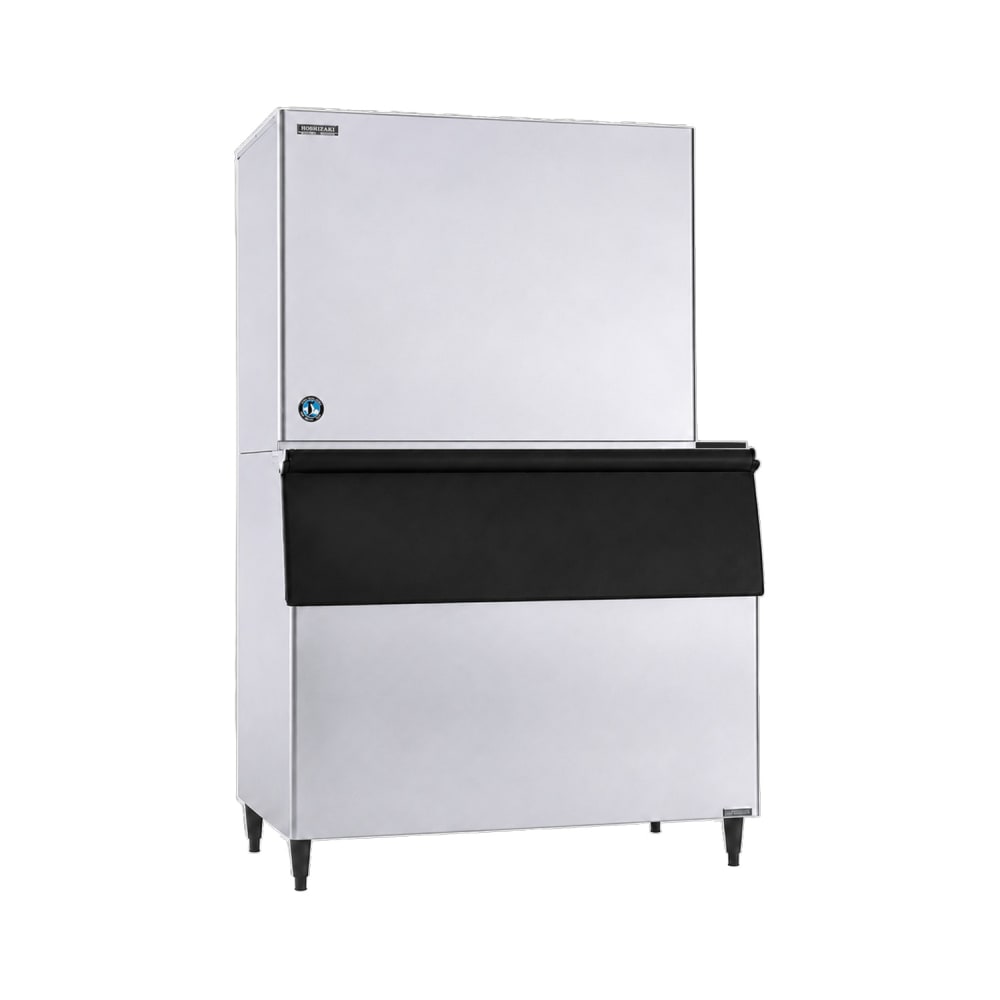

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• 2,221-lb. maximum daily ice production
• 2,200-lb. AHRI-certified daily ice production
• Produces crescent cube ice
• Crescent cube ice size: 1¹⁄₂ in. x ¹⁄₂ in. x 1¹⁄₈ in.
• Generates ice quickly with the CycleSaver feature
• H-GUARD Plus slows the growth of microbes
• EverCheck alert system takes guesswork out of servicing
• Resilient, stainless steel construction
• Self-contained, water-cooled condenser
• Creates ice with R-404A refrigerant
• Evaporator is made of rust-resistant stainless steel
• No bin or dispenser is included
• Ideal ambient temperature range: 45-100 degrees F
• Ideal incoming water temperature range: 45-90 degrees F
• Ideal incoming water pressure: 10-113 PSIG
• 27,200-BTU heat transfer capacity

Product Features

Dimensions & Utilities

• 48 in. W x 27.38 in. D x 36.44 in. H
• 12.8 A, 3.11 kW
• 208-230 V/60 Hz/3 ph

*Free shipping on Hoshizaki KM-2200SWJ3 within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 48"W, stackable, water-cooled self-contained condenser, production capacity up to 2221 lb/24 hours at 70°/50° (2200 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 208-230v/60/3-ph, 12.8 amps, NSF, UL

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KM-2200SWJ3 Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.
