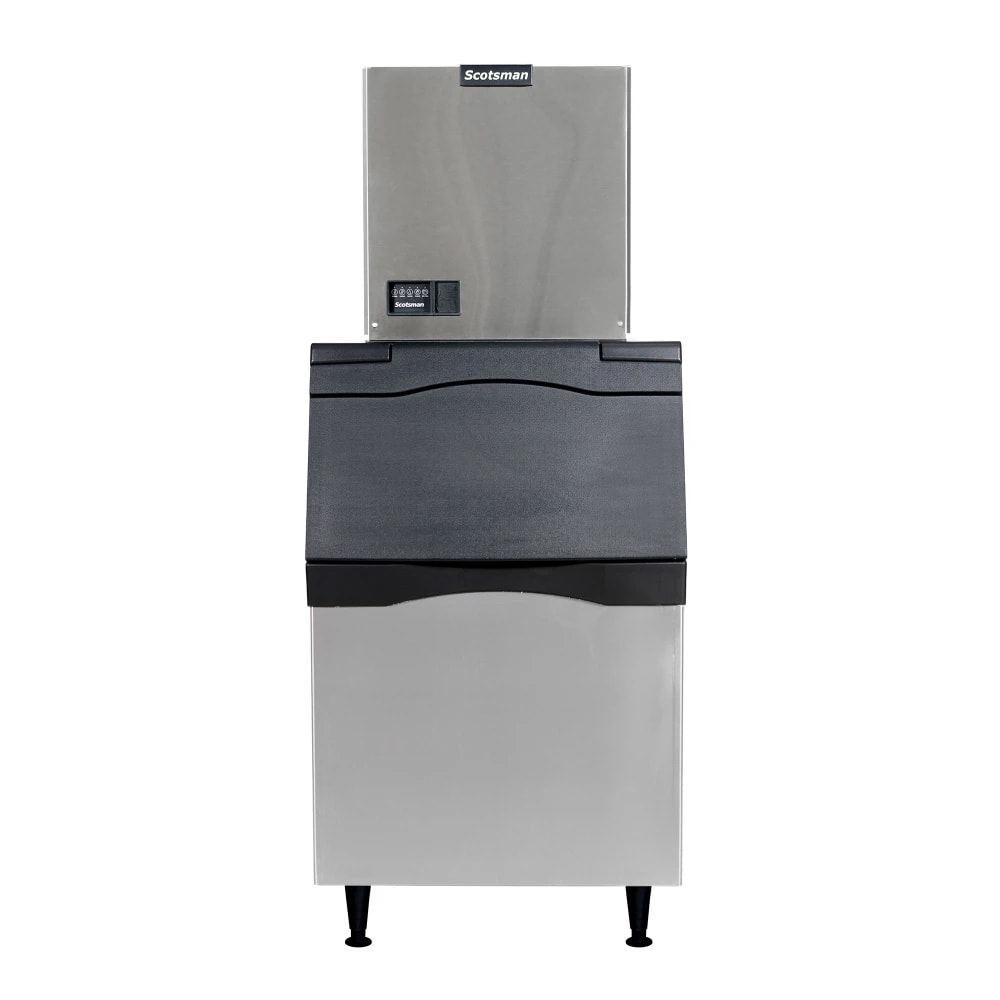

Scotsman MC0522SW-1/B530P/KBT27 480 lb Prodigy ELITE® Half Cube Ice Machine w/ Bin & Filter - 536 lb Storage, Water Cooled, 115v
Retail Price: $13,915.00
$5,703.00 /Each
Selected Compressor Type: Water Cooled
Selected Ice Type: Half Cube
Scotsman MC0522SW-1/B530P/KBT27 Description
The Scotsman MC0522SW-1/B530P/KBT27/AP1-P Prodigy ELITE® ice machine and bin has a water-cooled condenser and can make 480 pounds of ice in 24 hours. When sanitizing, descaling, and other maintenance is needed, AutoAlert™ lights notify the user. A QR code placed on the front of the machine connects the user with warranty and technical service information. As this unit can be paired with the ICELINQ® mobile app from Scotsman, operators can easily access machine dashboard information, control the settings, and walk through the cleaning process. Its WaterSense feature adjusts the incoming water quality to minimize scale buildup. To ensure a consistent supply of ice, the Harvest Assist feature guides ice into the bin with hot gas and a probe. The cleaning process activates with a single touch, and a built-in antimicrobial agent guards the unit between cleanings.
The Scotsman MC0522SW-1/B530P/KBT27/AP1-P ice maker and bin has a 536-pound ice storage capacity, and its rotocast plastic construction is corrosion resistant. A scoop is included with a holder to keep the scoop out of the ice. Its recessed drain fitting provides flexibility when installing the bin, and a KBT27 adapter kit is included to properly fit it to the machine. Its door is spring loaded for smooth operation, while hidden door hinges eliminate hard-to-clean crevices. This unit includes the AP1-P water filter.
- Part of the Prodigy ELITE series
- 480-lb. daily ice production
- 409-lb. AHRI-certified daily ice production
- Water-cooled condenser uses R404A refrigerant
- Bluetooth compatibility

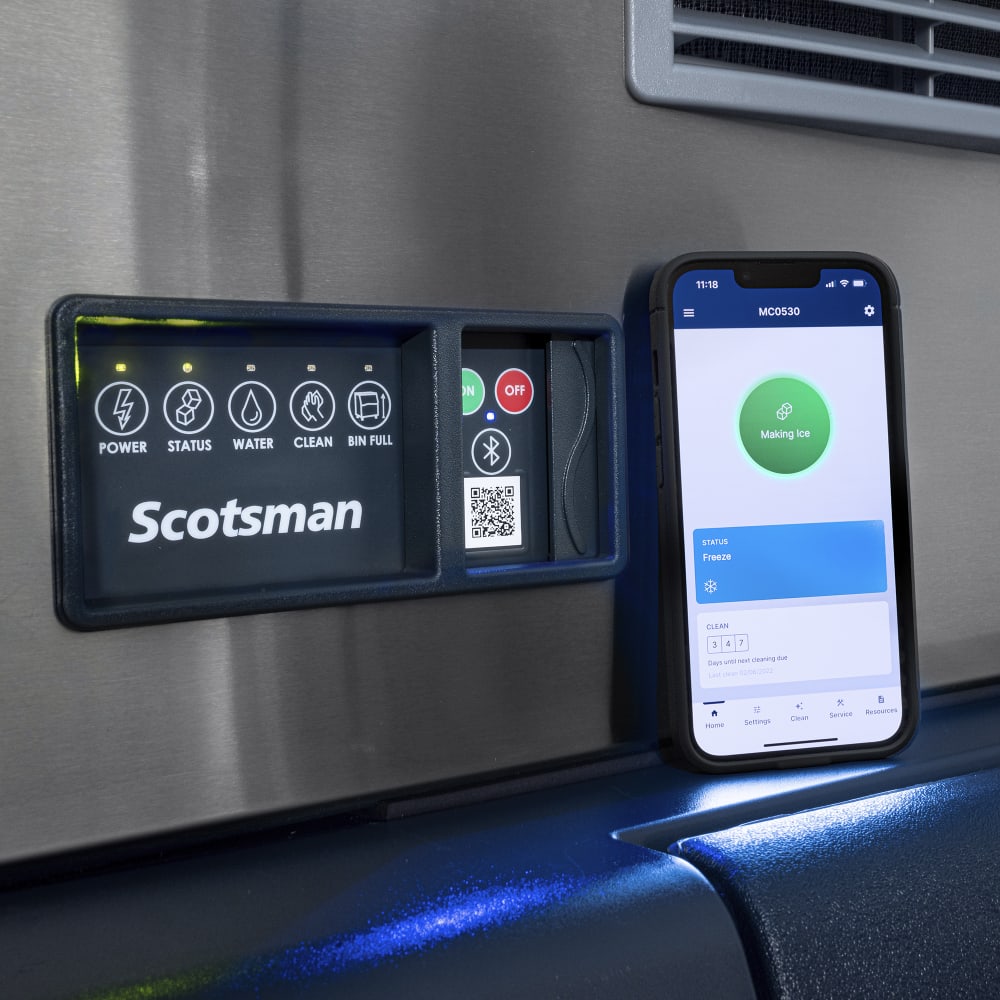

- ICELINQ mobile app available
- Can be connected to mobile app for guided cleaning, settings adjustments, and diagnostics reports
- AutoAlert lights display the operating status
- Front-located QR code provides technical and warranty information
- 1-touch cleaning feature
- Removable front panel
- Water quality and scale buildup are monitored with a WaterSense feature
- Harvest Assist feature ensures a constant supply of ice
- Unit is protected between cleanings with a built-in antimicrobial agent
- Half-cube ice size: 7⁄8 in. x 7⁄8 in. x 3⁄8 in.
- Required ambient air temperature: 50-100 degrees F
- Required incoming water temperature: 40-100 degrees F
- Required incoming water pressure: 20-80 PSI
- 7,900 BTU
- AP1-P water filter included
- 536-lb. ice storage capacity
- Rotocast plastic construction resists corrosion
- Removable baffle (does not require tools)
- Built-in scoop holder with a scoop included
- Recessed drain fitting supports installation
- Spring-loaded door with hidden hinges
- KBT27 adapter kit fits the bin to the machine
- Ice Maker
- 22 in. W x 24 in. D x 23 in. H
- 11.9 A, 4.48 kW
- 115 V/60 Hz/1 ph
- Ice Bin
- 30 in. W x 34 in. D x 50 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman MC0522SW-1/B530P/KBT27 within the 48 contiguous states.
From The Manufacturer
Prodigy ELITE® Ice Maker, cube style, water-cooled, self-contained condenser, production capacity up to 480 lb/24 hours at 70°/50° (409 lb AHRI certified at 90°/70°), small cube size, ICELINQ® mobile app, Bluetooth® connectivity, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, 115v/60/1-ph, 11.9 amps, cULus, NSF, engineered and assembled in USA
Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, 30" width, roto cast plastic construction, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6" legs, NSF, engineered and assembled in USA; (KBT27) Bin Top, for use with all 22" cubers, flakers & nugget makers (except EH222) on B230, B330 & B530 bins
AquaPatrol™ Plus Water Filtration System, single system, 2.1 gallons per minute max flow, designed for cubers up to 650 lb, and for flakers, nuggets & nugget dispensers up to 1,200 lb, cULus, NSF
Watch a video about this product
Scotsman MC0522SW-1/B530P/KBT27 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 480 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 536 |
| Compressor Type | Water Cooled |
| Depth (in) | 34 |
| Height (in) | 73 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Includes | AP1-P Filtration |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | Prodigy ELITE® |
| Special Features | AgION™ Antimicrobial Protection |
| Special Features | Inline Water Filter Included |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 278.00 |
