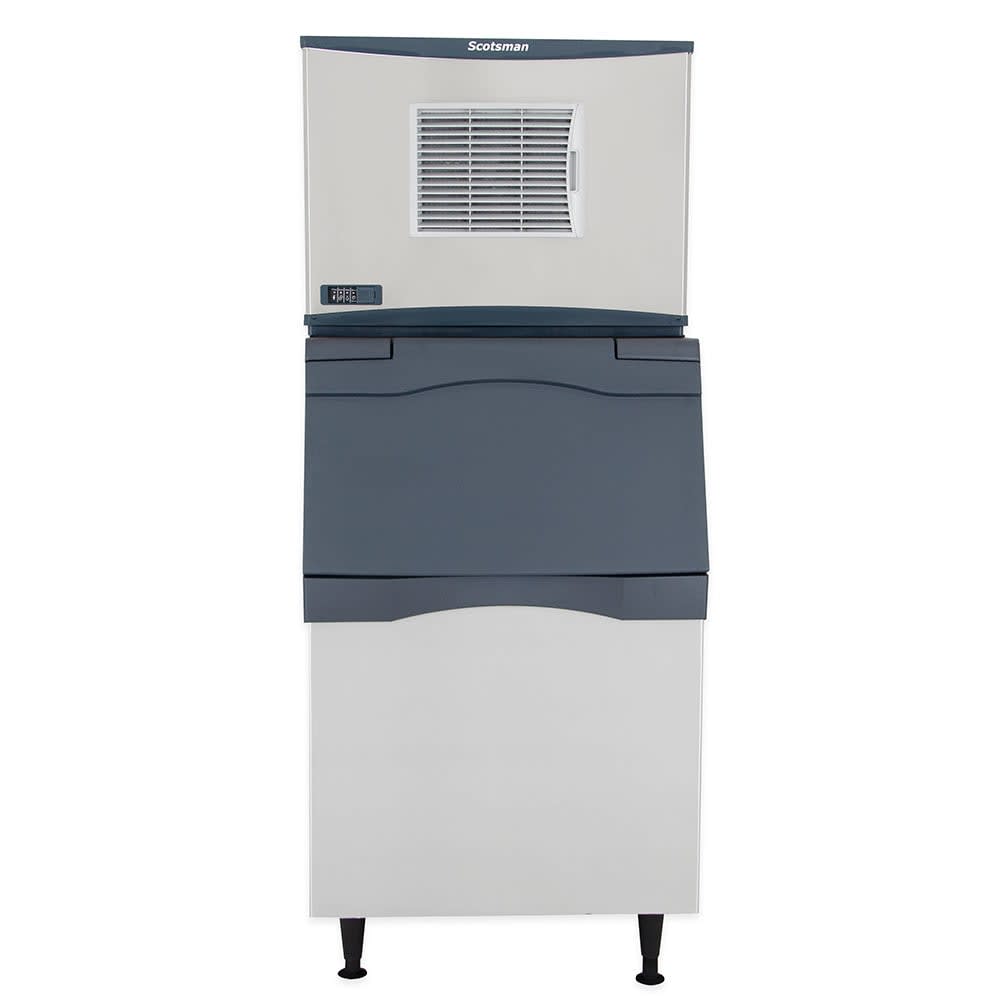

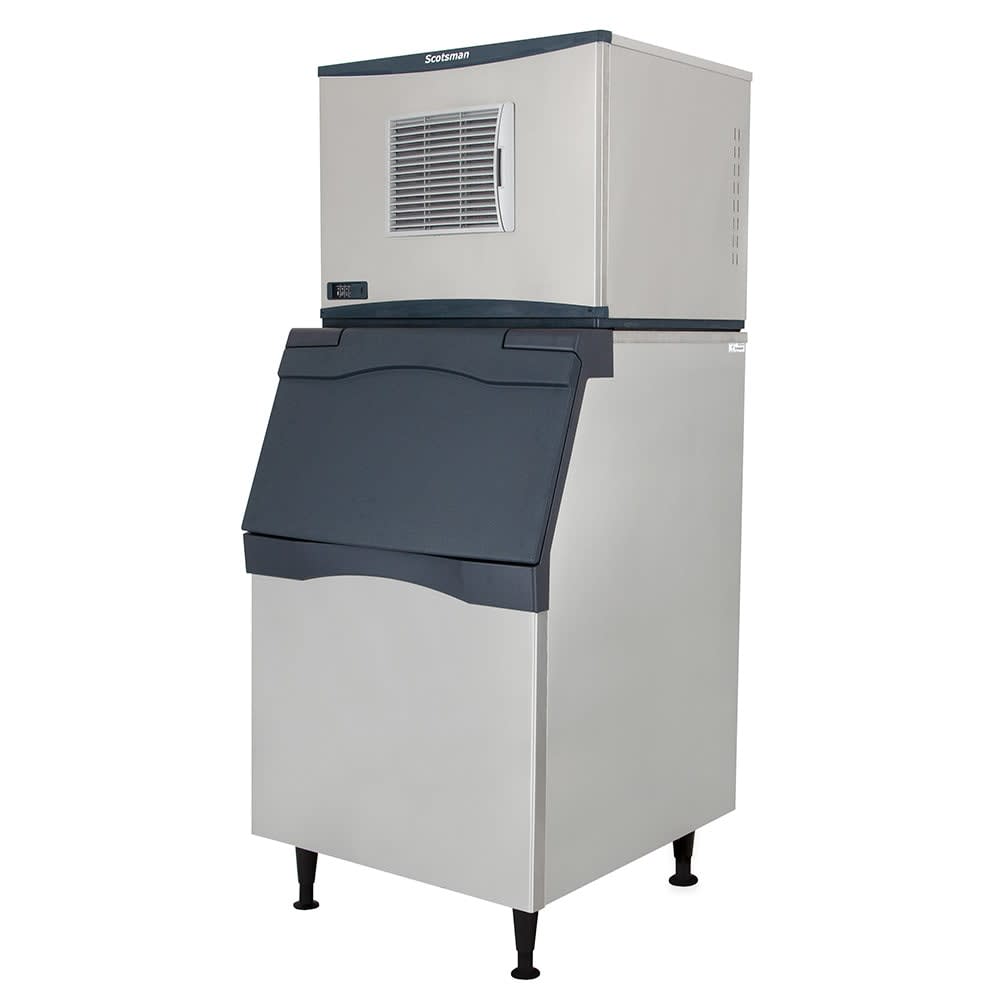

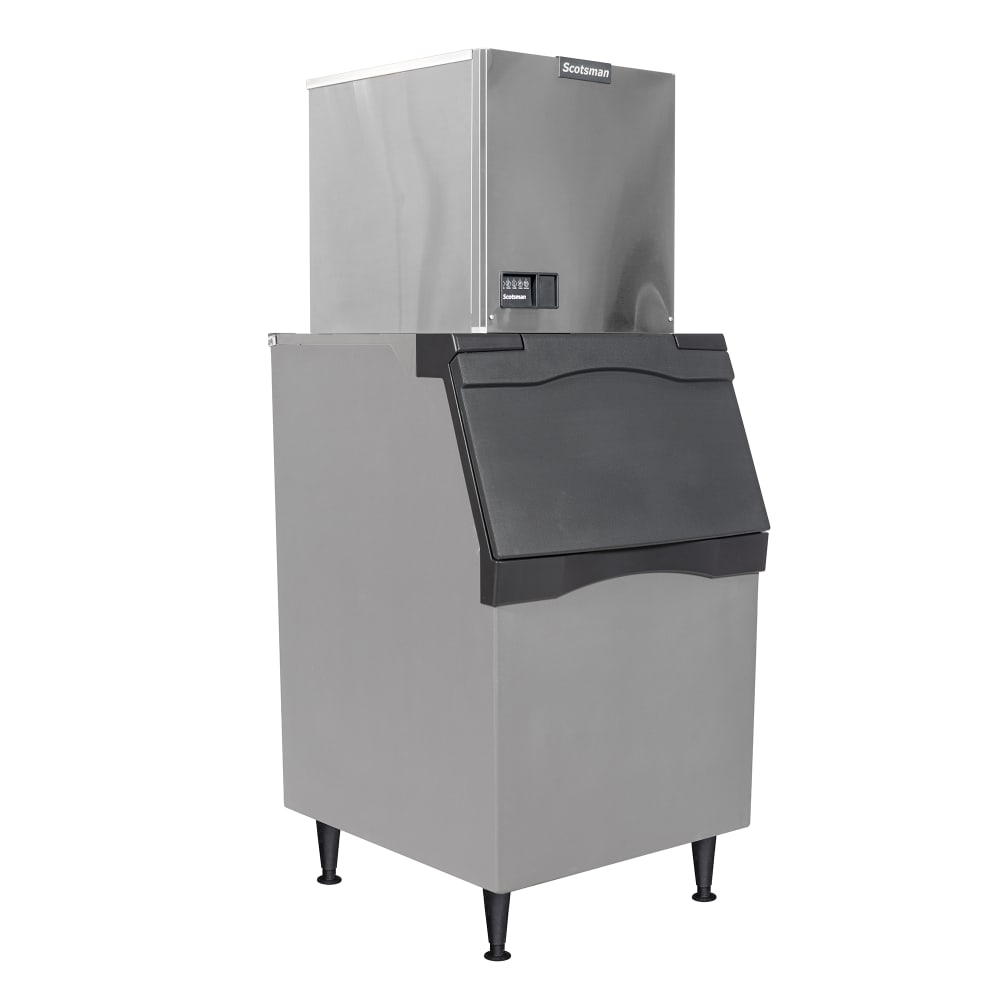

Scotsman MC0522MWX-1/B530P/KBT27 510 lb Prodigy ELITE® Full Cube Ice Machine w/ Bin & Filter - 536 lb Storage, Water Cooled, 115v
Retail Price: $13,915.00
$5,703.00 /Each
Selected Compressor Type: Water Cooled
Selected Ice Type: Full Cube
Scotsman MC0522MWX-1/B530P/KBT27 Description
The Scotsman MC0522MWX-1/B530P/KBT27/AP1-P ice maker with bin can make 510 pounds of ice daily and stores 536 pounds. It's part of the Prodigy ELITE® series. It makes full-cube ice, which is ideal for soft drinks, iced tea, and water. WaterSense purge control prevents scale from building up, while antimicrobial technology protects against bacteria growth. When necessary, staff can clean the ice machine head with the push of a button and monitor the ice maker's status with the diagnostic module, indicator lights, and a scannable QR code. For intuitive control over this ice maker, Scotsman’s ICELINQ® mobile app provides dashboard access, a step-by-step guided cleaning process, and important control options.
With Harvest Assist technology, ice from the Scotsman MC0522MWX-1/B530P/KBT27/AP1-P ice maker with bin drops smoothly to the dispenser. A spring-loaded door provides convenient access to the ice, its hidden hinges eliminating crevices that could trap debris and harbor bacteria. A scoop comes with the bin, and an integrated holder keeps it sanitary. An adapter kit is included to join the ice machine head and bin together. The AP1-P water filter is included with this ice machine.
- Part of the Prodigy ELITE series
- 510-lb. ice production capacity
- Full-cube ice size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.

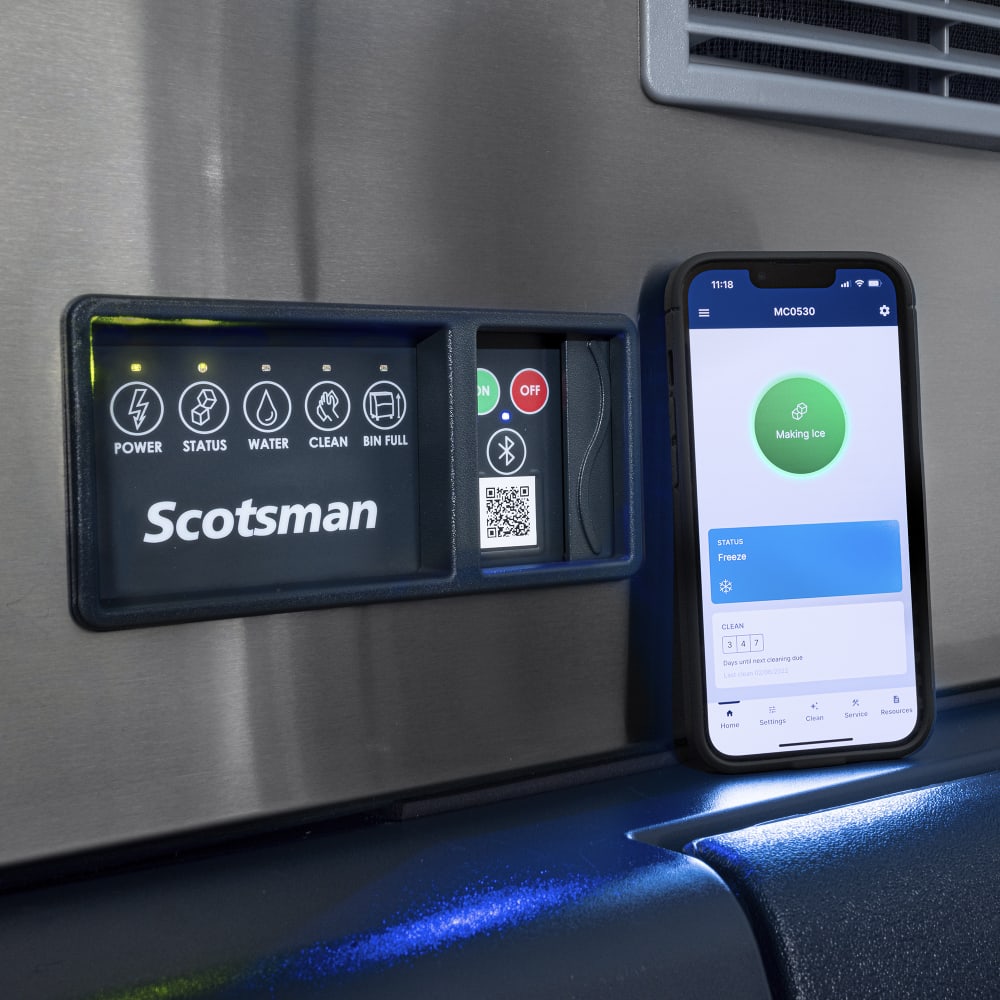

- Connects to mobile app via bluetooth for guided cleaning, diagnostics reports, and settings adjustments

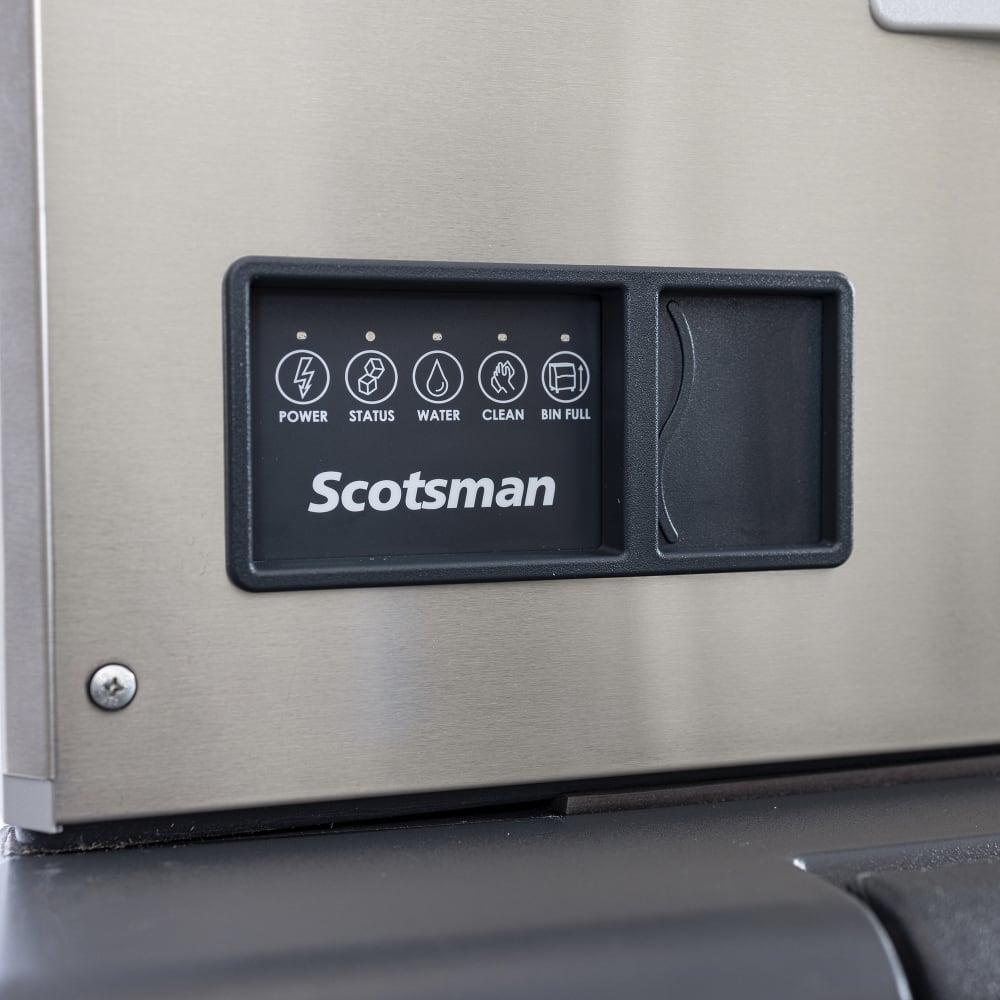

- AutoAlert™ lights indicate the operating status
- Diagnostic Smart-Board™ module
- Scannable QR code with service and warranty information
- ICELINQ mobile app available
- Self-aligning front panel provides access to internal parts
- Antimicrobial agent slows the growth of bacteria
- WaterSense purge control minimizes scale buildup
- Harvest Assist moves ice into the bin
- 1-touch cleaning
- Water-cooled condenser
- R290 refrigerant
- AP1-P water filter
- 7,900 BTU
- Required ambient air temperature: 50-100 degrees F
- Required incoming water temperature: 40-100 degrees F
- Required incoming water pressure: 20-80 PSIG
- 536-lb. storage capacity

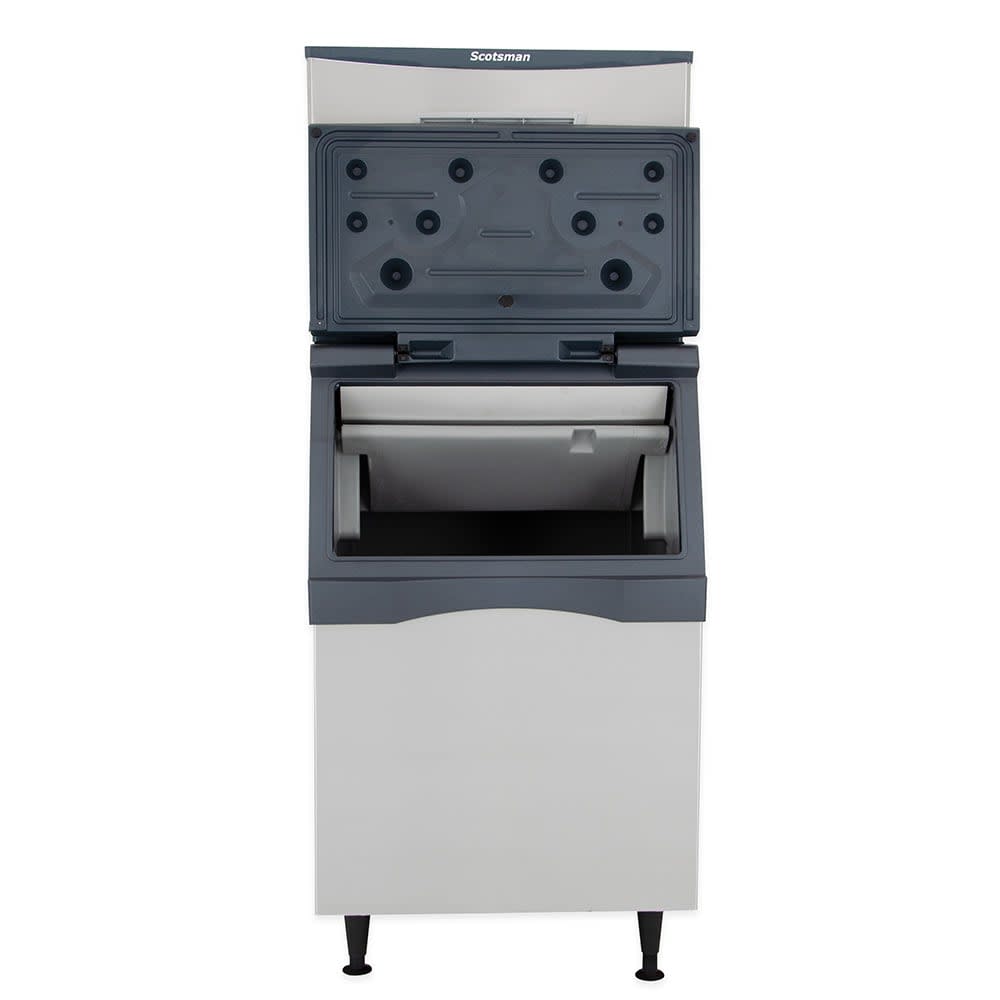

- Spring-loaded door
- Hidden door hinges facilitate cleaning
- Recessed drain fitting enables flexible installation
- Baffle removal does not require tools
- Ice scoop with a built-in holder
- Durable rotocast plastic construction
- KBT27 adapter kit is included to attach the ice machine head
- Ice Maker
- 22 in. W x 24 in. D x 23 in. H
- 11.9 A, 4.48 kW
- 115 V/60 Hz/1 ph
- Bin
- 30 1⁄2 in. W x 34 in. D x 50 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman MC0522MWX-1/B530P/KBT27 within the 48 contiguous states.
From The Manufacturer
Prodigy ELITE® Ice Maker, cube style, water-cooled, self-contained condenser, production capacity up to 510 lb/24 hours at 70°/50° (352 lb AHRI certified at 90°/70°), medium cube size, ICELINQ® mobile app, Bluetooth® connectivIty, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, R290 refrigerant, 115v/60/1-ph, 11.9 amps, cULus, NSF
Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, 30" width, roto cast plastic construction, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6" legs, NSF; (KBT27) Bin Top, for use with all 22" cubers, flakers & nugget makers (except EH222) on B230, B330 & B530 bins
AquaPatrol™ Plus Water Filtration System, single system, 2.1 gallons per minute max flow, designed for cubers up to 650 lb, and for flakers, nuggets & nugget dispensers up to 1,200 lb, cULus, NSF
Watch a video about this product
Scotsman MC0522MWX-1/B530P/KBT27 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 510 |
| Access | Lift Up Door |
| Also Known As | MC0522MW-1/B530P |
| Bin Capacity (lb) | 536 |
| Compressor Type | Water Cooled |
| Depth (in) | 34 |
| Height (in) | 73 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Includes | AP1-P Filtration |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Prodigy ELITE® |
| Special Features | AgION™ Antimicrobial Protection |
| Special Features | Inline Water Filter Included |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 278.00 |
