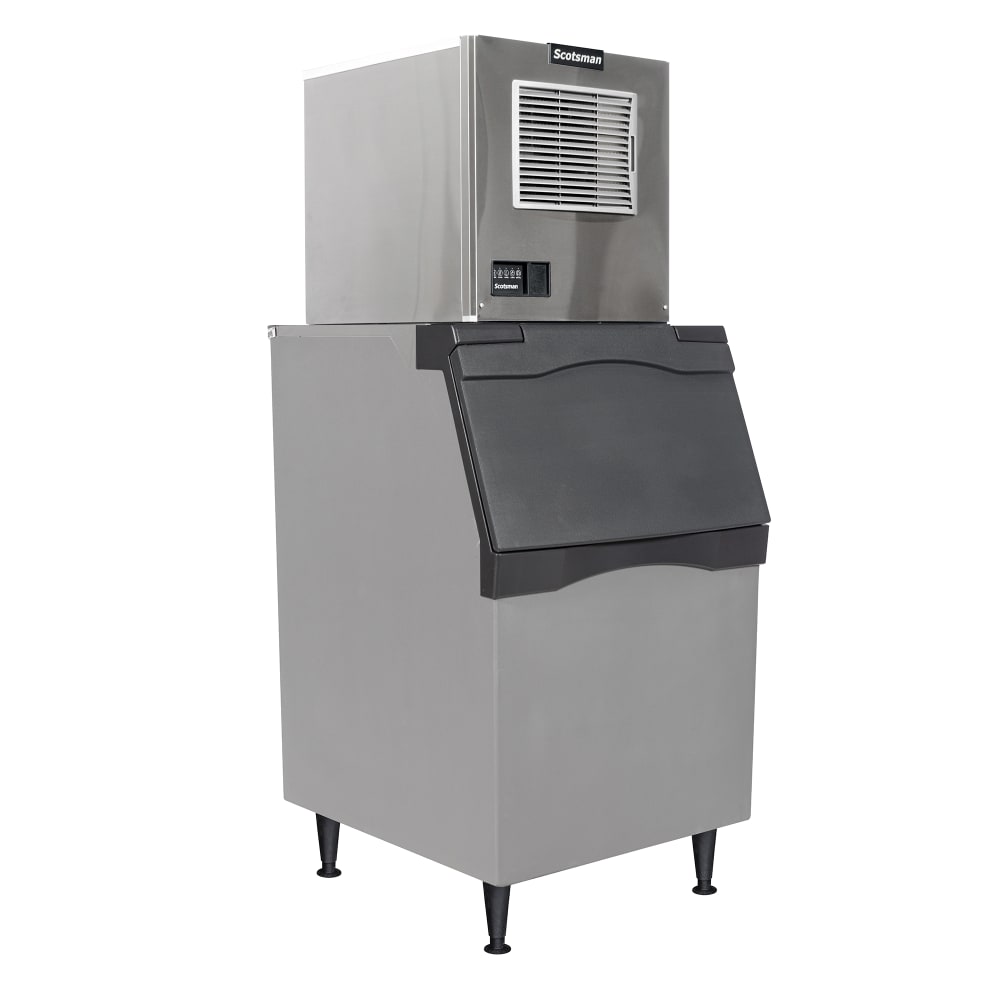

Scotsman MC0522MAX-1/B530P/KBT27 464 lb Prodigy ELITE® Full Cube Ice Machine w/ Bin & Filter - 536 lb Storage, Air Cooled, 115v
Retail Price: $13,765.00
$5,642.00 /Each
Selected Compressor Type: Air Cooled
Selected Ice Type: Full Cube
Scotsman MC0522MAX-1/B530P/KBT27 Description
The Scotsman MC0522MAX-1/B530P/KBT27/AP1-P ice maker with bin has a 464-pound daily ice production capacity. This unit is part of the Prodigy ELITE® series. Since it makes full cubes, it is perfect for operations that serve drinks or need slow-melting ice. On the module, operators can find diagnostic information and indicator lights that tell staff about the unit’s status. This ice machine can be paired with Scotsman’s intuitive ICELINQ® mobile application, providing operators with full access to the machine’s dashboard, control settings, and an intuitive step-by-step cleaning process. The front panel is removable, and its self-aligning panel enables it to slide smoothly back in place. All internal surfaces are protected by an antimicrobial agent that slows bacteria growth. This bin can accommodate 536 pounds and includes a scoop with a built-in holder. An adapter connects the Scotsman MC0522MAX-1/B530P/KBT27/AP1-P ice maker to its bin and ensures ice flows efficiently. The AP1-P water filter comes with this unit.
- Part of the Prodigy ELITE series
- 464-lb. ice production capacity
- Full-cube ice size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Bluetooth compatible
- Connects to mobile app for diagnostics reports, guided cleaning, and settings adjustments
- Harvest Assist ensures ice slides into the bin
- Smart-Board™ diagnostic module
- AutoAlert™ indicator lights provide operation information
- Compatible with ICELINQ mobile application
- Scannable QR code with service information and warranty history
- Self-aligning front panel can be removed
- WaterSense purge control reduces scale on the components
- Minimized bacteria growth due to antimicrobial protection on internal surfaces
- 1-touch cleaning
- Air-cooled condenser

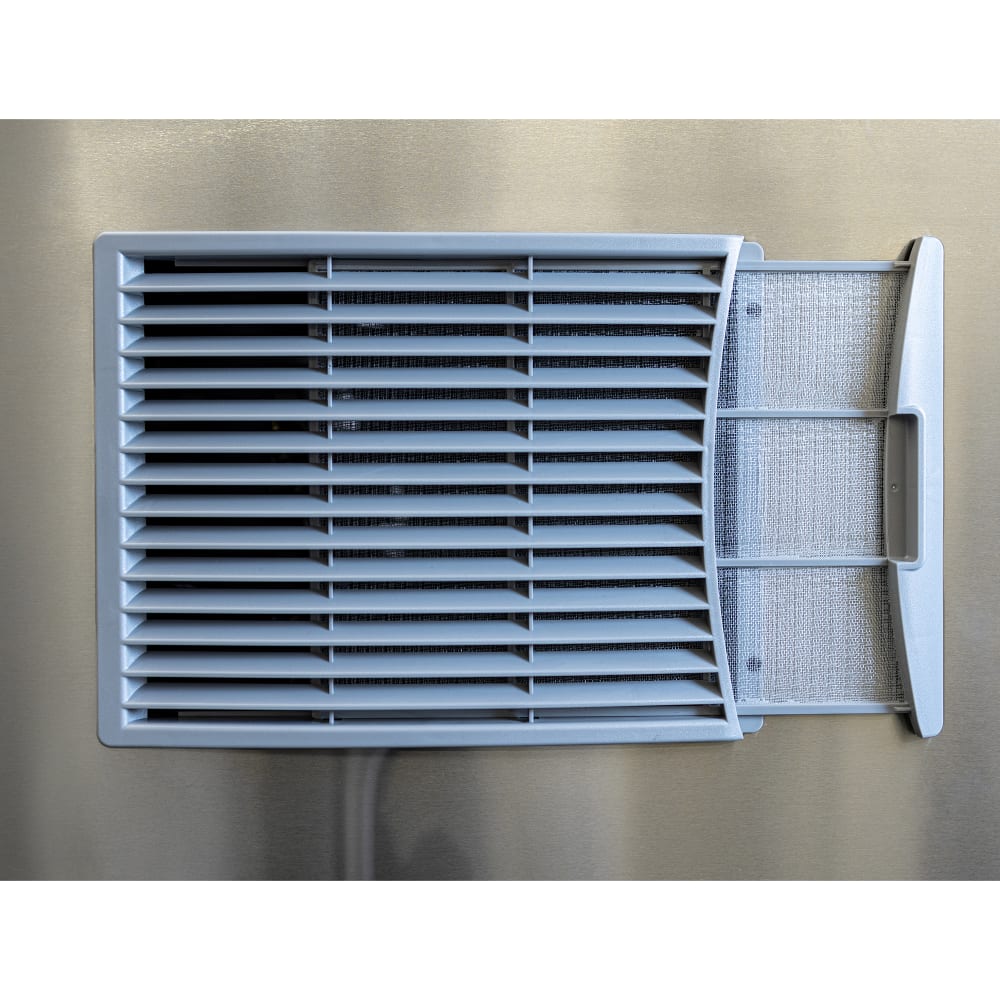

- Front-located air filter supports placement against walls
- Uses R290 refrigerant
- AP1-P water filter included
- 7,900 BTU
- Required ambient air temperature: 50-100 degrees F
- Required incoming water temperature: 40-100 degrees F
- Required incoming water pressure: 20-80 PSIG
- 536-lb. storage capacity
- Spring-loaded door's hidden hinges eliminate bacteria-harboring crevices
- Removable baffle requires no tools
- Recessed drain fitting aids in installation
- Scoop is included with an integrated holder
- Metallic exterior finish
- KBT27 adapter kit connects the bin and the ice maker
- Ice Maker
- 22 in. W x 25 in. D x 23 in. H
- 13.5 A, 5.94 kW
- 115 V/60 Hz/1 ph
- Bin
- 30 1⁄2 in. W x 34 in. D x 50 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman MC0522MAX-1/B530P/KBT27 within the 48 contiguous states.
From The Manufacturer
Prodigy ELITE® Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 464 lb/24 hours at 70°/50° (342 lb AHRI certified at 90°/70°), medium cube size, ICELINQ® mobile app, Bluetooth® connectivIty, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, front facing removable air filter, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, R290 refrigerant, 115v/60/1-ph, 13.5 amps, cULus, NSF
Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, 30" width, roto cast plastic construction, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6" legs, NSF
AquaPatrol™ Plus Water Filtration System, single system, 2.1 gallons per minute max flow, designed for cubers up to 650 lb, and for flakers, nuggets & nugget dispensers up to 1,200 lb, cULus, NSF
Watch a video about this product
Scotsman MC0522MAX-1/B530P/KBT27 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 464 |
| Access | Lift Up Door |
| Also Known As | MC0522MA-1/B530P/KBT27 |
| Bin Capacity (lb) | 536 |
| Compressor Type | Air Cooled |
| Depth (in) | 34 |
| Height (in) | 73 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Includes | AP1-P Filtration |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Prodigy ELITE® |
| Special Features | AgION™ Antimicrobial Protection |
| Special Features | Inline Water Filter Included |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 278.00 |
