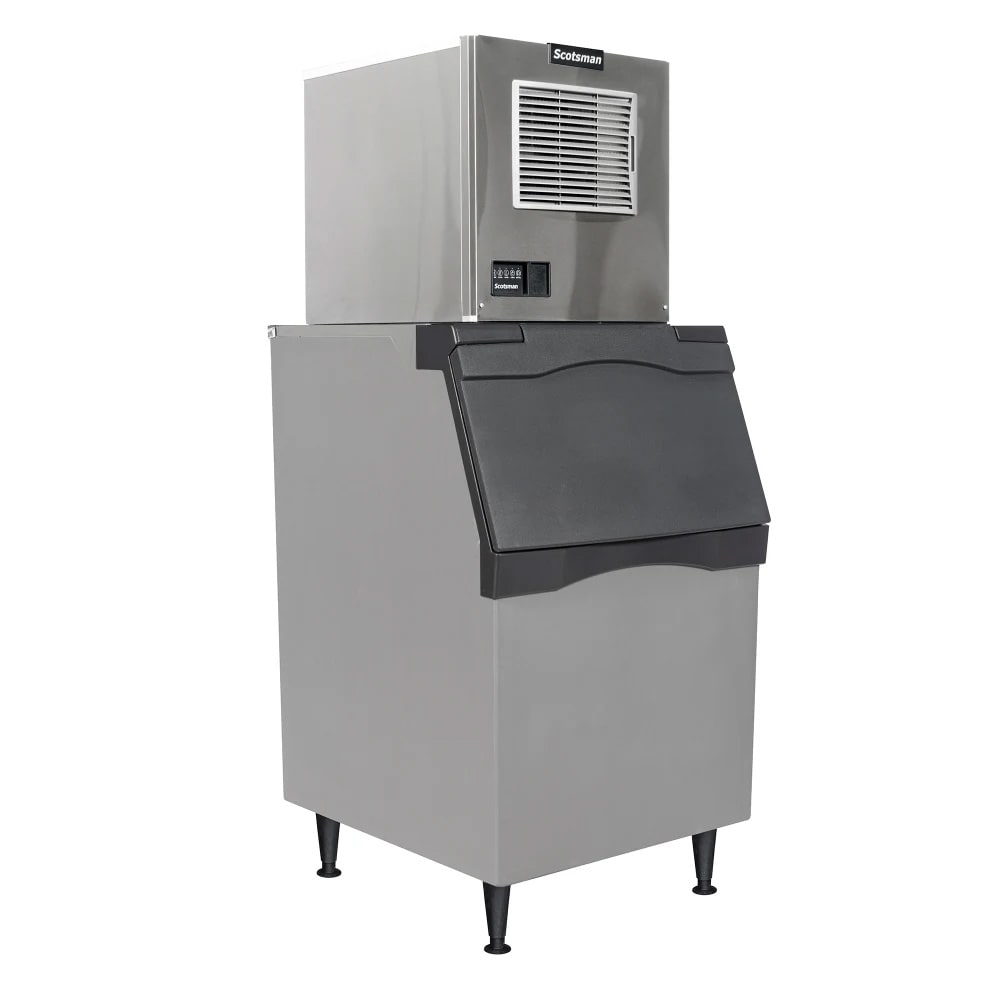

Scotsman MC0522SAX-1/B530P/KBT27 464 lb Prodigy ELITE® Half Cube Ice Machine w/ Bin & Filter - 536 lb Storage, Air Cooled, 115v
Retail Price: $13,765.00
$5,642.00 /Each
Selected Compressor Type: Air Cooled
Selected Ice Type: Half Cube
Scotsman MC0522SAX-1/B530P/KBT27 Description
The Scotsman MC0522SAX-1/B530P/KBT27/AP1-P ice maker with bin produces half-cube ice for drinks with its 464-pound daily production capacity and 536-pound storage capacity. This unit is part of the Prodigy ELITE® series. Indicator lights show the unit's operating status, while the diagnostic module and scannable QR code provide service information. Operators can use the Scotsman ICELINQ® mobile app to connect to the ice maker’s dashboard information and settings and walk through a step-by-step intuitive cleaning process. With the push of a button, staff can clean the head, and antimicrobial protection and purge control keep bacteria and scale off the internal surfaces. Its bin door is spring loaded with hidden hinges that facilitate cleaning. An ice scoop and integrated holder are included, along with an adapter kit that connects the Scotsman MC0522SAX-1/B530P/KBT27/AP1-P ice maker to its bin. This unit includes the AP1-P water filter.
- Part of the Prodigy ELITE series
- 464-lb. ice production capacity
- Half-cube ice size: 7⁄8 in. x 7⁄8 in. x 3⁄8 in.
- Air-cooled condenser
- ICELINQ mobile app compatible
- Connects to mobile app via bluetooth for guided cleaning, settings adjustments, and diagnostics reports

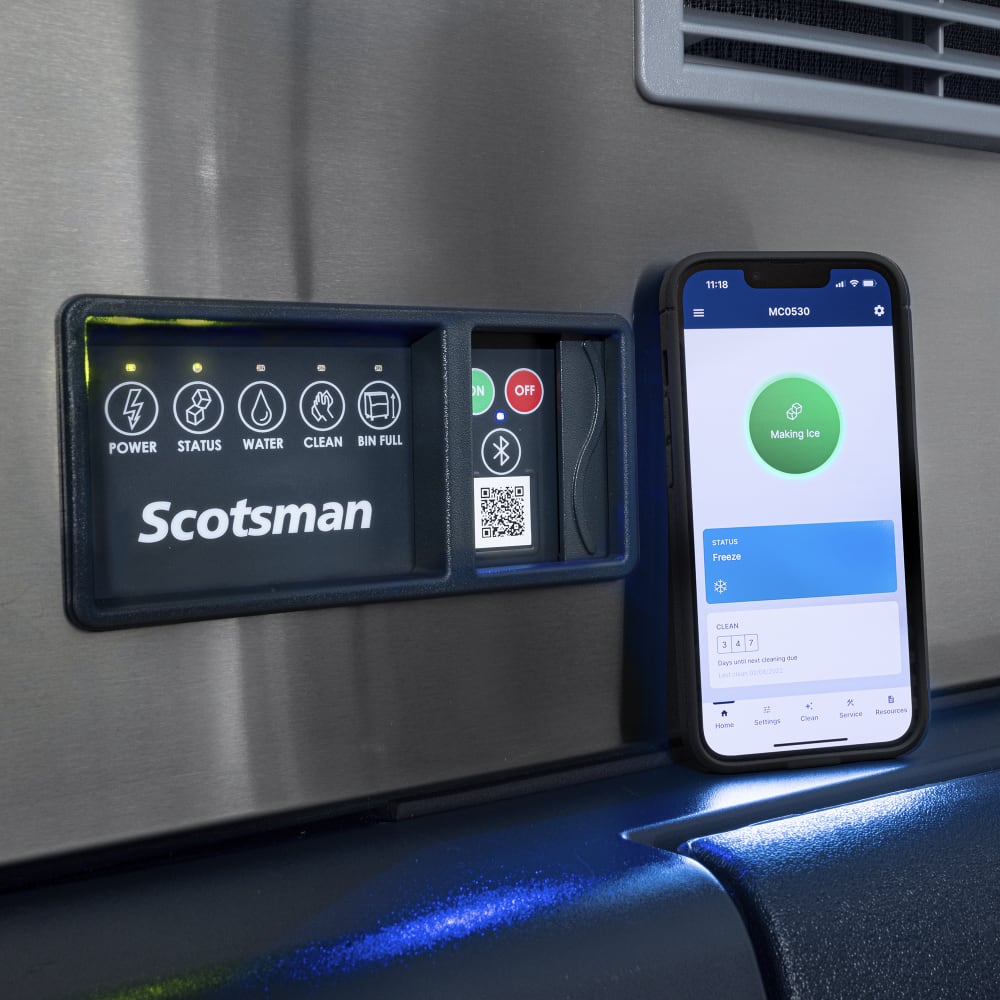

- AutoAlert™ indicator lights provide operating information
- Smart-Board™ diagnostic module
- QR code can be scanned for warranty history and service information
- Self-aligning front panel accesses the components
- Antimicrobial protection helps prevent bacteria growth
- WaterSense purge control removes scale
- Harvest Assist efficiently moves ice to the bin
- 1-touch cleaning
- R290 refrigerant
- AP1-P water filter included
- 7,900 BTU
- Required ambient air temperature: 50-100 degrees F
- Required incoming water temperature: 40-100 degrees F
- 536-lb. storage capacity
- Smooth-opening, spring-loaded door
- Hidden door hinges eliminate hard-to-clean crevices
- Recessed drain fitting provides flexibility during install
- Baffle can be removed without tools
- Ice scoop and built-in holder
- Rotocast plastic construction is strong and corrosion resistant
- KBT27 adapter kit connects the machine head to the bin
- Ice Maker
- 22 in. W x 24 in. D x 23 in. H
- 11.9 A, 4.48 kW
- 115 V/60 Hz/1 ph
- Bin
- 30 1⁄2 in. W x 34 in. D x 50 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman MC0522SAX-1/B530P/KBT27 within the 48 contiguous states.
From The Manufacturer
Prodigy ELITE® Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 464 lb/24 hours at 70°/50° (342 lb AHRI certified at 90°/70°), small cube size, ICELINQ® mobile app, Bluetooth® connectivIty, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, front facing removable air filter, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, R290 refrigerant, 115v/60/1-ph, 13.5 amps, cULus, NSF
Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, 30" width, roto cast plastic construction, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6" legs, NSF
AquaPatrol™ Plus Water Filtration System, single system, 2.1 gallons per minute max flow, designed for cubers up to 650 lb, and for flakers, nuggets & nugget dispensers up to 1,200 lb, cULus, NSF
Watch a video about this product
Scotsman MC0522SAX-1/B530P/KBT27 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 464 |
| Access | Lift Up Door |
| Also Known As | MC0522SA-1/B530P/KBT27 |
| Bin Capacity (lb) | 536 |
| Compressor Type | Air Cooled |
| Depth (in) | 34 |
| Height (in) | 73 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Includes | AP1-P Filtration |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Prodigy ELITE® |
| Special Features | AgION™ Antimicrobial Protection |
| Special Features | Inline Water Filter Included |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 278.00 |
