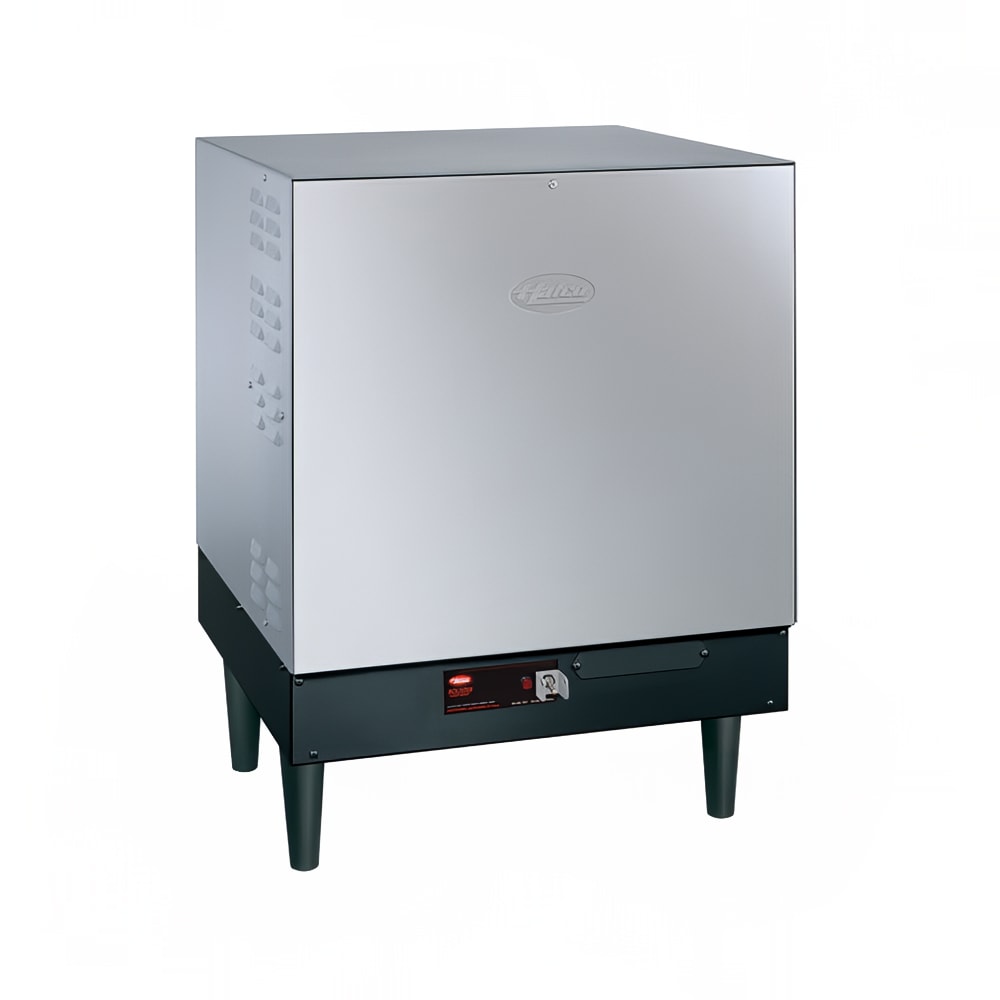

Hatco S-45 Imperial Booster Water Heater, 16 Gallon, 45 kW, 208v/3ph

The Hatco S-45-208-3-QS Imperial booster heater sanitizes dishes by heating water up to 180 degrees Fahrenheit or 140 degrees for low-temp dishmachines. The unit is insulated with fiberglass, which helps retain heat, along with the built-in heat trap. The low-water cut-off feature stops burnouts by shutting off the heating elements when water level gets too low. If the water level becomes too high, the relief gauge drains some water. A limit switch prevents the water temperature from getting too high. Two gauges display pressure and temperature levels.

The Hatco S-45-208-3-QS Imperial booster heater has a stainless steel front and durable sides made of powder-coated hammertone steel. Its tank has a capacity of 16 gallons, and its Castone® lining resists corrosion. Maintenance can be performed from the front of the unit. A simple toggle switch turns the heater on and off. The pilot indicator lights up when the heater is turned on.

Product Details

• Heats water to 180 degrees F for sanitizing dishes
• Temperature is adjustable to 140 degrees F for low-temp warewashers
• 2 temperature and pressure gauges display readings
• Fiberglass insulation and built-in heat trap retain heat
• 16-gal. tank capacity
• Tank is lined with Castone for corrosion resistance
• Can dispense 573 gal. of water each hour
• Stainless steel front construction and powder-coated hammertone sides withstand heavy use
• Easily access internal components from the front for maintenance
• Pilot light indicates when the unit is turned on
• Simple On/off toggle switch

Product Features

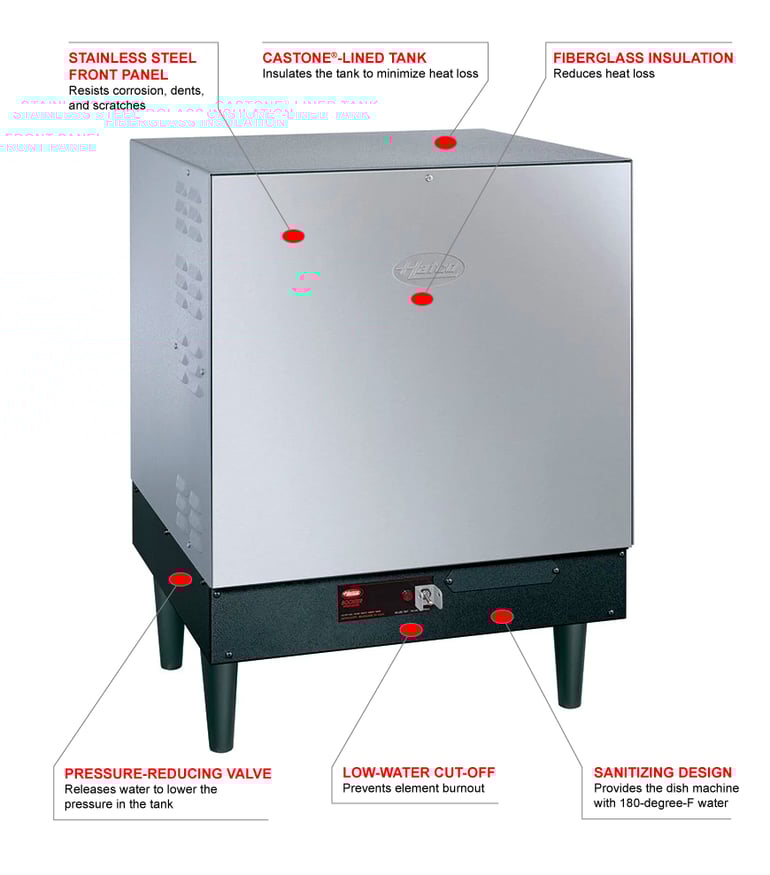

Safety Features

• Low-water cut-off shuts the heating element off when water gets too low
• Pressure levels are kept stable by the pressure-reducing valve
• Temperature/pressure relief valve removes excess water to lower the pressure in the tank
• Limit switch keeps water from reaching excessively high temperatures

Dimensions & Utilities

• 28¹⁄₂ in. W x 22³⁄₄ in. D x 31 in. H
• 125 A, 45 kW
• 208 V/60 Hz/3 ph

*Free shipping on Hatco S-45 within the 48 contiguous states.

From The Manufacturer

Imperial Booster Heater, Electric, 16-gallon storage capacity, 45-KW, stainless steel front, custom fitting & Castone tank, 6" legs, 208v/60/3-ph, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 10-year Tank Parts

Hatco S-45 Specifications

Wisconsin-based Hatco has been a pioneer in the food warming and holding market since 1950. The brand also offers light cooking equipment and dishwasher boosters that keep dishwashing machines up to proper sanitizing temperatures, helping operations stay safe and efficient.
