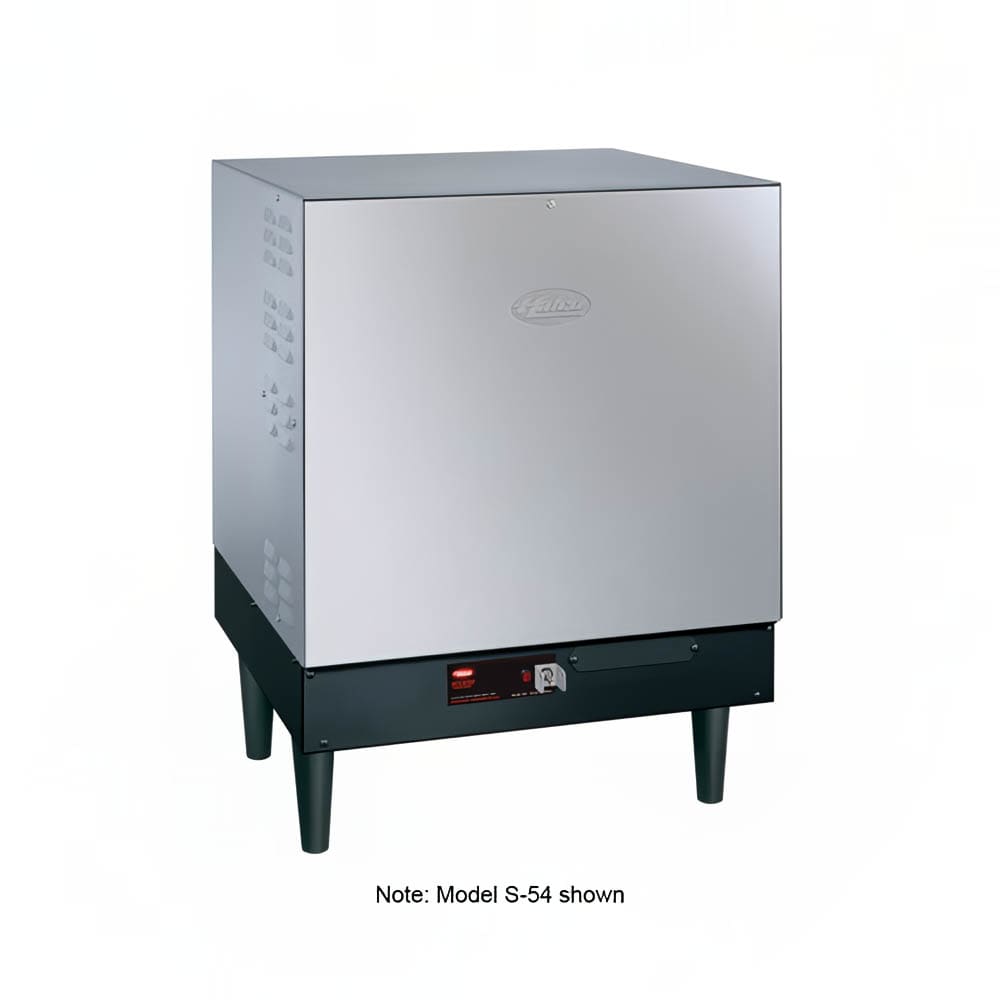

Hatco S-39 480/3 Booster Heater w/ 16-Gallon Storage Capacity, 39-kW, 480/3 V

The Hatco S-39 Imperial booster heater has a powder-coated, hammertone exterior for corrosion protection and a durable, stainless steel front panel. The tank is Castone®-lined so it can resist limestone buildup over time. To prevent heat from seeping out, this unit is fiberglass insulated with a built-in heat trap. For proper sanitizing and air-drying, it heats water to 180 degrees Fahrenheit.

Temperatures in the Hatco water booster heater are managed by the calibrated immersion thermostat, a temperature-relief valve, and a pressure-reducing valve. For safe operation, this unit has a low-water cut-off and a high-temperature limit control switch. To confirm efficient operation, employees can monitor the two pressure gauges and a pilot indicator light.

Product Details

• 16-gal. capacity
• Maximum 391 GPH at 40-degree-F rise
• Maximum 224 GPH at 70-degree-F rise
• Sanitizes with water at 180 degrees F
• 2 pressure gauges
• Controlled with a temperature-relief valve and a pressure-reducing valve
• Pilot indicator light
• Power switch
• High-temperature limit control
• Low-water cut-off
• Calibrated immersion thermostat
• Hammertone finish is coated in silver powder
• Front panel is made of stainless steel
• Castone-lined tank resists limestone buildup
• Insulated with fiberglass
• Built-in heat trap

Dimensions & Utilities

• 28⁵³/₁₀₀ in. W x 22³/₄ in. D x 31³/₁₀₀ in. H
• 47 A, 39 kW
• 480 V/60 Hz/3 ph

*Free shipping on Hatco S-39 480/3 within the 48 contiguous states.

From The Manufacturer

Imperial Booster Heater, Electric, 16-gallon storage capacity, 39-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, custom fittings, Castone tank, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 10-year Tank Parts

Hatco S-39 480/3 Specifications

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual

Brochure
