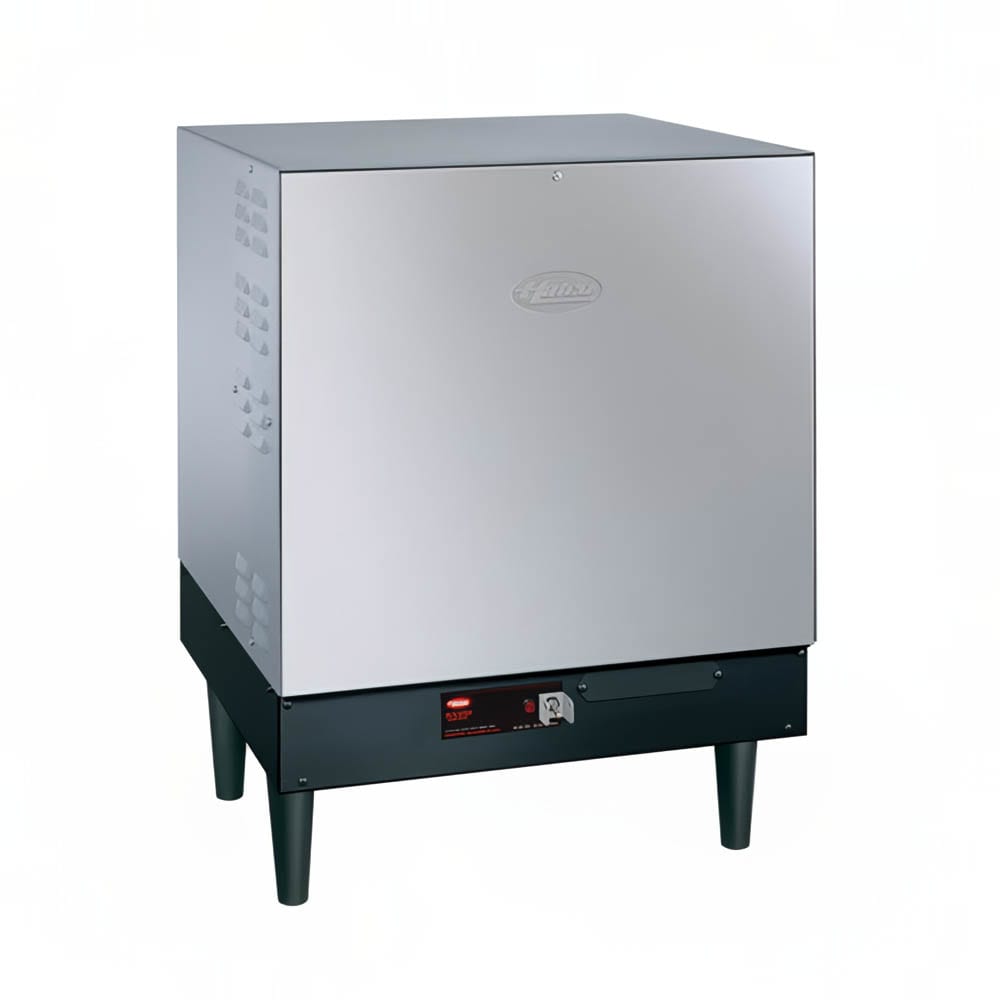

Hatco S-30 Imperial Booster Water Heater, 16 Gallon, 30 kW, 480v/3ph
Retail Price: $8,411.00
$4,626.05 /Each
Selected Voltage: 480V, 3 Phase
| 480V, 3 Phase |
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
Hatco S-30 Description
The Hatco S-30 Imperial booster water heater attaches to a dishwasher, air-drying and sanitizing dishes and flatware at the proper temperature. For low-temperature dishwashers, the thermostat—calibrated to 180 degrees—can be adjusted to 140 degrees Fahrenheit. Proper operation can be maintained by monitoring the pilot indicator light and the two pressure gauges. This unit ensures safe operation with a low-water cut-off and high-temperature limit control.
Heat loss in the Hatco S-30 booster water heater's tank is minimized with a built-in heat trap and fiberglass insulation. The silver powder-coated, hammertone finish on the body prevents scratches and dings and the stainless steel front panel can be wiped clean. For safety, this unit features a temperature-relief valve, a pressure-reducing valve, and a power switch.
- 16-gal. capacity
- Maximum 301 GPH at 40-degree-F rise
- Maximum 172 GPH at 70-degree-F rise
- Provides sanitizing, 180-degree-F water
- 2 pressure gauges
- Temperature-relief valve
- Pressure-reducing valve
- Pilot indicator light
- High-temperature limit control prevents heat damage to the internal components
- Low-water cut-off prevents elements from getting too hot and burning out
- Calibrated immersion thermostat
- Castone®-lined tank prevents limescale
- Stainless steel front panel
- Hammertone finish is silver powder-coated
- Fiberglass insulation
- Built-in heat trap
- 28 53⁄100 in. W x 22 3⁄4 in. D x 31 3⁄100 in. H
- 36 A, 30 kW
- 480 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco S-30 within the 48 contiguous states.
From The Manufacturer
Hatco S-30 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 301 |
| 70F Recovery (gph) | 172 |
| Amps | 36 |
| Capacity (gallons) | 16 |
| Heat | Electric |
| Hertz | 60 |
| kW | 30 |
| Phase | 3 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Series | Imperial |
| Usage Level | Heavy Duty |
| Voltage | 480 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 21 - 30 |
| Width (in) | 23.5 |
| Weight | 214.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Hatco S-30 Hatco S-30 Imperial Booster Water Heater, 16 Gallon, 30 kW, 480v/3ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $4,626.05 / Each | $4,626.05 / Each | $4,626.05 / Each | $4,626.05 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Usage Level | Heavy Duty | Heavy Duty | Heavy Duty | Heavy Duty |
| 40F Recovery (gph) | 301 | 301 | 301 | 301 |
| 70F Recovery (gph) | 172 | 172 | 172 | 172 |
| Capacity (gallons) | 16 | 16 | 16 | 16 |
| Width (in) | 23.5 | 23.5 | 23.5 | 23.5 |
| Watts | 21 - 30 | 21 - 30 | 21 - 30 | 21 - 30 |
| Heat | Electric | Electric | Electric | Electric |
| Voltage | 480 | 208 | 240 | 208 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts |
- 5
- 4
- 3
- 2
- 1
Review this product!
Yes. It shuts off before exposed elements overheat.
A 40°F rise delivers 301 GPH.
It adjusts temperatures from 180-140°F.
Yes. The Castone® lining resists internal limescale buildup.
A high-temperature limit control prevents heat damage.
