Hatco MC-10 Mini Compact Booster Water Heater, 3 1/5 Gallon, 9.9 kW, 208v/3ph
Retail Price: $4,266.00
$2,346.30 /Each
Selected Voltage: 208V, 3 Phase
| 208V, 3 Phase |
| 208V, 1 Phase |

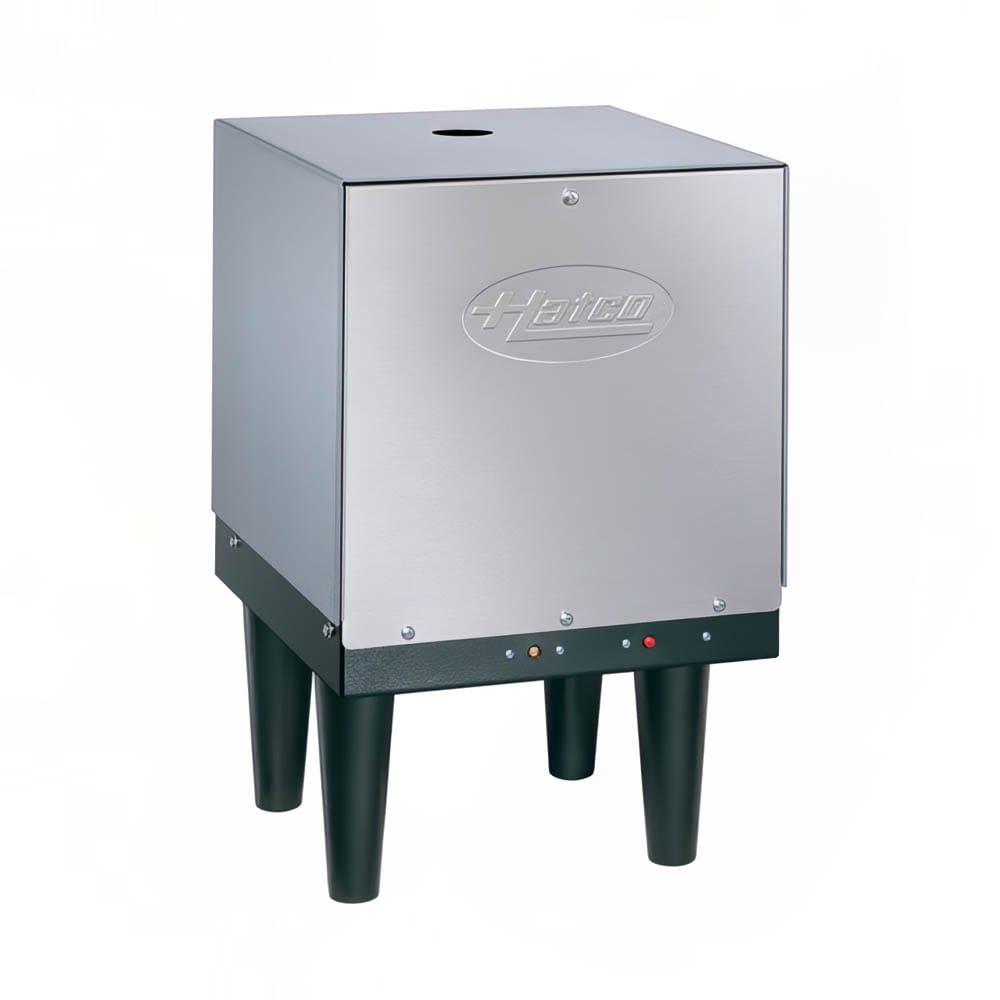

Hatco MC-10 Description
Designed with the ability to fit into small areas, the Hatco MC-10 mini compact booster water heater provides water at the required 180-degree-Fahrenheit mark needed for proper sanitization. This unit can be monitored using the two temperature gauges and self-adjusts using the temperature relief valve and the pressure reducing valve. For safety purposes, this unit includes a low-water cut-off feature to protect elements from burning out.
The Hatco MC-10 mini compact booster water heater is made of powder-coated hammertone, and its stainless steel tank offers a fast temperature recovery time. To prevent heat loss, the tank is surrounded by fiberglass, and the legs are 6 inches tall for standing the unit upright and off the floor. The storage capacity of this unit is 3 1⁄5 gallons.
- 3 1⁄5-gal. capacity
- Provides 180-degree-F water for sanitizing
- Maximum 99 GPH at 40-degree-F rise
- Maximum 57 GPH at 70-degree-F rise
- 2 temperature gauges
- Pressure reducing valve and temperature relief valve
- Low-water cut-off for safe usage
- Fiberglass insulation minimizes heat loss
- Stainless steel tank provides fast recovery times
- Powder-coated silver hammertone body
- Black base
- 6-in. legs
- 11 3⁄4 in. W x 12 7⁄8 in. D x 18 1⁄2 in. H
- 27.5 A, 9.9 kW
- 208 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco MC-10 within the 48 contiguous states.
From The Manufacturer
Hatco MC-10 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 99 |
| 70F Recovery (gph) | 57 |
| Amps | 27.5 |
| Capacity (gallons) | 3.2 |
| Heat | Electric |
| Hertz | 60 |
| kW | 9.9 |
| Phase | 3 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Usage Level | Light Duty |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 0 - 10 |
| Width (in) | 11.75 |
| Weight | 48.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Hatco MC-10 Hatco MC-10 Mini Compact Booster Water Heater, 3 1/5 Gallon, 9.9 kW, 208v/3ph Current Item |
|
|---|---|---|
| Customer Rating |
|
|
| Price | $2,346.30 / Each | $2,346.30 / Each |
| Shipping | Free Shipping | Free Shipping |
| Usage Level | Light Duty | Light Duty |
| 40F Recovery (gph) | 99 | 99 |
| 70F Recovery (gph) | 57 | 57 |
| Capacity (gallons) | 3.2 | 3.2 |
| Width (in) | 11.75 | 11.75 |
| Watts | 0 - 10 | 0 - 10 |
| Heat | Electric | Electric |
| Voltage | 208 | 208 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts |
- 5
- 4
- 3
- 2
- 1
Review this product!
It uses 208 V/60 Hz/3 ph power.
A hardwired electrical connection is required.
It requires a direct water connection.
The tank holds 3 1⁄5 gal.
Heating input is 9.9 kW.
Wall mounting is required.
The overall dimensions are 11 3⁄4 in. W x 12 7⁄8 in. D x 18 1⁄2 in. H.
The tank is stainless steel.
