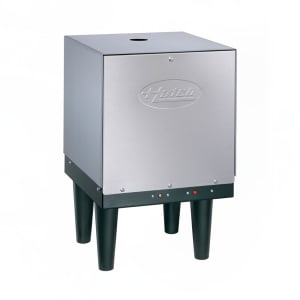

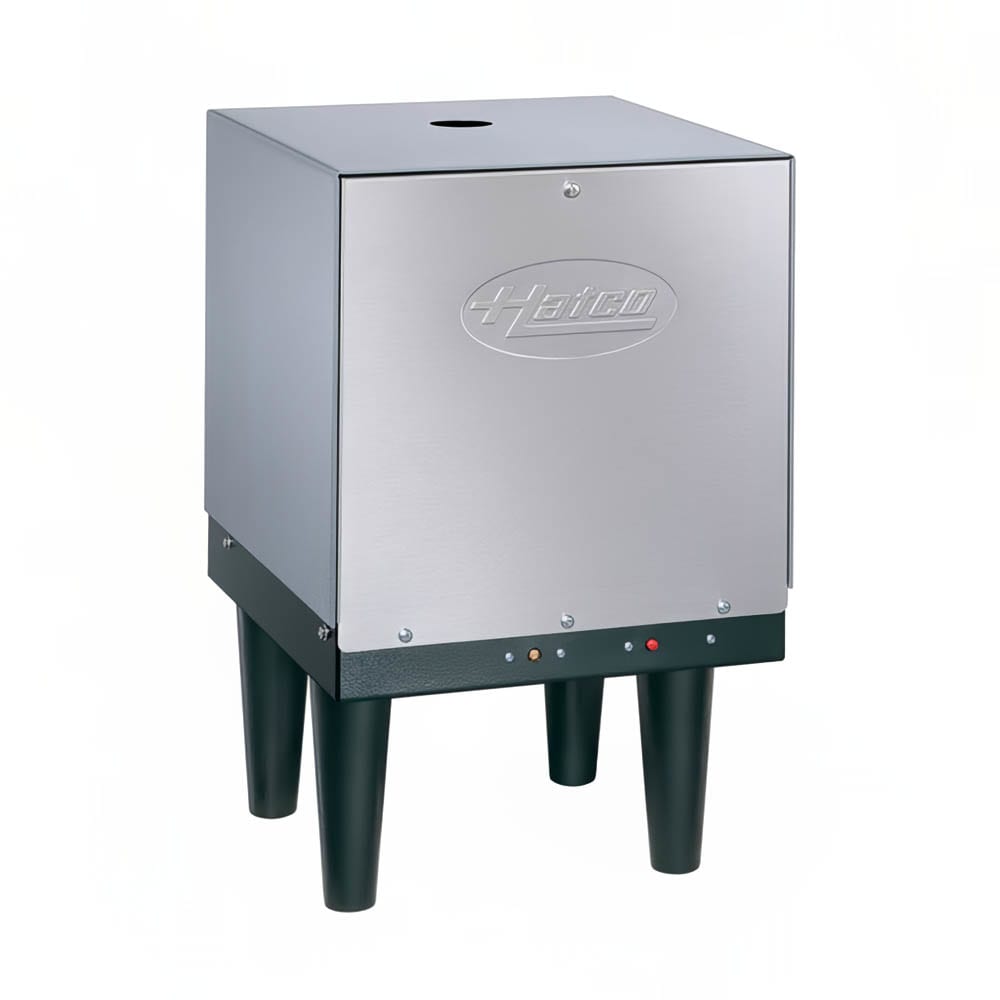

Hatco MC-10 Mini Compact Booster Water Heater, 3 1/5 Gallon, 9.9 kW, 208v/1ph
IN STOCK: Ships in 1 Business Day
Less Than 5 in Stock, Order Soon!
Retail Price: $4,266.00
$2,346.30 /Each
Selected Voltage: 208V, 1 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
Hatco MC-10 Description
The Hatco MC-10 mini compact booster water heater can sit on 6-inch legs near the dish pit for convenient accessibility. Equipped with a storage capacity of 3 1⁄5 gallons, this unit provides a low volume of water at the 180 degrees Fahrenheit needed for properly sanitizing dishware and flatware. To resist corrosion, this booster's tank is made of stainless steel and has a fast temperature recovery time.
Made of powder-coated silver hammertone, the Hatco MC-10 electrical booster heater includes a black base and is insulated with fiberglass to minimize heat loss. To prevent element burnout, this unit has a low-water cut-off feature, while the temperature can be monitored with the two temperature gauges and is regulated with the temperature relief valve and the pressure reducing valve.
- 3 1⁄5-gal. capacity
- Boosts water to 180 degrees F for sanitation
- Maximum 99 GPH at 40-degree-F rise
- Maximum 57 GPH at 70-degree-F rise
- Compact enough to fit almost anywhere
- Stainless steel tank
- Silver powder-coated hammertone body
- Black base
- 6-in. legs
- Fiberglass insulation minimizes heat loss
- 2 pressure/temperature gauges
- Low-water cut-off feature
- Temperature relief valve and pressure reducing valve
- 11 3⁄4 in. W x 12 7⁄8 in. D x 18 1⁄2 in. H
- 47.6 A, 9.9 kW
- 208 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco MC-10 within the 48 contiguous states.
From The Manufacturer
Hatco MC-10 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 99 |
| 70F Recovery (gph) | 57 |
| Amps | 47.6 |
| Capacity (gallons) | 3.2 |
| Heat | Electric |
| Hertz | 60 |
| kW | 9.9 |
| Phase | 1 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Usage Level | Light Duty |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 0 - 10 |
| Width (in) | 11.75 |
| Weight | 48.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Hatco MC-10 Hatco MC-10 Mini Compact Booster Water Heater, 3 1/5 Gallon, 9.9 kW, 208v/1ph Current Item |
|
|---|---|---|
| Customer Rating |
|
|
| Price | $2,346.30 / Each | $2,346.30 / Each |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | IN STOCK: Ships in 1 Business Day | |
| Usage Level | Light Duty | Light Duty |
| 40F Recovery (gph) | 99 | 99 |
| 70F Recovery (gph) | 57 | 57 |
| Capacity (gallons) | 3.2 | 3.2 |
| Width (in) | 11.75 | 11.75 |
| Watts | 0 - 10 | 0 - 10 |
| Heat | Electric | Electric |
| Voltage | 208 | 208 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts |
- 5
- 4
- 3
- 2
- 1
Review this product!
Requires 208 V/60 Hz/1-ph power.
A hardwired electrical connection is required.
A direct water connection is required.
The tank holds 3.2 gal.
Heating input is 9.9 kW.
Wall mounting is required.
The overall dimensions are 11 3⁄4 in. W x 12 7⁄8 in. D x 18 1⁄2 in. H.
The tank is stainless steel.
