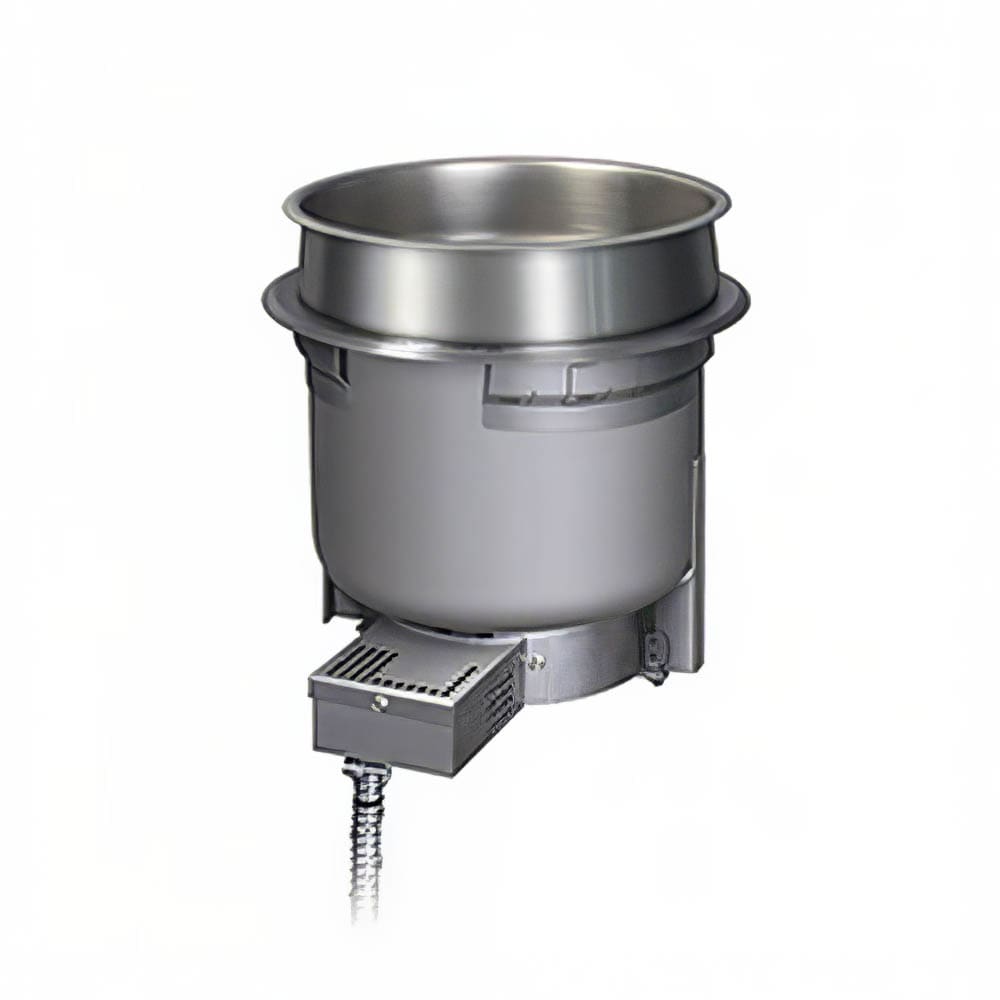

Hatco HWBHRN-7QT 7 qt Drop In Soup Warmer w/ Infinite Controls, 240v/1ph
Retail Price: $876.00
$481.80 /Each
Selected Voltage: 240V, 1 Phase
| 240V, 1 Phase |
| 120V, 1 Phase |
| 208V, 1 Phase |
Hatco HWBHRN-7QT Description
This Hatco HWBHRN-7QT drop-in heated well can hold 7 quarts of soups, sauces, stews, chilis, or curries at safe serving temperatures, and users can manage and monitor temperatures with the infinite switch. The 2 3⁄4-inch-wide by 4-inch-high control panel is connected to 36-inch lead cords so it can be installed at a distance and into a 2 1⁄8-inch-wide by 3 3⁄8-inch-high cutout. This unit lacks an enclosure for its conduit and control box so employees can simply access components for maintenance.
The top-mounted HWBHRN-7QT heated well measures 10 3⁄4 inches in diameter by 9 3⁄5 inches high can be installed into a 9 1⁄8- to 9 9⁄16-inch-diameter countertop cutout with included EZ locking hardware to expedite setup. Because it's a fabricator component, it's compatible with specially configured steam table settings. Its corrosion-resistant stainless and aluminized steel housing withstands rigorous applications and can be wiped clean between uses.
- Accommodates 7 qt. of soup, chili, sauce, and more
- Fabricator component only
- Drop-in unit with top-mount design
- EZ locking hardware included
- Stainless and aluminized steel housing
- Uninsulated
- High-wattage unit
- Metal-sheathed heating element
- Infinite control
- Pilot light
- 36-in. lead cords for remote control installation
- Can be installed in a combustible counter with a cutout from 11 in. x 11 in. to 11 1⁄4 in. x 11 1⁄4 in.
- Can fit a 9 1⁄8- to 9 9⁄16-in.-diameter, non-combustible countertop cutout
- Cutout dimensions for control box: 2 1⁄8 in. W x 3 3⁄8 in. H
- Infinite control: 2 3⁄4 in. W x 4 in. H
- Overall: 10 3⁄4 in. dia. x 9 3⁄5 in. H
- 3.3 A, 800 W
- 240 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco HWBHRN-7QT within the 48 contiguous states.
From The Manufacturer
(Fabricator component only) Drop-In Heated Well, round, non-insulated, top mounted, 7 quart, Infinite switch control, pilot light & leads, stainless steel construction (high watt), cURus, 240v/60/1ph
Hatco HWBHRN-7QT Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| Capacity (qt) | 7 |
| Controls | Thermostatic |
| Diameter (in) | 10.31 |
| Height (in) | 9.6 |
| Hertz | 60 |
| Installation Type | Drop In |
| Lid Type | None |
| Number of Insets | 1 |
| Operation | Wet |
| Phase | 1 |
| Product | Soup Warmers |
| Product Type | Food Bars & Buffets |
| Special Features | Wet or Dry |
| Voltage | 240 |
| Warranty | 1-year Parts & Labor; 2-year Element Parts |
| Weight | 7.00 |
