Hatco FSHC-17W1 Full-Height Insulated Mobile Heated Cabinet w/ (17) Pan Capacity, 208v/1ph

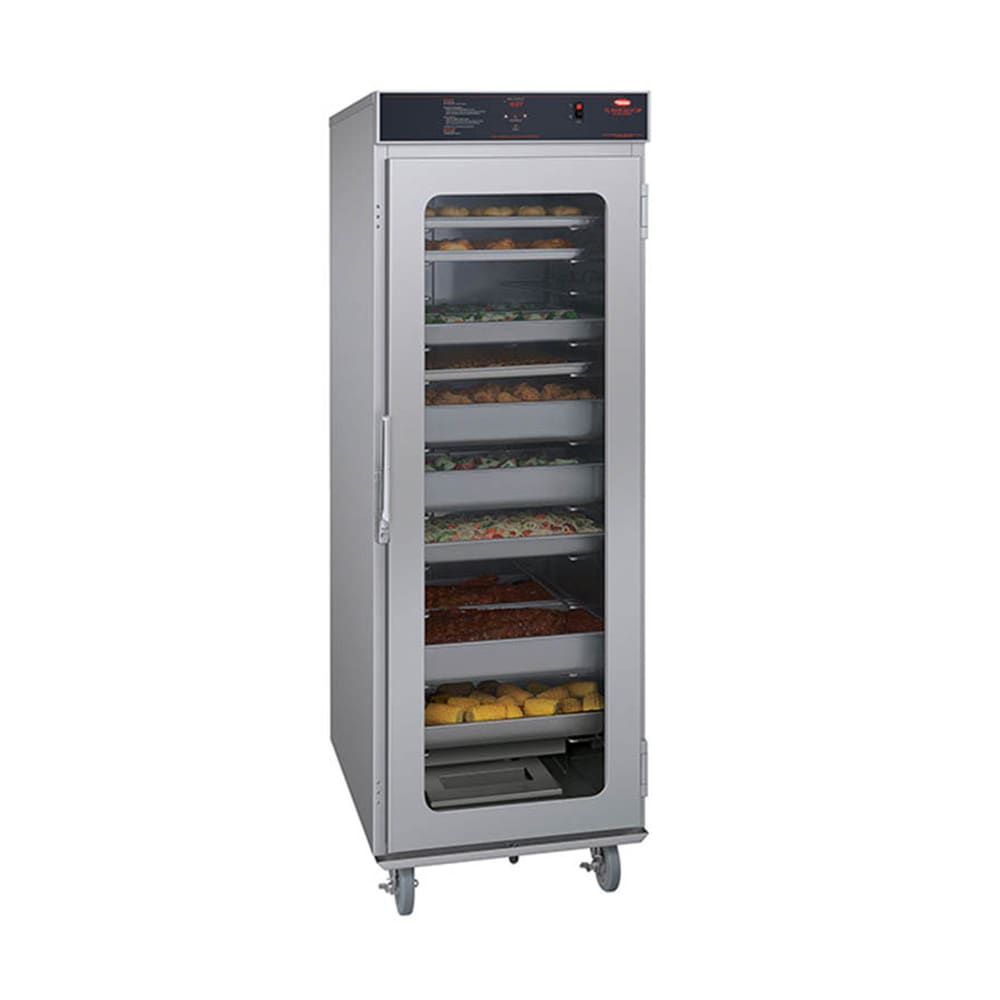

Image may not depict product color, inclusions or accessories.

KaTom #: 042-FSHC17W1208 • MPN: FSHC-17W1 2081
Ships Free

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Retail Price: $8,481.00
$4,664.55 / Each

Image may not depict product color, inclusions or accessories.

Hatco FSHC-17W1 Description


The Hatco FSHC-17W1 humidified holding cabinet accommodates 17 sheet pans or 24 steam table pans with temperatures that are kept between 80 and 200 degrees Fahrenheit. Heat and humidity are thermostatically controlled, while low temperature is ideal for proofing dough. Electronic controls have a digital read out to simplify operation. Heat is kept in the cabinet since the control panel, door, top, bottom, and side walls are fully insulated.

The Lexan® glass door provides product visibility to ensure proper heating, while the heavy-duty door hinges are built for high-volume use. A door that can be reversed in the field adds flexibility that enables it to work in different kitchen layouts. Mounted on 5-inch casters, moving the Hatco FSHC-17W1 humidified holding cabinet is convenient. Two of the casters are rigid, while the other two swivel and lock in place when needed.

Product Details

  • 17 sheet pan capacity or 24 steam table pan capacity
  • Electronic heat and humidity controls have a digital read out
  • Temperature range: 80-200 degrees F
  • Low temperature setting for proofing dough
  • Cabinet top, bottom, sidewalls, door, and control panel are fully insulated to retain heat
  • (4) 5-in. casters, 2 rigid and 2 swiveling for mobility
  • 208 V/60 Hz/1 ph, 1608 W, 7.7 A, 10-ft. plug with a NEMA 6-15 plug
  • Overall dimensions: 25.95 in. W x 34.76 in. D x 73.6 in. H
  • cULus listed; NSF certified
  • Made in the U.S.

Insulated Door

  • Lexan door provides a clear view of product
  • Magnetic latch ensures the door stays closed
  • Heavy-duty hinges stand up to high volume use
  • Door is field reversible to fit into different kitchen layouts

Flav-R-Savor® Humidified Holding Cabinet, single Lexan® door, (17 pair) universal slides 3" OC adjustable on 1-1/2" OC, stainless steel construction, 5" swivel casters (two swivel with wheels locks, two rigid), NSF, cULus, Made in USA, 208v/60/1ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Hatco FSHC-17W1 Specifications

PDF Spec Sheet
Manufacturer Hatco
Size Full Height
Slide Type Universal
Type Insulated
Warranty 1-year Parts & Labor
No. of Doors 1
Door Type Lexan
Load Type Reach In
Pan Capacity 17 Full Size
Construction Stainless
Series Flav-R-Savor®
Height (in) 73.63
Width (in) 26
Depth (in) 34.75
Slide Spacing 3"
Controls Dial
Control Location Top
Door Design Full
Application Heat & Humidity
Specialty Options Field Reversible Doors
Phase 1
Voltage 208
Hertz 60
Weight 340.00
