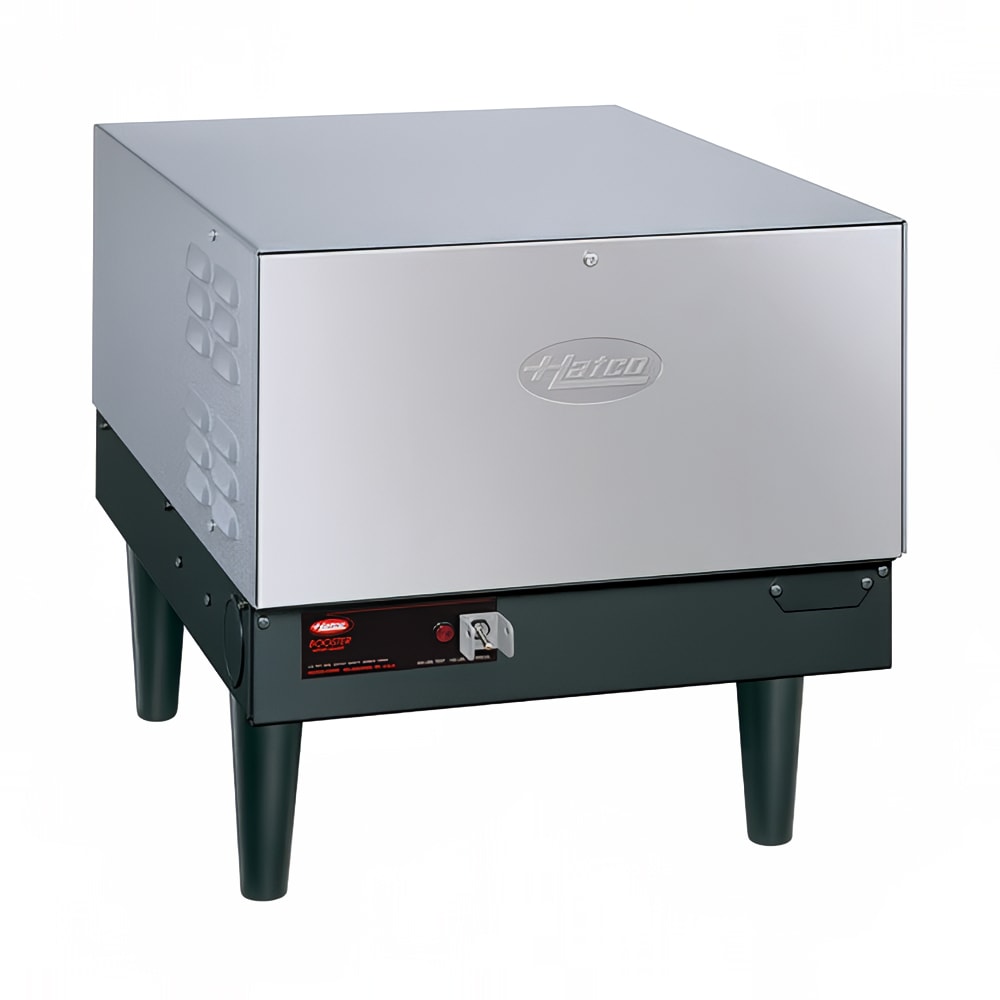

Hatco C-57-480-3-QS Compact Booster Heater, 6-Gallon, 57 KW, 480 Volts, 3 Phase

KaTom #: 042-C574803 • MPN: C-57-480-3-QS

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $4,936.00
$2,714.80 / Each

Hatco C-57-480-3-QS Description

C-57 480-3 booster heater can raise the temperature of 573 gallon-per-hour water by 40 degrees Fahrenheit and 326 gallon-per-hour water by 70 degrees Fahrenheit. The equipment comes pre-plumbed and pre-wired from the factory so it's easy to install when it arrives at your restaurant. A built-in high-limit switch, low-water cutoff, and pressure relief valve make it safe to operate.

A Castone coating lines the 6-gallon tank of the Hatco C-57 480-3 booster heater. That tank is also insulated with fiberglass to maintain its energy efficiency. The exterior of the unit is built with stainless steel front panels. The body of the booster heater features a powder-coated, hammertone finish that is well-protected against scratches and dents.

Product Details

  • Hatco Compact series booster heater
  • Provides a 40 degree F rise to 573 gph water and a 70 degree rise to 326 gph water
  • 6-gal. water tank is lined with rugged Castone, a substance similar to concrete that protects components from corrosion and resists limescale buildup
  • Temperature and pressure gauges are provided to let users monitor water conditions
  • Fiberglass insulation for energy efficiency
  • Components are pre-wired and pre-plumbed to make installation simple
  • Cabinet is built with a stainless steel front panel and a powder-coated, hammertone body
  • Front panel provides access to electrical components to help expedite service calls
  • 480 V/60 Hz/3-ph, 57 kW, 68.6 A
  • Overall Dimensions: 29.25 in. W x 18 in. D x 12.3 in. H
  • cULus and CE Certified; NSF Listed

Designed with Safety in Mind

  • Pressure relief valve eliminates the danger of pressure buildup
  • Pressure reducing valve provides the optimum incoming water pressure
  • High-temperature limit switch cuts off electricity if the unit begins to overheat
  • Low-water cutoff shuts down unit if the water level runs too low

Compact Booster Heater, Electric, 6-gallon storage capacity, electric operation, 57 KW, stainless steel front, Castone tank, 480 volts, 3 phase. Same Day Shipping on orders recieved before noon (based on availability). NOTE: Water supply in excess of 3.0 grains of hardness per gallon (GPG) must be treated and softened before being used; water containing over 3.0 GPG will decrease the efficiency and reduce the operating life of the unit. Please be advised that product failure caused by liming or sediment buildup is covered under warranty ONLY with proper usage of Hatco water treatment system.

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Hatco C-57-480-3-QS Specifications

PDF Spec Sheet
Manufacturer Hatco
40F Recovery 573 gph
70F Recovery 326 gph
Category Water Booster Heaters
Heat Electric
KW 57
Voltage 480/3
Width (in) 18
Weight 142.00
Hatco C-57-480-3-QS Certifications
  • NSF
