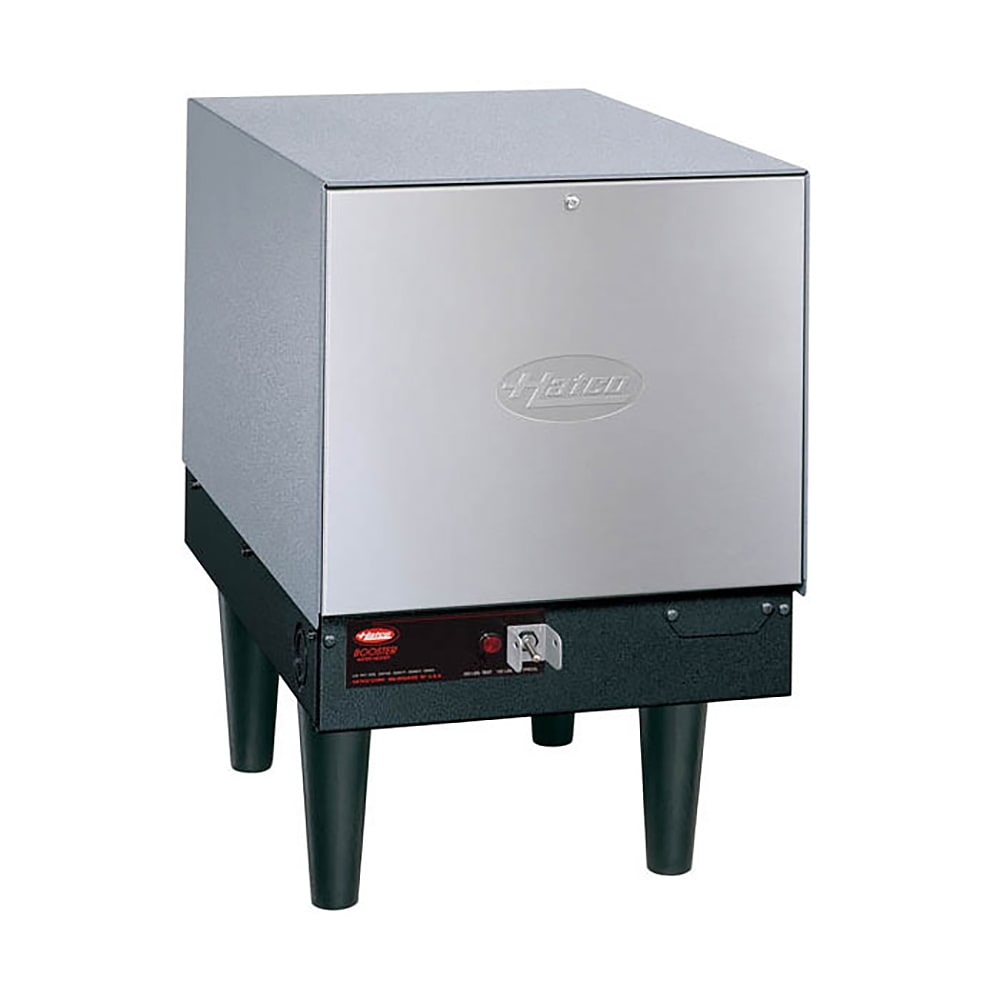

Hatco C-4 Compact Booster Water Heater, 6 Gallon, 4 kW, 480v/1ph
Retail Price: $4,511.00
$2,481.05 /Each
Selected Voltage: 480V, 1 Phase
| 480V, 1 Phase |
| 208V, 1 Phase |
| 240V, 1 Phase |
Hatco C-4 Description
The Hatco C-4 booster water heater is an excellent option for kitchens that do not have a lot of space for equipment. Its compact design takes up minimal room and can be mounted under a dishtable with slide brackets, which must be purchased separately. The tank has a 6-gallon capacity, perfect for establishments with low dishwashing needs. This tank is lined with Castone® for corrosion defense and insulated with fiberglass to hold heat in and minimize energy costs. Featuring a powder-coated hammertone finish, the unit’s body has a swing-open stainless steel front that offers access to the components.
- 6-gal. capacity
- Compact design uses kitchen space effectively
- Sturdy powder-coated hammertone body
- Front panel is made of durable stainless steel
- Factory pre-plumbing and pre-wiring reduce the number of steps in the installation process
- Calibrated immersion thermostat
- Swing-away front panel gives clear access to internal components
- Low-water cut-off potentially keeps element from burning out
- Fiberglass insulation optimizes tank's heat retention
- Castone-lined tank is designed to resist corrosion
- Slide bracket option available
- Includes 3⁄4-in. NPT pipe and fittings for water inlet/outlet
- Maximum 40 GPH recovery at 40-degree-F rise
- Maximum 23 GPH recovery at 70-degree-F rise
- 13 1⁄16 in. W x 26 in. D x 19 39⁄50 in. H
- 8.4 A, 40 kW
- 480 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco C-4 within the 48 contiguous states.
From The Manufacturer
Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 4-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 480v/60/1ph
Hatco C-4 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 40 |
| 70F Recovery (gph) | 23 |
| Amps | 8.4 |
| Capacity (gallons) | 6 |
| Heat | Electric |
| Hertz | 60 |
| kW | 4 |
| Phase | 1 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Usage Level | Medium Duty |
| Voltage | 480 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 0 - 10 |
| Width (in) | 13 |
| Weight | 105.00 |
