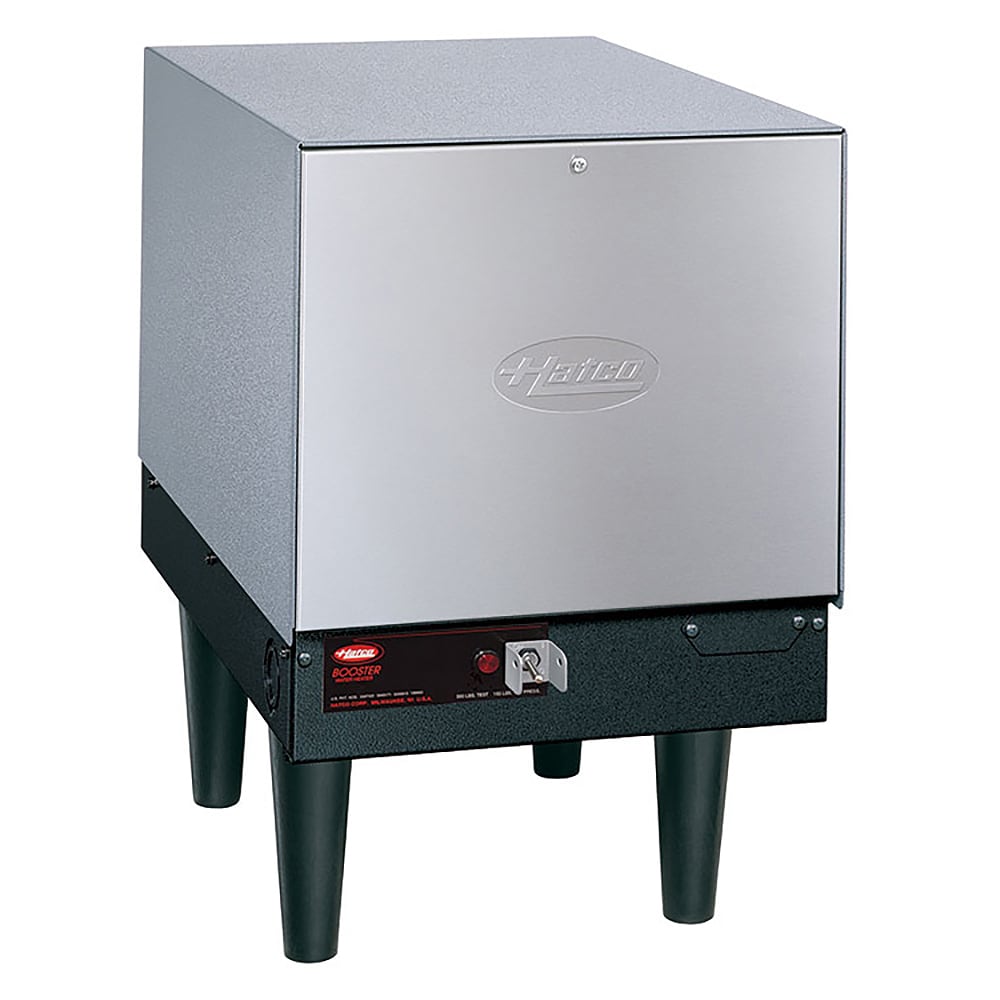

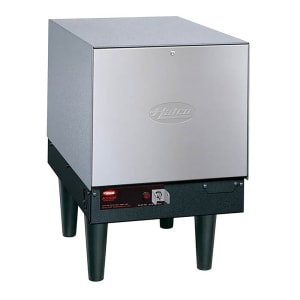

Hatco C-4 Compact Booster Water Heater, 6 Gallon, 4 kW, 208v/1ph

The Hatco C-4 compact booster heater provides rinse water that is 180 degrees Fahrenheit for sanitizing cycles in warewashers. Its tank has a 6-gallon water capacity and has a non-toxic lining that resist corrosion. Gauges monitor temperature and pressure levels in the tank, releasing water if either is too high, while flow pressure is regulated and stabilized by a pressure-reducing valve.

Insulation in the unit prevents excessive heat loss, and the front panel is constructed of durable stainless steel to withstand heavy use. This panel swings up out of the way for access to internal components, and strength is enhanced by the powder-coated body. Cleaning under the Hatco C-4 compact booster heater is enabled by four 6-inch legs that elevate it off the dishroom floor.

Product Details

• Provides rinse water at 180 degrees F in warewashers for sanitizing dishes
• Maximum 40 GPH at 40-degree-F rise
• Maximum 23 GPH at 70-degree-F rise
• Castone®-lined tank has 6-gal. storage capacity
• Fiberglass insulation prevents excessive heat loss
• On/off switch includes a pilot indicator light
• 2 temperature and pressure gauges monitor tank levels
• Temperature and pressure relief valve releases water from the tank to lower pressure levels
• Pressure-reducing valve keeps flow pressure regulated and stabilized
• Low-water cut-off feature monitors water levels and shuts off power to the heating element when it is low to prevent burnout
• Swing-away front panel enables access for component servicing
• Stainless steel front panel resists corrosion, dents, and scratches
• Powder-coated body enhances durability for high-volume applications
• 6-in. plastic legs elevate the unit off dishroom floors

Dimensions & Utilities

• 13¹/₁₆ in. W x 26 in. D x 19³⁹/₅₀ in. H
• 19.3 A, 4 kW
• 208 V/60 Hz/1 ph

Product Features

*Free shipping on Hatco C-4 within the 48 contiguous states.

From The Manufacturer

Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 4-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, 208v/60/1-ph, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 10-year Tank Parts

Hatco C-4 Specifications

Wisconsin-based Hatco has been a pioneer in the food warming and holding market since 1950. The brand also offers light cooking equipment and dishwasher boosters that keep dishwashing machines up to proper sanitizing temperatures, helping operations stay safe and efficient.
