Delfield N8169BP 69" Drop-In Refrigerator w/ (5) Pan Capacity - Cold Wall Cooled, 115v
Typically ships in 6 - 8 weeks
$5,894.00 /Each
Login or call for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now

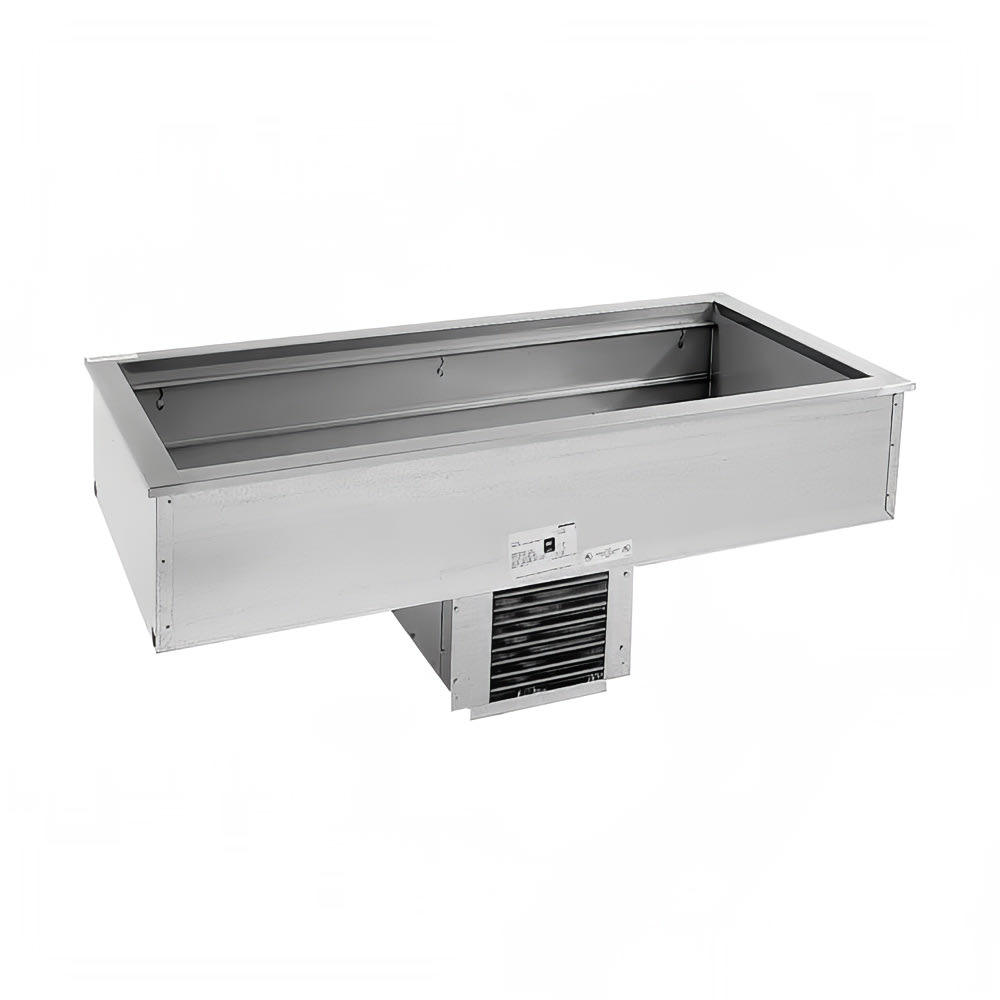

Delfield N8169BP Description
The Delfield N8169BP drop-in refrigerator can hold five full-size pans at a time. Its refrigerant lines are set in the walls, cooling contents using eco-friendly R290 hydrocarbon refrigerant. For cold air retention, pans are recessed below the top and the sides contain high-density polyurethane insulation. Although the thermostat comes preset at the standard temperature, it is adjustable from 33 to 41 degrees Fahrenheit as needed.
With a stainless steel and galvanized steel construction, this Delfield N8169BP drop-in cold food well provides corrosion resistance and high-volume durability. Its single-piece top eliminates food-trapping crevices and the well bottoms direct water towards the one-inch drain to facilitate cleaning.
Product Details
- 5-pan capacity
- Full-size wells are lined in durable stainless steel
- Bottom is creased to a 1-in. drain
- 20-ga. stainless steel top
- 14-ga. galvanized steel housing
- Polyurethane foam provides structure and insulation
- R290 hydrocarbon refrigerant lines run though the walls, chilling product at the outside edges
- Temperature holding range: 33-41 degrees F
- Electronic temperature controls
- Recommended counter cutout: 68 in. x 26 in.
- 1,346-BTU capacity
Dimensions & Utilities
- 69 in. W x 26 in. D x 2187/100 in. H
- 3.1 A, 2⁄7 HP
- 115 V/60 Hz/1 ph, 8-ft. cord with a NEMA 5-15P plug
*Free shipping on Delfield N8169BP within the 48 contiguous states.
From The Manufacturer
Drop-In Mechanically Cooled Pan, 69" W x 26" D, 5-pan size, 8" deep, 1" dia. drain, insulated pan, stainless steel inner liner & top, galvanized steel outer liner, includes adapter bars, self-contained refrigeration, R290 Hydrocarbon refrigerant, 2/7 hp, (68" x 25" cutout required), cUL, UL, NSF
*Image may not depict product color, inclusions or accessories.
Delfield N8169BP Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Delfield |
| Access | Top |
| Also Known As | N8169B |
| Height (in) | 21.87 |
| Hertz | 60 |
| Includes | Drain |
| Length (in) | 69 |
| Pan Capacity | 5 |
| Phase | 1 |
| Product | Cold Wells |
| Product Type | Food Bars & Buffets |
| Refrigeration Type | Refrigerated |
| Type | Cold Wall |
| Voltage | 115 |
| Warranty | 1-year Parts; 90-day Labor |
| Width (in) | 26 |
| Weight | 243.00 |
