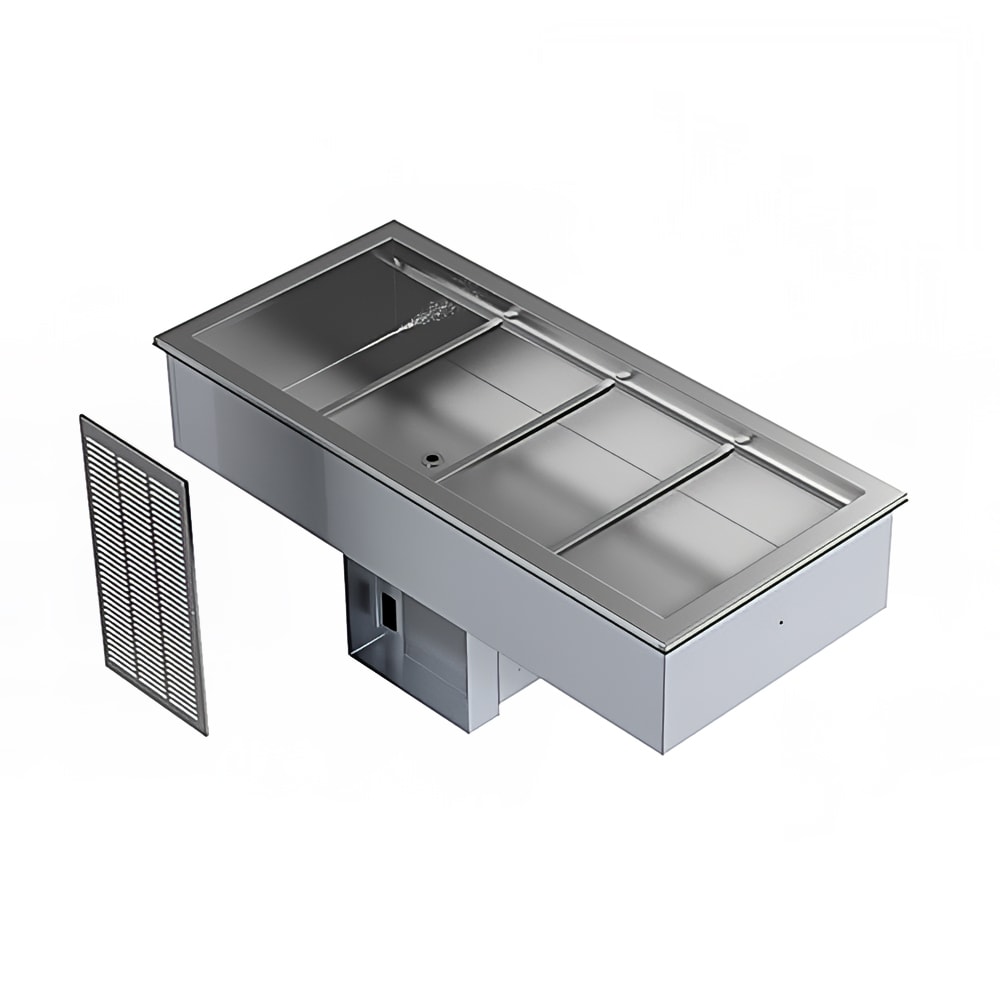

Delfield N8156BP 56" Drop-In Refrigerator w/ (4) Pan Capacity - Cold Wall Cooled, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$5,976.00 /Each
Login or call for details!
Delfield N8156BP Description
The Delfield N8156BP drop-in refrigerator has a large, four-pan capacity designed for buffet lines. Its walls contain R290 hydrocarbon refrigerant lines, providing cold temperatures between 33 and 41 degrees Fahrenheit. Polyurethane insulation bars heat while the recessed rest keeps pans below the top, away from warm ambient air. If the temperature in the pans is hotter or colder than necessary, operators can reach into the machine component and twist the temperature knob to the right level.
This Delfield N8156BP drop-in cold food well features a galvanized steel housing and a one-piece, stainless steel top. This top facilitates cleaning in case of spills and, to prevent corrosion, the well interiors are lined in rust-resistant stainless steel. Their bottoms are creased to move water out the drain swiftly at closing time.
- 4 full-size pan capacity
- Wells are lined in rust-resistant stainless steel
- Creased bottom directs liquids to the 1-in. drain
- 1-piece top for brisk cleaning
- Durable housing is made of 24-ga. galvanized steel
- High-density polyurethane insulation is a barrier against heat
- R290 hydrocarbon refrigerant lines in the walls provide cold temperatures
- Temperature holding range: 33-41 degrees F
- Electronic controller
- Recommended counter cutout: 55 1⁄4 in. x 25 in.
- 1,255-BTU capacity
- 56 1⁄4 in. W x 26 in. D x 21 87⁄100 in. H
- 3.1 A, 2⁄7 HP
- 115 V/60 Hz/1 ph, 8-ft. cord with a NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Delfield N8156BP within the 48 contiguous states.
From The Manufacturer
Drop-In Mechanically Cooled Pan, 56-1/4" W x 26" D, 4-pan size, 1" dia. drain, insulated pan, stainless steel inner liner & top, galvanized steel outer liner, includes adapter bars, self-contained refrigeration, R290 Hydrocarbon refrigerant, 2/7 hp, (55-1/4" x 25" cutout required), cUL, UL, NSF
Delfield N8156BP Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Delfield |
| Access | Top |
| Also Known As | N8156B |
| Height (in) | 21.87 |
| Hertz | 60 |
| Includes | Drain |
| Length (in) | 56 |
| Pan Capacity | 4 |
| Phase | 1 |
| Product | Cold Wells |
| Product Type | Food Bars & Buffets |
| Refrigeration Type | Refrigerated |
| Type | Cold Wall |
| Voltage | 115 |
| Warranty | 1-year Parts; 90-day Labor |
| Width (in) | 26 |
| Weight | 233.00 |
