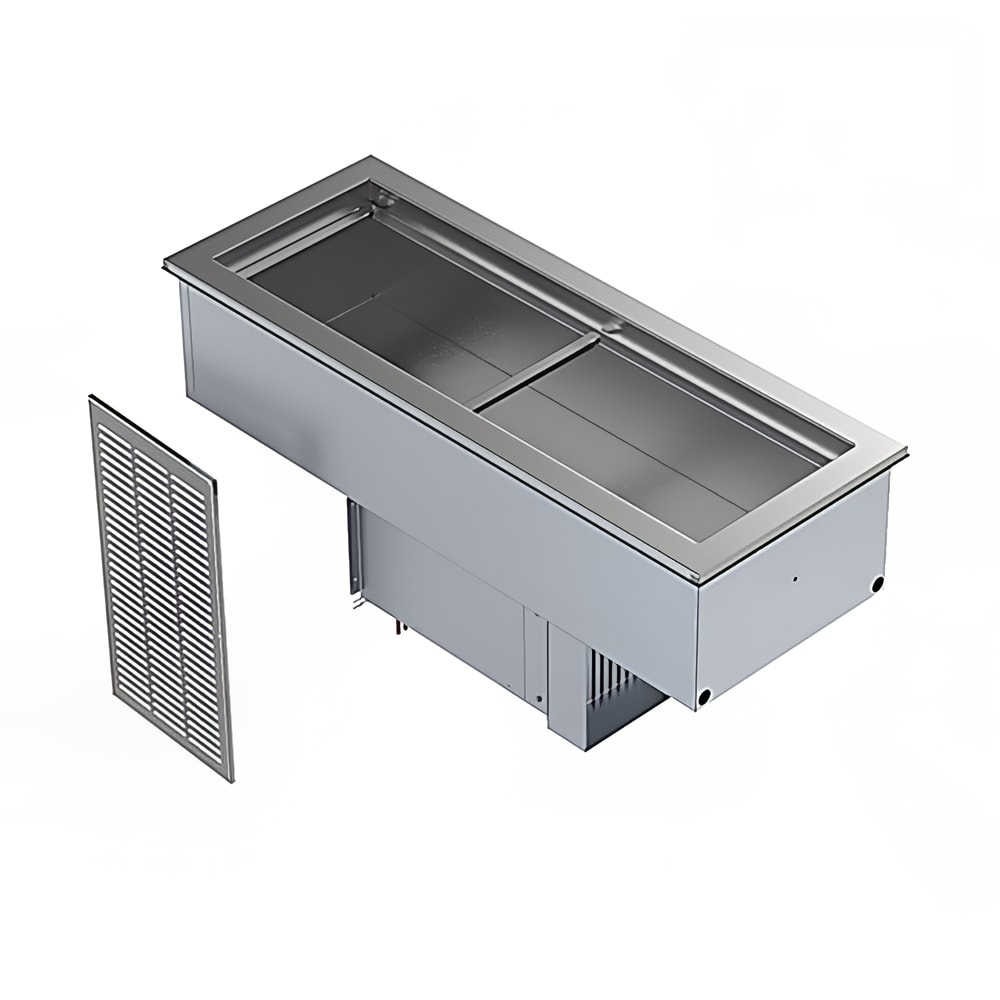

Delfield N8146NBP 47" Drop-In Refrigerator w/ (2) Pan Capacity - Cold Wall Cooled, 115v
Typically ships in 6 - 8 weeks
$5,268.00 /Each
Login or call for details!
Delfield N8146NBP Description
Great for crowded countertops, the Delfield N8146NBP drop-in refrigerator cools two pans of food in a narrow footprint. It holds the pans end to end—unlike most warmers, which hold them side by side. The system cools by running R290 hydrocarbon refrigerant through the walls, so the outmost edges are kept at the correct temperature. Pans sit on a recessed rest, holding them away from the hot air above while polyurethane insulation keeps heat out of the sides of the walls.
The Delfield N8146NBP drop-in cold well is controlled by a knob and switch in the machine compartment below. The knob enables users to adjust the temperature between 33 and 41 degrees Fahrenheit, while the switch enables them to turn the unit on for cooling or off for defrosting. These controls are isolated—perfect for customer-facing applications.
- Holds 2 full-size pans in a narrow footprint
- Electronic control system
- R290 hydrocarbon refrigerant lines in the walls cool the outmost edges of pans
- Temperature holding range: 33-41 degrees F
- Polyurethane foam enhances cold temperature retention
- Exterior is made of dent-resistant galvanized steel
- Interior has a rust-resistant, stainless steel construction
- 1-piece top streamlines cleaning
- Creased bottom moves water towards the 1-in. plastic drain
- Recommended counter cutout: 45 3⁄4 in. x 17 in.
- 788-BTU capacity
- 46 3⁄4 in. W x 18 in. D x 21.81 in. H
- 2 A, 1⁄6 HP
- 115 V/60 Hz/1 ph, 8-ft. cord with a NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Delfield N8146NBP within the 48 contiguous states.
From The Manufacturer
Narrow Drop-In Cold Food Unit, refrigerated, 46-3/4" W x 18" D, 2-pan size, 1" drain, insulated pan, stainless steel inner liner & top, galvanized steel outer liner, self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/6 HP, (45-3/4" x 17" cutout required), cUL, UL, NSF
Delfield N8146NBP Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Delfield |
| Access | Top |
| Also Known As | N8146NB |
| Height (in) | 21.87 |
| Hertz | 60 |
| Includes | Drain |
| Length (in) | 47 |
| Pan Capacity | 2 |
| Phase | 1 |
| Product | Cold Wells |
| Product Type | Food Bars & Buffets |
| Refrigeration Type | Refrigerated |
| Type | Cold Wall |
| Voltage | 115 |
| Warranty | 1-year Parts; 90-day Labor |
| Width (in) | 18 |
| Weight | 175.00 |
