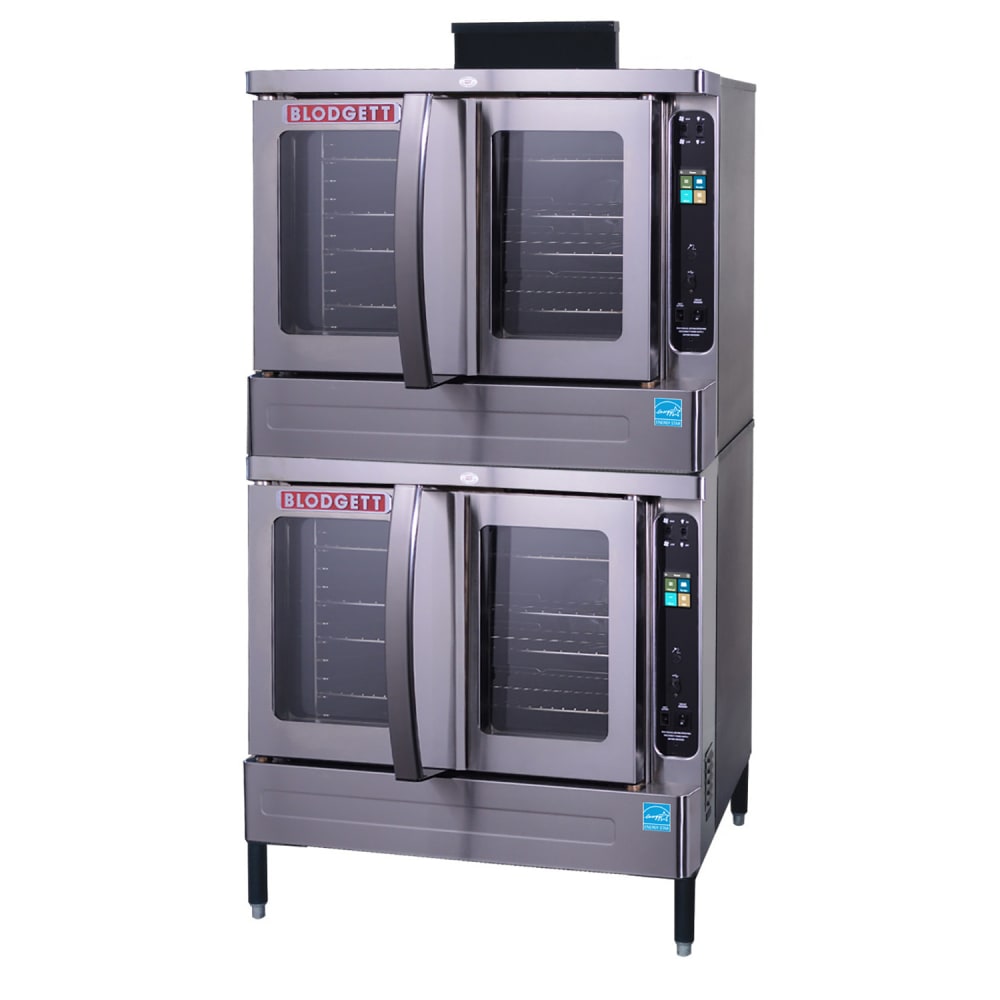

Blodgett MARK V-100 Double Full Size Electric Convection Oven - 208v/3ph

Image may not depict product color, inclusions or accessories.

KaTom #: 015-MARKVDOUBLE2083 • MPN: MARKV-100DBL 208/3
Ships Free

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Retail Price: $17,308.50

Selected Voltage: 208V, 3 Phase

208V, 3 Phase
208V, 1 Phase

Image may not depict product color, inclusions or accessories.

Blodgett MARK V-100 Description

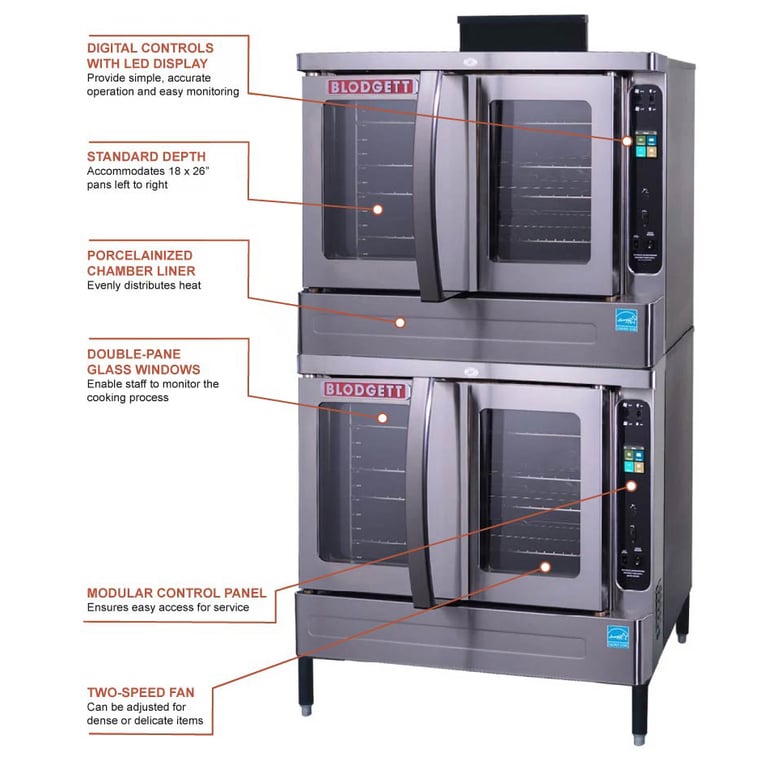

The Blodgett MARK V-100 is built to provide double the cooking capacity with all the quality and reliability the company is known for. The full, angle-iron frame in each cavity is surrounded by stainless steel front, top, and sides. Three tubular burners per oven heat the 14-gauge compartment, which is porcelainized on two sides to protect against corrosion. Solid, mineral-fiber insulation surround the cavity, and dependent doors with porcelain handles make operation easy and comfortable. The doors have a triple-mounted pressure lock and a turnbuckle assembly that ensure a complete seal and reliable opening, even after years of use. Each oven comes with five chrome-plated racks that can each hold one full-size (18-in. x 26-in.) standard hotel pan and can be located in any of 11 rack positions. Temperatures from 200 to 500 degrees F are set by digital solid-state thermostatic controls and regulated by a 1/3-horsepower, two-speed fan.

Product Details

  • Double-stacked electric convection oven
  • Dependent doors with turnbuckle operation are both opened with one hand
  • 5 chrome plated racks included per compartment
  • 9 rack positions per cavity
  • Full, angle-iron frames for a life of rugged dependability
  • Stainless steel front, top, and sides
  • Dual-paned, thermal glass door windows keep heat inside the cabinet for quick cooking and energy savings
  • Triple-mounted pressure lock prevents air escape
  • Solid, mineral-fiber insulation for energy-efficiency
  • Slide-out control panel for easy service
  • 3 tubular burners per compartment
  • Digital, solid-state thermostatic controls with LED displays
  • 2-speed, 1/3-horsepower fan motors with automatic thermal overload protection
  • 2 halogen oven lamps per compartment
  • Includes 6-in. adjustable stainless steel legs
  • 208 V/60 Hz/3-ph
  • Overall Dimensions: 38.25-in. W x 36.875-in. D x 66.5-in. H
  • cETLus, CE listed; NSF, ENERGY STAR certified

Convection Oven, electric, double-deck, standard depth, capacity (5) 18" x 26" pans per compartment, (SSD) solid state digital controls, 2-speed fan, interior light, simultaneous operated doors with glass, stainless steel front, sides & top, vent connector, 6" stainless steel legs, vent connector, 11.0 kW each, 1/3 hp, cETLus, CE, NSF, ENERGY STAR®, 208v/60/3ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Blodgett MARK V-100 Specifications

PDF Spec Sheet
Manufacturer Blodgett
Additional Info Energy Efficient
Base Legs
Controls Digital
Door Construction Glass Only
Door Type Dependent
Go Green Energy Star
Heat Electric
Interior Construction Porcelain
Number of Ovens Double
Pans (per deck) 5 Pans
Size Full Size
Type Floor Model
Warranty 3 years parts, 2 year labor, 2 additional year door warranty (Parts only, excluding glass)
Phase 3
Voltage 208
Hertz 60
Product Type Ovens
Product Convection Oven
Weight 36.88
Blodgett MARK V-100 Certifications
  • NSF
  • Energy Star
  • ETL
