Blodgett CTBR Single Half Size Electric Convection Oven - 5.6 kW, 240v/1ph
Typically ships in 4 - 8 Business Days
$10,375.00 /Each
Selected Voltage: 220-240V, 1 Phase
| 220-240V, 1 Phase |
| 208V, 1 Phase |
| 208V, 3 Phase |
| 220-240V, 3 Phase |
White Glove Delivery
Contact your sales rep for availability
Blodgett CTBR Description

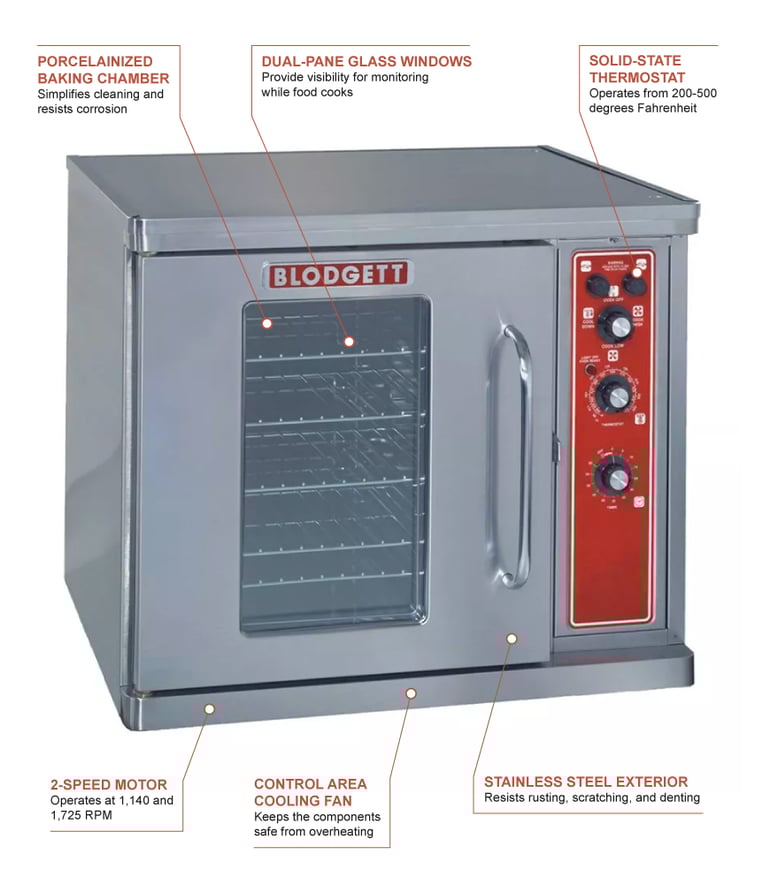

The Blodgett CTBR half-size convection oven locks in heat with solid mineral fiber insulation and has a temperature range of 200 to 500 degrees Fahrenheit. An automatic thermal overload protection feature shuts the unit down if it has insufficient ventilation and gets too hot. Mostly constructed of stainless steel, the exterior of the unit is sturdy and resistant to corrosion. Since the stainless steel door frame has a glass window, operators can keep an eye on the baking food.
Inside the Blodgett CTBR electric convection oven, the walls are porcelainized, which ensures that they are slick and resistant to bacteria and food buildup. This unit holds five 18-inch by 13-inch pans on five chrome-plated racks that can be adjusted on a nine-position rack guide. The motor operates at two speeds with controls on the front panel, which are manual with separate dials for the temperature and timer.
Product Details
- (5) 18-in. x 13-in. pan capacity
- 5 chrome-plated racks adjust to 9 positions
- Double-sided porcelain interior facilitates cleaning
- Right-hinged door
- Stainless steel door frame has a dual-pane glass window for visibility
- Chrome-plated door handle
- Sturdiness is provided by the iron frame
- Front, top, sides, and rear are constructed of stainless steel and can withstand heavy use
- Mineral fiber insulation keeps heat inside
- 2 tubular heaters
- Solid-state manual controls include separate dials for temperature and time
- Temperature range: 200-500 degrees F
- Automatic thermal overload protection reduces the risk of overheating
- 2-speed fan motor: 1,140 or 1,725 RPM
- Controls are located on the front
Product Features
Dimensions & Utilities
- Interior: 151⁄4 in. W x 21 in. D x 20 in. H
- Overall: 301⁄4 in. W x 287⁄8 in. D x 251⁄16 in. H
- 24 A, 5.6 kW, 1⁄4 HP
- 220-240 V/60 Hz/1 ph
*Free shipping on Blodgett CTBR within the 48 contiguous states.
From The Manufacturer
Convection Oven, electric, (base oven only) single-deck, half-size, capacity (5) 13" x 18" pans, (SSM) solid state infinite controls with separate dials for thermostat and timer, 2-speed fan, single door, hinged on right, with dual pane thermal glass window, stainless steel front, sides, top & back, 220-240v/60/1ph, NSF, ETL, CE, ENERGY STAR®
*Image may not depict product color, inclusions or accessories.
Watch a video about this product
Blodgett CTBR Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Blodgett |
| Base | None |
| Controls | Manual |
| Depth (in) | 25.13 |
| Door Construction | Metal with Window |
| Door Type | Independent |
| Heat | Electric |
| Height (in) | 25.5 |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 5.6 |
| Number of Ovens | Single |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 1 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | CTB Series |
| Size | Half Size |
| Type | Requires Base |
| Voltage | 240 |
| Warranty | 3-year Parts; 2-year Labor; 5-year Door Parts |
| Width (in) | 30.25 |
| Weight | 280.00 |
