Blodgett CTBR BASE Single Half Size Electric Convection Oven - 5.6kW, 220-240v/3ph
Typically ships in 4 - 8 Business Days
$10,375.00 /Each
Selected Voltage: 220-240V, 3 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 220-240V, 1 Phase |
| 220-240V, 3 Phase |
White Glove Delivery
Contact your sales rep for availability
Blodgett CTBR BASE Description
The Blodgett CTBR BASE half-size convection oven is designed for high-volume baking applications in commercial kitchens. With a stainless steel exterior, it withstands heavy use while resisting corrosion and wear. The interior features a porcelain lining that facilitates even heat distribution and simplifies cleaning. Designed to accommodate five 13-inch by 18-inch pans, the oven includes five adjustable chrome-plated racks to support a variety of cooking needs. A dual-pane windowed door framed in stainless steel allows operators to monitor food without opening the oven, preserving heat and improving efficiency.

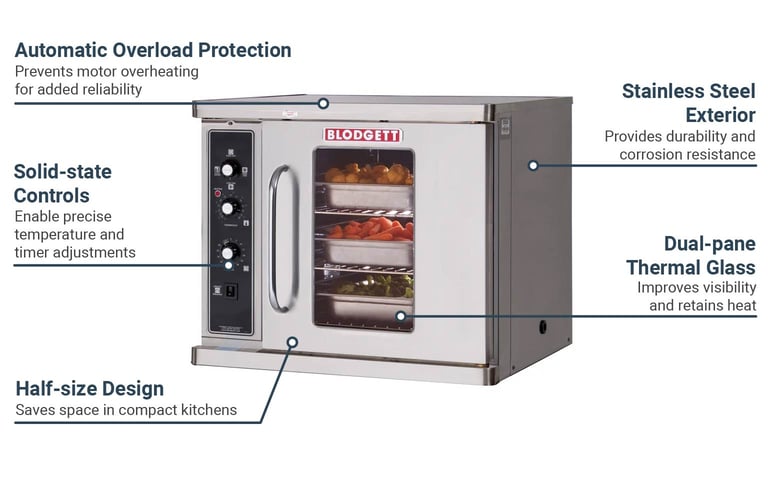

Equipped with solid-state controls and a 60-minute timer, the Blodgett CTBR BASE convection oven ensures precise temperature regulation. The tilt-down modular control panel provides easy access for adjustments, while the two-speed fan motor evenly circulates heat to eliminate hot spots. Operating within a temperature range of 200 to 500 degrees Fahrenheit, this oven supports baking, roasting, and reheating applications. To ensure safety and longevity, the unit is fitted with automatic overload protection for the blower motor and a cooling fan to regulate internal temperatures.
Product Details
- Holds five 13-in. x 18-in. pans (not included)
- Stainless steel exterior
- Porcelain-lined interior
- Mineral fiber insulation
- Full angle-iron frame
- 1 dual-pane windowed door with stainless steel frame
- 5 adjustable chrome-plated racks
- Tilt-down modular control panel
Operating System
- 2 tubular heating elements
- 2-speed fan motor
- Cooling fan
- Automatic overload protection (blower motor)
- Solid-state controls with a 60-min. timer
- Temperature range: 200-500 degrees F
Dimensions & Utilities
- Interior: 151/4 in. W x 21 in. D x 20 in. H
- Overall: 301/4 in. W x 251/8 in. D x 251/2 in. H
- 21/11/14 A, 5.6 kW, 1/4 HP
- 220/240 V/60 Hz/3 ph, hardwire installation required
Product Features
*Free shipping on Blodgett CTBR BASE within the 48 contiguous states.
From The Manufacturer
Convection Oven, electric, (base oven only) single-deck, half-size, capacity (5) 13" x 18" pans, (SSM) solid state infinite controls with separate dials for thermostat and timer, 2-speed fan, single door, hinged on right, with dual pane thermal glass window, stainless steel front, sides, top & back, NSF, ETL, CE, ENERGY STAR®
*Image may not depict product color, inclusions or accessories.
Watch a video about this product
Blodgett CTBR BASE Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Blodgett |
| Base | None |
| Controls | Manual |
| Door Construction | Metal with Window |
| Door Type | Independent |
| Depth (in) | 25.13 |
| Heat | Electric |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 5.6 |
| Height (in) | 25.5 |
| Number of Ovens | Single |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 3 |
| Rating | Best |
| Size | Half Size |
| Series | CTB Series |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Voltage | 220/240 |
| Type | Requires Base |
| Warranty | 3-year Parts; 2-year Labor; 5-year Door Parts |
| Width (in) | 30.25 |
| Weight | 280.00 |
