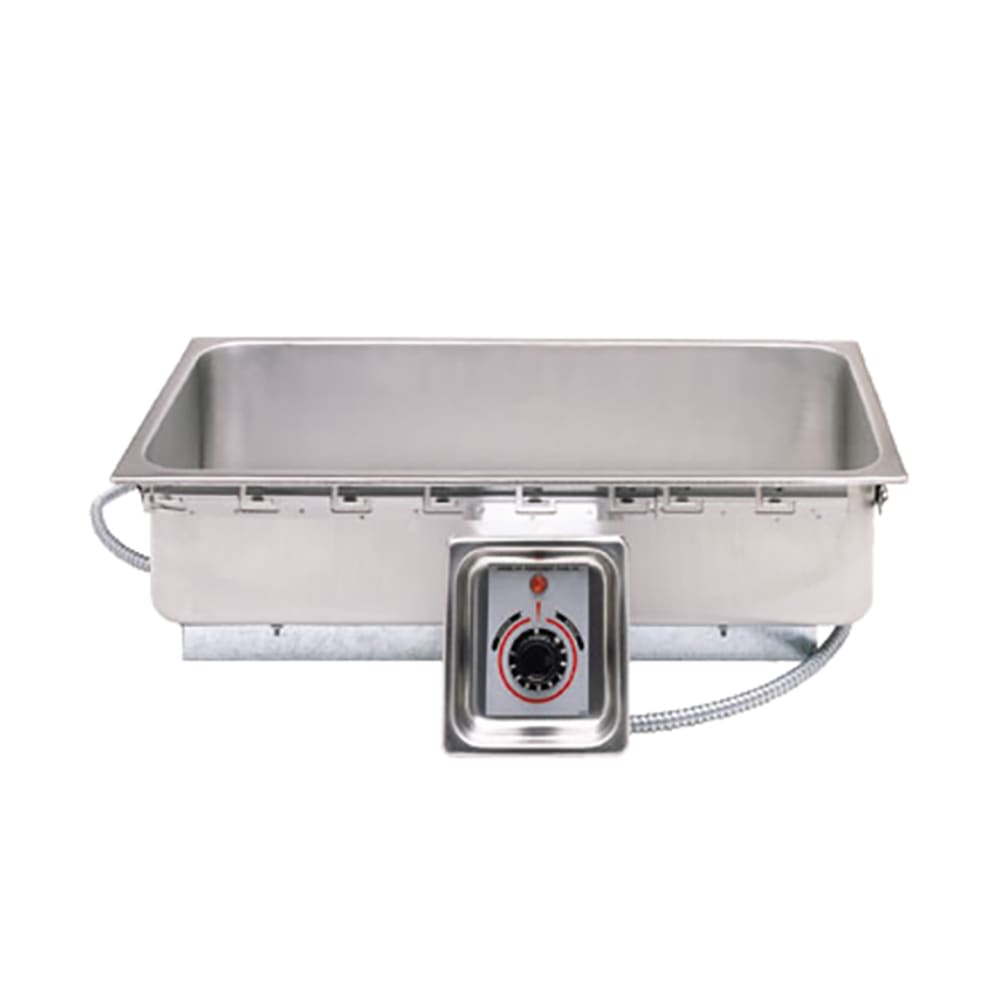

APW TM-43D UL Drop-In Hot Food Well w/ (1) 4/3 Size Pan Capacity, 120v

Image may not depict product color, inclusions or accessories.

KaTom #: 011-TM43DUL • MPN: TM-43DUL 120/1

Ships Free

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Retail Price: $500.00

Selected Voltage: 120V, 1 Phase

120V, 1 Phase
208V, 1 Phase

Image may not depict product color, inclusions or accessories.

APW TM-43D UL Description


The APW Wyott TM-43DUL hot food well is equipped with a 12-inch NPT drain that is welded to the bottom of the pan with a removable screen. The pan well accommodates standard-size pans. It is constructed from deep-drawn stainless steel for durability, with aluminized outer housings and fully insulated bottom and sides. A tubular heating element is mounted under the well and is secured with an aluminized deflector shield. With its serpentine shape, the element evenly distributes heat to eliminate hot spots. All of the heating assembly is encased by galvanized housing with a 1-inch fiberglass insulation that is fixed to the bottom of the pan with threaded studs. While the APW Wyott TM-43DUL hot food well can be used for wet or dry applications, wet applications offer the best results.

Product Details

  • Heavy-duty, rectangular, top-mounted, drop-in hot food well
  • Stainless steel construction is deep drawn for durability and easy cleaning
  • Large indicator pilot light lets the user know if the well is on or off
  • EZ locks on all 4 sides of the well reduce installation time
  • Thermostatic control with a 36-in. capillary maintains heat efficiently
  • Tubular heating element has a serpentine shape to evenly distribute heat and prevent cold spots
  • Element is mounted under the well and secured with an aluminized deflector shield
  • Heating element is easy to access
  • Heat assembly is covered with galvanized housing that has a 1-in. fiberglass insulation on the bottom
  • Element housing is fixed with threaded studs so it is easy to remove for service
  • 12-in. NPT drain with a removable screen is welded to the bottom of the pan
  • Aluminized outer housing with fully insulated bottom and sides
  • Accommodates standard-size steam table pans
  • Designed to be installed in metal or wooden countertops
  • 120 V/60 Hz/1 ph, 1800 W, 15 A
  • Overall Dimensions: 28916 in. L x 1358 in. W x 8516 in. H
  • CSA and UL-EPH listed

Food Warmer, drop-in, electric, (1) 12" x 27" well, 4/3 pan size, wet or dry operation, thermostatic control, with drain, uninsulated, EZ lock, stainless steel construction, UL, CSA, NSF, CE, 120v/60/1ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

warning-small Important Prop 65 information for California residents.

APW TM-43D UL Specifications

PDF Spec Sheet
Manufacturer APW
Warranty 1 year limited parts & labor
Capacity (Pans) 1
Controls Thermostatic
Type Hot
Pan Size 4/3
Specialty Options Wet or Dry
Specialty Options With Drain
Phase 1
Voltage 120
Hertz 60
Weight 23.00
APW TM-43D UL Certifications
  • UL
