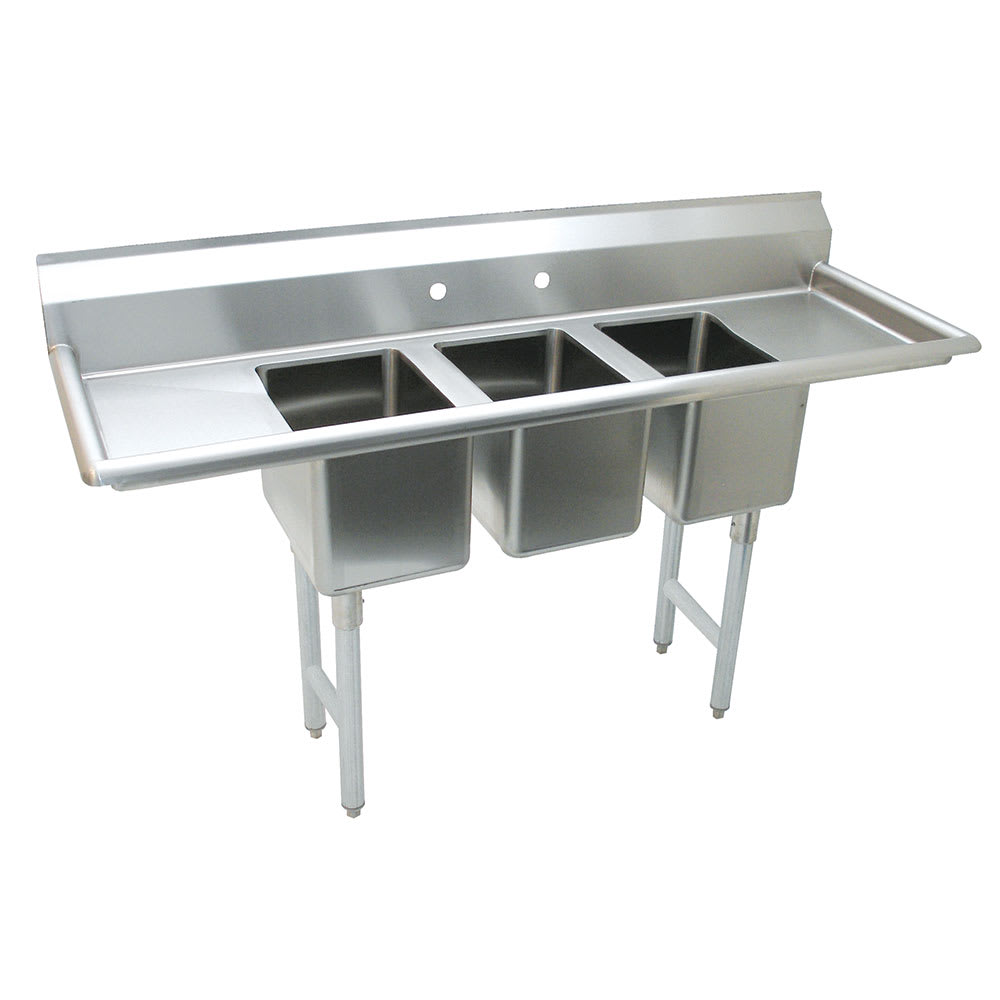

Advance Tabco K7-CS-22 70" 3 Compartment Sink w/ 10"L x 14"W Bowl, 10" Deep

Image may not depict product color, inclusions or accessories.

KaTom #: 009-K7CS22X • MPN: K7-CS-22

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Price Increase Warning
Retail Price: $1,107.90

Image may not depict product color, inclusions or accessories.

Advance Tabco K7-CS-22 Description

Advance Tabco

Convenience Store Sink
3 Compartments, Dual Side Drainboards
Model K7-CS-22

  • Bowl Size: 10' x 14'
  • Overall Length: 72'
  • 3 Compartments
  • (2) 17 5/8' drainboards
  • Tile edge for ease of installation.
  • One piece Deep Drawn sink bowls with integral drainboards with splash.
  • Featuring the single bowl unit design.
  • All sink bowls have a large liberal 3' radius.
  • Placement of the welded leg assembly ensures stability and furnishes direct support of the column load requirement for the entire sink unit.


  • All TIG welded.
  • Welded areas blended to match adjacent surfaces and to a satin finish.
  • Gussets welded to a die-embossed reinforcing channel.


  • Unit is heavy gauge type '304' stainless steel.
  • Legs are 1 5/8' diameter heavy gauge tubular stainless steel with stainless steel gussets.
  • 1' adjustable stainless steel bullet feet.

Convenience Store Sink, 3-compartment, with left & right-hand drainboards, 14" front-to-back x 10" W compartment, 10" deep with 8" high splash, stainless steel open frame base, side crossrails, adjustable metal bullet feet, 18 gauge 304 series stainless steel, 17-5/8" drainboards, overall 19.5" F/B x 70" L/R

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Advance Tabco K7-CS-22 Specifications

PDF Spec Sheet
Manufacturer Advance Tabco
Overall Length (in) 70
Sink Length (in) 10
Sink Width (in) 14
Sink Depth (in) 10
Stainless Steel Gauge 18 gauge
Stainless Steel Grade 304 Series
Backsplash Height (in) 8"
Drainboard Location Both Sides
Drainboard Length (in) 17.5"
Faucet Mount Splash
Faucet Centers 8"
Product Type Commercial Sinks
Product Compartment Sink
Weight 95.00
Advance Tabco K7-CS-22 Certifications
  • NSF
