Advance Tabco 94-K2-24D 71" 3 Compartment Sink w/ 20"L x 20"W Bowl, 12" Deep

Image may not depict product color, inclusions or accessories.

KaTom #: 009-94K224D • MPN: 94-K2-24D-X

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Price Increase Warning
Retail Price: $5,300.00
$2,668.31 / Each

Image may not depict product color, inclusions or accessories.

Advance Tabco 94-K2-24D Description

Advance Tabco

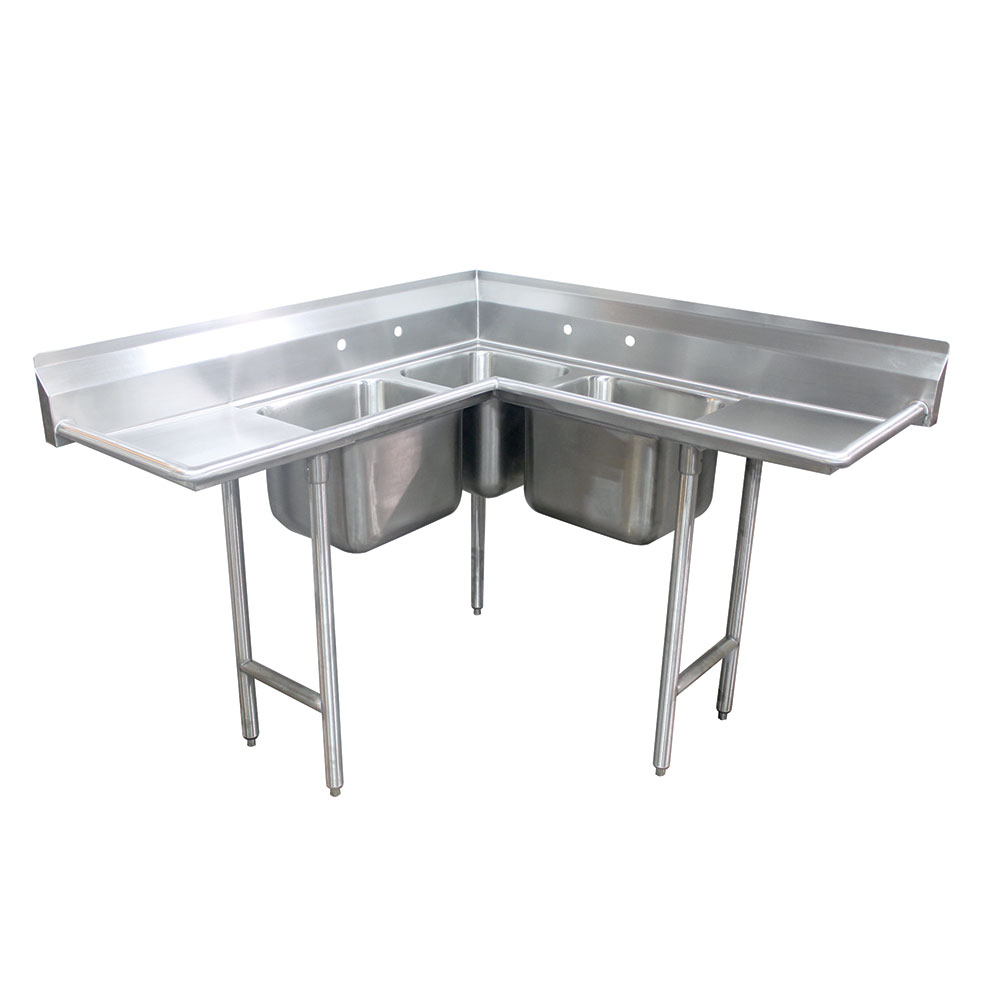

Advance Tabco's 94-K2-24D corner sink features three 20-inch by 20-inch bowls and two 24-inch drainboards, one on each end of the unit. This three-compartment sink is built for easy cleaning, as the unit's backsplash, drainboard, and bowls are all formed from one seamless piece of stainless steel, eliminating any cracks or seams where bacteria could be allowed to collect. The unit's deep-drawn bowls have wide three-inch corners that can easily be wiped clean.

This Regaline sink has holes cutout for two faucets mounted on 8-inch centers. The sink's 158-inch diameter legs are placed where they can provide optimal support to the heaviest part of the sink. 1-inch adjustable bullet feet allow operators to achieve a level installation, even on uneven floors.

Product Details

  • Unit is built with 16-gauge, 304-series stainless steel
  • Tile edge makes sink easy to install in the dishroom
  • Bowls, drainboard, and backsplash are formed of one seamless piece of steel
  • Deep-drawn bowls are made with extra-large 3-in. radius corners for easy cleaning
  • Welded leg assembly provides support to the heaviest part of the sink
  • TIG-welded construction for durability
  • Welds are blended to match adjacent surfaces with a smooth, satin finish
  • Gussets are welded to a die-embossed channel to reinforce their strength
  • 158-in. diameter tubular steel legs stainless steel gussets
  • 1-in. stainless steel bullet feet are adjustable for level installation
  • Faucet holes are on 8-in. centers
  • 112-in. IPS basket drains
  • Overall Dimensions: 71 in. W x 71 in. D x 42 in. H

Corner Sink, 3-compartment, (3) 20" x 20" x 12" bowls, with 24" left & right-hand drainboards, with 8" high splash, stainless steel open frame base, side crossrails, adjustable metal bullet feet, 16 gauge 304 series stainless steel, 71" x 71" overall, (requires 2 faucets)

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Advance Tabco 94-K2-24D Specifications

PDF Spec Sheet
Manufacturer Advance Tabco
Overall Length (in) 71
Sink Length (in) 20
Sink Width (in) 20
Sink Depth (in) 12
Stainless Steel Gauge 14 gauge
Stainless Steel Grade 304 Series
Backsplash Height (in) 8"
Drainboard Location Both Sides
Drainboard Length (in) 24"
Faucet Mount Splash
Faucet Centers 8"
Specialty Options Corner Sink
Product Type Commercial Sinks
Product Compartment Sink
Weight 275.00
Advance Tabco 94-K2-24D Certifications
  • NSF
