Choosing the Right Ice Bin Adapter for Manitowoc Ice Machines

Manitowoc ice machine heads can be paired with various bins and dispensers. However, ice machine heads and bins aren't universally compatible. Some configurations require a specific adapter, which must be matched to the correct head and bin to function properly. Manitowoc's bin adapter chart can help pair the right adapter with your bin-head combination.

What Is an Ice Bin Adapter?

Ice bin adapters fit between an ice bin and ice machine head, enabling operators to create a wider range of ice-making configurations. They typically mount a narrower ice machine head, such as a 22-inch unit, on a wider bin. This flexibility can benefit locations with varying ice usage, helping operators pair a head and bin combo that meets their ice production and storage needs. It also allows users to adjust ice production or storage capacity without replacing the entire unit.

"We designed our machines with modular flexibility, allowing customers to choose bin capacities and dispensers that best suit their needs." — Will York, Manitowoc Product Manager

How Do I Know Which Manitowoc Bin Adapter I Need?

The correct adapter depends on the exact ice machine head and bin or dispenser models. Identify both model numbers before determining compatibility.

1. Ice Machine Model Number: Found on the label or plate attached to the back or inside panel of the unit
2. Ice Bin or Dispenser Model Number: Located on the label or plate attached to the back of the unit
3. Compatibility Chart: Compare both model numbers to determine whether an adapter is available that fits the machine and bin

What's the Difference Between Manitowoc Bin Adapter Kits?

Adapter kits vary by size and style based on the machine series, machine width, bin or dispenser, and configuration they support.

How Do You Install a Manitowoc Bin Adapter?

Bin adapter installation steps vary based on machine and bin type. Most installations follow these general steps; always follow the instructions for the specific machine, bin, and adapter.

1. Remove protective packaging from any bin adapter components prior to assembly
2. Set the bin adapter on top of the bin and verify it's properly aligned on all sides
3. Place the bin in its final position and adjust the legs to level the unit in all directions
4. Place the ice machine on the bin adapter and follow the procedures in the ice machine installation manual to complete installation
5. Add filler panels to the bin adapter as required
6. Clean and sanitize the ice machine and bin once installation is complete

Can You Use a Universal Manitowoc Bin Adapter?

No. Manitowoc adapters aren't designed for universal installation. They fit specific equipment combinations and should be matched to the exact machine and bin models.

Can All Manitowoc Heads Be Used With All Bins?

No. Not every head is compatible with every bin. Review the compatibility chart to determine which heads and bins can be paired.

Do Manitowoc Ice Machine Installations Need Other Accessories?

Some machine-and-bin or machine-and-dispenser configurations require additional installation accessories. Additional accessories can include ice deflectors, dispenser baffles, filler panels, and secure fastening kits.

Manitowoc Ice Deflectors

Ice deflectors direct harvested ice into the bin and are required for certain Manitowoc head-and-bin configurations. For example, the K00347 Ice Deflector is needed when pairing a 30-inch Indigo ice machine with an F-series bin or certain compatible bins from other brands.

Manitowoc Dispenser Baffles

Dispenser baffles keep harvested ice from contacting the machine front panel and are required for certain dispenser installations. The Manitowoc K0034800 Dispenser Baffle is designed for Manitowoc 22-inch machines and certain Indigo dispensers to support ice dispensing.

Manitowoc Filler Panels

Filler panels are used for specific multi-machine and bin configurations to fill unused portions of the bin opening. Certain panel kits, such as the K00421 Kit, allow two 22-inch RN-1078C or RN-1278C machines to be placed side by side on a 60-inch F-style bin.

Manitowoc Secure Fastening Kits

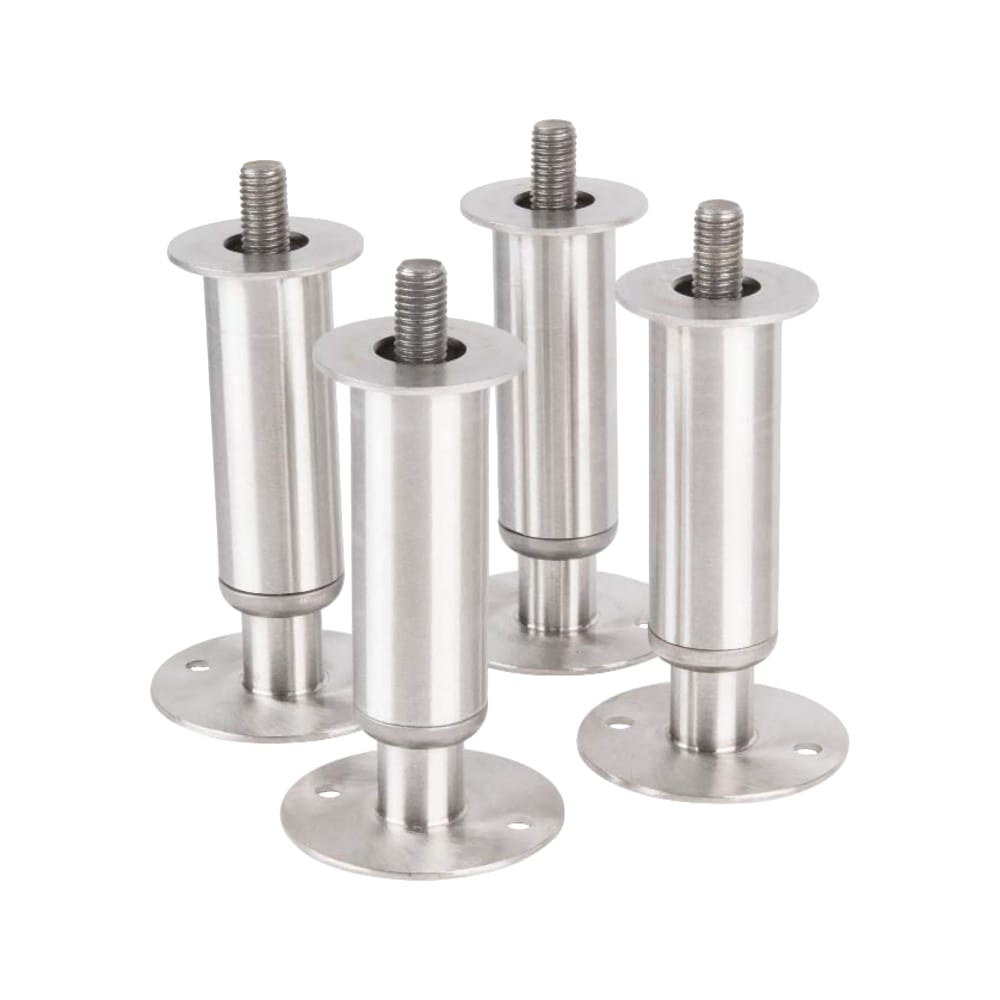

Secure fastening kits help level and secure ice machine heads on specified bins. The K00462 Kit includes four adjustable flanged feet and latching hardware to install the bin and machine head.

Shop Manitowoc Bin Adapters

KaTom offers ice machine and bin adapters for a variety of models. Confirm the exact machine and bin models before ordering an adapter.
