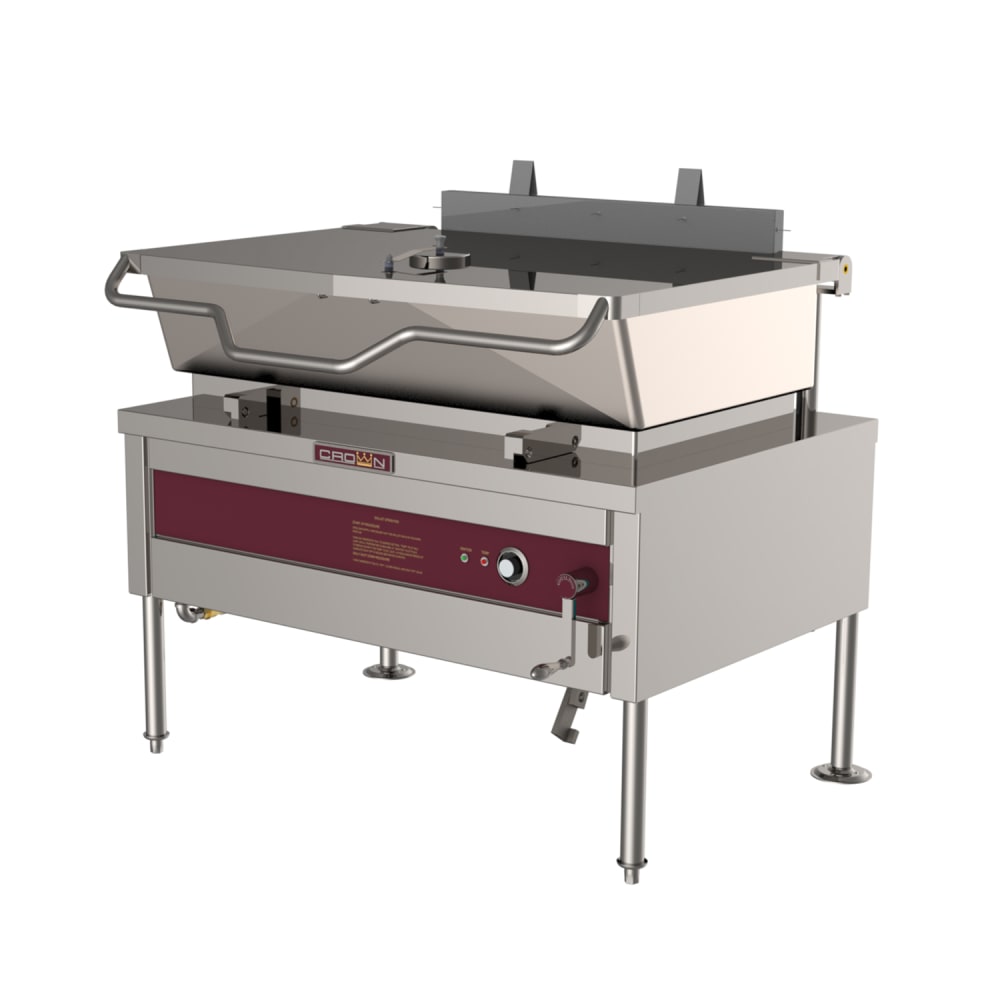

Crown Steam GS-40 40 gal. Tilt Skillet - Open Base, Strainer, Measurement Marks, Liquid Propane

Great for high-volume cooking applications, the Crown Steam GS-40 braising pan has a 40-gallon capacity. Because it is so large, units like this are often used in institutions, but with a versatile cooking style, it works well in many applications. Operators can use this unit for almost anything, from boiling, braising, and frying to simmering, griddling, and steaming. The pan's interior is made of stainless steel that can be wiped down and has a polished finish that further simplifies cleaning. Coved corners in the pan eliminate crevices that could trap crumbs and harbor bacteria. Inside the pan, etched measurement marks ensure users can accurately portion ingredients.

When cooking, atmospheric burners heat up, warming the plate in the pan, and the operator can set the desired temperature on the adjustable thermostat. After food is cooked in this Crown Steam GS-40 tilt skillet, the pan can be tilted to dump the product out. The pan's interior is sloped, which encourages food to move out the pour spout, and the spout has a removable strainer that can be used to draw off broths or grease. If the pan is tilted more than 5 degrees, the burners automatically shut off to protect employees.

Product Details

• 40-gal. capacity
• 304 stainless steel pan is efficient to clean with a polished interior finish
• Coved pan corners prevent crumbs from getting stuck in crevices
• Cooking surface has a triple-ply, ³⁄₄-in. plate with an aluminum core for even heating
• Etched pan markings for measuring added product
• Spring-assisted stainless steel cover
• Full-width cover handle
• Manual tilt mechanism for tipping the pan and dispensing product
• Pan has a sloped design that encourages draining toward the front
• Removable pour strainer lets users drain off stocks separately
• Electronic pilot ignition
• Stainless steel atmospheric burners operate with an adjustable thermostat
• Temperature range: 100-450 degrees F
• High-temperature safety cut-off feature if the heat reaches 500 degrees F
• Automatic burner shut-off when pan is tilted past a 5-degree angle
• Control enclosure protects against damage from light splashing
• Stainless steel construction provides strength and streamlines cleaning
• Welded frame supports high-volume use
• Tubular leg base with adjustable bullet front feet and flanged rear feet
• 125,000 BTU

Dimensions & Utilities

• 48 in. W x 39⁷/₈ in. D x 40⁵/₈ in. H (74³/₈-in. H with the cover open)
• Heated by LP gas
• ³⁄₄-in. IPS gas connection
• 2 A
• 120 V/60 Hz/1 ph, 6-ft. cord with 3-prong plug

*Free shipping on Crown Steam GS-40 within the 48 contiguous states.

From The Manufacturer

Tilting Skillet, LP gas, 40 gallon capacity, manual tilt, electronic ignition, high temp safety cut-off, removable pour strainer, etched interior markings, stainless steel construction, tubular legs, adjustable bullet feet front, adjustable flanged feet rear, 125,000 BTU, CSA, NSF, CE

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor
