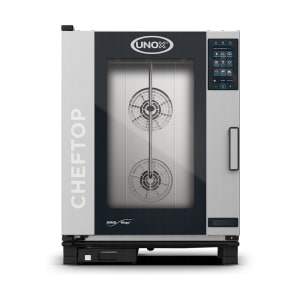

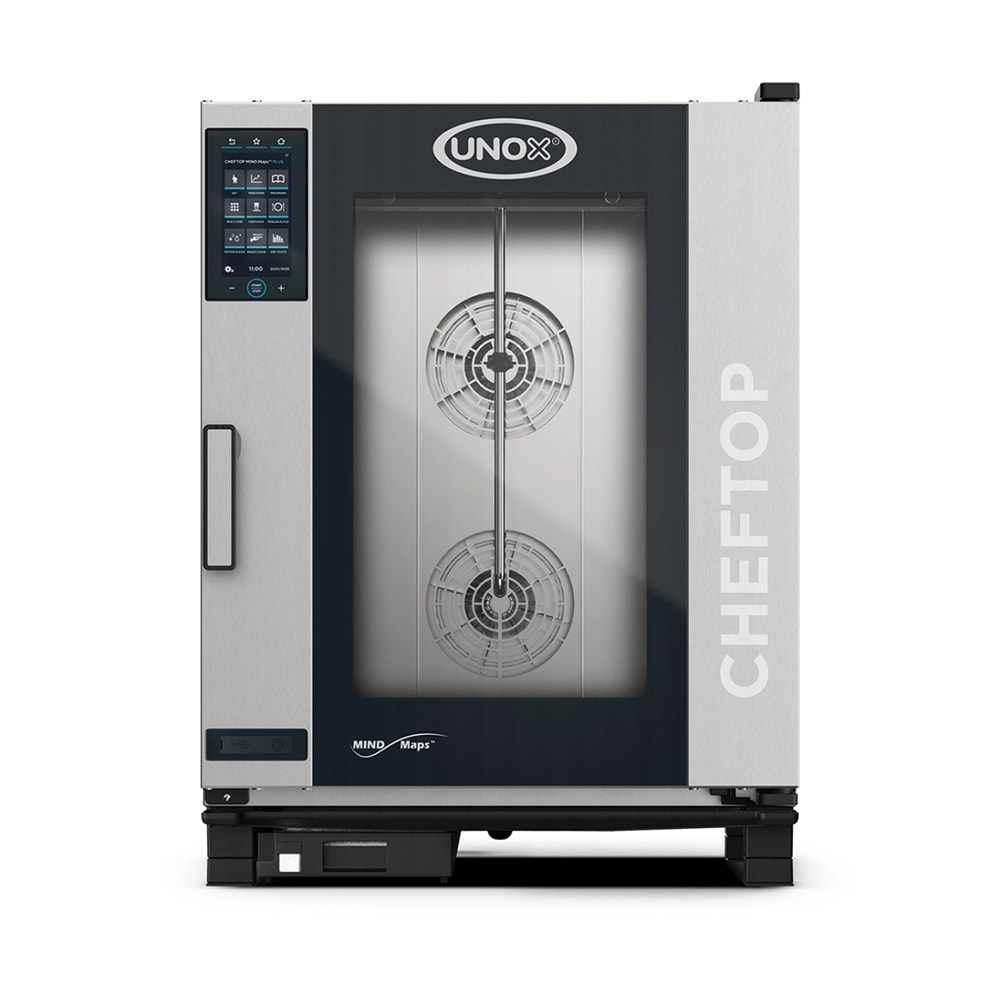

Unox XAVC-1011-EPLM CHEFTOP MIND.Maps™ Half Size Combi Oven - Boiler Based, 240v/3ph

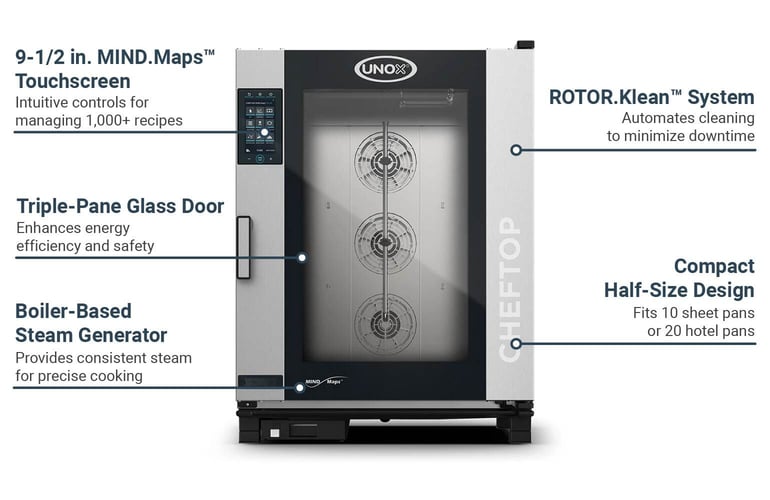

The Unox XAVC-1011-EPLM CHEFTOP MIND.Maps™ Plus combi oven is a compact, half-size countertop unit designed for high-performance cooking in professional kitchens. Its triple-pane glass door improves energy efficiency and operator safety, while providing a clear view of the cooking chamber. The durable AISI 316L stainless steel interior and exterior ensure long-term hygiene and resilience, even in demanding environments. With overall dimensions of 33⁷/₈ in. W x 38¹/₁₆ in. D x 45³/₄ in. H, this unit fits easily in kitchens with limited space, while its 2¹¹/₁₆-in. shelf spacing accommodates up to (10) 18-in. x 26-in. sheet pans or (20) hotel pans for maximum versatility.

Equipped with advanced cooking technology, the Unox XAVC-1011-EPLM CHEFTOP MIND.Maps™ Plus combi oven offers precise control and unmatched flexibility. Its boiler-based steam generator with an integrated water reservoir ensures consistent steam production for steaming, sous vide, and baking applications, while features like CLIMA.Control and STEAM.Maxi™ permit operators to adjust humidity and steam levels for consistent results. The intuitive 9¹/₂-in. MIND.Maps™ touchscreen enables operators to program up to 1,000 recipes, manage up to 10 cooking tasks simultaneously with MULTI.TIME technology, and draw custom cooking processes directly on the screen. Designed to streamline workflow and reduce downtime, this unit includes ROTOR.Klean™ automated washing and a DET&Rinse™ detergent container for easy maintenance between shifts.

Product Details

• CHEFTOP MIND.Maps™ Plus series
• Half-size configuration
• Compact countertop design
• Boiler-based steam generator with water reservoir
• Holds (10) 18-in. x 26-in. sheet pans or (20) hotel pans
• AISI 316L stainless steel chamber
• Rounded edges
• Triple-glass door, left-to-right opening
• LED chamber lighting
• Tray supports with anti-tip system
• Drip collection system
• 4-speed fan system
• Temperature range: 86-500 degrees F

User Interface

• Integrated Wi-Fi
• Wi-Fi and USB data: download/upload HACCP data and programs
• 9¹/₂-in. MIND.Maps™ touch control panel
• Up to 9 manual cooking steps
• CHEFUNOX automated recipes
• MULTI.TIME cooking management
• MISE.EN.PLACE synchronization
• READY.COOK quick-start settings
• SMART.Preheating
• SENSE.Klean cleaning suggestions
• Humidity adjustable with CLIMA.Control
• ADAPTIVE.Cooking™ technology
• CLIMALUX™ humidity control
• Saturated steam with STEAM.Maxi™
• Dry chamber with DRY.Maxi™
• Auto-reversing fans with AIR.Maxi™
• Delta T cooking supported with core probe
• SOUS-VIDE compatible

Cleaning Features

• ROTOR.Klean™ automatic washing system
• Special washing behind fan guard
• DET&Rinse™ detergent container

Dimensions & Utilities

• Overall dimensions: 33⁷/₈ in. W x 38¹/₁₆ in. D x 45³/₄ in. H
• ¾-in. MPT water line connection
• 240 V/60 Hz/3 ph, (plug not included)
• 70 A, 28.5 kW
• 80 A required breaker size
• Power cable requirements: 4 x AWG 4

Product Features

*Unox XAVC-1011-EPLM is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.

From The Manufacturer

CHEFTOP MIND.Maps™ Plus Combi Oven/Steam Oven is an electric countertop oven that combines heat, hot air flow and steam. (10) 1/1 GN or (10) 12"x20" hotel size pan capacity, MIND.Maps™ technology, programmable menu, 2-11/16" shelf spacing, glass door, left-to-right door opening, stainless steel interior & exterior, WIFI/USB for data transfer to HACCP software, cMETus, NSF, ENERGY STAR®, The water line to connect from oven to ¾” mpt water connection with in three feet of water placement is included.

*Image may not depict product color, inclusions or accessories.

2-year Parts; 1-year Labor
