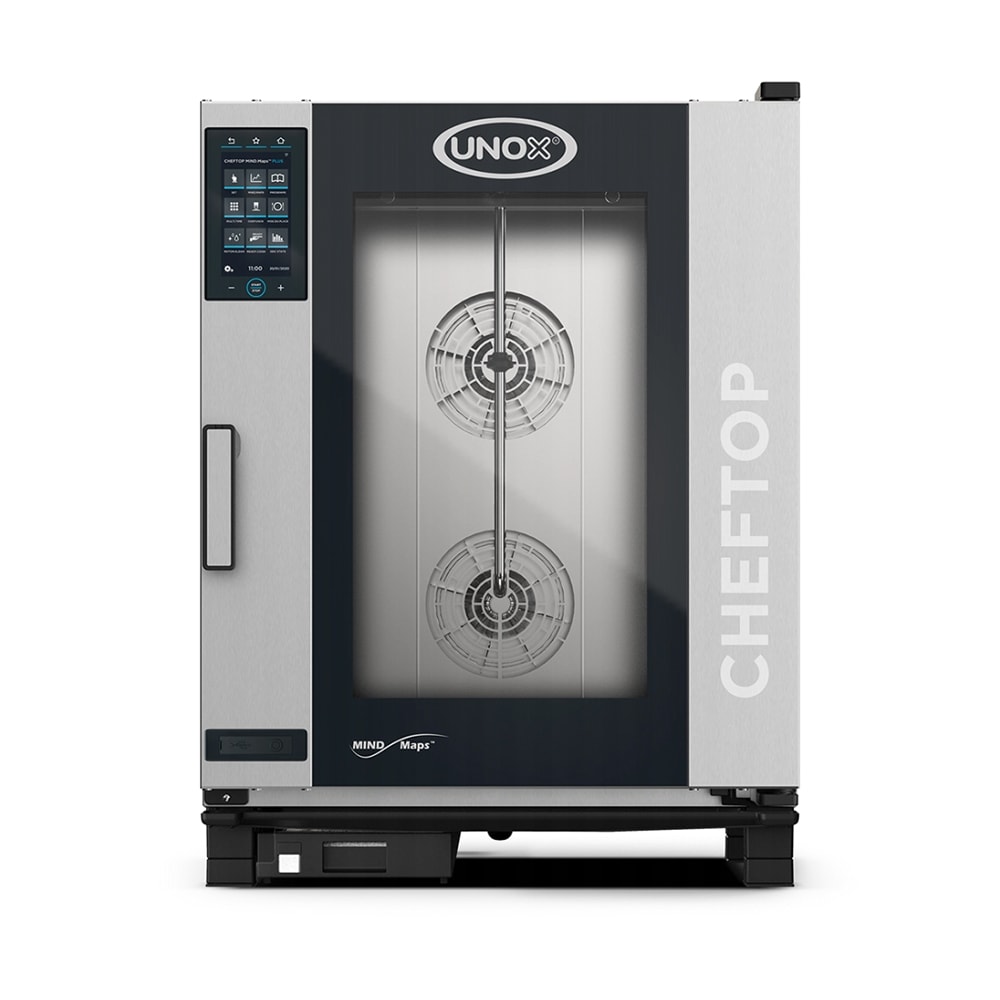

Unox XAVC-1011-EPLM CHEFTOP MIND.Maps™ Full Size Combi Oven - Boilerless, 208v/3ph
$17,651.25 /Each
Selected Voltage: 208V, 3 Phase
| 208V, 3 Phase |
| 240V, 3 Phase |
Selected Hinge: Right Hinge
Unox XAVC-1011-EPLM Description
The Unox XAVC-1011-EPLM CHEFTOP MIND.Maps™ Plus combi oven streamlines cleaning with advanced features like the ROTOR.Klean™ automated washing system and an integrated DET&Rinse™ detergent container. These technologies reduce staff responsibility and expedite maintenance between shifts, ensuring the oven is ready for consistent performance in high-demand kitchens. Built with a high-resistance AISI 316L stainless steel chamber, this half-size electric countertop oven provides long-term durability and hygiene, while its triple-glass door improves energy efficiency and safety. An included water line allows for a seamless connection to a ¾-in. MPT water source, simplifying installation.
With versatile cooking functions, the Unox XAVC-1011-EPLM CHEFTOP MIND.Maps™ Plus combi oven delivers exceptional performance for steaming, grilling, baking, roasting, sous vide, and more. The CLIMA.Control and STEAM.Maxi™ provide precise adjustments to humidity and steam levels. The 9 1⁄2-in. MIND.Maps™ touchscreen enhances control, enabling operators to draw cooking processes directly on the display, manage up to 10 cooking tasks with MULTI.TIME technology, and access over 1,000 programmable recipes. With 2 11⁄16-in. shelf spacing and a capacity for (10) 1/1 GN pans or (10) 12-in. x 20-in. hotel pans, this unit is a versatile addition to professional kitchens.
- CHEFTOP MIND.Maps™ Plus series
- Half-size design
- Countertop design
- Boilerless
- Holds (10) 1/1 GN or (10) 12-in. x 20-in. hotel pans
- AISI 316L stainless steel chamber
- Rounded edges
- Triple-glass door, left-to-right opening
- LED chamber lighting
- Tray supports with anti-tip system
- Drip collection system
- 4-speed fan system
- Temperature range: 86-500 degrees F
- Integrated Wi-Fi
- Wi-Fi and USB data: download/upload HACCP data and programs
- 9 1⁄2-in. MIND.Maps™ touch control panel
- Up to 9 manual cooking steps
- CHEFUNOX automated recipes
- MULTI.TIME cooking management
- MISE.EN.PLACE synchronization
- READY.COOK quick-start settings
- SMART.Preheating
- SENSE.Klean cleaning suggestions
- Humidity adjustable with CLIMA.Control
- ADAPTIVE.Cooking™ technology
- CLIMALUX™ humidity control
- Saturated steam with STEAM.Maxi™
- Dry chamber with DRY.Maxi™
- Auto-reversing fans with AIR.Maxi™
- Delta T cooking supported with core probe
- SOUS-VIDE compatible
- ROTOR.Klean™ automatic washing system
- Special washing behind fan guard
- DET&Rinse™ detergent container
- Overall dimensions: 29 1⁄2 in. W x 30 13⁄16 in. D x 39 3⁄4 in. H
- ¾-in. MPT water line connection
- 208 V/60 Hz/3 ph, (plug not included)
- 41.5 A, 14.5 kW
- 50 A required breaker size
- Power cable requirements: 4 x AWG 8
*Image may not depict product color, inclusions or accessories.
*Free shipping on Unox XAVC-1011-EPLM within the 48 contiguous states.
From The Manufacturer
CHEFTOP MIND.Maps™ Plus Combi Oven/Steam Oven is an electric countertop oven that combines heat, hot air flow and steam. (10) 1/1 GN or (10) 12"x20" hotel size pan capacity, MIND.Maps™ technology, programmable menu, 2-11/16" shelf spacing, glass door, left-to-right door opening, stainless steel interior & exterior, WIFI/USB for data transfer to HACCP software, cMETus, NSF, ENERGY STAR®, The water line to connect from oven to ¾” mpt water connection with in three feet of water placement is included.
Unox XAVC-1011-EPLM Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Unox |
| Controls | Touch Screen |
| Depth (in) | 30.81 |
| Heat | Electric |
| Height (in) | 39.75 |
| Hertz | 60 |
| Hinge Configuration | Right |
| kW | 14.5 |
| No. of Compartments | Single |
| Pan Type | Full Size Steam Pans |
| Pan Type | Half Size Sheet Pans |
| Pan Type | Half Size Steam Pans |
| Phase | 3 |
| Product | Combi Ovens |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | CHEFTOP MIND.Maps™ |
| Sheet Pan Capacity | 5 Half |
| Size | Full Size |
| Special Features | HACCP Record Keeping |
| Special Features | USB Compatible |
| Steam Generator | Boilerless |
| Steam Pan Capacity | 10 Full |
| Steam Source | Water Reservoir |
| Voltage | 208 |
| Warranty | 2-year Parts; 1-year Labor |
| Width (in) | 29.5 |
| Weight | 216.00 |
