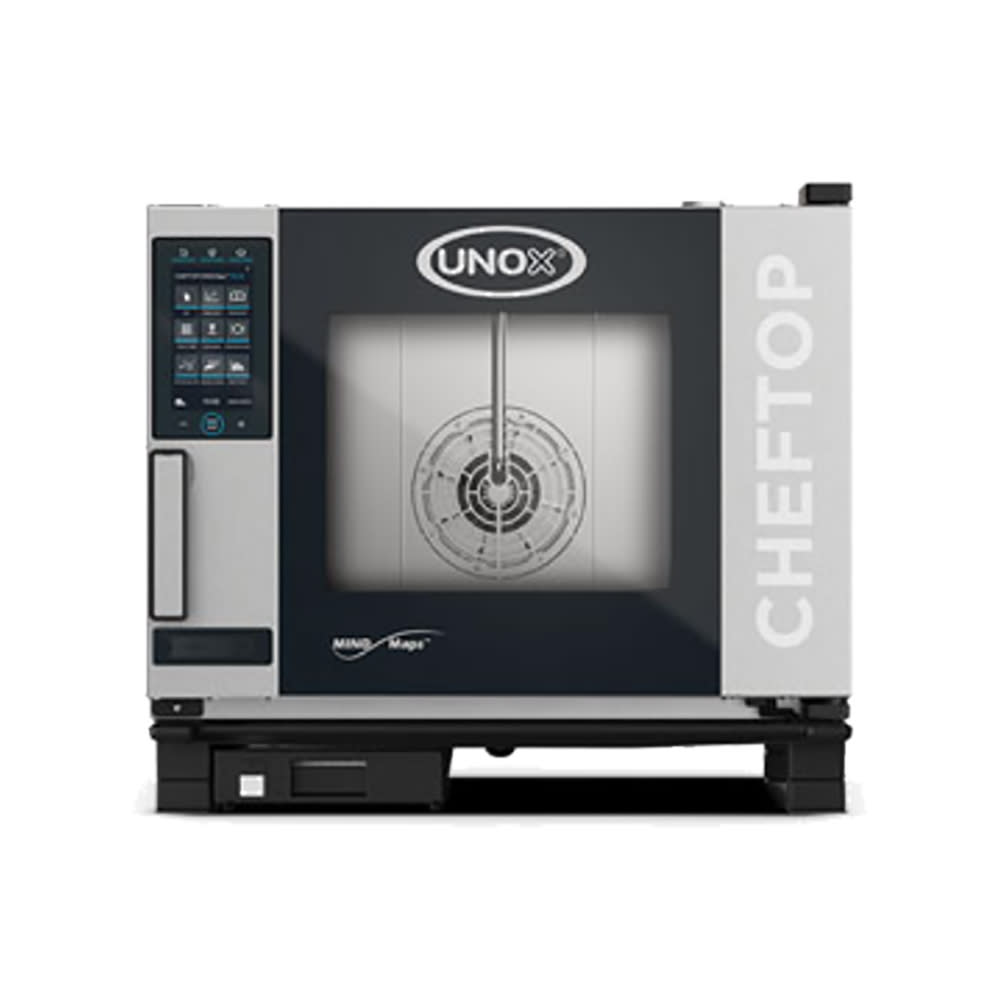

Unox XAVC-0511-EPLM CHEFTOP MIND.Maps™ Full Size Combi Oven - Boilerless, 208-240v/1ph
$10,068.96 /Each
Selected Voltage: 208-240V, 1 Phase
| 208-240V, 1 Phase |
| 208-240V, 3 Phase |
Selected Hinge: Right Hinge
Unox XAVC-0511-EPLM Description
Designed for versatile, high-efficiency cooking, the Unox XAVC-0511-EPLM CHEFTOP MIND.Maps™ Plus combi oven integrates advanced features to streamline kitchen operations. This electric countertop unit accommodates up to five 1/1 GN pans or five 12-inch by 20-inch hotel pans, making it an excellent option for small to mid-size operations. With a temperature range of 86 to 500 degrees Fahrenheit, it supports various cooking techniques, such as sous-vide, steaming, roasting, and baking. Its boilerless steam generator eases operation, while the MIND.Maps technology enables operators to draw, customize, and store cooking processes for up to 1,000 programmable recipes.
Constructed with a durable AISI 316L stainless steel chamber and exterior, this Unox XAVC-0511-EPLM steam oven is designed for long-term use and hygiene. Its left-to-right triple-glass door improves energy efficiency and safety, while the integrated ROTOR.Klean™ system simplifies cleaning with automatic washing cycles. This unit is equipped with advanced technologies, including MULTI.TIME, MISE.EN.PLACE, and ADAPTIVE.Cooking™, to synchronize cooking, ensure repeatable results, and manage up to 10 cooking processes at once. Compact in size, it measures 29 1⁄2 inches wide by 30 13⁄16 inches deep by 26 9⁄16 inches high, making it an ideal choice for professional kitchens with limited space.
- CHEFTOP MIND.Maps series
- Half-size configuration
- AISI 316L stainless steel cooking chamber
- Countertop design
- Boilerless steam generation
- Holds (5) 1/1 GN or (5) 12-in. x 20-in. hotel pans
- Triple-glass door, left-to-right opening
- LED chamber lighting embedded in door
- Tray supports with anti-tip system
- Drip collection system integrated into the door
- 4-speed fan system with auto-reversing fans
- Temperature holding range: 86-500 degrees F
- MIND.Maps touch control panel with drawing capability
- Wi-Fi and USB connectivity for HACCP data transfer
- MULTI.TIME technology to manage up to 10 cooking processes
- MISE.EN.PLACE synchronization for simultaneous readiness
- ADAPTIVE.Cooking for repeatable results
- READY.COOK quick-start settings
- SMART.Preheating and AUTO.Soft technology
- Humidity control via CLIMA.Control and CLIMALUX™
- STEAM.Maxi™, DRY.Maxi™, and PRESSURE.Steam™ features
- Delta T cooking supported with core probe
- SOUS-VIDE cooking compatibility
- ROTOR.Klean automatic washing system
- SENSE.Klean for cleaning recommendations
- Special washing behind fan guard
- Integrated DET&Rinse™ detergent container
- Overall dimensions: 29 1⁄2 in. W x 30 13⁄16 in. D x 26 9⁄16 in. H
- 208-240 V/60 Hz/1 ph
- 5.9/7.8 kW, 28.5/32.5-amp maximum draw
- 35/40 A breaker required
- Power cable requirements: 3 x AWG 8
- Plug not included
*Image may not depict product color, inclusions or accessories.
*Unox XAVC-0511-EPLM is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.
From The Manufacturer
CHEFTOP MIND.Maps™ Plus Combi Oven/Steam Oven is an electric countertop oven that combines heat, hot air flow and steam. (5) 1/1 GN or (5) 12"x20" hotel size pan capacity, MIND.Maps™ technology, programmable menu, 2-11/16" shelf spacing, glass door, left-to-right door opening, stainless steel interior & exterior, WIFI/USB for data transfer to HACCP software, 7.8kW, 19.5 amps, cMETus, NSF, ENERGY STAR®, The water line to connect from oven to ¾” npt water connection with in three feet of water placement is included.
Unox XAVC-0511-EPLM Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Unox |
| Controls | Touch Screen |
| Depth (in) | 30.81 |
| Heat | Electric |
| Height (in) | 26.56 |
| Hertz | 60 |
| Hinge Configuration | Right |
| kW | 7.8 |
| No. of Compartments | Single |
| Pan Type | Full Size Steam Pans |
| Pan Type | Half Size Sheet Pans |
| Pan Type | Half Size Steam Pans |
| Phase | 1 |
| Product | Combi Ovens |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | CHEFTOP MIND.Maps™ |
| Sheet Pan Capacity | 5 Half |
| Size | Full Size |
| Special Features | HACCP Record Keeping |
| Special Features | USB Compatible |
| Steam Generator | Boilerless |
| Steam Pan Capacity | 5 Full |
| Steam Source | Water Reservoir |
| Voltage | 208/240 |
| Warranty | 2-year Parts; 1-year Labor |
| Width (in) | 29.5 |
| Weight | 154.00 |
