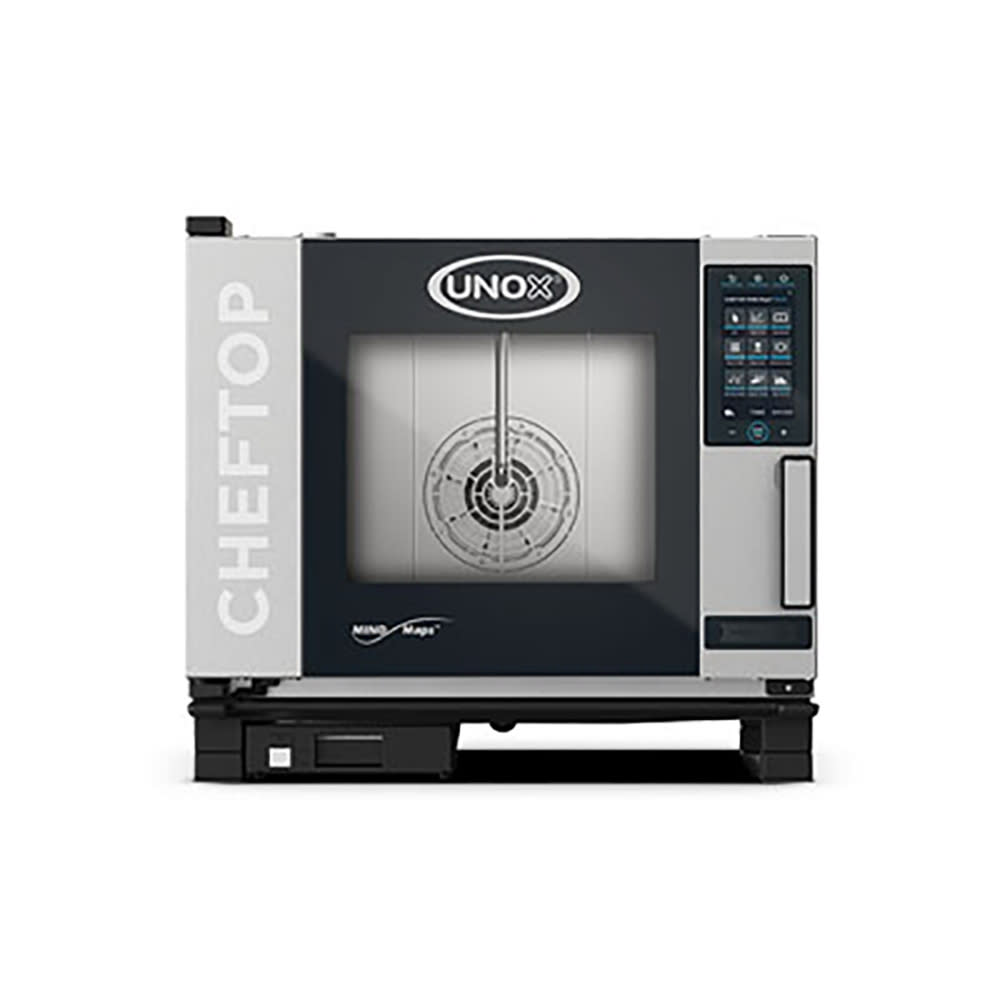

Unox XAVC-0511-EPRM CHEFTOP MIND.Maps™ Half Size Combi Oven - Boiler Based, 208-240v/1ph

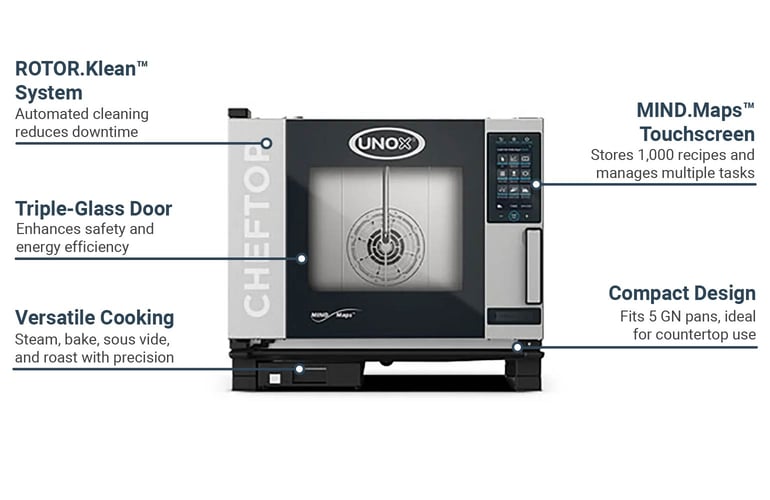

Equipped with a boiler-based steam generator, the Unox XAVC-0511-EPRM CHEFTOP MIND.Maps™ Plus combi oven delivers consistent steam output for versatile cooking techniques such as steaming, sous vide, roasting, and baking. The 9¹/₂-inch MIND.Maps touchscreen enables intuitive control, allowing operators to create and save up to 1,000 cooking programs and manage multiple tasks simultaneously. This electric countertop unit supports five 1/1 GN pans or five 12-inch by 20-inch hotel pans, providing flexibility for a variety of dishes. Its high-performance heating elements and AIR.Maxi™ auto-reversing fans ensure even heat distribution, while its SMART.Preheating and ADAPTIVE.Cooking™ technology adjust settings for precise results every time.

Built with a durable AISI 316L stainless steel cooking chamber, the Unox XAVC-0511-EPRM CHEFTOP MIND.Maps Plus oven is designed for longevity and simplified cleaning. Its triple-glass door enhances energy efficiency and safety, while LED lighting ensures visibility during operation. Designed with a ROTOR.Klean™ automatic washing system, DET&Rinse™ detergent container, and special fan-guard washing, this unit can reduce downtime between shifts. Anti-tip tray supports, an integrated drip collection system, and Wi-Fi/USB connectivity for HACCP data transfer make this oven a user-friendly choice for busy commercial kitchens.

Product Details

• CHEFTOP MIND.Mapsnseries
• AISI 316L stainless steel chamber
• Half-size configuration
• Countertop design
• Boiler-based steam generator with water reservoir
• Holds (5) 1/1 GN pans or (5) 12-in. x 20-in. hotel pans
• Rounded edges
• Triple-glass door, right-to-left opening
• LED chamber lighting
• Tray supports with anti-tip system
• Drip collection system
• 4-speed fan system
• Temperature holding range: 86-500 degrees F

User Interface

• Integrated Wi-Fi
• Wi-Fi and USB data: download/upload HACCP data and programs
• 9¹/₂-in. MIND.Maps touch control panel
• Up to 9 manual cooking steps
• CHEFUNOX automated recipes
• MULTI.TIME cooking management
• MISE.EN.PLACE synchronization
• READY.COOK quick-start settings
• SMART.Preheating
• SENSE.Klean cleaning suggestions
• Humidity adjustable with CLIMA.Control
• ADAPTIVE.Cooking technology
• CLIMALUX™ humidity control
• Saturated steam with STEAM.Maxi™
• Dry chamber with DRY.Maxi™
• Auto-reversing fans with AIR.Maxi
• Delta T cooking supported with core probe
• SOUS-VIDE compatible

Cleaning Features

• ROTOR.Klean automatic washing system
• Special washing behind fan guard
• DET&Rinse detergent container

Dimensions & Utilities

• Overall dimensions: 29¹/₂ in. W x 30¹³/₁₆ in. D x 26⁹/₁₆ in. H
• ³/₄-in. MPT water line connection
• 208-240 V/60 Hz/1 ph, (plug not included)
• 19.5-32.5 A, 5.9-7.8 kW
• 35/40 A required breaker size
• Power cable requirements: 3 x AWG 8

Product Features

*Unox XAVC-0511-EPRM is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.

From The Manufacturer

CHEFTOP MIND.Maps™ Plus Combi Oven/Steam Oven is an electric countertop oven that combines heat, hot air flow and steam. (5) 1/1 GN or (5) 12"x20" hotel size pan capacity, MIND.Maps™ technology, programmable menu, 2-11/16" shelf spacing, glass door, right-to-left door opening, stainless steel interior & exterior, WIFI/USB for data transfer to HACCP software, 7.8kW, 19.5 amps, cMETus, NSF, ENERGY STAR®, The water line to connect from oven to ¾” mpt water connection with in three feet of water placement is included.

*Image may not depict product color, inclusions or accessories.

2-year Parts; 1-year Labor
