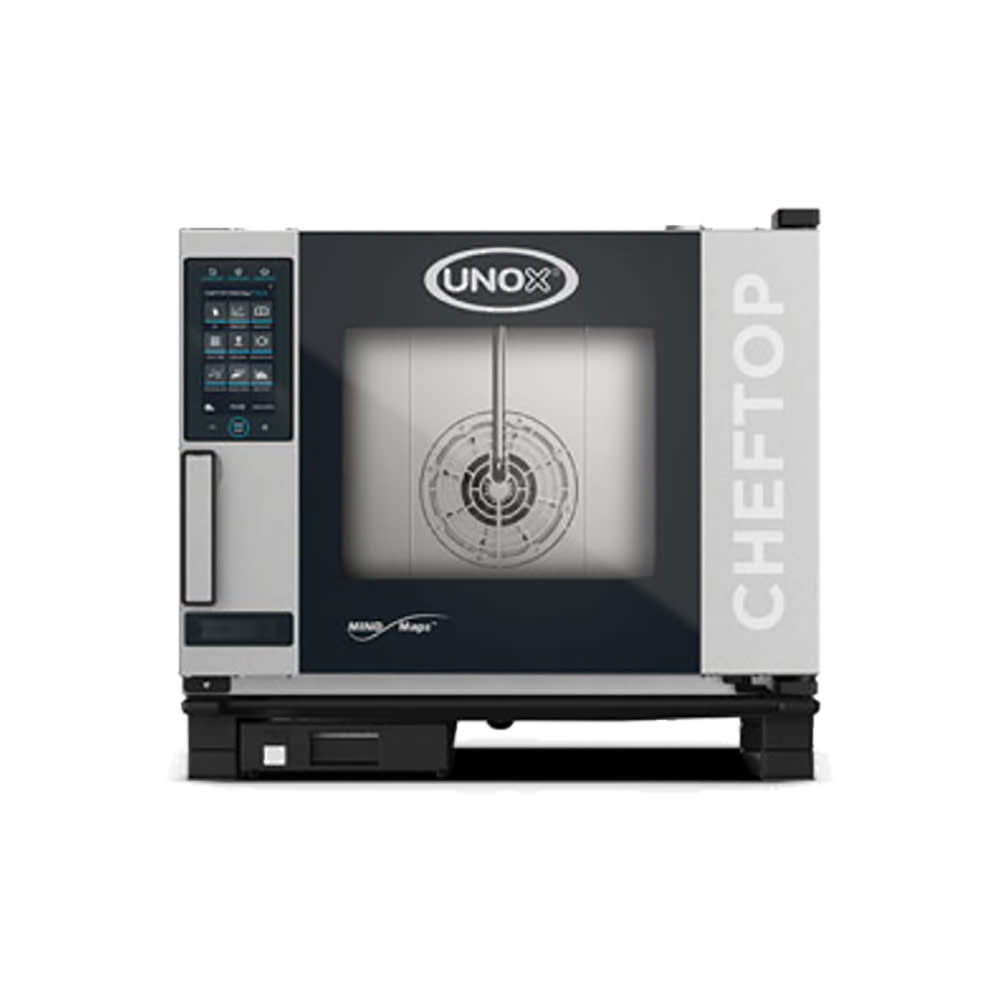

Unox XAVC-0511-EPLM CHEFTOP MIND.Maps™ Half Size Combi Oven - Boiler Based, 208-240v/3ph

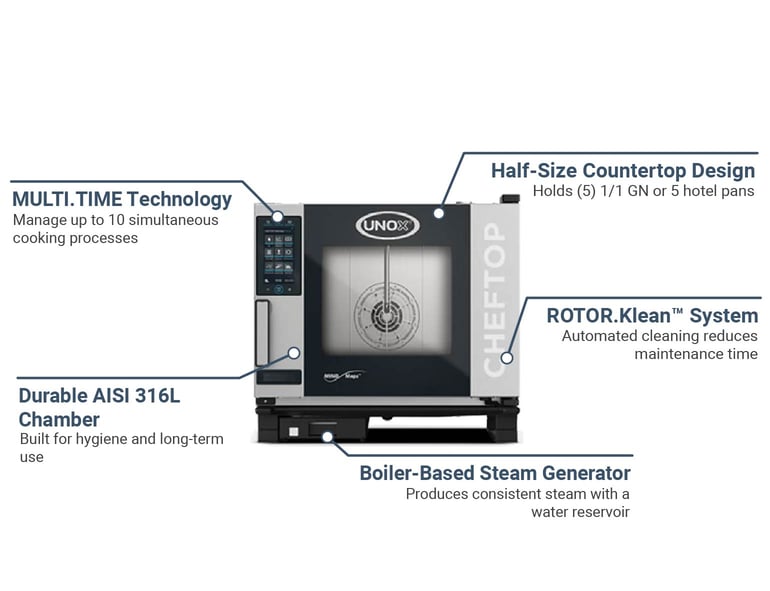

The Unox XAVC-0511-EPLM CHEFTOP MIND.Maps™ Plus combi oven combines heat, hot air flow, and steam to deliver versatile cooking capabilities for professional kitchens. Equipped with MIND.Maps technology, operators can draw, customize, and store up to 1,000 programmable recipes, ensuring consistent and repeatable results. This electric countertop unit accommodates up to five 1/1 GN pans or five 12-inch by 20-inch hotel pans, making it an ideal choice for small to mid-size operations. With a temperature range of 86 to 500 degrees Fahrenheit, it supports advanced cooking techniques such as sous-vide, steaming, roasting, and baking.

Constructed with a AISI 316L stainless steel chamber and exterior, the Unox XAVC-0511-EPLM half-sized oven is built for long-term hygiene and durability. Its boiler-based steam generator produces consistent steam with an integrated water reservoir, while the triple-glass door with a left-to-right opening enhances energy efficiency and operator safety. Compact and efficient, this unit measures 29¹/₂ inches wide by 30¹³/₁₆ inches deep by 26⁹/₁₆ inches high, fitting seamlessly into space-conscious kitchens. Advanced features, such as MULTI.TIME, MISE.EN.PLACE, and ADAPTIVE.Cooking™, streamline workflows by synchronizing processes, managing up to 10 simultaneous cooking operations, and automatically adjusting cooking parameters.

Product Details

• Part of the CHEFTOP MIND.Maps series
• Half-size model
• Countertop unit
• Boiler-based steam generator with reservoir
• Holds (5) 1/1 GN pans or (5) 12-in. x 20-in. hotel pans
• Stainless steel interior and exterior
• Left-to-right triple-glass door
• LED lighting inside the chamber
• Anti-tip tray supports
• Drip collection system in the door
• 4-speed fan with auto-reversing
• Temperature holding range: 86-500 degrees F

User Interface

• MIND.Maps touchscreen control
• Wi-Fi and USB connectivity
• MULTI.TIME to manage multiple cooking processes
• MISE.EN.PLACE for synchronized cooking
• ADAPTIVE.Cooking for precision adjustments
• READY.COOK presets
• SMART.Preheating and AUTO.Soft features
• CLIMA.Control and CLIMALUX™ for humidity management
• STEAM.Maxi™, DRY.Maxi™, and PRESSURE.Steam™ systems
• Delta T and SOUS-VIDE compatibility

Cleaning Features

• ROTOR.Klean™ washing system
• SENSE.Klean feature
• Fan guard washing system
• DET&Rinse™ detergent integration

Dimensions & Utilities

• Overall dimensions: 29¹/₂ in. W x 30¹³/₁₆ in. D x 26⁹/₁₆ in. H
• 208-240 V/60 Hz/3 ph
• 5.9/7.8 kW, 17/19.5-amp maximum draw
• 25 A breaker required
• Power cable requirements: 4 x AWG 10

Product Features

*Unox XAVC-0511-EPLM is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.

From The Manufacturer

CHEFTOP MIND.Maps™ Plus Combi Oven/Steam Oven is an electric countertop oven that combines heat, hot air flow and steam. (5) 1/1 GN or (5) 12"x20" hotel size pan capacity, MIND.Maps™ technology, programmable menu, 2-11/16" shelf spacing, glass door, left-to-right door opening, stainless steel interior & exterior, WIFI/USB for data transfer to HACCP software, 7.8kW, 19.5 amps, cMETus, NSF, ENERGY STAR®, The water line to connect from oven to ¾” npt water connection with in three feet of water placement is included.

*Image may not depict product color, inclusions or accessories.

2-year Parts; 1-year Labor
