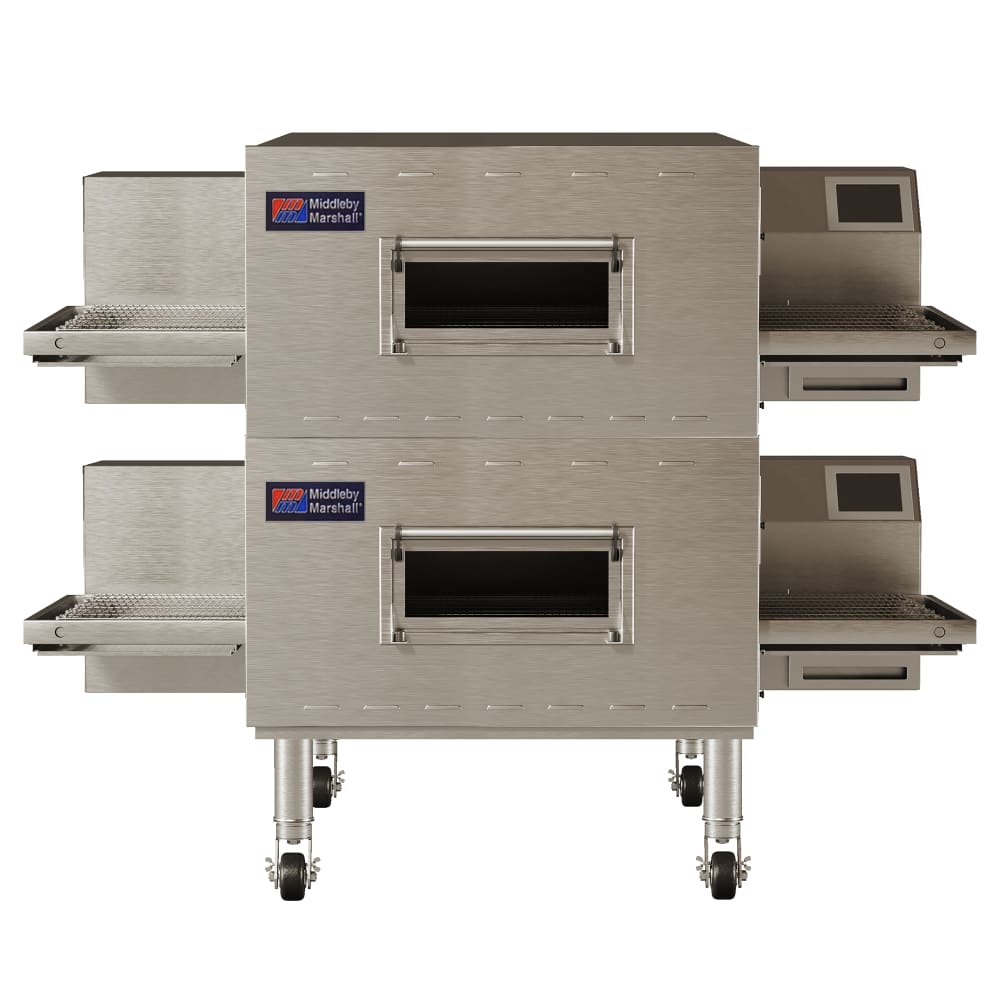

Middleby Marshall PS640E-2 77" Electric Double Impingement Conveyor Oven - 240v/3ph

KaTom #: 961-PS640E22403 • MPN: PS640E-2 240/3
  • 961-PS640E22403 Primary Thumbnail Image

Typically ships in 4 - 6 weeks

Free Shipping Item

Retail Price: $75,713.00

$51,325.44 /Each

Selected Voltage: 240V, 3 Phase

David Young User Image
Ask a Foodservice Equipment Specialist






Middleby Marshall PS640E-2 Description

The Middleby Marshall PS640E-2 double-deck conveyor oven measures 76 1⁄2 inches wide by 60 inches deep—the same width and depth as a single-deck model—to save space in compact kitchens. Made of durable, rust- and corrosion-resistant stainless steel, this unit withstands rigorous back-of-house use. During operation, its external surface maintains temperatures at or below 120 degrees Fahrenheit for user safety. To establish a comfortable working height and provide smooth mobility, this 61 3⁄4-inch-tall unit is positioned on 11 1⁄4-inch-tall legs with casters. When thorough cleaning is required, the conveyor belt assemblies, air fingers, end panels, and crumb pans can be removed.

Both the Middleby Marshall PS640E-2 conveyor oven's decks feature a 76 1⁄2-inch-wide by 33 1⁄2-inch-deep conveyor belt while boasting 40 1⁄2-inch-wide cooking chambers. This unit utilizes impingement technology, directing pressurized jets of hot air to penetrate cold halos around food, while operator-controlled variable airflow technology provides quick, thorough baking to achieve optimal results as menus change. Staff can adjust the deck temperatures from 300 to 600 degrees Fahrenheit with the corresponding temperature controls, and the cook time can be modified from 1 1⁄4 to 33 minutes. To reduce energy use, its energy eye feature detects when the oven is empty then lowers the blower fan speed. This unit also includes an Energy Management System and a touchscreen control with an energy-saving mode.

  • Part of the WOW!™ Impingement PLUS! series
  • Baking area: 18 sq. ft.
  • Double-deck unit with low profile
  • (2) 40 1⁄2-in.-wide cooking chambers
  • Variable airflow technology
  • Dual air return
  • Cook time can be modified from 1 1⁄4-33 minutes
  • Operating temperature: 300-600 degrees F
  • Energy Management System
  • Automatic energy eye detects when items are placed onto conveyor belts
  • Touchscreen control featuring energy-saving mode
  • Rust-, corrosion-, and wear-resistant stainless steel front, sides, top, and interior
  • Cool-skin exterior maintains an external surface temperature of 120 degrees F or cooler
  • Removable crumb pans, end panels, air fingers, and folding conveyor belts
  • 11 1⁄4-in.-tall legs with casters
  • Requires installation with hood (sold separately)

  • Conveyor belts: (2) 76 1⁄2 in. W x 33 1⁄2 in. D
  • Overall: 76 1⁄2 in. W x 60 in. D x 61 3⁄4 in. H
  • 65-75 A, 27 kW
  • 240 V/50/60 Hz/3 ph

*Image may not depict product color, inclusions or accessories.

*Free shipping on Middleby Marshall PS640E-2 within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

WOW! Impingement PLUS Conveyor Oven, electric, double deck, 40-1/2" long cooking chamber & 32" width x 76-1/2" length belt (per deck), touch screen control, includes: top, legs, casters & base, stainless steel front, sides, top & interior, cETLus Listed, ETL-Sanitation, CE

Warranty Icon
1-year Parts & Labor

Middleby Marshall PS640E-2 Specifications

Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
