Middleby Marshall PS640E-2 77" Electric Double Impingement Conveyor Oven - 208v/3ph
Typically ships in 4 - 6 weeks
Retail Price: $86,382.00
$64,786.00 /Each
Selected Voltage: 208V, 3 Phase
| 208V, 3 Phase |
| 240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Middleby Marshall PS640E-2 Description

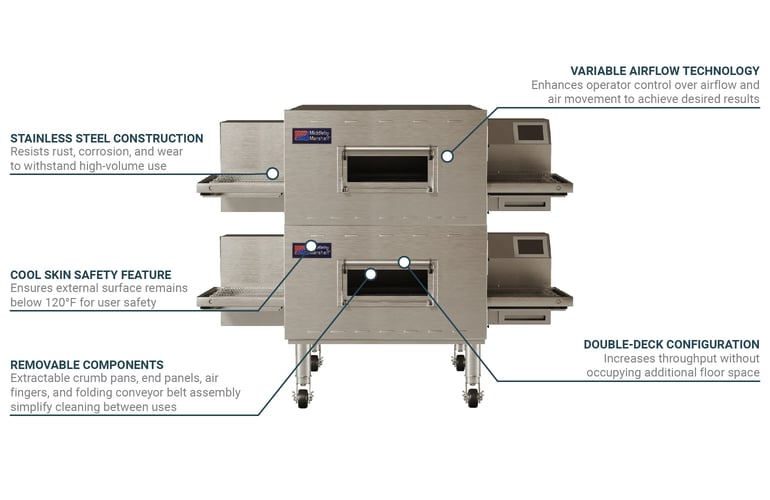

To double throughput, the Middleby Marshall PS640E-2 impingement conveyor oven is a two-level unit with two 761⁄2-inch-wide by 331⁄2-inch-deep conveyor belts featuring 401⁄2-inch-wide cooking chambers. Each oven has a corresponding control that lets operators adjust temperatures from 300 to 600 degrees Fahrenheit and cook time from 11⁄4 to 33 minutes. Both ovens use variable airflow technology so staff can adjust airflow levels and movement to achieve optimal results. So staff can safely work near the oven, its external surface maintains temperatures at or below 120 degrees Fahrenheit. To minimize energy consumption during use and idle periods, this unit is equipped with an energy-saving touchscreen control mode, an Energy Management System, and an automatic energy eye that detects when the unit is empty.
Despite its two-level configuration, the Middleby Marshall PS640E-2 conveyor oven occupies the same floor space as a single-deck unit, making it great for compact kitchens. This 761⁄2-inch-wide by 60-inch-deep by 613⁄4-inch-tall unit's front, sides, top, and interior are durable stainless steel that provides lasting rust, corrosion, and wear resistance. It's positioned on 111⁄4-inch-tall legs with casters to elevate the unit and enable it to be wheeled out of the way as needed. For thorough cleaning, the conveyor belt assemblies, crumb pans, end panels, and air fingers can be removed.
Product Details
- Part of the WOW!™ Impingement PLUS! series
- Baking area: 18 sq. ft.
- Low-profile, double-deck unit
- (2) 401⁄2-in.-wide cooking chambers
- Dual air return
- Variable airflow technology
- Cook time can be set from 11⁄4-33 minutes
- Operating temperature: 300-600 degrees F
- Energy Management System
- Automatic energy eye detects when unit is empty to initiate energy-saving mode
- Touchscreen controls
- Rugged stainless steel front, sides, top, and interior
- Cool-skin exterior maintains an external surface temperature cooler than 120 degrees F
- Removable crumb pans, end panels, air fingers, and folding conveyor belts
- Fitted with 111⁄4-in.-tall legs with casters
- Requires installation with installation hood (sold separately)
Dimensions & Utilities
- Conveyor belts: (2) 761⁄2 in. W x 331⁄2 in. D
- Overall: 761⁄2 in. W x 60 in. D x 613⁄4 in. H
- 75-85 A, 27 kW
- 208 V/50/60 Hz/3 ph
Product Features
*Free shipping on Middleby Marshall PS640E-2 within the 48 contiguous states.
From The Manufacturer
WOW! Impingement PLUS Conveyor Oven, electric, double deck, 40-1/2" long cooking chamber & 32" width x 76-1/2" length belt (per deck), touch screen control, includes: top, legs, casters & base, stainless steel front, sides, top & interior, cETLus Listed, ETL-Sanitation, CE
*Image may not depict product color, inclusions or accessories.
Middleby Marshall PS640E-2 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Middleby Marshall |
| Belt Length (in) | 76.5 |
| Belt Width (in) | 32 |
| Controls | Touch Screen |
| Heat | Electric |
| Heating Style | Impingement |
| Hertz | 60 |
| Installation Type | Floor Model |
| kW | 54 |
| Maximum Pizza Diameter | 32" |
| NEMA | L6-20P |
| Overall Length (in) | 76.5 |
| Phase | 3 |
| Product | Conveyor Ovens |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | WOW! |
| Size | Double |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor |
| Weight | 2200.00 |
