Centaur CSD-1DF-BAL 27" One Section Reach-In Freezer, (1) Solid Door, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 842-CSD1DFBAL • MPN: CSD-1DF-BAL

Ships Free

IN STOCK: Ships in 1 Business Day

(0 reviews)Write a Review
Retail Price: $4,571.85
$1,599.00 / Each

Image may not depict product color, inclusions or accessories.

Centaur CSD-1DF-BAL Description

Centaur

The Centaur CSD-1DF-BAL reach-in freezer holds product on three PVC-coated wire shelves, which accommodate sheet pans front to back. The interior is made of corrosion-resistant aluminum with a heavy-duty stainless steel and aluminum exterior. A full-length handle on the swing door makes it easy to open, and it stays open past 90 degrees. At less than 90 degrees, the door closes by itself to keep cold air inside the cabinet.

Operating at temperatures from 0 to 4 degrees Fahrenheit, the Centaur CSD-1DF-BAL one-section freezer uses R404A refrigerant. It has a solid-state thermostat control, and this system is easy to program and performs self-diagnostics. The refrigeration system is designed to operate quietly, so it is ideal for areas close to customers. The condenser is bottom mounted and has an EZ slide-out design that enables it to be serviced easily.

Product Details

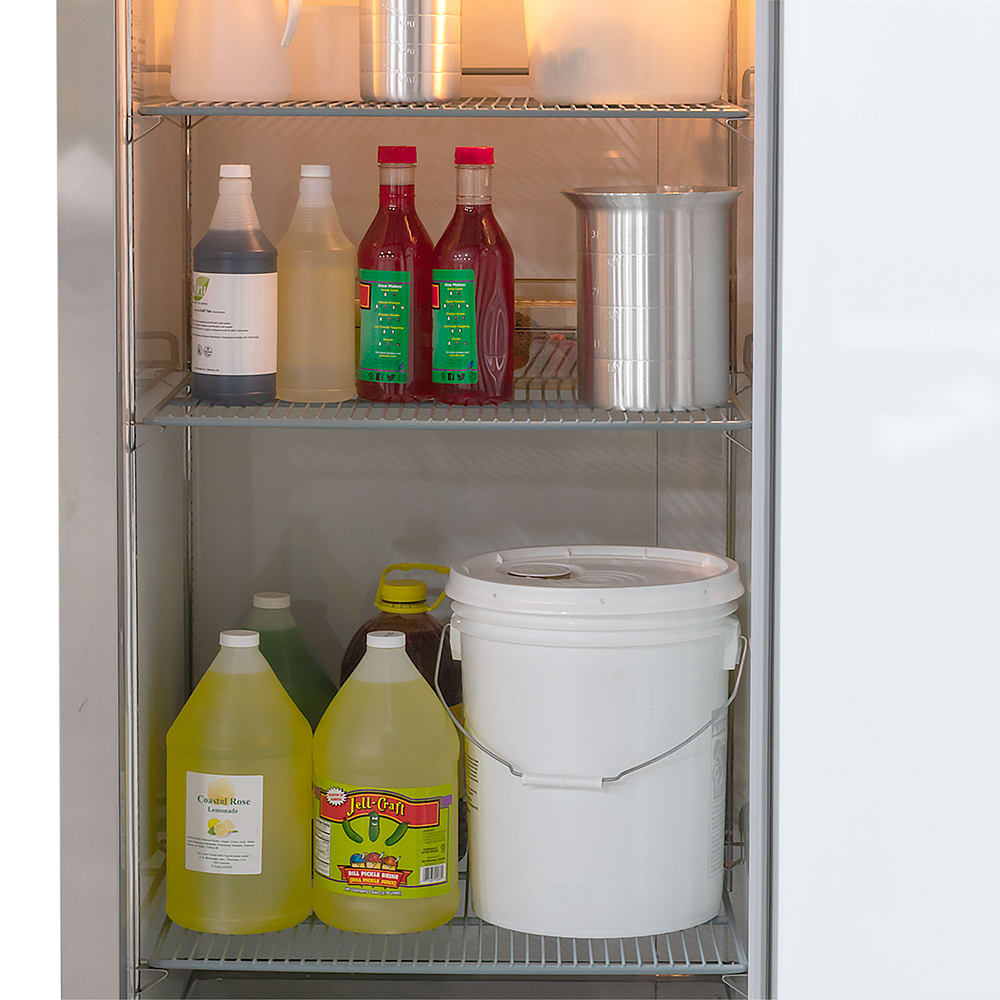

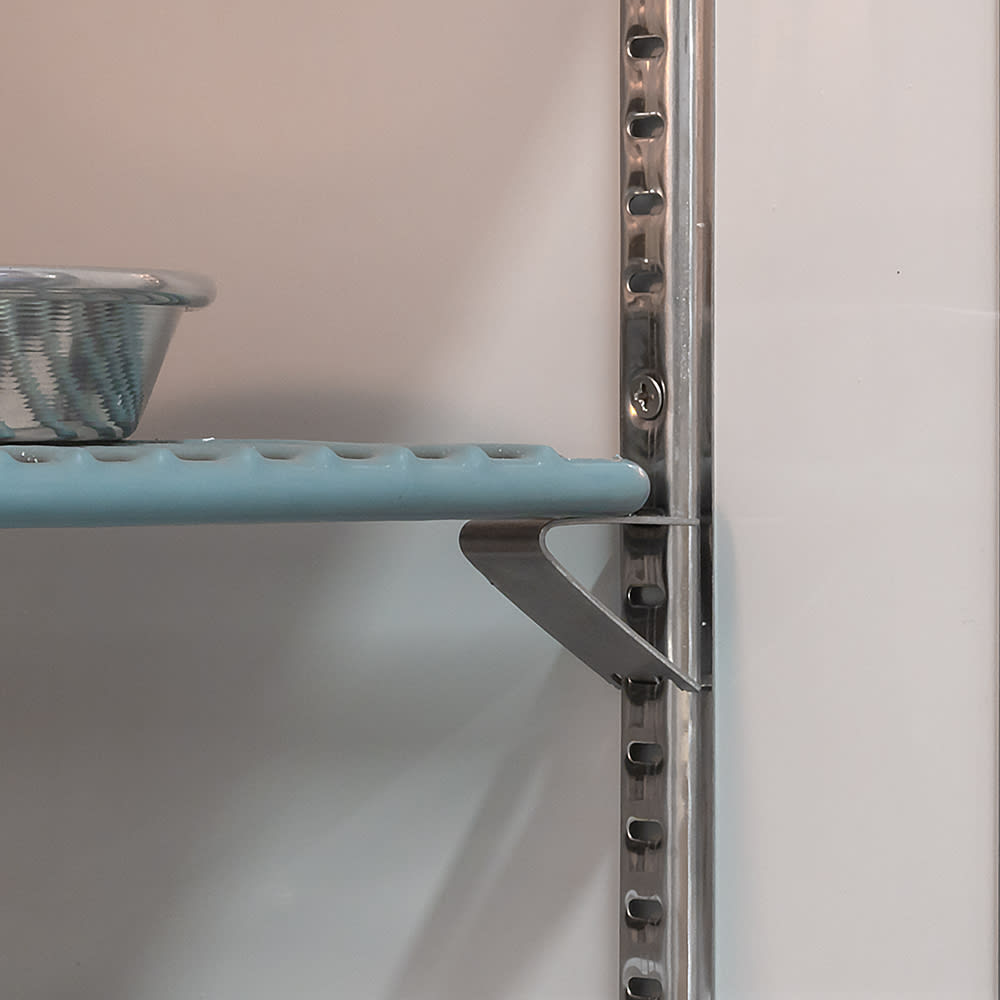

  • 3 PVC-coated wire shelves accommodate sheet pans front to back
  • Aluminum interior is corrosion resistant and durable
  • Stainless steel exterior top, front, and sides are rust and scratch resistant

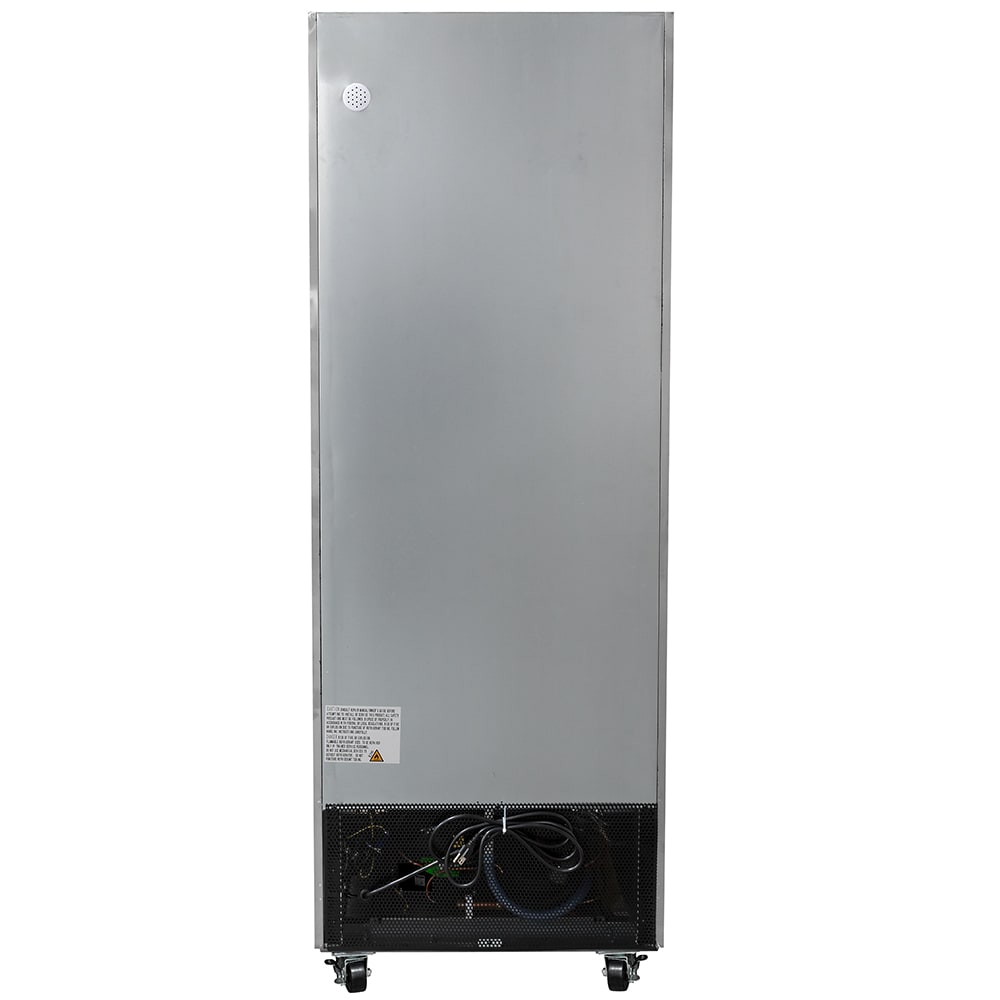

  • Aluminum exterior back

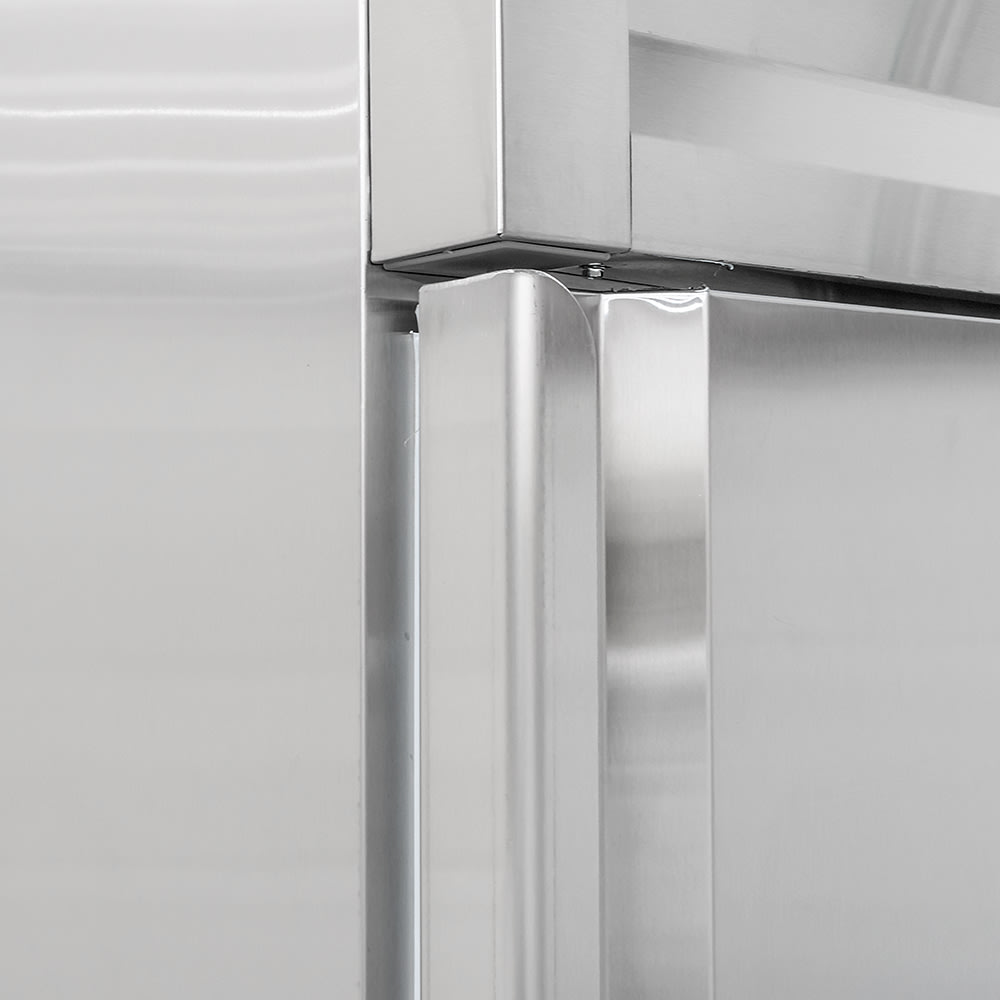

  • Field-reversible swing door has a full-length handle that is easy to grip

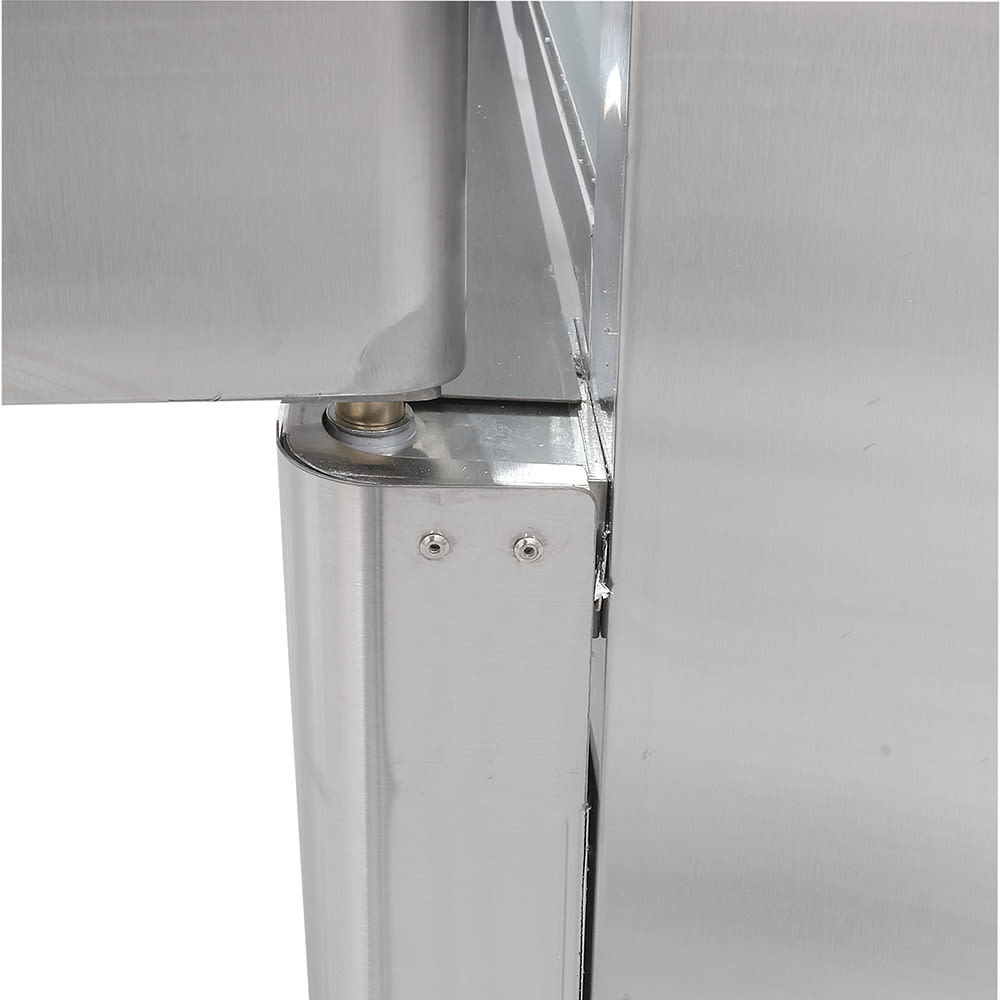

  • Door has a self-closing design and stays open past 90 degrees
  • Polyurethane insulation retains cold air and creates structure

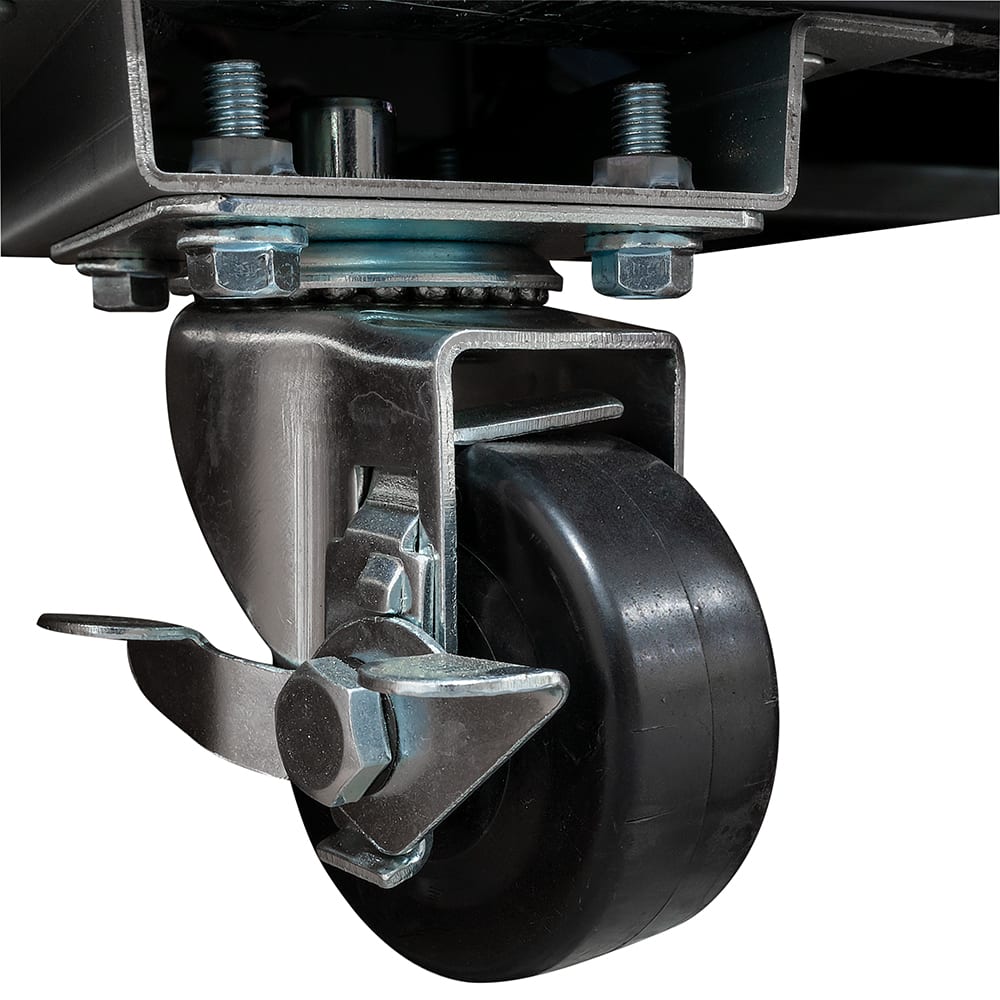

  • Mounted casters provide mobility
  • 9 A, 58 HP
  • 115 V/60 Hz/1 ph, 10-ft. cord with a NEMA 5-15P plug
  • Overall dimensions: 27 in. W x 32.7 in. D x 82.7 in. H
  • cULus and UL-EPH listed

Bottom-mounted Refrigeration System

  • Temperature range: 0-4 degrees F

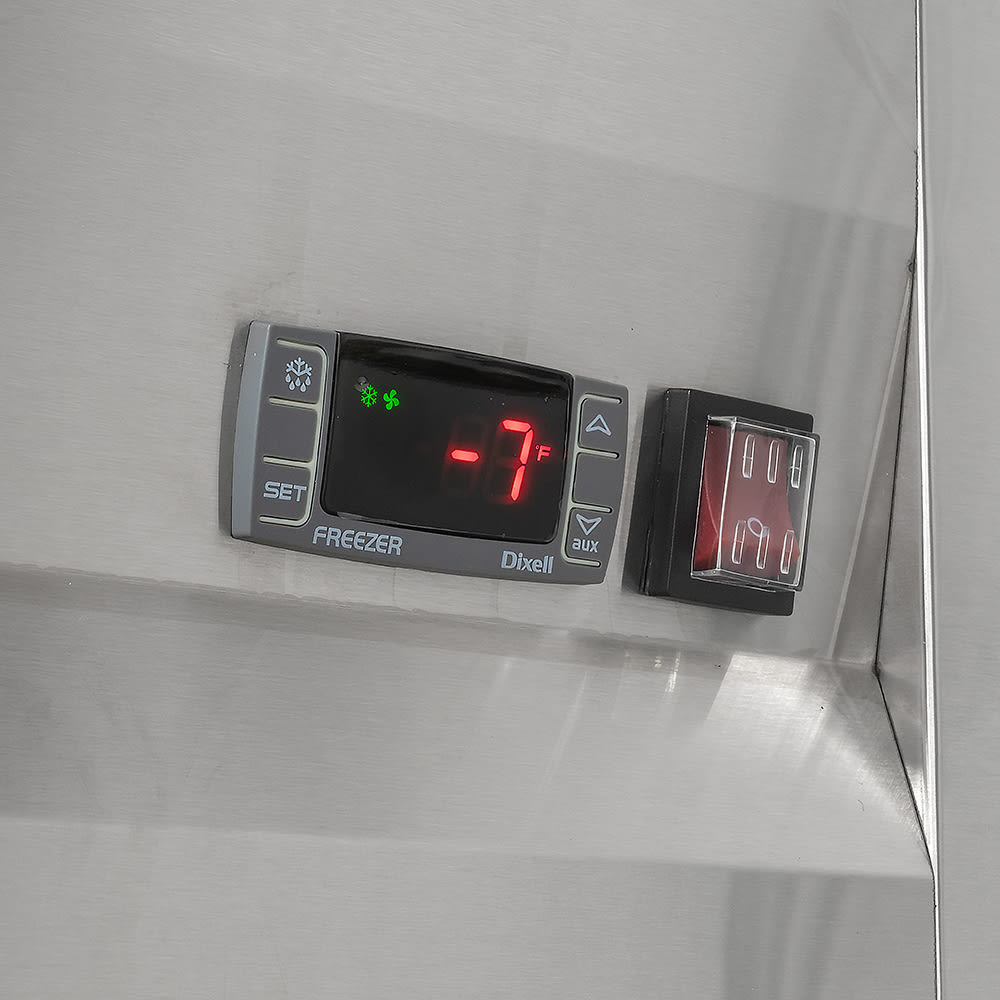

  • Dixell solid-state thermostat with simple programming and diagnostics
  • Thermostats has a digital temperature display
  • Operates quietly to reduce noise levels in busy areas
  • Capillary tube system uses R404A refrigerant
  • Condensate heater has a refrigerant line built into the condensate pan

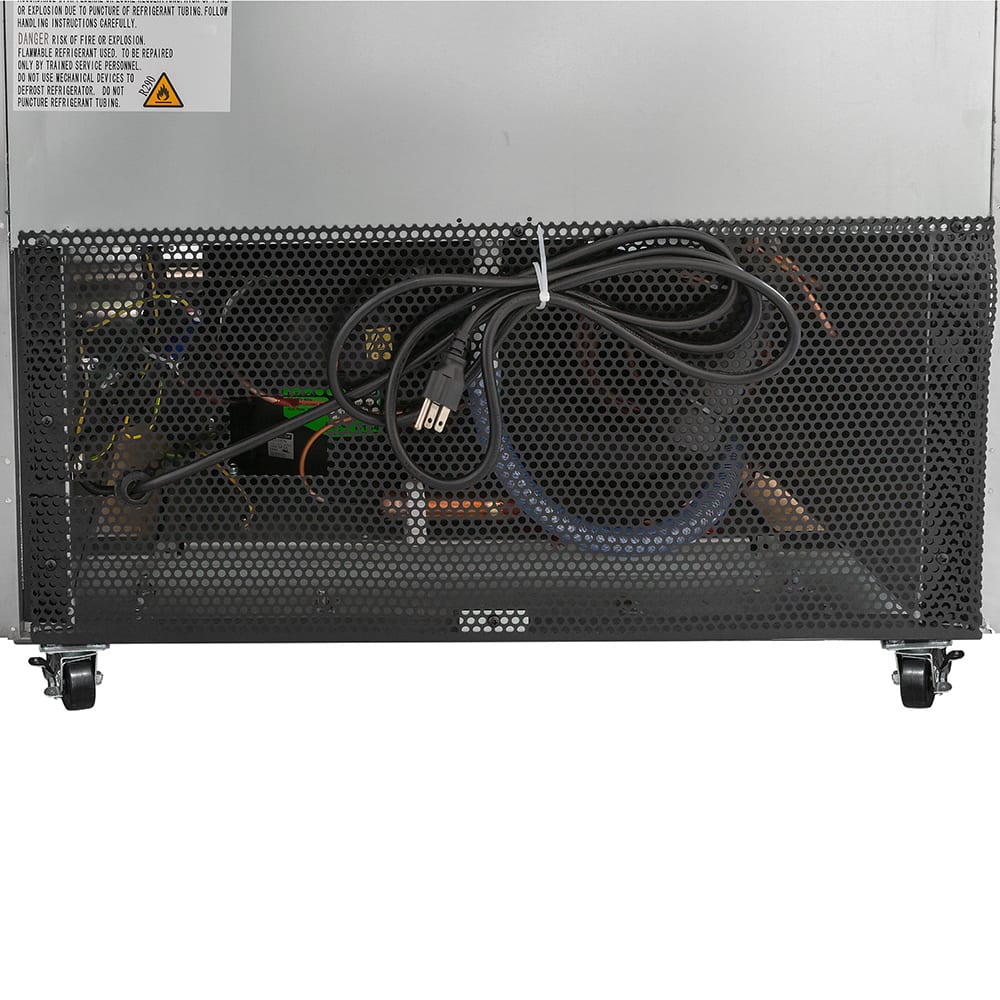

  • Bottom-mounted, EZ slide-out condenser is accessible for maintenance

The one-section freezers buyers' guide has in-depth information on reach-in units and their features.

Product Features

Centaur csd1dfbal Features

Centaur Plus™ Reach-In Freezer, one-section, 27"W x 33-7/10"D x 82-7/10"H, 23.0 cu. ft., self-contained bottom mount refrigeration, -7° to -1°F temperature range, solid state thermostat with digital display, (3) epoxy coated shelves, (1) field reversible self-closing door with full length handle, EZ slide out condenser, white aluminum interior & door liner, rear aluminum exterior, stainless steel front, sides & top, casters, R404A, 5/8 HP, cULus, UL EPH Classified, ANSI, NSF 7, UL-471, 15v/60/1ph, 9 amps, NEMA 5-15P with 10 ft cord

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Centaur CSD-1DF-BAL Specifications

PDF Spec Sheet
Manufacturer Centaur
Sections 1
Compressor Location Bottom Mount
Cubic Feet 23
Door Design Full
Door Type Solid
Exterior Width 26.7
Supports Casters
Thermometer Type Digital
Shelving Type Wire
Interior Material Aluminum
Warranty 2 year parts & labor; 5 year compressor
Capacity Range 10-25 cu ft
Hertz 60
Voltage 115
Phase 1
Weight 364.00
Centaur CSD-1DF-BAL Certifications
  • UL
