Turbo Air M3F24-1-N 29" One Section Reach In Freezer, (1) Solid Door, 115v

The Turbo Air M3F24-1-N single-section reach-in freezer has three 24-inch-by-23¹⁄₂-inch shelves. Product stored on the shelves is visible with LED interior lights. The interior of this M3 Turbo Air freezer is made of aluminum, so it is corrosion, scratch, and dent resistant, while the stainless steel floor is easy to clean and heavy duty. The vacuum pressure in the door when opening is eliminated by a pressure relief device.

Innovative technology with the digital control system makes it easy to use the Turbo Air M3F24-1-N one-section reach-in freezer. With the Turbo Freeze feature, the compressor can run continuously for 2 hours to rapidly bring down temperatures in the cabinet. A smart defrost system activates only when it is needed, so energy is not wasted and contents are kept safe. Warm air is not sucked into cabinet since the automatic fan motor delay shuts off the fan when the door opens.

Product Details

• Part of the M3 Turbo Air freezer series
• 3 polyethylene-coated shelves are adjustable to work well with different sizes of product
• LED lights enhance visibility in the cabinet
• Heavy-duty aluminum interior and a stainless steel floor are easy to clean
• CFC-free, foamed-in-place polyurethane insulation provides structural stability
• Pressure relief device eliminates vacuum pressure in the door
• Door lock prevents unauthorized cabinet access
• Door is reversible in the field to accommodate different layouts
• Strength is provided by the stainless and galvanized steel exterior
• Sharp corners and edges have been rounded to eliminate risk of injury
• Front set on the 4-in. swivel casters has locks for stability

Product Features

Self-contained Refrigeration System

• Temperature holding range: -10 to 0 degrees F
• R290 hydrocarbon refrigerant is used to keep the cabinet temperature cold
• Top-mounted system houses all the components, making installation and maintenance simple
• Self-cleaning device removes harmful dust buildup from the condenser
• Evaporator resists corrosion with a coating

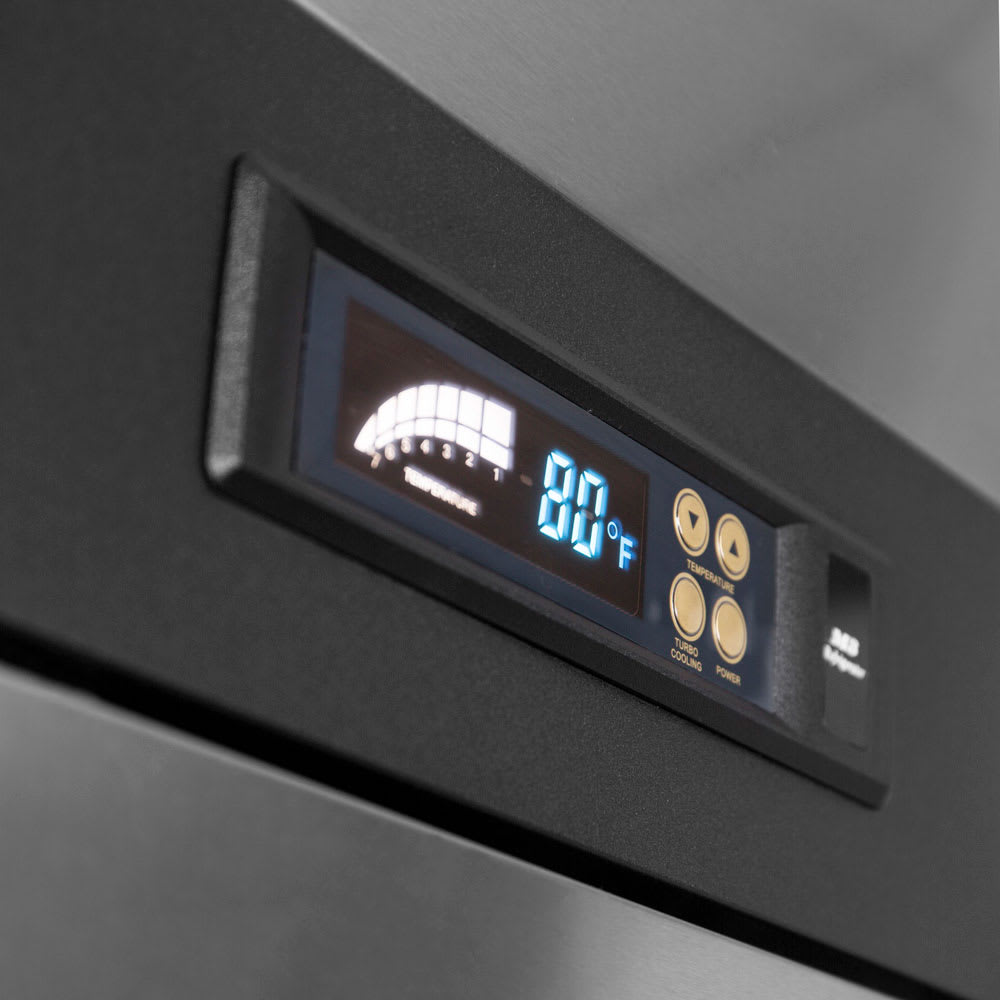

Digital Control System

• Temperature display offers a digital readout for monitoring
• Turbo Freeze function enables the compressor to run continuously for 2 hrs. for rapid cabinet cooling
• Smart defrost system activates only when it is needed, saving energy and keeping the product safe
• Automatic fan motor delay shuts off the fan when the door opens to keep warm air out of the cabinet
• Door alarm notifies staff if the door is not properly shut
• Early warning alarm program helps prevent malfunctions by detecting issues
• Refrigeration system condition is interpreted by the self-diagnosis program

Dimensions & Utilities

• Shelves: 24 in. W x 23¹⁄₂ in. D
• Interior: 24³⁄₄ in. W x 26¹⁄₂ in. D x 60⁵⁄₈ in. H
• Overall: 28³⁄₄ in. W x 32³⁄₄ in. D x 83 in. H
• 4.4 A, ¹⁄₂ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

Note: Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.

From The Manufacturer

M3 Freezer, reach-in, one-section, 21.7 cu. ft., self-contained, self-cleaning condenser device equipped, exterior LED digital thermometer, door open beep, self-diagnostic monitoring system, hot gas condensate system, smart fuzzy defrost, automatic fan motor delays, door pressure release, LED interior lighting, (1) hinged solid door with recessed handle & lock, field reversible, (3) PE coated wire shelves, stainless steel front & sides (galvanized steel top, bottom & back), aluminum interior with stainless steel floor, top mount compressor, R290 Hydrocarbon refrigerant, 3/8 HP, 115v/60/1-ph, 4.4 amps, NEMA 5-15P, ETL-Sanitation, cETLus, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

Turbo Air M3F24-1-N Specifications

Spec Attribute	Spec Value
Manufacturer	Turbo Air
Amps	4.4
Color	Silver
Compressor Location	Top
Cubic Feet	21.6
Depth (in)	32.75
Door Design	Full
Door Type	Solid
Exterior Construction	Stainless Steel
Height (in)	83
Hertz	60
Interior Construction	Aluminum
Sections	1
Supports	Casters
Thermometer Type	Digital
Type	Reach In
Voltage	115
Warranty	5-year Parts & Labor, 7-year Limited Compressor Parts
Width (in)	28.75
Series	M3
Refrigerant	R290 (Hydrocarbon)
Phase	1
Rating	Better
Product	Reach-In Freezers
Product Type	Commercial Refrigeration
NEMA	5-15P
Hinge Configuration	Right
Weight	280.00
